Kenwood DMX8710S 6.92" AM FM BT Wireless Apple CarPlay, Android Auto, HD Radio

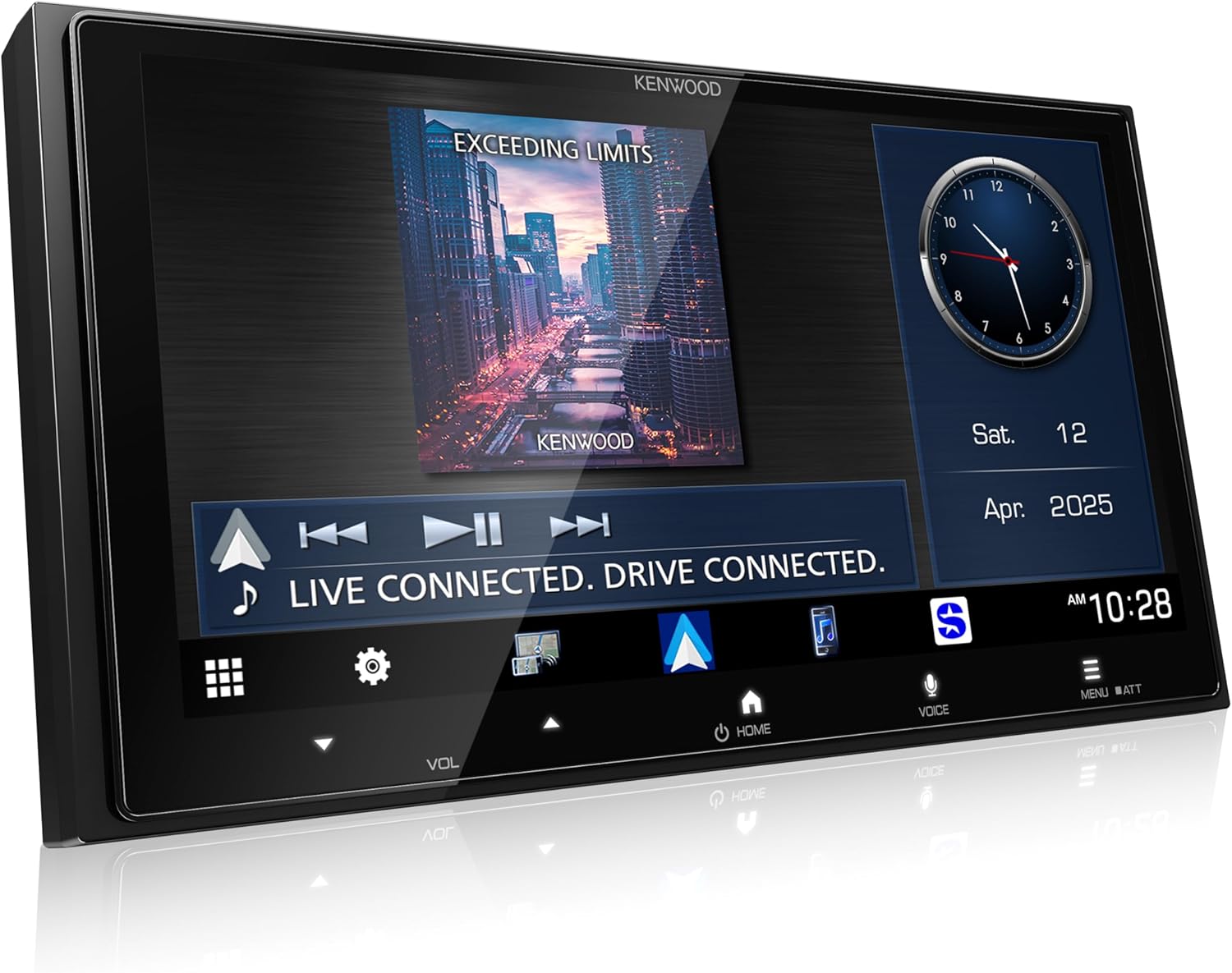

The Kenwood DMX8710S is a 6.92-inch double-din digital multimedia receiver built for drivers who want a sharper screen than the typical WVGA radio, modern wireless smartphone integration, and clean aftermarket expansion without stepping into a bulky floating-screen chassis. Kenwood positions it as a high-definition in-dash receiver with built-in Bluetooth and Wi-Fi, wireless or wired Apple CarPlay and Android Auto, HDMI input, SiriusXM readiness, iDatalink Maestro compatibility, and dual camera support.

For real-world installs, this is the kind of unit that makes sense when the goal is a proper double-DIN upgrade with fast daily usability, stronger screen clarity, front/rear camera expansion, and enough preamp voltage and tuning control to support a clean amplified system. Kenwood also lists a 13-band graphic EQ, digital time alignment, 3-volt preouts, a 50W x 4 max internal amp, and a 178 x 100 x 109 mm chassis, which keeps it compact enough to matter behind the dash.

Key Features

• 6.92" high-definition capacitive touchscreen display

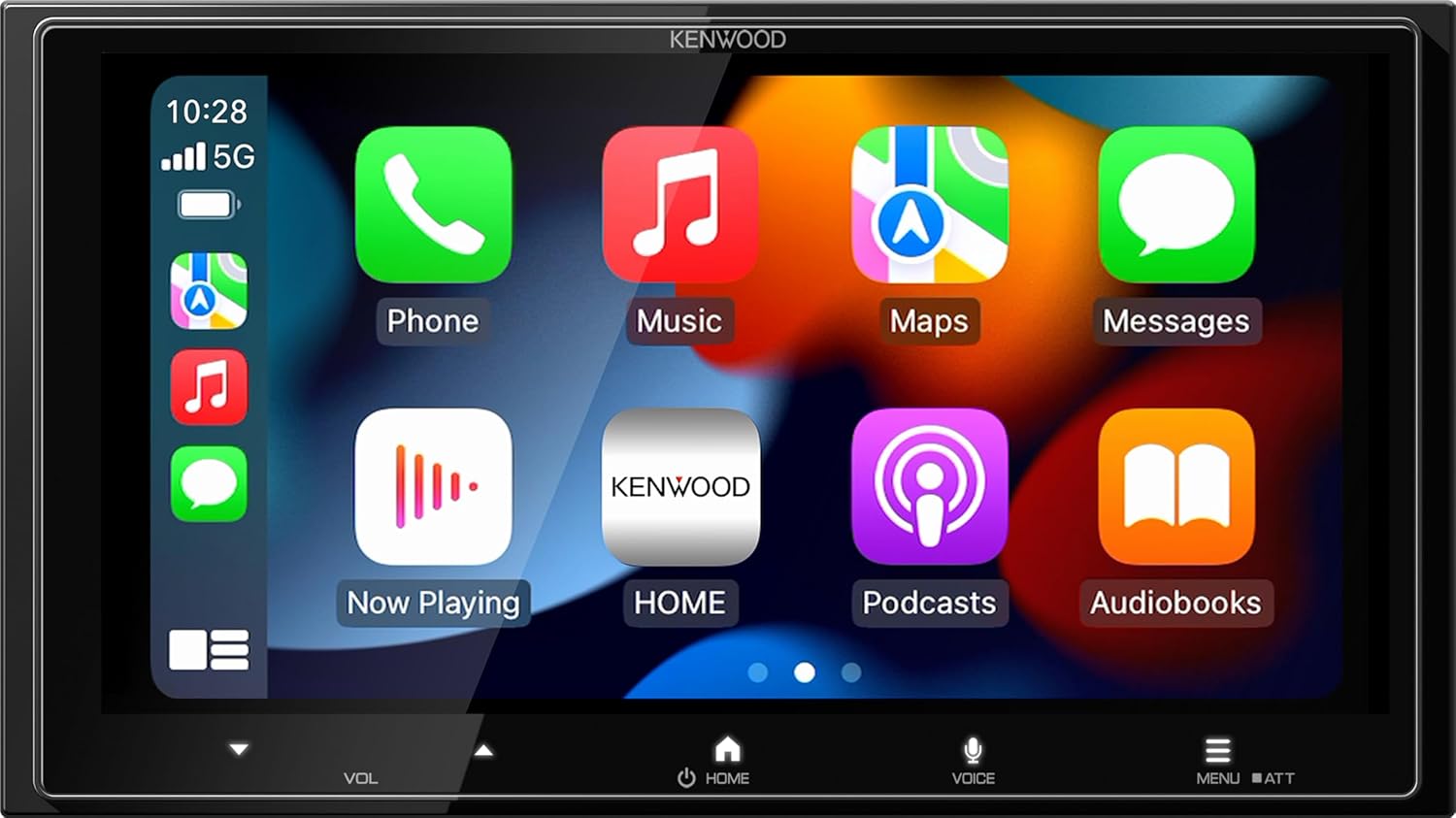

• Wireless and wired Apple CarPlay
• Wireless and wired Android Auto
• Wireless mirroring for smartphones
• HDMI input for compatible external devices
• Built-in Bluetooth and Wi-Fi
• 2 camera inputs with HD rear camera readiness
• iDatalink Maestro ready
• SiriusXM Radio Ready
• 3 preouts (3V)

Connectivity & Integration

• Apple CarPlay: Wired and wireless
• Android Auto: Wired and wireless
• Bluetooth: Built-in Bluetooth with dual phone connection support
• Wi-Fi: Built-in Wi-Fi for wireless smartphone connectivity
• Smartphone mirroring: Wireless mirroring for smartphones; dealer sheet also identifies wireless and USB mirroring support for compatible iPhones and Android phones
• USB: Rear USB, up to 2.1A charging
• HDMI: HDMI input supported; optional Kenwood KCA-HD200 cable sold separately
• Cameras: 2 camera inputs for front and rear camera addition; HD rear camera ready

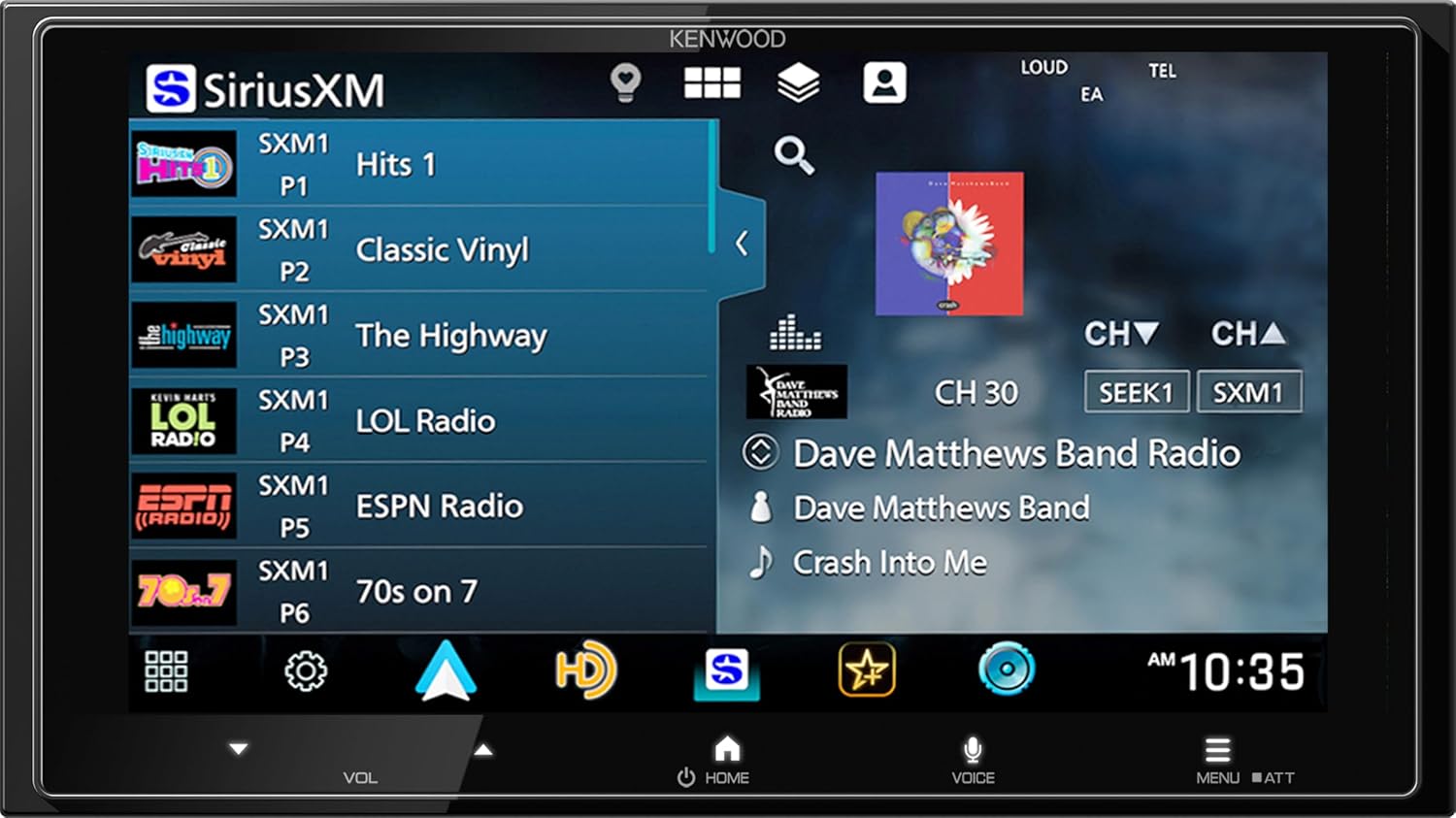

• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner
• Kenwood camera links: CMOS-740HDLP, CMOS-320LP, CMOS-240U, CMOS-230LP

Audio & System Control

• 13-band graphic EQ for system tuning
• Digital time alignment for improved staging from the driver seat

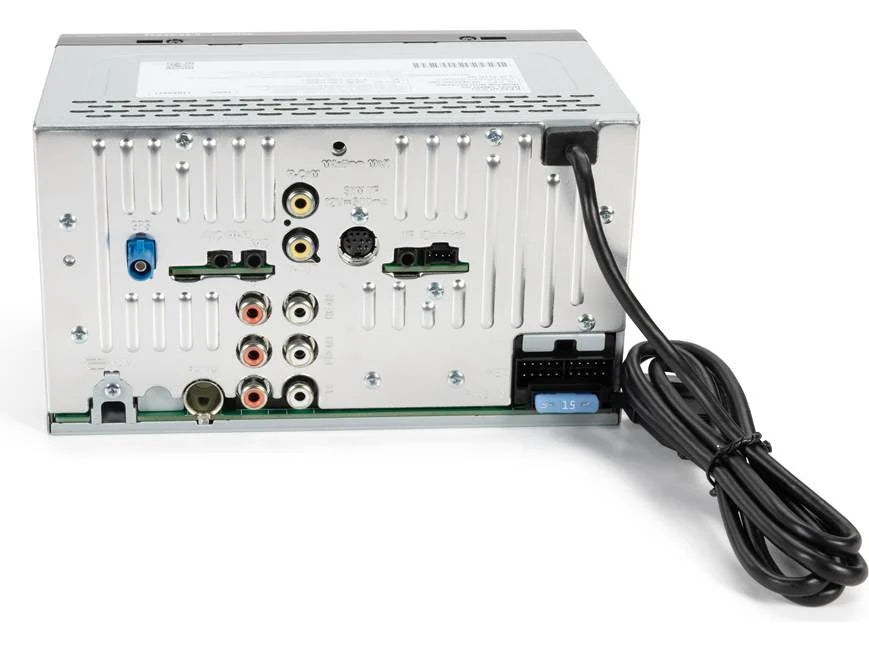

• 3 pairs of RCA preamp outputs at 3V
• 50 watts x 4 max internal amplifier
• 24-bit D/A converter
• Supports MP3, WMA, AAC, WAV, and FLAC audio playback from USB

Installation & Fitment Notes

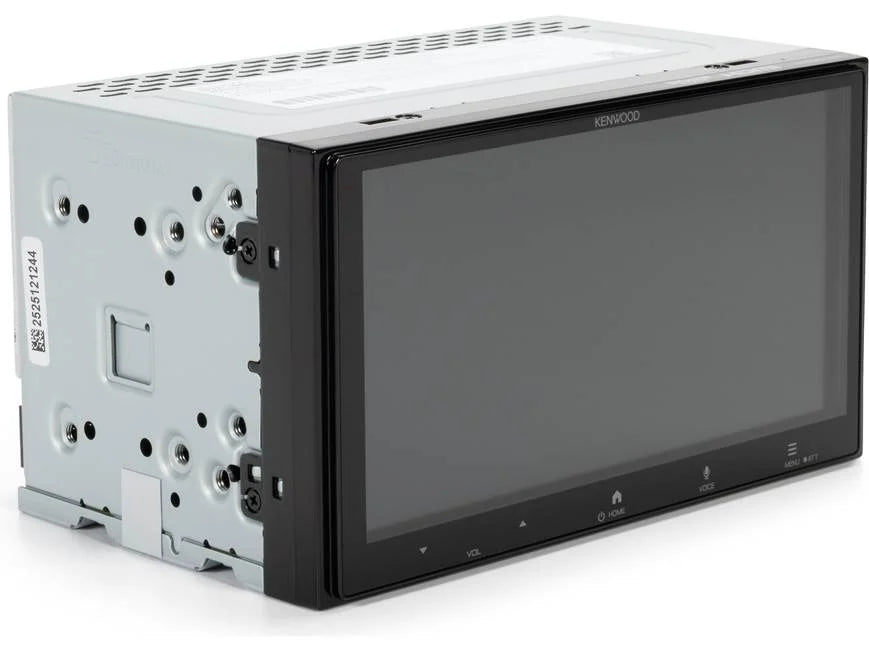

• Chassis type: Standard double-DIN in-dash receiver
• Chassis size: 178 mm x 100 mm x 109 mm (7" x 3-15/16" x 4-5/16")
• Parking brake connection is required to access certain settings and video-related functions
• Factory integration: Supports iDatalink Maestro RR/RR2 for retained factory features and supported vehicle data display when used with the proper vehicle-specific interface hardware
• Dash kit, wiring harness, antenna adapter, Maestro module, and any vehicle-specific integration parts are sold separately
• Vehicle fitment is application-specific; confirm dash opening and required interfaces before purchase

Technical Specifications

• Receiver model: DMX8710S

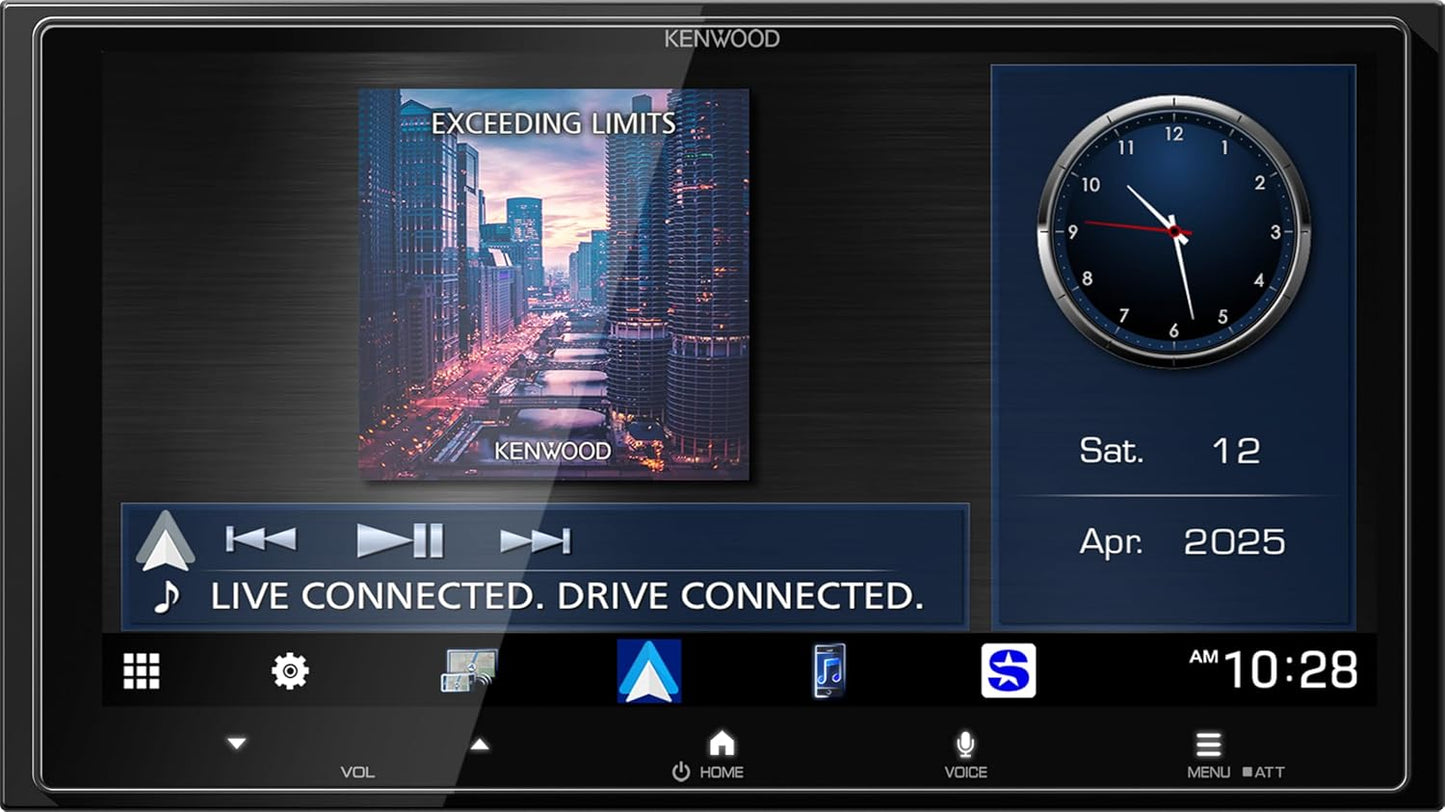

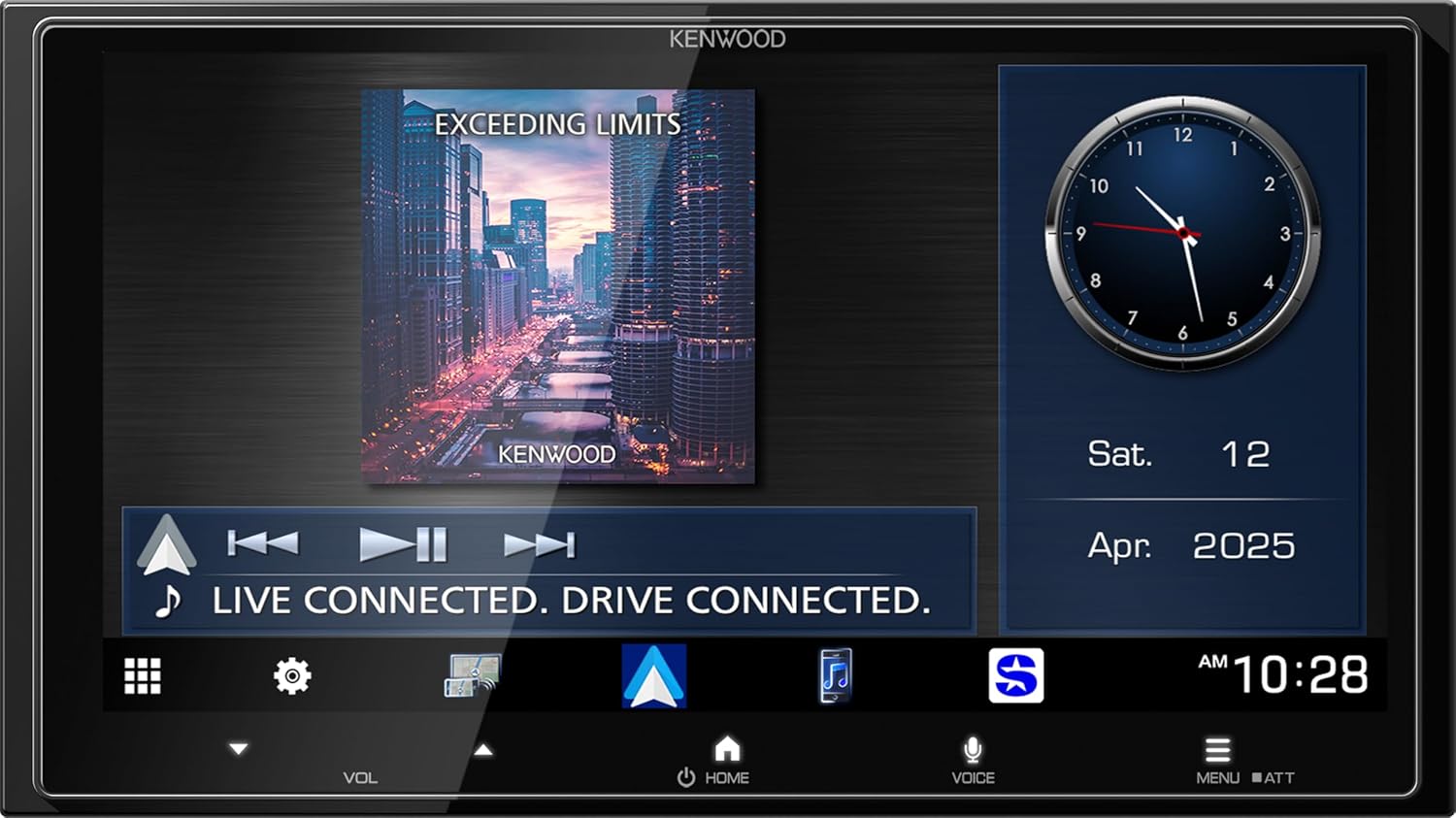

• Screen size: 6.92" capacitive HD touchscreen
• Display resolution: 1280 x 720
• Smartphone integration: Wired/wireless Apple CarPlay; wired/wireless Android Auto
• Mirroring: Wireless mirroring for smartphones
• USB: Rear USB Type-A, USB 2.0 High Speed, up to 2.1A
• HDMI input: Yes
• Bluetooth: Version 5.3
• Wi-Fi: 802.11 a/b/g/n/ac dual-band (2.4 GHz / 5 GHz)
• Camera inputs: 2 camera inputs
• Rear camera support: HD rear camera ready
• Preamp outputs: 3 preouts, 3V
• EQ: 13-band graphic EQ
• Time alignment: Digital time alignment
• Audio decoder support: MP3 / WMA / AAC / WAV / FLAC
• Video decoder support: MPEG1/2, MPEG4, WMV, H.264, MKV
• Speaker impedance: 4-8 ohms
• Max internal power: 50W x 4

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX8710S
• UPC: 019048242006
• Sold As: Each

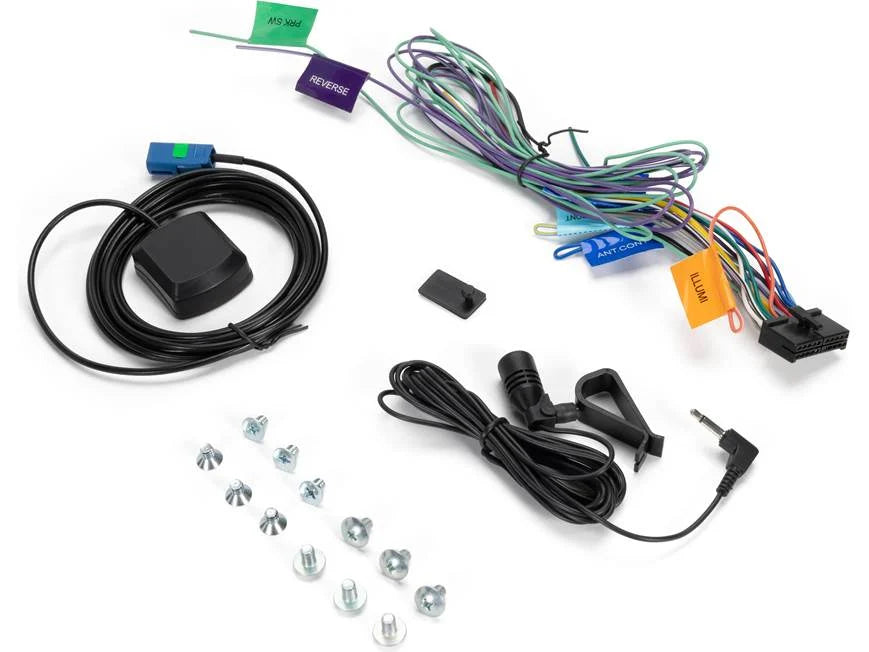

• Included Components: DMX8710S receiver, wiring harness, Bluetooth microphone, trim ring, mounting hardware, and documentation
