Kenwood CMOS-240U Rearview Reverse Universal Backup Camera with 4 Mounting Options
Kenwood CMOS-240U Rearview Reverse Universal Backup Camera with 4 Mounting Options
Couldn't load pickup availability
***Kenwood has discontinued the CMOS-240U camera. You MAY receive the newer supersceded Kenwood Camera, CMOS-230LP once inventory of discontinued CMOS-240U camera is exhausted***

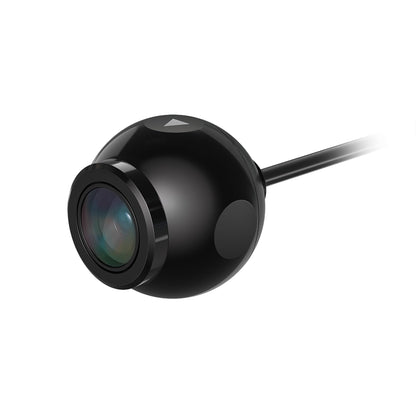

Kenwood CMOS-240U is a universal wired backup camera with a 1/3" color CMOS sensor and approximately 470,000 pixels that provides a wide field of view suitable for rear-view or front-view applications. The camera offers a 125° horizontal and 103° vertical viewing angle for near-field visibility behind or in front of the vehicle, and on-screen parking guidelines can be enabled or disabled depending on installation preferences.
Designed for vehicles with an RCA video input on the display or head unit, the CMOS-240U connects via a supplied 24.5′ cable harness with both video and power/ground leads. The camera’s waterproof and dust-proof IP69K-rated housing and multiple included mounting brackets allow flush, square, license-plate, and angled surface mounting. A jumper configuration allows selection between mirror (reverse) or normal image orientation.
Key Features
- Universal wired backup camera with composite video output
- 1/3" color CMOS sensor (~470,000 pixels)
- 125° horizontal and 103° vertical viewing angles
- Selectable on-screen parking guidelines
- Selectable reverse (mirror) or normal image orientation
- IP69K waterproof and dust-proof construction

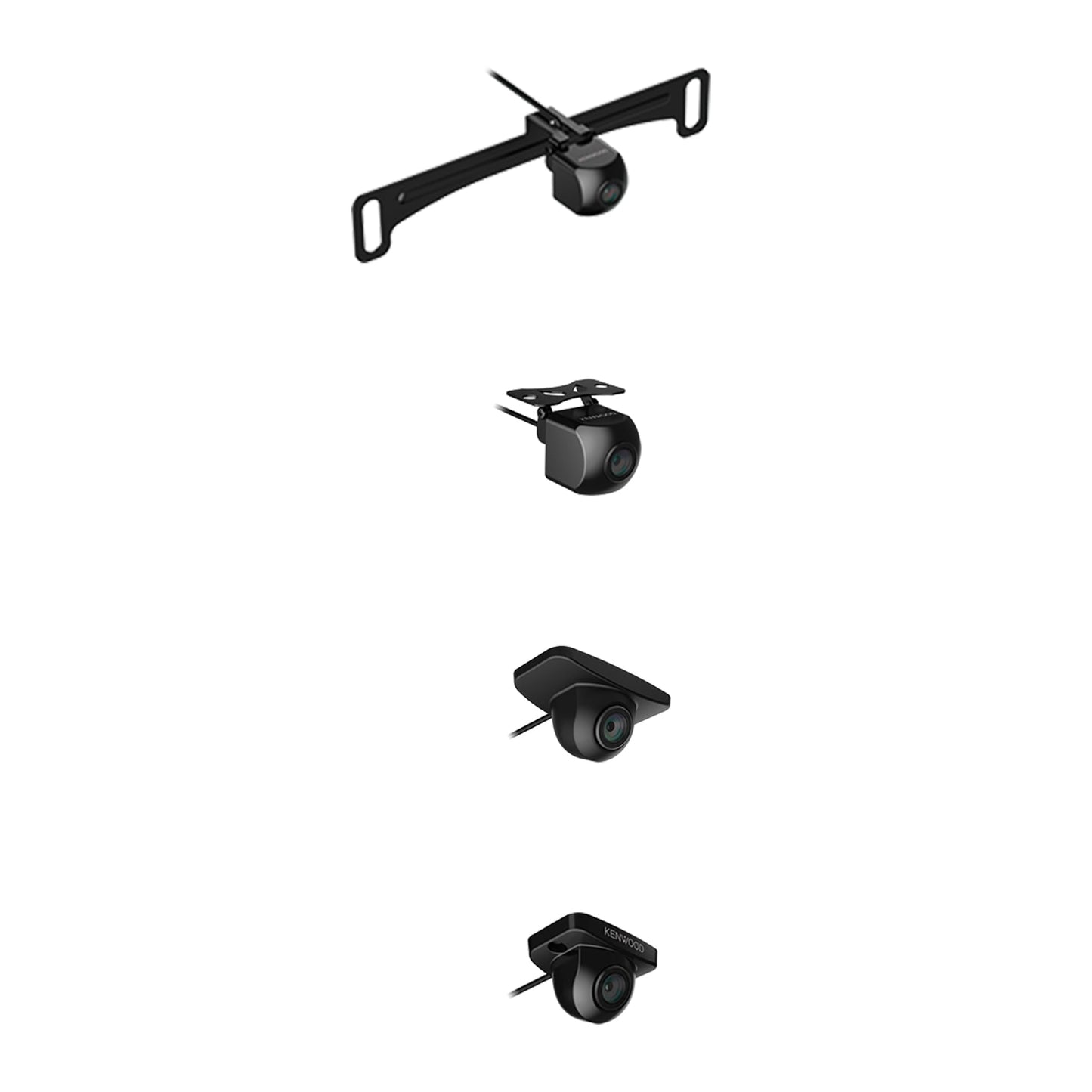

- Includes 4-way mounting options
- 24.5′ cable harness with video, power, and ground leads
Technical Specifications
| Brand | KENWOOD |
| Model | CMOS-240U |
| Camera Type | Universal backup / front/rear view camera |
| Image Sensor | 1/3" color CMOS |
| Effective Resolution | ~470,000 pixels |
| Viewing Angles | 125° horizontal / 103° vertical |
| Video Output | 1.0 Vp-p / 75 Ω composite (RCA) |
| Operating Voltage | DC 9–16 V |
| IP Rating | IP69K waterproof & dust-proof |

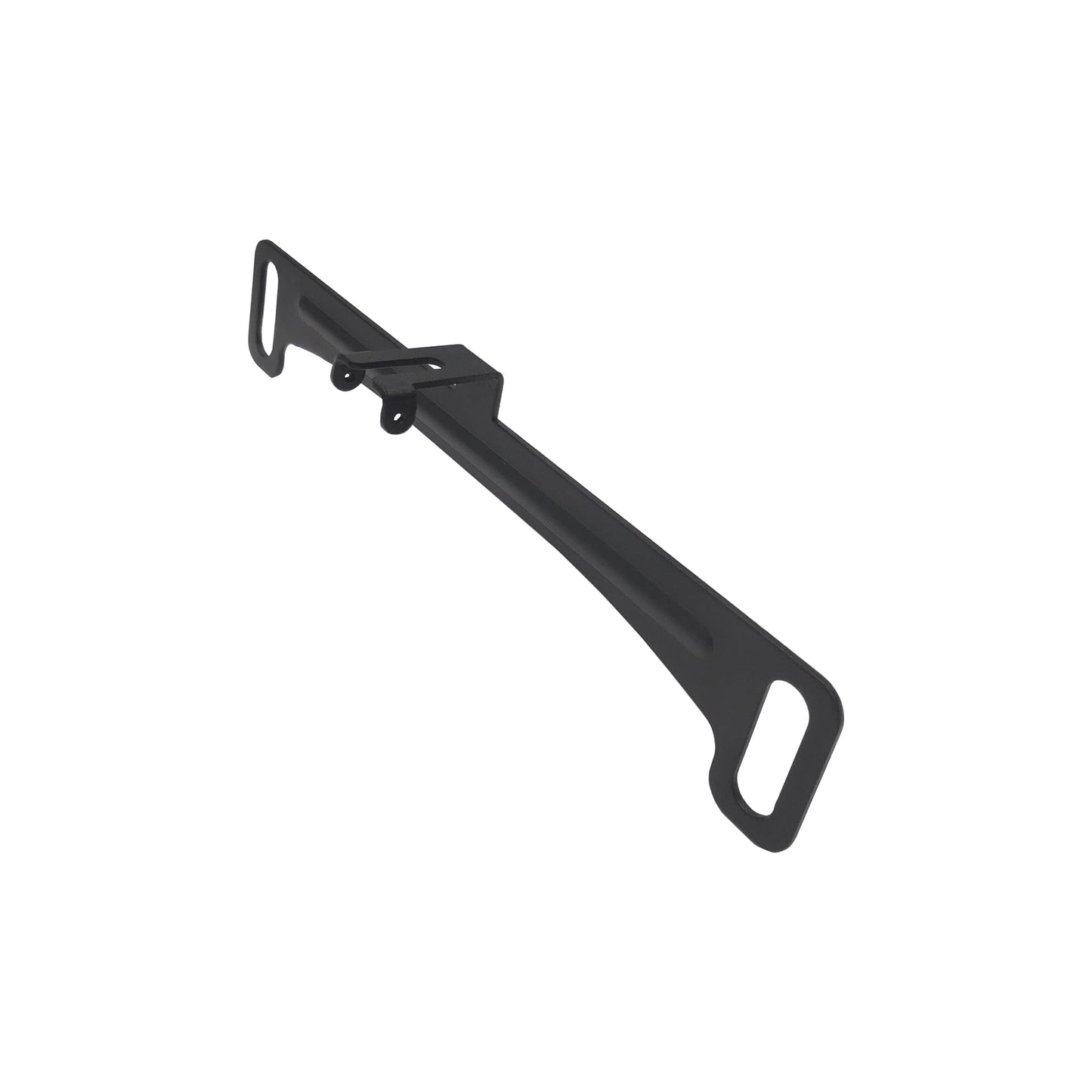

| Mounting Options | License plate, square surface, angled, rubber bracket |
| Cable Length | 24.5′ (video + power/ground) |
Ideal Applications
- Rear-view backup camera connected to aftermarket head units with RCA video input
- Front-view camera to complement parking or towing visibility
- Vehicles requiring selectable image orientation and parking guidelines
What’s Included
- Kenwood CMOS-240U universal backup camera
- Four mounting brackets
- 24.5′ cable harness with video and power/ground
- Installation hardware
