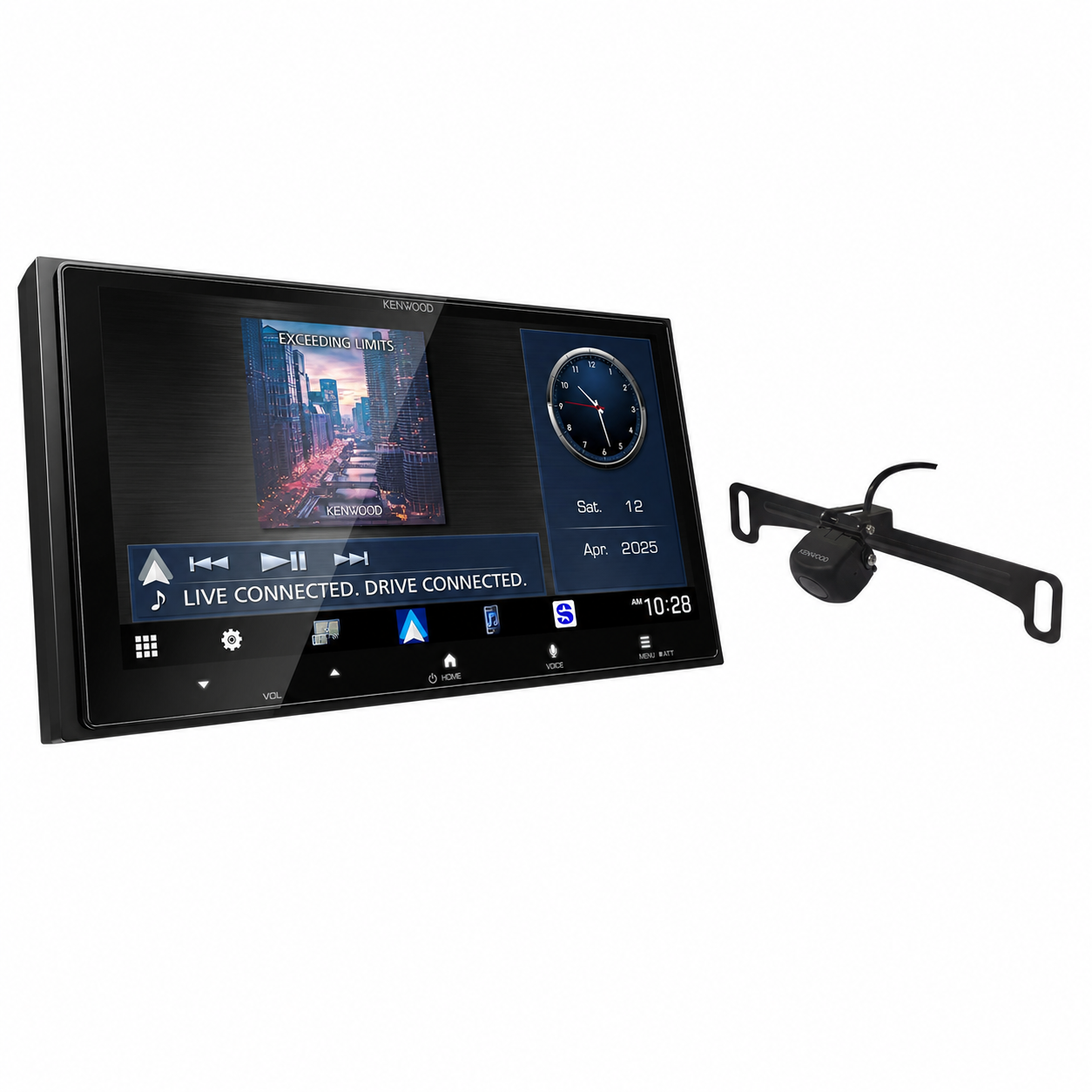

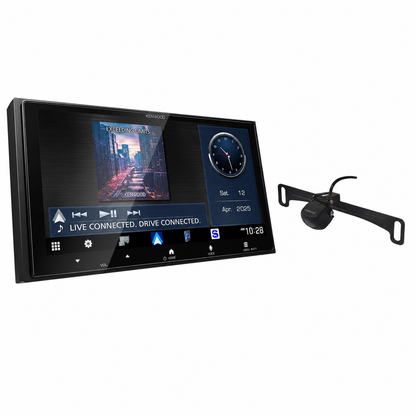

Kenwood DMX8710S 6.92" HD Wireless CarPlay Receiver + CMOS-230LP1 Backup Camera Bundle

The Kenwood DMX8710-230LP1 bundle pairs the DMX8710S receiver with the CMOS-230LP1 rear-view camera. It provides the exact Kenwood-approved receiver-and-camera combination under one official bundle part number, while preserving the full receiver information shoppers need.

What's Included

• DMX8710S receiver and its standard included accessories
• CMOS-230LP1 — Kenwood rear-view camera with the current low-profile license-plate mounting bracket

Why this bundle makes sense

• Matched Kenwood receiver and rear-view camera in one purchase
• Low-profile license-plate mounting solution for a clean, centered camera installation
• Receiver connectivity, audio controls, and installation information are retained from the raw head-unit listing
• Official Kenwood package MPN and UPC support clean marketplace and fulfillment matching

Bundle Identification

• Official Kenwood bundle MPN: DMX8710-230LP1
• Bundle UPC: 019048244864
• Condition: New
• Sold as: One complete two-component bundle

DMX8710S receiver details

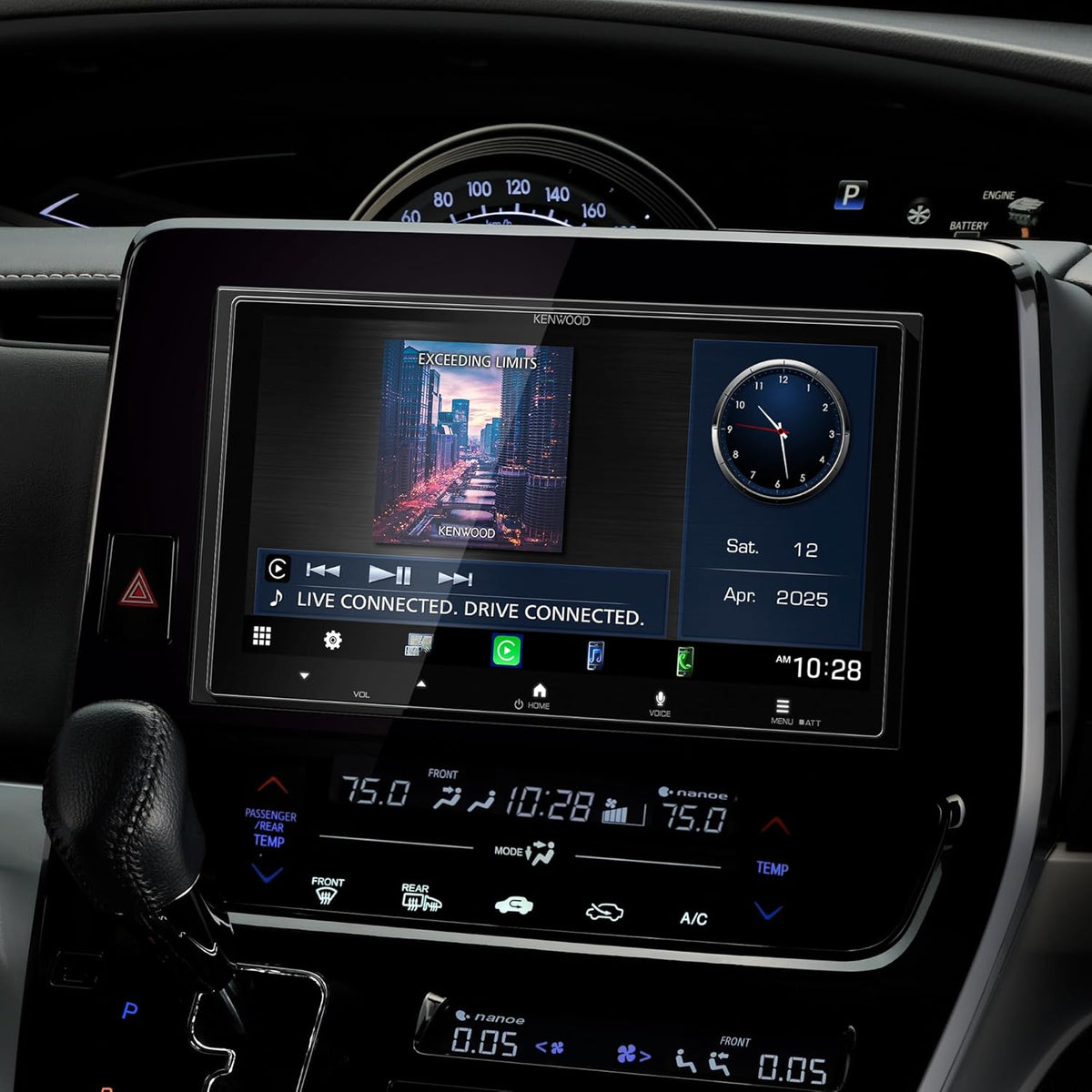

The Kenwood DMX8710S is a 6.92-inch double-din digital multimedia receiver built for drivers who want a sharper screen than the typical WVGA radio, modern wireless smartphone integration, and clean aftermarket expansion without stepping into a bulky floating-screen chassis. Kenwood positions it as a high-definition in-dash receiver with built-in Bluetooth and Wi-Fi, wireless or wired Apple CarPlay and Android Auto, HDMI input, SiriusXM readiness, iDatalink Maestro compatibility, and dual camera support.

For real-world installs, this is the kind of unit that makes sense when the goal is a proper double-DIN upgrade with fast daily usability, stronger screen clarity, front/rear camera expansion, and enough preamp voltage and tuning control to support a clean amplified system. Kenwood also lists a 13-band graphic EQ, digital time alignment, 3-volt preouts, a 50W x 4 max internal amp, and a 178 x 100 x 109 mm chassis, which keeps it compact enough to matter behind the dash.

Key Features

• 6.92" high-definition capacitive touchscreen display
• Wireless and wired Apple CarPlay
• Wireless and wired Android Auto
• Wireless mirroring for smartphones
• HDMI input for compatible external devices
• Built-in Bluetooth and Wi-Fi
• 2 camera inputs with HD rear camera readiness
• iDatalink Maestro ready
• SiriusXM Radio Ready
• 3 preouts (3V)

Connectivity & Integration

• Apple CarPlay: Wired and wireless
• Android Auto: Wired and wireless
• Bluetooth: Built-in Bluetooth with dual phone connection support
• Wi-Fi: Built-in Wi-Fi for wireless smartphone connectivity
• Smartphone mirroring: Wireless mirroring for smartphones; dealer sheet also identifies wireless and USB mirroring support for compatible iPhones and Android phones
• USB: Rear USB, up to 2.1A charging
• HDMI: HDMI input supported; optional Kenwood KCA-HD200 cable sold separately
• Cameras: 2 camera inputs for front and rear camera addition; HD rear camera ready
• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner

Audio & System Control

• 13-band graphic EQ for system tuning
• Digital time alignment for improved staging from the driver seat
• 3 pairs of RCA preamp outputs at 3V
• 50 watts x 4 max internal amplifier
• 24-bit D/A converter
• Supports MP3, WMA, AAC, WAV, and FLAC audio playback from USB

Installation & Fitment Notes

• Chassis type: Standard double-DIN in-dash receiver
• Chassis size: 178 mm x 100 mm x 109 mm (7" x 3-15/16" x 4-5/16")
• Parking brake connection is required to access certain settings and video-related functions
• Factory integration: Supports iDatalink Maestro RR/RR2 for retained factory features and supported vehicle data display when used with the proper vehicle-specific interface hardware
• Dash kit, wiring harness, antenna adapter, Maestro module, and any vehicle-specific integration parts are sold separately
• Vehicle fitment is application-specific; confirm dash opening and required interfaces before purchase

Technical Specifications

• Receiver model: DMX8710S
• Screen size: 6.92" capacitive HD touchscreen
• Display resolution: 1280 x 720
• Smartphone integration: Wired/wireless Apple CarPlay; wired/wireless Android Auto
• Mirroring: Wireless mirroring for smartphones
• USB: Rear USB Type-A, USB 2.0 High Speed, up to 2.1A
• HDMI input: Yes
• Bluetooth: Version 5.3
• Wi-Fi: 802.11 a/b/g/n/ac dual-band (2.4 GHz / 5 GHz)
• Camera inputs: 2 camera inputs
• Rear camera support: HD rear camera ready
• Preamp outputs: 3 preouts, 3V
• EQ: 13-band graphic EQ
• Time alignment: Digital time alignment
• Audio decoder support: MP3 / WMA / AAC / WAV / FLAC
• Video decoder support: MPEG1/2, MPEG4, WMV, H.264, MKV
• Speaker impedance: 4-8 ohms
• Max internal power: 50W x 4

CMOS-230LP1 included component details

The Kenwood CMOS-230LP1 is a rear backup camera package that combines the CMOS-230 camera with a license plate mounting attachment for a clean, low-profile installation. It is built for drivers who want a simple and reliable rear camera solution with a compact camera housing and a clean mounting setup that works well on a wide range of vehicles.

This package is designed for rear-view camera applications and includes the camera, license plate mounting bracket, and installation hardware. The CMOS-230 camera uses a 1/3.6-inch color CMOS sensor with 330,000 effective pixels, a wide viewing angle, and a waterproof design for dependable daily use.

Key Features

• Rear backup camera package with included license plate mounting attachment
• Compact low-profile camera design
• 1/3.6-inch color CMOS sensor with 330,000 effective pixels
• Approx. 128° horizontal and 103° vertical viewing angle
• Waterproof camera design
• Includes powder-coated license plate mounting bracket
• Works with aftermarket receivers and monitors that accept a composite video camera input
• Designed for clean rear-view camera installation on cars, trucks, and SUVs

Connectivity & Integration

• Camera type: Rear-view backup camera
• Mounting style: License plate mounting attachment included
• Video compatibility: Designed for use with receivers or monitors that support composite video camera input
• Installation flexibility: Compact housing helps with clean placement in many rear vehicle applications
• Use case: Intended for reverse rear-view camera applications

Image & System Performance

• Wide-angle rear view helps improve visibility behind the vehicle during parking and backing maneuvers
• Compact CMOS camera design provides a clean OEM-style appearance when properly installed
• Built for buyers who want a straightforward rear camera solution without stepping up to a more complex multi-view or HD-only system
• Good fit for daily-driven vehicles needing a practical camera add-on for aftermarket radio upgrades

Installation & Fitment Notes

• Camera type: Rear-view camera
• Bracket style: License plate mounting attachment included
• Camera dimensions: 23.4 x 23.4 x 23.9mm
• Bracket dimensions: 179 x 35 x 29mm
• Camera cord length: 4.92 ft (1.5m)
• Power cable length: 24.6 ft (7.5m)
• Vehicle-specific routing, trigger wiring, and display compatibility should be confirmed before purchase

Technical Specifications

• Model: CMOS-230LP1
• Camera included: CMOS-230
• Mount included: License plate mounting attachment
• Camera sensor: 1/3.6-inch color CMOS
• Effective pixels: 330,000 pixels
• Viewing angle: Approx. 128° horizontal / 103° vertical
• Camera design: Waterproof
• Camera dimensions: 23.4 x 23.4 x 23.9mm
• Bracket dimensions: 179 x 35 x 29mm

Installation and compatibility

• Most vehicles require a vehicle-specific dash kit, wiring harness, antenna adapter, and sometimes an integration interface; these are sold separately unless specifically listed above.
• Confirm dash fitment, retained factory features, camera input compatibility, and required installation parts before ordering.
• Professional installation is recommended when the vehicle uses a factory amplifier, data-bus integration, steering-wheel controls, or retained cameras.

Optional SiriusXM satellite radio

This receiver is SiriusXM-ready. Add the SiriusXM SXV300V1 vehicle tuner to receive satellite-radio programming. The tuner and subscription are sold separately and are not included in this camera bundle.
