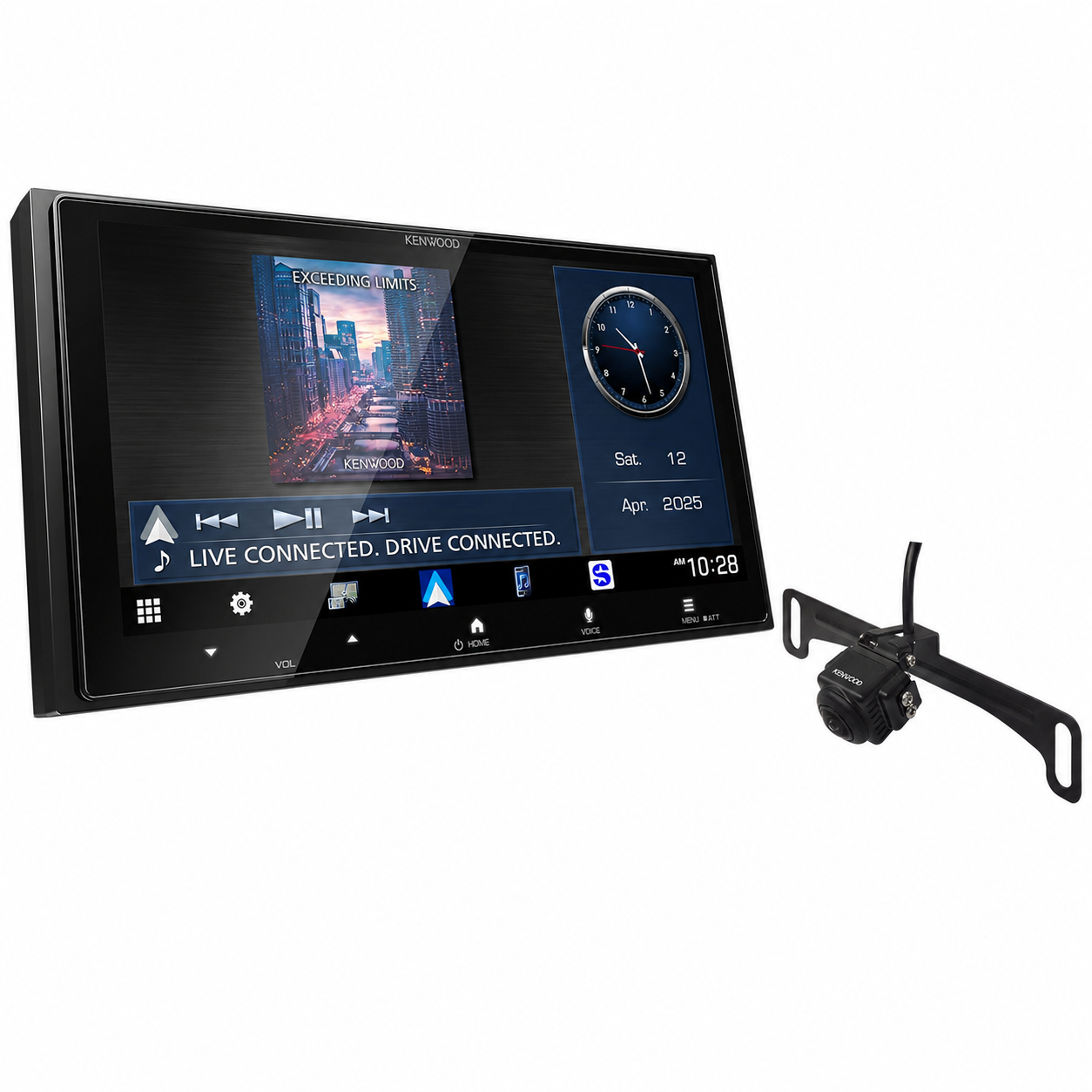

Kenwood DMX8710S 6.92" HD Wireless CarPlay Receiver + CMOS-740HDLP HD Camera Bundle

The Kenwood DMX8710-740LP bundle pairs the DMX8710S receiver with the CMOS-740HDLP rear-view camera. It provides the exact Kenwood-approved receiver-and-camera combination under one official bundle part number, while preserving the full receiver information shoppers need.

What's Included

• DMX8710S receiver and its standard included accessories
• CMOS-740HDLP — Kenwood Excelon HD rear-view camera with its low-profile license-plate mounting bracket

Why this bundle makes sense

• Matched Kenwood receiver and rear-view camera in one purchase
• Low-profile license-plate mounting solution for a clean, centered camera installation
• Receiver connectivity, audio controls, and installation information are retained from the raw head-unit listing
• Official Kenwood package MPN and UPC support clean marketplace and fulfillment matching

Bundle Identification

• Official Kenwood bundle MPN: DMX8710-740LP
• Bundle UPC: 019048244406
• Condition: New
• Sold as: One complete two-component bundle

DMX8710S receiver details

The Kenwood DMX8710S is a 6.92-inch double-din digital multimedia receiver built for drivers who want a sharper screen than the typical WVGA radio, modern wireless smartphone integration, and clean aftermarket expansion without stepping into a bulky floating-screen chassis. Kenwood positions it as a high-definition in-dash receiver with built-in Bluetooth and Wi-Fi, wireless or wired Apple CarPlay and Android Auto, HDMI input, SiriusXM readiness, iDatalink Maestro compatibility, and dual camera support.

For real-world installs, this is the kind of unit that makes sense when the goal is a proper double-DIN upgrade with fast daily usability, stronger screen clarity, front/rear camera expansion, and enough preamp voltage and tuning control to support a clean amplified system. Kenwood also lists a 13-band graphic EQ, digital time alignment, 3-volt preouts, a 50W x 4 max internal amp, and a 178 x 100 x 109 mm chassis, which keeps it compact enough to matter behind the dash.

Key Features

• 6.92" high-definition capacitive touchscreen display
• Wireless and wired Apple CarPlay
• Wireless and wired Android Auto
• Wireless mirroring for smartphones
• HDMI input for compatible external devices
• Built-in Bluetooth and Wi-Fi
• 2 camera inputs with HD rear camera readiness
• iDatalink Maestro ready
• SiriusXM Radio Ready
• 3 preouts (3V)

Connectivity & Integration

• Apple CarPlay: Wired and wireless
• Android Auto: Wired and wireless
• Bluetooth: Built-in Bluetooth with dual phone connection support
• Wi-Fi: Built-in Wi-Fi for wireless smartphone connectivity
• Smartphone mirroring: Wireless mirroring for smartphones; dealer sheet also identifies wireless and USB mirroring support for compatible iPhones and Android phones
• USB: Rear USB, up to 2.1A charging
• HDMI: HDMI input supported; optional Kenwood KCA-HD200 cable sold separately
• Cameras: 2 camera inputs for front and rear camera addition; HD rear camera ready
• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner

Audio & System Control

• 13-band graphic EQ for system tuning
• Digital time alignment for improved staging from the driver seat
• 3 pairs of RCA preamp outputs at 3V
• 50 watts x 4 max internal amplifier
• 24-bit D/A converter
• Supports MP3, WMA, AAC, WAV, and FLAC audio playback from USB

Installation & Fitment Notes

• Chassis type: Standard double-DIN in-dash receiver
• Chassis size: 178 mm x 100 mm x 109 mm (7" x 3-15/16" x 4-5/16")
• Parking brake connection is required to access certain settings and video-related functions
• Factory integration: Supports iDatalink Maestro RR/RR2 for retained factory features and supported vehicle data display when used with the proper vehicle-specific interface hardware
• Dash kit, wiring harness, antenna adapter, Maestro module, and any vehicle-specific integration parts are sold separately
• Vehicle fitment is application-specific; confirm dash opening and required interfaces before purchase

Technical Specifications

• Receiver model: DMX8710S
• Screen size: 6.92" capacitive HD touchscreen
• Display resolution: 1280 x 720
• Smartphone integration: Wired/wireless Apple CarPlay; wired/wireless Android Auto
• Mirroring: Wireless mirroring for smartphones
• USB: Rear USB Type-A, USB 2.0 High Speed, up to 2.1A
• HDMI input: Yes
• Bluetooth: Version 5.3
• Wi-Fi: 802.11 a/b/g/n/ac dual-band (2.4 GHz / 5 GHz)
• Camera inputs: 2 camera inputs
• Rear camera support: HD rear camera ready
• Preamp outputs: 3 preouts, 3V
• EQ: 13-band graphic EQ
• Time alignment: Digital time alignment
• Audio decoder support: MP3 / WMA / AAC / WAV / FLAC
• Video decoder support: MPEG1/2, MPEG4, WMV, H.264, MKV
• Speaker impedance: 4-8 ohms
• Max internal power: 50W x 4

CMOS-740HDLP included component details

The Kenwood eXcelon CMOS-740HDLP is a high-definition rear backup camera package that combines the CMOS-740HD camera with Kenwood’s CA-LPM10 license plate mounting attachment. It is built for drivers who want a cleaner factory-style rear camera solution with sharper image quality than a standard analog backup camera.

This camera is designed for use with select Kenwood receivers that support an HD camera input. It delivers up to 720p image output, a very wide horizontal viewing angle, HDR image processing, and an IP67 waterproof design for dependable daily-use rear visibility.

Key Features

• High-definition rear backup camera package with included license plate mounting bracket
• Compatible with select Kenwood receivers that support HD camera input
• Up to 1280 x 720 (720p) HD image output
• 1/3.8-inch color CMOS sensor with 1.3 megapixels
• Approx. 180° horizontal viewing angle and 103° vertical viewing angle
• HDR image processing for improved visibility in high-contrast conditions
• IP67 waterproof design
• Includes CA-LPM10 license plate mounting attachment and universal mounting hardware

Connectivity & Integration

• Receiver compatibility: Requires a compatible Kenwood receiver with HD camera input
• Camera type: Rear-view backup camera
• Mounting option: Includes license plate mounting attachment for a clean rear-install solution
• Universal install support: Includes universal mounting hardware in addition to the plate bracket
• Use case: Designed for reverse rear-view camera applications

Image & System Performance

• HD image output provides noticeably higher detail than standard low-resolution rear cameras when used with a compatible HD-capable Kenwood receiver
• HDR processing helps improve image clarity when bright daylight and shadowed areas appear in the same scene
• Wide-angle lens improves rearward field of view for parking and backing maneuvers
• Rated for low-light performance down to 1.0 lux

Installation & Fitment Notes

• Camera type: Rear-view camera
• Bracket style: License plate mounting attachment included
• Compatibility note: This camera is not for universal display compatibility; it requires a Kenwood receiver with HD camera input support
• Camera dimensions: 31.1 x 23.0 x 25.2mm
• Bracket dimensions: 179 x 35 x 29mm
• Camera cord length: 9.84 ft (3m)
• Power cable length: 19.69 ft (6m)
• Vehicle-specific routing, mounting position, and receiver compatibility should be confirmed before purchase

Technical Specifications

• Model: CMOS-740HDLP
• Camera included: CMOS-740HD
• Mount included: CA-LPM10 license plate mounting attachment
• Camera sensor: 1/3.8-inch color CMOS
• Resolution: Up to 1280 x 720 (720p)
• Megapixels: 1.3 megapixels
• Viewing angle: Approx. 180° horizontal / 103° vertical
• Minimum illumination: 1.0 lux
• Image processing: HDR
• Water resistance: IP67 waterproof design
• Camera dimensions: 31.1 x 23.0 x 25.2mm

Installation and compatibility

• Most vehicles require a vehicle-specific dash kit, wiring harness, antenna adapter, and sometimes an integration interface; these are sold separately unless specifically listed above.
• Confirm dash fitment, retained factory features, camera input compatibility, and required installation parts before ordering.
• Professional installation is recommended when the vehicle uses a factory amplifier, data-bus integration, steering-wheel controls, or retained cameras.

Optional SiriusXM satellite radio

This receiver is SiriusXM-ready. Add the SiriusXM SXV300V1 vehicle tuner to receive satellite-radio programming. The tuner and subscription are sold separately and are not included in this camera bundle.
