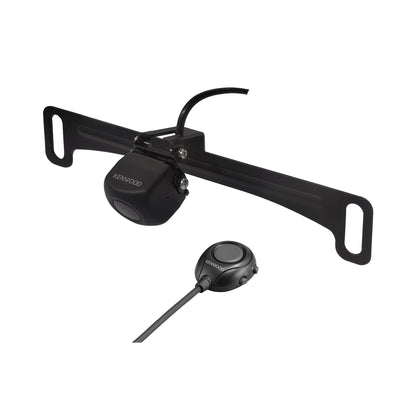

Kenwood CMOS-320LP Multi-Angle Front or Rear Car Backup Camera with License Plate Mounting Kit

The Kenwood CMOS-320LP is a multi-angle camera package that combines the CMOS-320 camera with Kenwood’s license plate mounting attachment for a clean front or rear camera installation. It is built for drivers who want more than a standard fixed-view backup camera, with selectable viewing modes and a wider field of view for tighter parking and low-speed maneuvering.

This camera can be configured for front or rear use and provides selectable Front, Rear, Corner, and Overhead viewing modes. The package includes both the license plate mounting attachment and universal mounting hardware, giving you more flexibility depending on the vehicle and install approach.

Key Features

• Multi-angle front or rear view camera package with included license plate mount
• Selectable viewing modes: Front / Rear / Corner / Overhead
• Can be configured for front-view or rear-view camera use
• Approx. 195° horizontal and 145° vertical viewing angle
• 1/3.6-inch color CMOS sensor with effective 330,000 pixels
• Waterproof camera design
• Includes license plate mounting attachment and universal mounting hardware

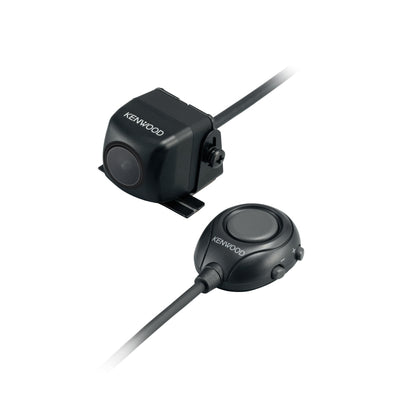

• Includes switch unit cable for view selection and setup

Connectivity & Integration

• Camera use: Front-view or rear-view installation capable
• View selection: Front / Rear / Corner / Overhead modes
• Mirror function: Image can be mirrored for front or rear camera configuration
• Mounting options: Includes license plate mounting attachment plus universal mounting hardware
• Installation flexibility: Designed for vehicles that need a wider-angle, selectable-view camera solution instead of a basic fixed-view camera

Image & System Performance

• Wide-angle lens gives broader vehicle-area coverage than a standard rear camera
• Selectable view modes help tailor the image to different vehicle positions and install goals
• Corner and Overhead views can improve visibility in tighter parking and low-speed maneuvering situations
• Built for buyers who want more camera flexibility than a standard single-view rear camera provides

Installation & Fitment Notes

• Camera type: Multi-angle front or rear camera

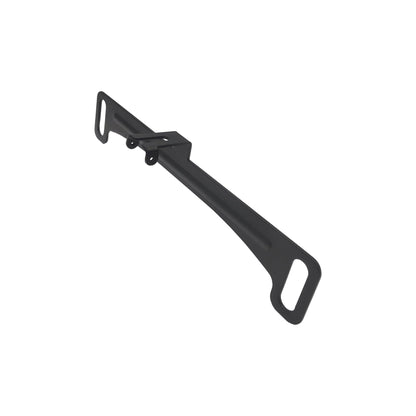

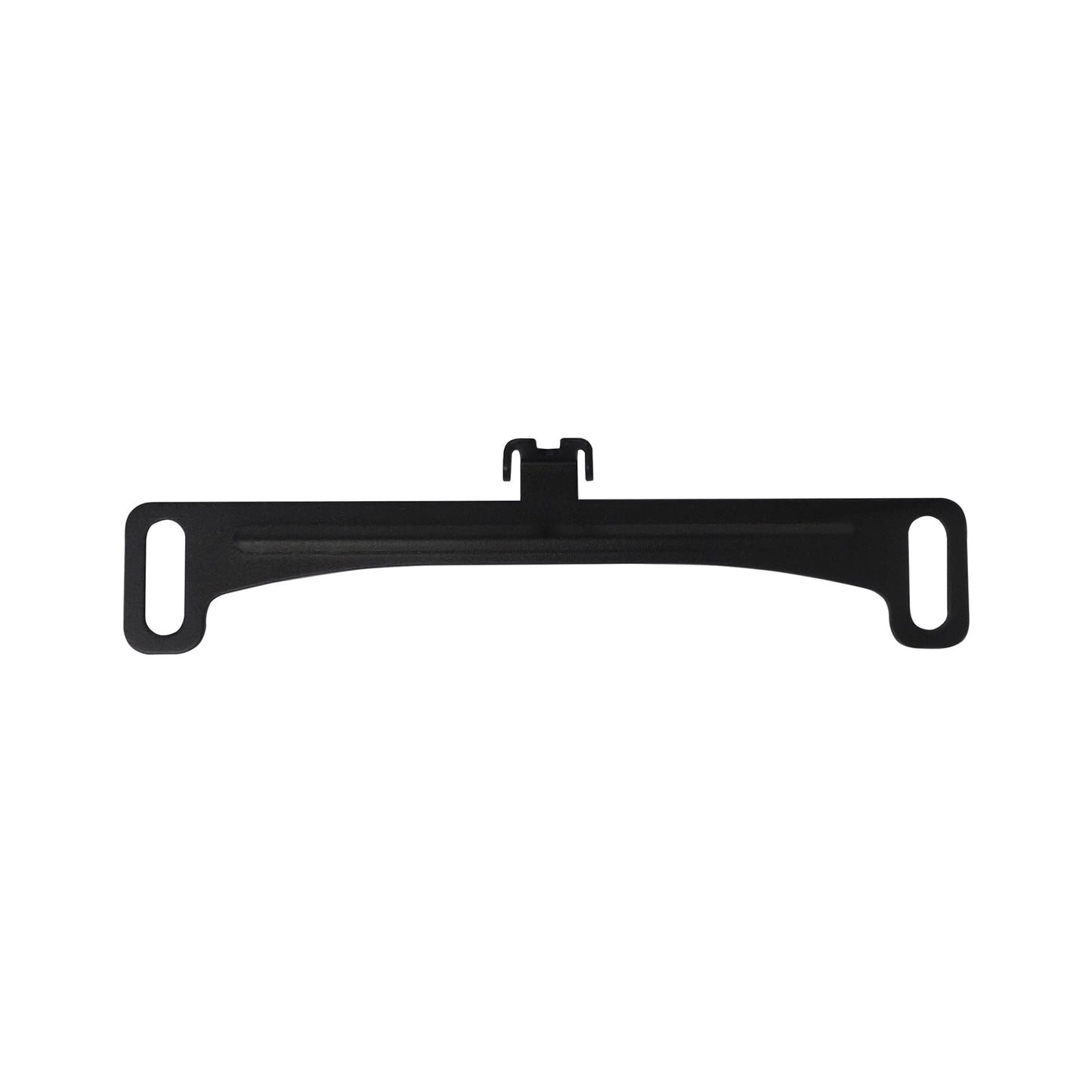

• Bracket style: License plate mounting attachment included
• Universal hardware: Included for alternate mounting approaches
• Camera dimensions: 23.4 x 23.4 x 26.1mm
• Bracket dimensions: 179 x 35 x 29mm
• Camera cord length: 4.92 ft (1.5m)
• Power cable length: 24.6 ft (7.5m)
• Switch unit cable length: 3.28 ft (1m)
• Vehicle-specific routing, trigger wiring, display compatibility, and mounting position should be confirmed before purchase

Technical Specifications

• Model: CMOS-320LP
• Camera included: CMOS-320
• Mount included: License plate mounting attachment
• Camera sensor: 1/3.6-inch color CMOS
• Effective pixels: 330,000 pixels
• Viewing angle: Approx. 195° horizontal / 145° vertical
• Camera views: Selectable Multi Angle View (Front / Rear / Corner / Over Head)
• Camera design: Waterproof
• Camera dimensions: 23.4 x 23.4 x 26.1mm
• Bracket dimensions: 179 x 35 x 29mm

Identifiers & Packaging

• Manufacturer Part Number (MPN): CMOS-320LP
• UPC: 019048238276
• Sold As: Each
• Included Components: CMOS-320 camera, license plate mounting attachment, universal mounting hardware, camera cord, power cable, switch unit cable, and documentation
