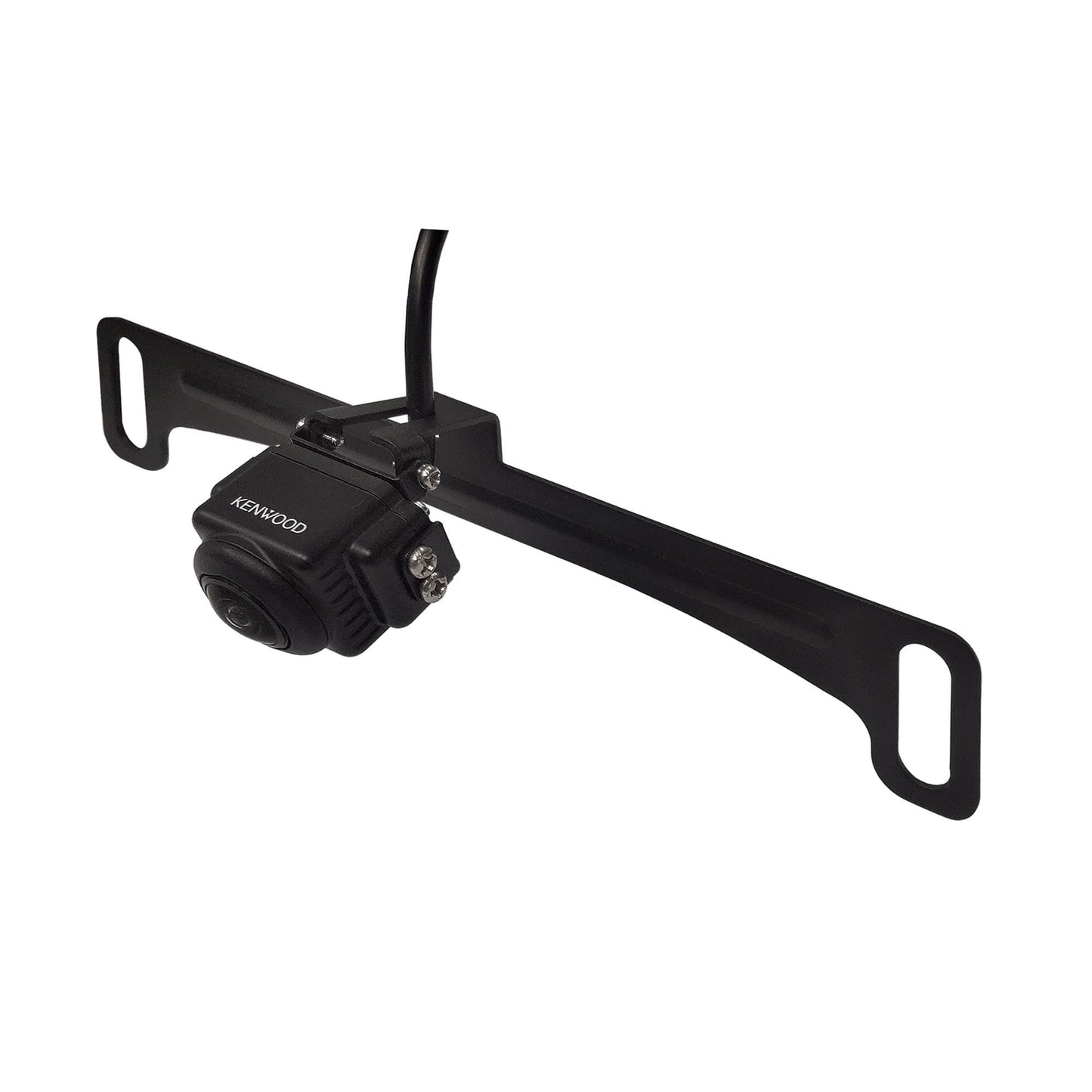

Kenwood Excelon CMOS-740HDLP High Definition Reverse Rear Backup Camera + Mount Bracket

The Kenwood eXcelon CMOS-740HDLP is a high-definition rear backup camera package that combines the CMOS-740HD camera with Kenwood’s CA-LPM10 license plate mounting attachment. It is built for drivers who want a cleaner factory-style rear camera solution with sharper image quality than a standard analog backup camera.

This camera is designed for use with select Kenwood receivers that support an HD camera input. It delivers up to 720p image output, a very wide horizontal viewing angle, HDR image processing, and an IP67 waterproof design for dependable daily-use rear visibility.

Key Features

• High-definition rear backup camera package with included license plate mounting bracket
• Compatible with select Kenwood receivers that support HD camera input
• Up to 1280 x 720 (720p) HD image output
• 1/3.8-inch color CMOS sensor with 1.3 megapixels
• Approx. 180° horizontal viewing angle and 103° vertical viewing angle
• HDR image processing for improved visibility in high-contrast conditions
• IP67 waterproof design

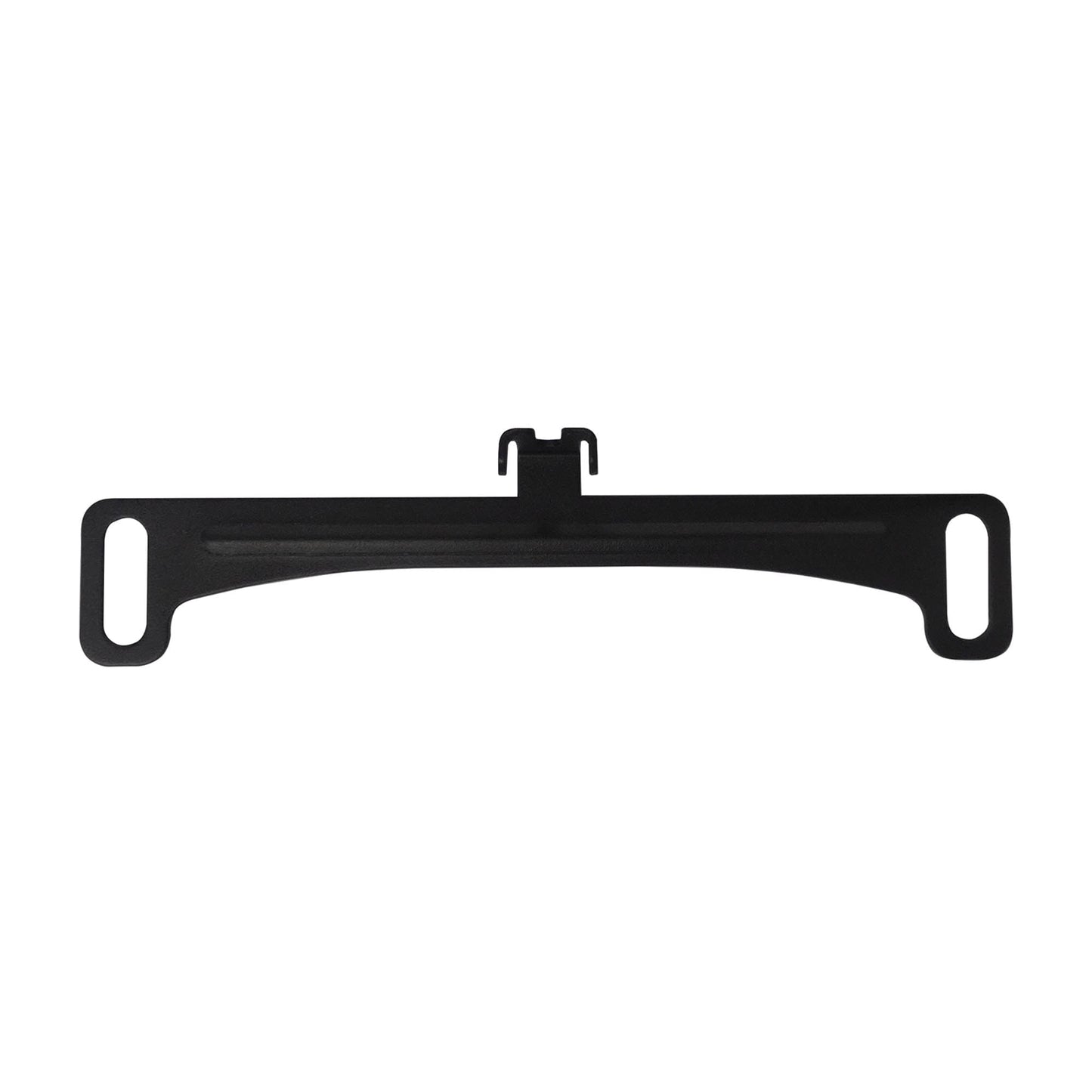

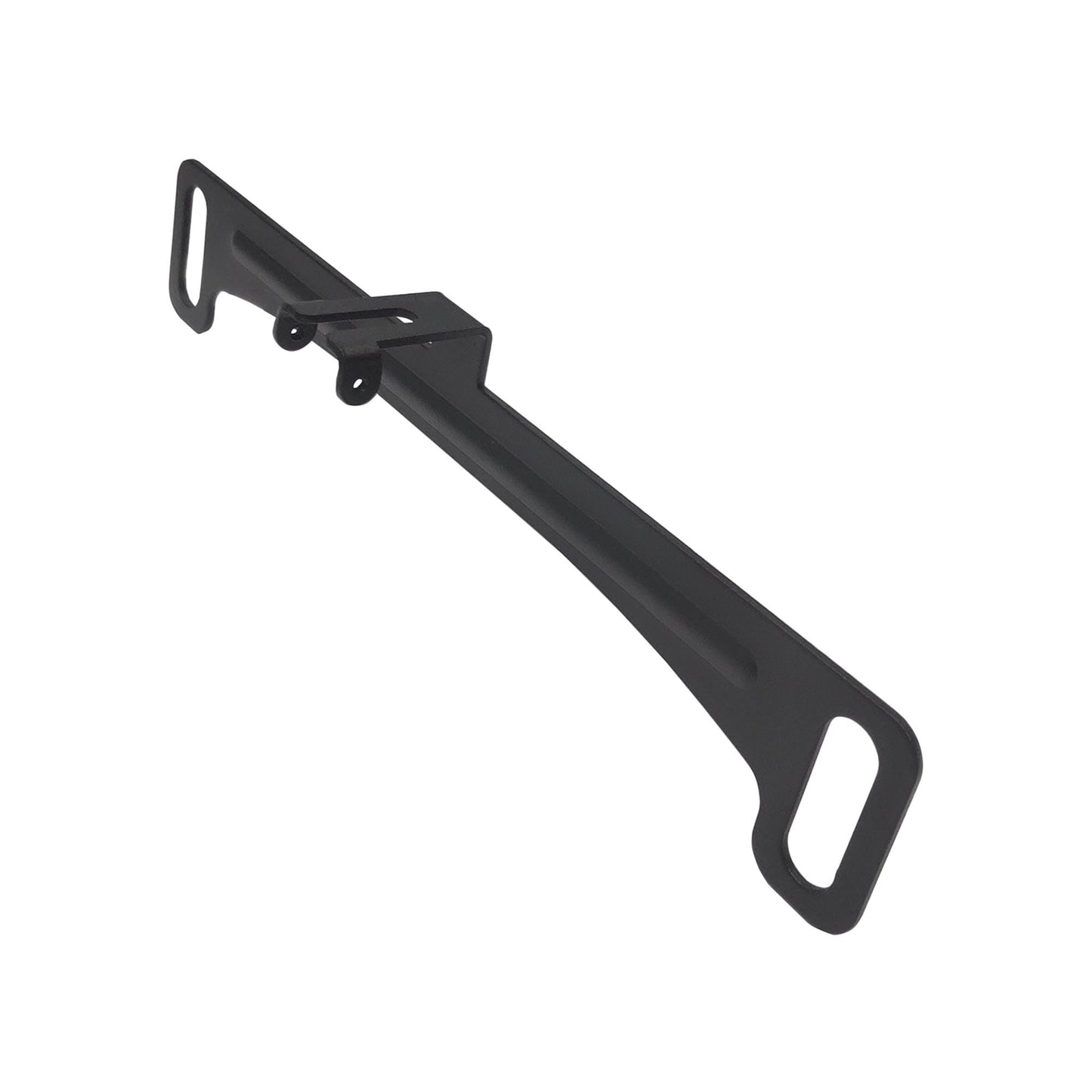

• Includes CA-LPM10 license plate mounting attachment and universal mounting hardware

Connectivity & Integration

• Receiver compatibility: Requires a compatible Kenwood receiver with HD camera input
• Camera type: Rear-view backup camera
• Mounting option: Includes license plate mounting attachment for a clean rear-install solution
• Universal install support: Includes universal mounting hardware in addition to the plate bracket
• Use case: Designed for reverse rear-view camera applications

Image & System Performance

• HD image output provides noticeably higher detail than standard low-resolution rear cameras when used with a compatible HD-capable Kenwood receiver
• HDR processing helps improve image clarity when bright daylight and shadowed areas appear in the same scene
• Wide-angle lens improves rearward field of view for parking and backing maneuvers
• Rated for low-light performance down to 1.0 lux

Installation & Fitment Notes

• Camera type: Rear-view camera
• Bracket style: License plate mounting attachment included
• Compatibility note: This camera is not for universal display compatibility; it requires a Kenwood receiver with HD camera input support
• Camera dimensions: 31.1 x 23.0 x 25.2mm
• Bracket dimensions: 179 x 35 x 29mm
• Camera cord length: 9.84 ft (3m)
• Power cable length: 19.69 ft (6m)
• Vehicle-specific routing, mounting position, and receiver compatibility should be confirmed before purchase

Technical Specifications

• Model: CMOS-740HDLP

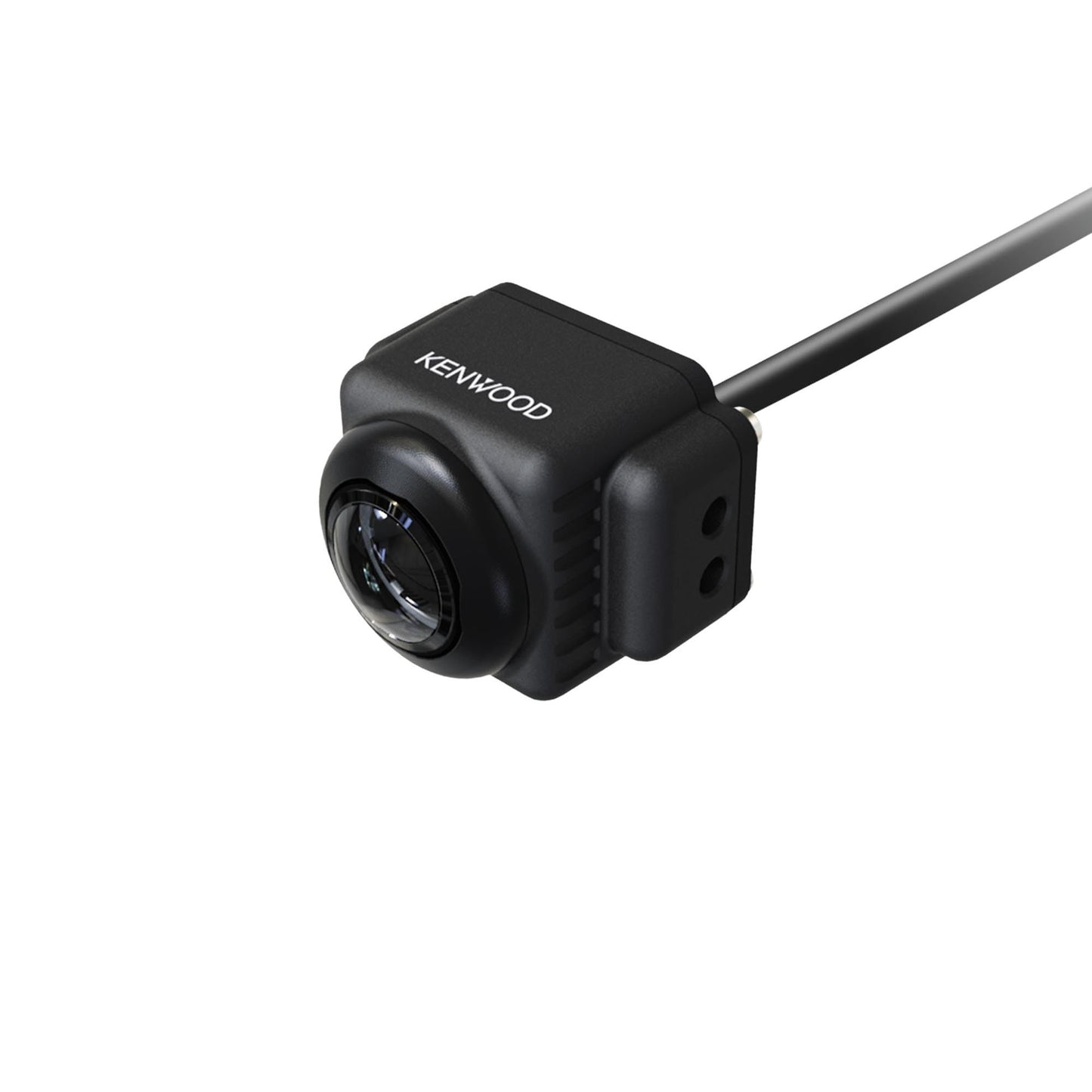

• Camera included: CMOS-740HD
• Mount included: CA-LPM10 license plate mounting attachment
• Camera sensor: 1/3.8-inch color CMOS
• Resolution: Up to 1280 x 720 (720p)
• Megapixels: 1.3 megapixels
• Viewing angle: Approx. 180° horizontal / 103° vertical
• Minimum illumination: 1.0 lux
• Image processing: HDR
• Water resistance: IP67 waterproof design
• Camera dimensions: 31.1 x 23.0 x 25.2mm

Identifiers & Packaging

• Manufacturer Part Number (MPN): CMOS-740HDLP
• UPC: 019048238283
• Sold As: Each
• Included Components: CMOS-740HD rear camera, CA-LPM10 license plate mounting attachment, universal mounting hardware, camera cord, power cable, and documentation
