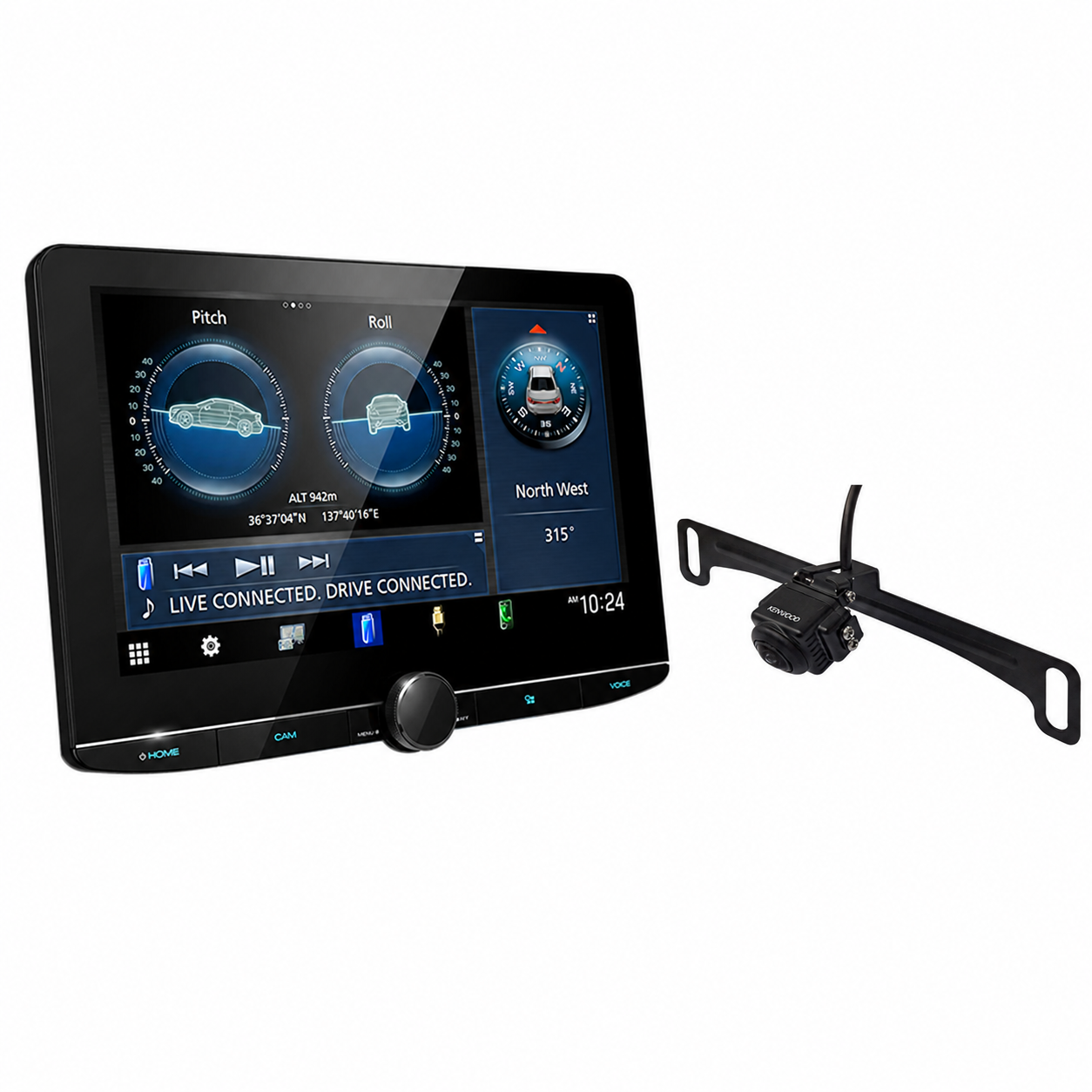

Kenwood eXcelon DMX1058XR 10.1" HD Wireless CarPlay Receiver + CMOS-740HDLP HD Camera Bundle

The Kenwood DMX1058-740LP bundle pairs the DMX1058XR receiver with the CMOS-740HDLP rear-view camera. It provides the exact Kenwood-approved receiver-and-camera combination under one official bundle part number, while preserving the full receiver information shoppers need.

What's Included

• DMX1058XR receiver and its standard included accessories
• CMOS-740HDLP — Kenwood Excelon HD rear-view camera with its low-profile license-plate mounting bracket

Why this bundle makes sense

• Matched Kenwood receiver and rear-view camera in one purchase
• Low-profile license-plate mounting solution for a clean, centered camera installation
• Receiver connectivity, audio controls, and installation information are retained from the raw head-unit listing
• Official Kenwood package MPN and UPC support clean marketplace and fulfillment matching

Bundle Identification

• Official Kenwood bundle MPN: DMX1058-740LP
• Bundle UPC: 019048244345
• Condition: New
• Sold as: One complete two-component bundle

DMX1058XR receiver details

Kenwood eXcelon DMX1058XR is a 10.1" HD floating-screen digital multimedia receiver designed for wireless smartphone integration, multi-camera expansion, and advanced system control. This model is a digital multimedia receiver (does not play discs).

Key Features

• 10.1" HD (1280 x 720) capacitive touchscreen display
• Floating panel mechanism with 4-way position adjustment (depth/height/tilt/left-right)
• Wired and wireless Apple CarPlay support
• Android Auto support (wired and wireless)
• Built-in Wi-Fi for wireless smartphone connectivity
• Built-in Bluetooth (Ver 5.2) for hands-free calling and audio streaming
• Built-in HD Radio tuner
• SiriusXM Ready and SiriusXM 360L Ready (optional tuner required)
• 4 camera inputs; HD front/rear camera ready
• 3 preouts (5V) and digital optical output

Connectivity & Integration

• Wired and wireless Apple CarPlay
• Android Auto (wired and wireless)
• Bluetooth audio streaming and hands-free calling (Bluetooth 5.2)
• High-Resolution Audio Wireless via LDAC (compatible devices required)
• USB Type-C connection (USB 2.0 High Speed), with included USB Type-C cable and USB Type-A adapter; up to 3.0A charging
• Wireless Mirroring for Smartphone (selected smartphones only)
• HDMI mirroring support (optional KCA-HD200 HDMI cable required)
• 4 camera inputs, including support for Kenwood DRV-N520 drive recorder (sold separately)
• HD front/rear camera ready (Kenwood CMOS-740HD camera sold separately)
• SiriusXM-ready with add-on tuner: SXV300V1 SiriusXM Tuner
• Add a Kenwood camera: CMOS-740HDLP, CMOS-320LP, CMOS-240U, CMOS-230LP

Audio & System Control

• 13-band graphic equalizer
• Digital time alignment
• Parametric equalizer (multi-point tuning)
• 3 preamp outputs (5V)
• Digital optical output for DSP integration
• Internal amplifier: 50W x 4 max; 29W x 4 typical (4Ω, 1kHz, 10% THD)

Installation & Fitment Notes

• Floating-screen chassis with adjustable monitor positioning for vehicle fitment
• iDatalink Maestro RR/RR2 compatible for factory feature retention and vehicle info display (module/adapter required)
• Parking brake connection required to access certain settings and video functions
• Vehicle-specific dash kit and wiring interface required (sold separately)

Technical Specifications

• Brand: Kenwood eXcelon
• Model: DMX1058XR
• Screen Size: 10.1" HD capacitive touchscreen
• Resolution: 1280 x 720
• Smartphone Integration: Wired/wireless CarPlay; wired/wireless Android Auto
• Wi-Fi: IEEE 802.11 a/b/g/n/ac
• Bluetooth: Ver 5.2
• USB: USB Type-C (USB2.0 High Speed), up to 3.0A charging
• Camera Inputs: 4
• HD Camera Ready: Yes (front/rear)
• Preamp Outputs: 3 (5V)
• Digital Output: Optical
• Disc Support: None (digital multimedia receiver)
• Chassis Type: Floating-screen (monitor with receiver)

CMOS-740HDLP included component details

The Kenwood eXcelon CMOS-740HDLP is a high-definition rear backup camera package that combines the CMOS-740HD camera with Kenwood’s CA-LPM10 license plate mounting attachment. It is built for drivers who want a cleaner factory-style rear camera solution with sharper image quality than a standard analog backup camera.

This camera is designed for use with select Kenwood receivers that support an HD camera input. It delivers up to 720p image output, a very wide horizontal viewing angle, HDR image processing, and an IP67 waterproof design for dependable daily-use rear visibility.

Key Features

• High-definition rear backup camera package with included license plate mounting bracket
• Compatible with select Kenwood receivers that support HD camera input
• Up to 1280 x 720 (720p) HD image output
• 1/3.8-inch color CMOS sensor with 1.3 megapixels
• Approx. 180° horizontal viewing angle and 103° vertical viewing angle
• HDR image processing for improved visibility in high-contrast conditions
• IP67 waterproof design
• Includes CA-LPM10 license plate mounting attachment and universal mounting hardware

Connectivity & Integration

• Receiver compatibility: Requires a compatible Kenwood receiver with HD camera input
• Camera type: Rear-view backup camera
• Mounting option: Includes license plate mounting attachment for a clean rear-install solution
• Universal install support: Includes universal mounting hardware in addition to the plate bracket
• Use case: Designed for reverse rear-view camera applications

Image & System Performance

• HD image output provides noticeably higher detail than standard low-resolution rear cameras when used with a compatible HD-capable Kenwood receiver
• HDR processing helps improve image clarity when bright daylight and shadowed areas appear in the same scene
• Wide-angle lens improves rearward field of view for parking and backing maneuvers
• Rated for low-light performance down to 1.0 lux

Installation & Fitment Notes

• Camera type: Rear-view camera
• Bracket style: License plate mounting attachment included
• Compatibility note: This camera is not for universal display compatibility; it requires a Kenwood receiver with HD camera input support
• Camera dimensions: 31.1 x 23.0 x 25.2mm
• Bracket dimensions: 179 x 35 x 29mm
• Camera cord length: 9.84 ft (3m)
• Power cable length: 19.69 ft (6m)
• Vehicle-specific routing, mounting position, and receiver compatibility should be confirmed before purchase

Technical Specifications

• Model: CMOS-740HDLP
• Camera included: CMOS-740HD
• Mount included: CA-LPM10 license plate mounting attachment
• Camera sensor: 1/3.8-inch color CMOS
• Resolution: Up to 1280 x 720 (720p)
• Megapixels: 1.3 megapixels
• Viewing angle: Approx. 180° horizontal / 103° vertical
• Minimum illumination: 1.0 lux
• Image processing: HDR
• Water resistance: IP67 waterproof design
• Camera dimensions: 31.1 x 23.0 x 25.2mm

Installation and compatibility

• Most vehicles require a vehicle-specific dash kit, wiring harness, antenna adapter, and sometimes an integration interface; these are sold separately unless specifically listed above.
• Confirm dash fitment, retained factory features, camera input compatibility, and required installation parts before ordering.
• Professional installation is recommended when the vehicle uses a factory amplifier, data-bus integration, steering-wheel controls, or retained cameras.

Optional SiriusXM satellite radio

This receiver is SiriusXM-ready. Add the SiriusXM SXV300V1 vehicle tuner to receive satellite-radio programming. The tuner and subscription are sold separately and are not included in this camera bundle.
