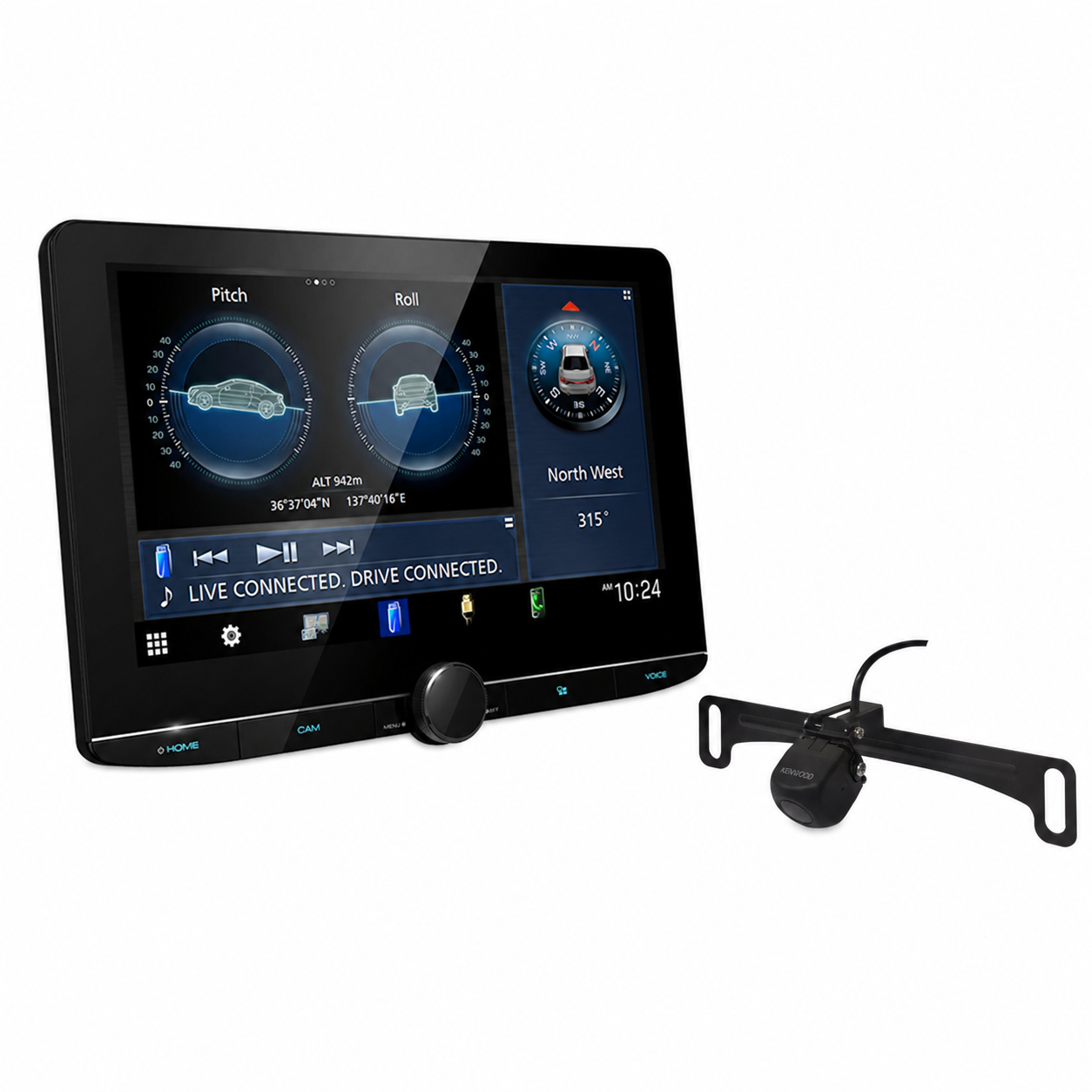

Kenwood eXcelon DMX1058XR 10.1" HD Wireless CarPlay Receiver + CMOS-230LP1 Backup Camera Bundle

The Kenwood DMX1058-230LP1 bundle pairs the DMX1058XR receiver with the CMOS-230LP1 rear-view camera. It provides the exact Kenwood-approved receiver-and-camera combination under one official bundle part number, while preserving the full receiver information shoppers need.

What's Included

• DMX1058XR receiver and its standard included accessories
• CMOS-230LP1 — Kenwood rear-view camera with the current low-profile license-plate mounting bracket

Why this bundle makes sense

• Matched Kenwood receiver and rear-view camera in one purchase
• Low-profile license-plate mounting solution for a clean, centered camera installation
• Receiver connectivity, audio controls, and installation information are retained from the raw head-unit listing
• Official Kenwood package MPN and UPC support clean marketplace and fulfillment matching

Bundle Identification

• Official Kenwood bundle MPN: DMX1058-230LP1
• Bundle UPC: 019048244772
• Condition: New
• Sold as: One complete two-component bundle

DMX1058XR receiver details

Kenwood eXcelon DMX1058XR is a 10.1" HD floating-screen digital multimedia receiver designed for wireless smartphone integration, multi-camera expansion, and advanced system control. This model is a digital multimedia receiver (does not play discs).

Key Features

• 10.1" HD (1280 x 720) capacitive touchscreen display
• Floating panel mechanism with 4-way position adjustment (depth/height/tilt/left-right)
• Wired and wireless Apple CarPlay support
• Android Auto support (wired and wireless)
• Built-in Wi-Fi for wireless smartphone connectivity
• Built-in Bluetooth (Ver 5.2) for hands-free calling and audio streaming
• Built-in HD Radio tuner
• SiriusXM Ready and SiriusXM 360L Ready (optional tuner required)
• 4 camera inputs; HD front/rear camera ready
• 3 preouts (5V) and digital optical output

Connectivity & Integration

• Wired and wireless Apple CarPlay
• Android Auto (wired and wireless)
• Bluetooth audio streaming and hands-free calling (Bluetooth 5.2)
• High-Resolution Audio Wireless via LDAC (compatible devices required)
• USB Type-C connection (USB 2.0 High Speed), with included USB Type-C cable and USB Type-A adapter; up to 3.0A charging
• Wireless Mirroring for Smartphone (selected smartphones only)
• HDMI mirroring support (optional KCA-HD200 HDMI cable required)
• 4 camera inputs, including support for Kenwood DRV-N520 drive recorder (sold separately)
• HD front/rear camera ready (Kenwood CMOS-740HD camera sold separately)
• SiriusXM-ready with add-on tuner: SXV300V1 SiriusXM Tuner
• Add a Kenwood camera: CMOS-740HDLP, CMOS-320LP, CMOS-240U, CMOS-230LP

Audio & System Control

• 13-band graphic equalizer
• Digital time alignment
• Parametric equalizer (multi-point tuning)
• 3 preamp outputs (5V)
• Digital optical output for DSP integration
• Internal amplifier: 50W x 4 max; 29W x 4 typical (4Ω, 1kHz, 10% THD)

Installation & Fitment Notes

• Floating-screen chassis with adjustable monitor positioning for vehicle fitment
• iDatalink Maestro RR/RR2 compatible for factory feature retention and vehicle info display (module/adapter required)
• Parking brake connection required to access certain settings and video functions
• Vehicle-specific dash kit and wiring interface required (sold separately)

Technical Specifications

• Brand: Kenwood eXcelon
• Model: DMX1058XR
• Screen Size: 10.1" HD capacitive touchscreen
• Resolution: 1280 x 720
• Smartphone Integration: Wired/wireless CarPlay; wired/wireless Android Auto
• Wi-Fi: IEEE 802.11 a/b/g/n/ac
• Bluetooth: Ver 5.2
• USB: USB Type-C (USB2.0 High Speed), up to 3.0A charging
• Camera Inputs: 4
• HD Camera Ready: Yes (front/rear)
• Preamp Outputs: 3 (5V)
• Digital Output: Optical
• Disc Support: None (digital multimedia receiver)
• Chassis Type: Floating-screen (monitor with receiver)

CMOS-230LP1 included component details

The Kenwood CMOS-230LP1 is a rear backup camera package that combines the CMOS-230 camera with a license plate mounting attachment for a clean, low-profile installation. It is built for drivers who want a simple and reliable rear camera solution with a compact camera housing and a clean mounting setup that works well on a wide range of vehicles.

This package is designed for rear-view camera applications and includes the camera, license plate mounting bracket, and installation hardware. The CMOS-230 camera uses a 1/3.6-inch color CMOS sensor with 330,000 effective pixels, a wide viewing angle, and a waterproof design for dependable daily use.

Key Features

• Rear backup camera package with included license plate mounting attachment
• Compact low-profile camera design
• 1/3.6-inch color CMOS sensor with 330,000 effective pixels
• Approx. 128° horizontal and 103° vertical viewing angle
• Waterproof camera design
• Includes powder-coated license plate mounting bracket
• Works with aftermarket receivers and monitors that accept a composite video camera input
• Designed for clean rear-view camera installation on cars, trucks, and SUVs

Connectivity & Integration

• Camera type: Rear-view backup camera
• Mounting style: License plate mounting attachment included
• Video compatibility: Designed for use with receivers or monitors that support composite video camera input
• Installation flexibility: Compact housing helps with clean placement in many rear vehicle applications
• Use case: Intended for reverse rear-view camera applications

Image & System Performance

• Wide-angle rear view helps improve visibility behind the vehicle during parking and backing maneuvers
• Compact CMOS camera design provides a clean OEM-style appearance when properly installed
• Built for buyers who want a straightforward rear camera solution without stepping up to a more complex multi-view or HD-only system
• Good fit for daily-driven vehicles needing a practical camera add-on for aftermarket radio upgrades

Installation & Fitment Notes

• Camera type: Rear-view camera
• Bracket style: License plate mounting attachment included
• Camera dimensions: 23.4 x 23.4 x 23.9mm
• Bracket dimensions: 179 x 35 x 29mm
• Camera cord length: 4.92 ft (1.5m)
• Power cable length: 24.6 ft (7.5m)
• Vehicle-specific routing, trigger wiring, and display compatibility should be confirmed before purchase

Technical Specifications

• Model: CMOS-230LP1
• Camera included: CMOS-230
• Mount included: License plate mounting attachment
• Camera sensor: 1/3.6-inch color CMOS
• Effective pixels: 330,000 pixels
• Viewing angle: Approx. 128° horizontal / 103° vertical
• Camera design: Waterproof
• Camera dimensions: 23.4 x 23.4 x 23.9mm
• Bracket dimensions: 179 x 35 x 29mm

Installation and compatibility

• Most vehicles require a vehicle-specific dash kit, wiring harness, antenna adapter, and sometimes an integration interface; these are sold separately unless specifically listed above.
• Confirm dash fitment, retained factory features, camera input compatibility, and required installation parts before ordering.
• Professional installation is recommended when the vehicle uses a factory amplifier, data-bus integration, steering-wheel controls, or retained cameras.

Optional SiriusXM satellite radio

This receiver is SiriusXM-ready. Add the SiriusXM SXV300V1 vehicle tuner to receive satellite-radio programming. The tuner and subscription are sold separately and are not included in this camera bundle.
