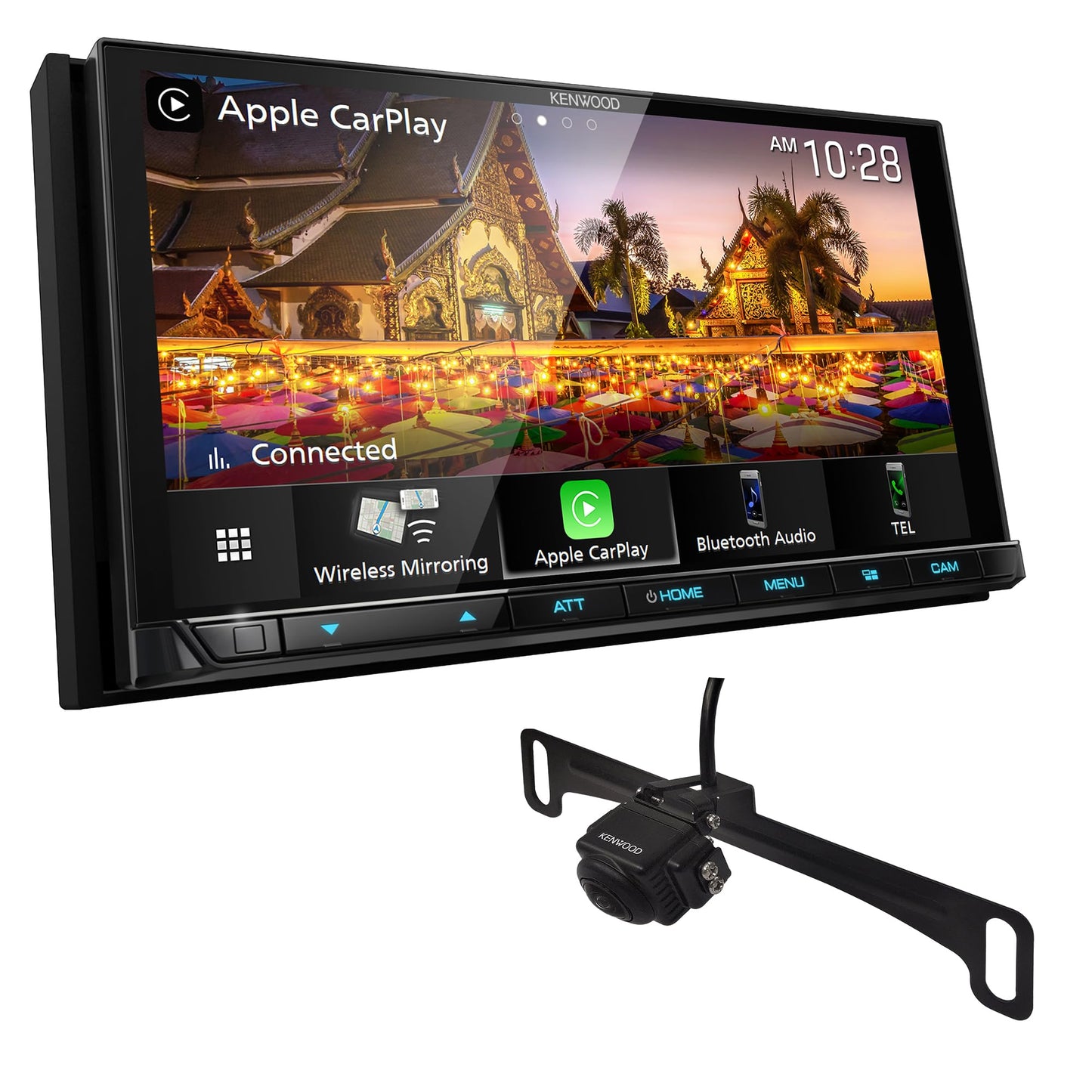

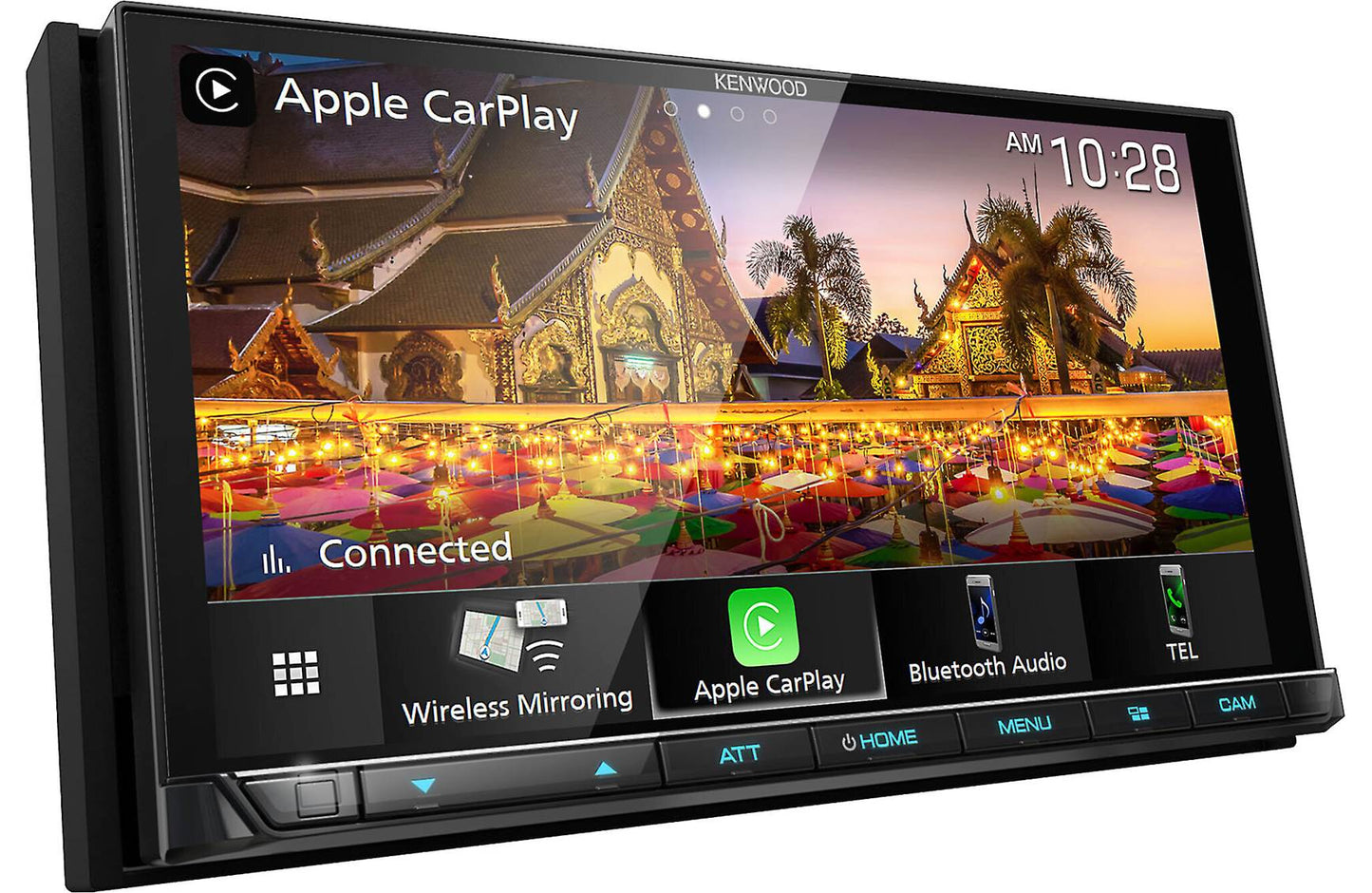

Kenwood eXcelon DMX958XR 6.8″ Digital Multimedia Receiver with Wireless CarPlay, Android Auto, HD Radio + CMOS-740HDLP License Plate Camera

The Kenwood eXcelon DMX958XR + CMOS-740HDLP bundle combines the high-performance DMX958XR digital multimedia receiver with the CMOS-740HDLP high-definition license plate camera. This package is engineered for drivers who demand a premium visual experience, offering a crystal-clear 1280 x 720 HD display and a matching 720p HD rear-view camera for superior safety and smartphone integration.

The DMX958XR features a short-chassis design for easier installation in tight dash locations while providing a full suite of audiophile-grade tuning tools and robust wireless connectivity for both Apple and Android devices.

Key Features

• 6.8" High Definition (1280 x 720) capacitive touchscreen monitor

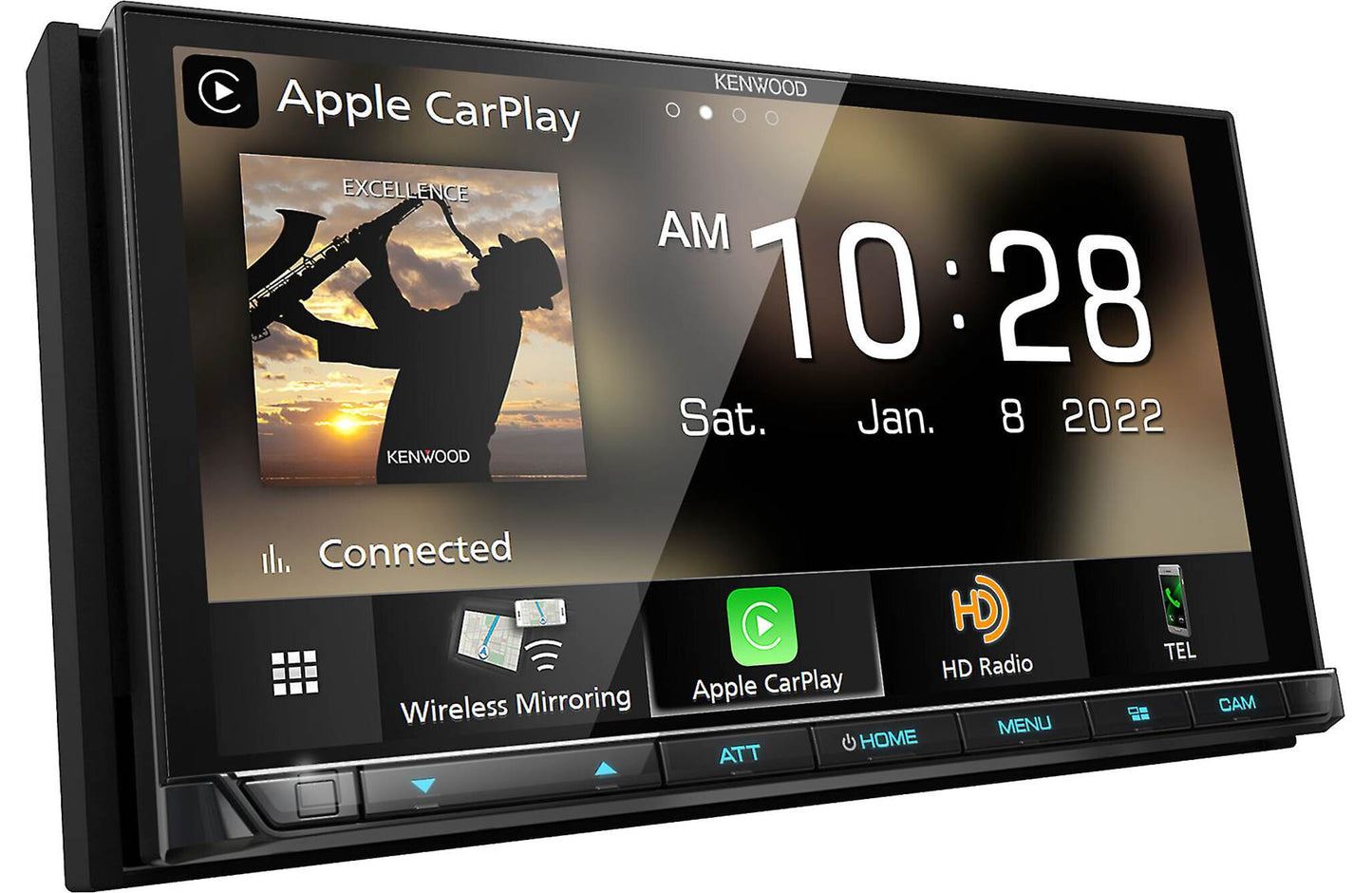

• Wireless and wired Apple CarPlay
• Wireless and wired Android Auto
• Built-in HD Radio tuner
• USB Type-C connectivity with up to 3.0A rapid charging
• 4 camera inputs with HD rear camera support
• High-Resolution Audio Wireless (LDAC) and Hi-Res wired playback

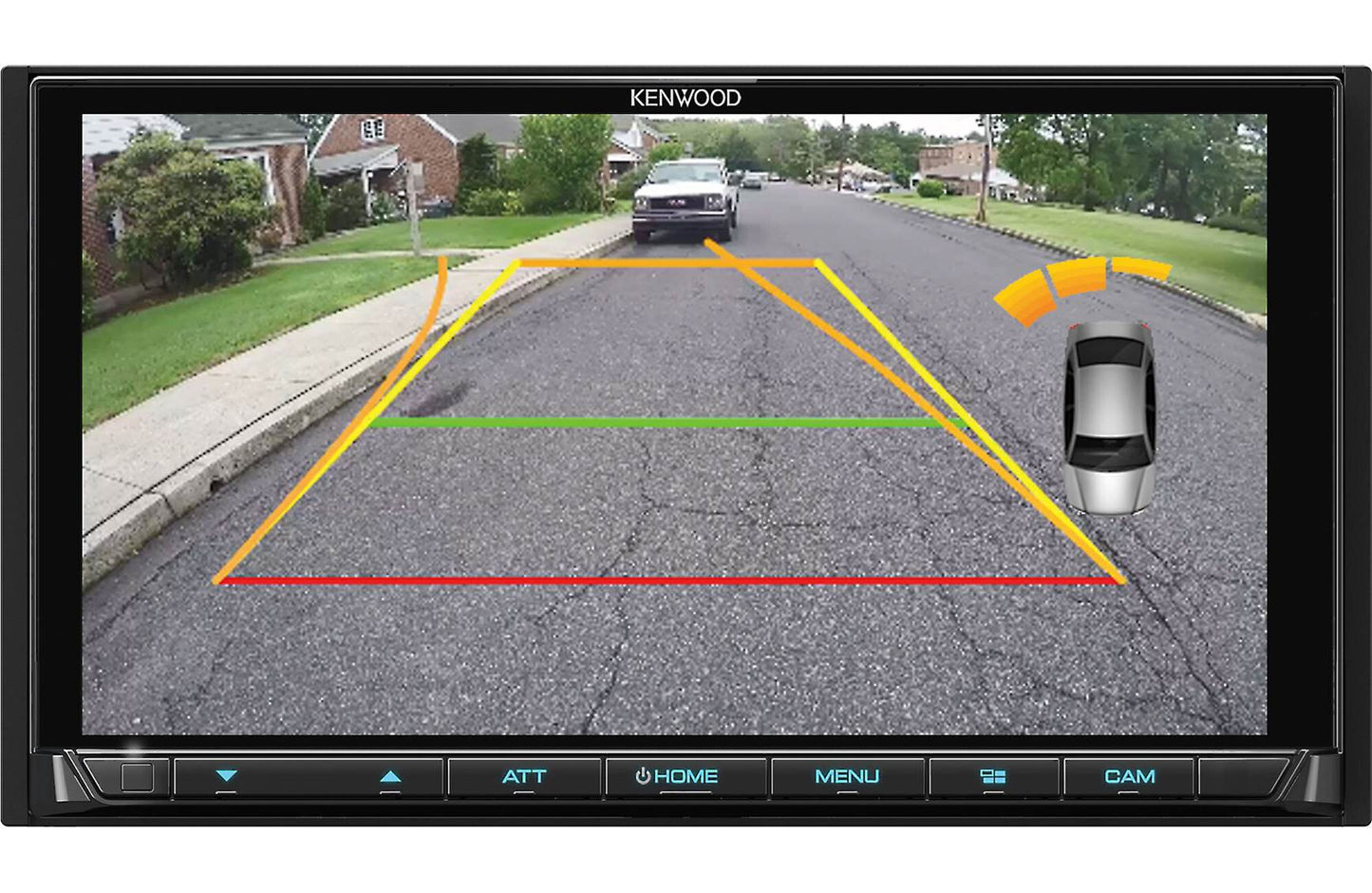

• Included CMOS-740HDLP high-definition camera with license plate mounting bracket

Connectivity & Integration

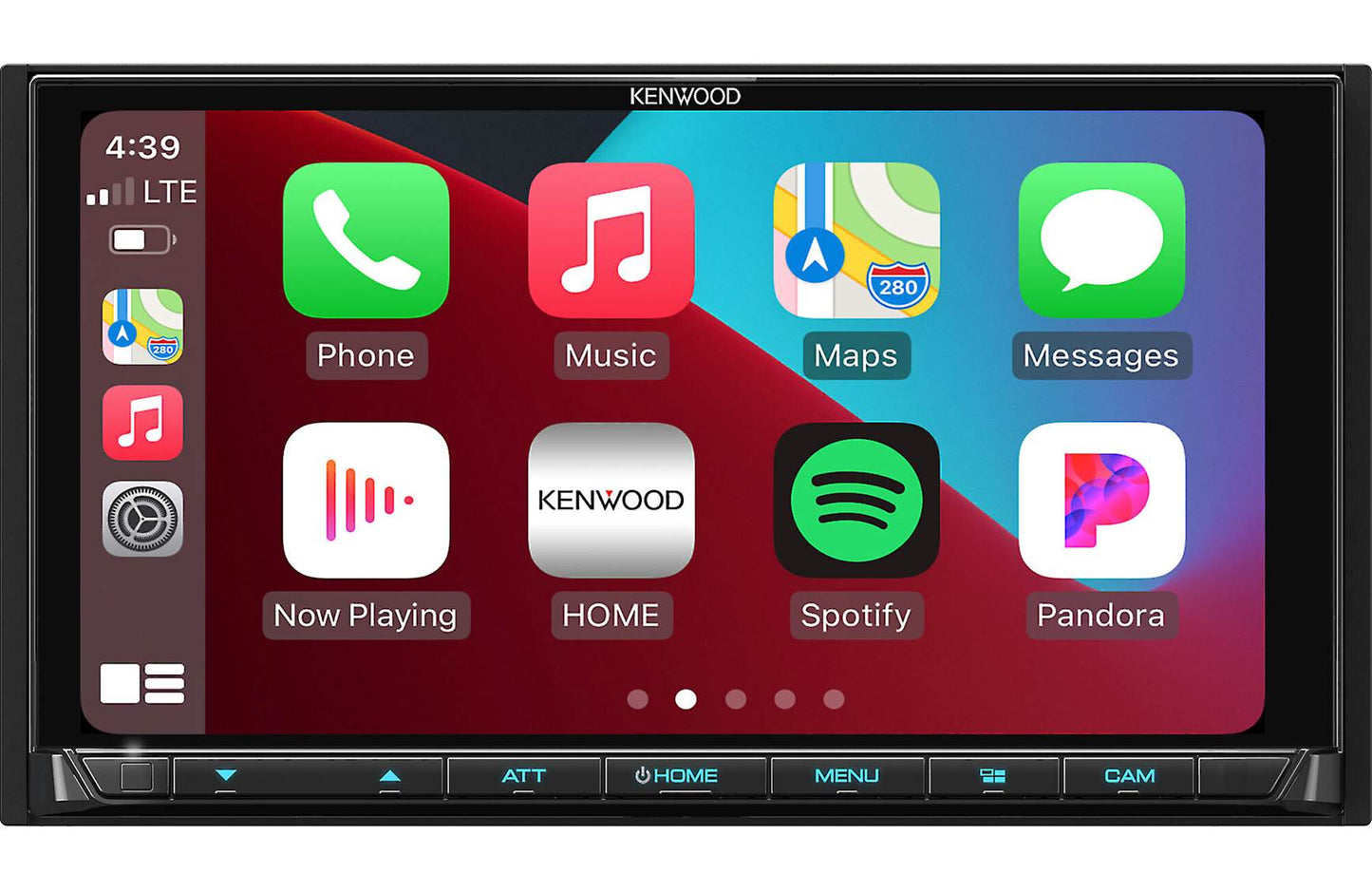

• Apple CarPlay: Wireless and wired connection via USB-C

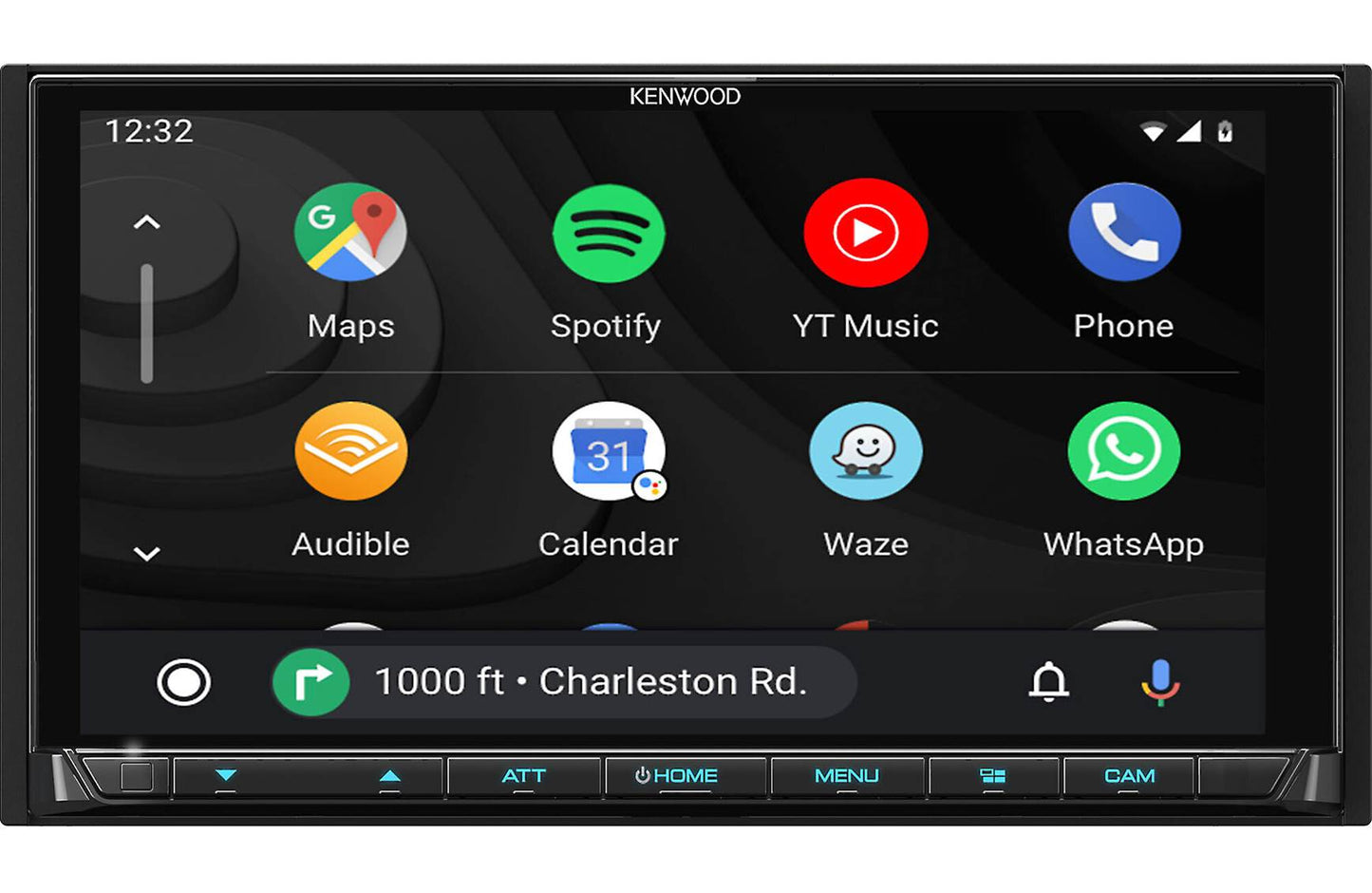

• Android Auto: Wireless and wired connection via USB-C
• Bluetooth: Dual phone connection for hands-free calling and music streaming

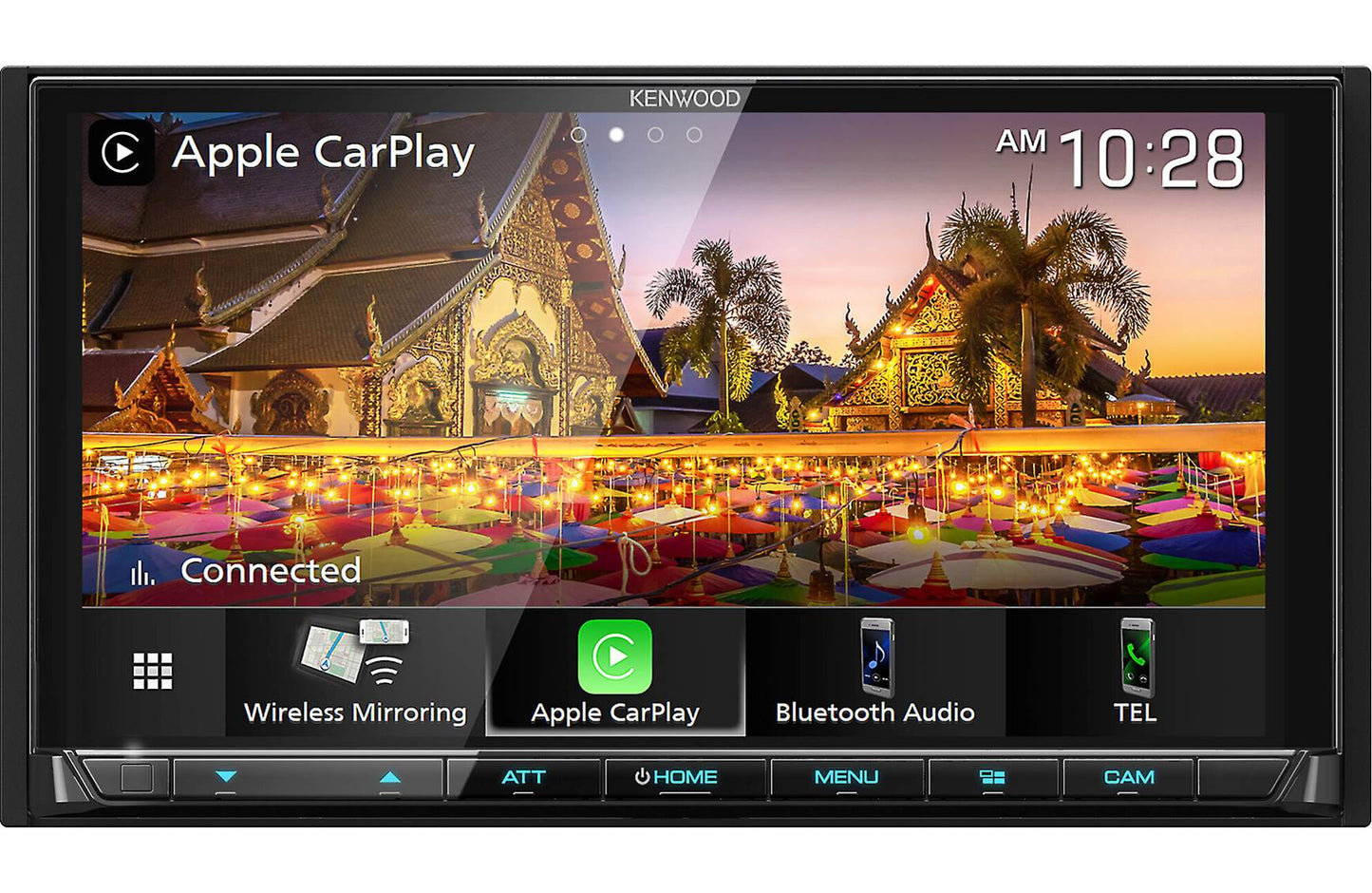

• Wireless Mirroring: Compatible with select Android devices

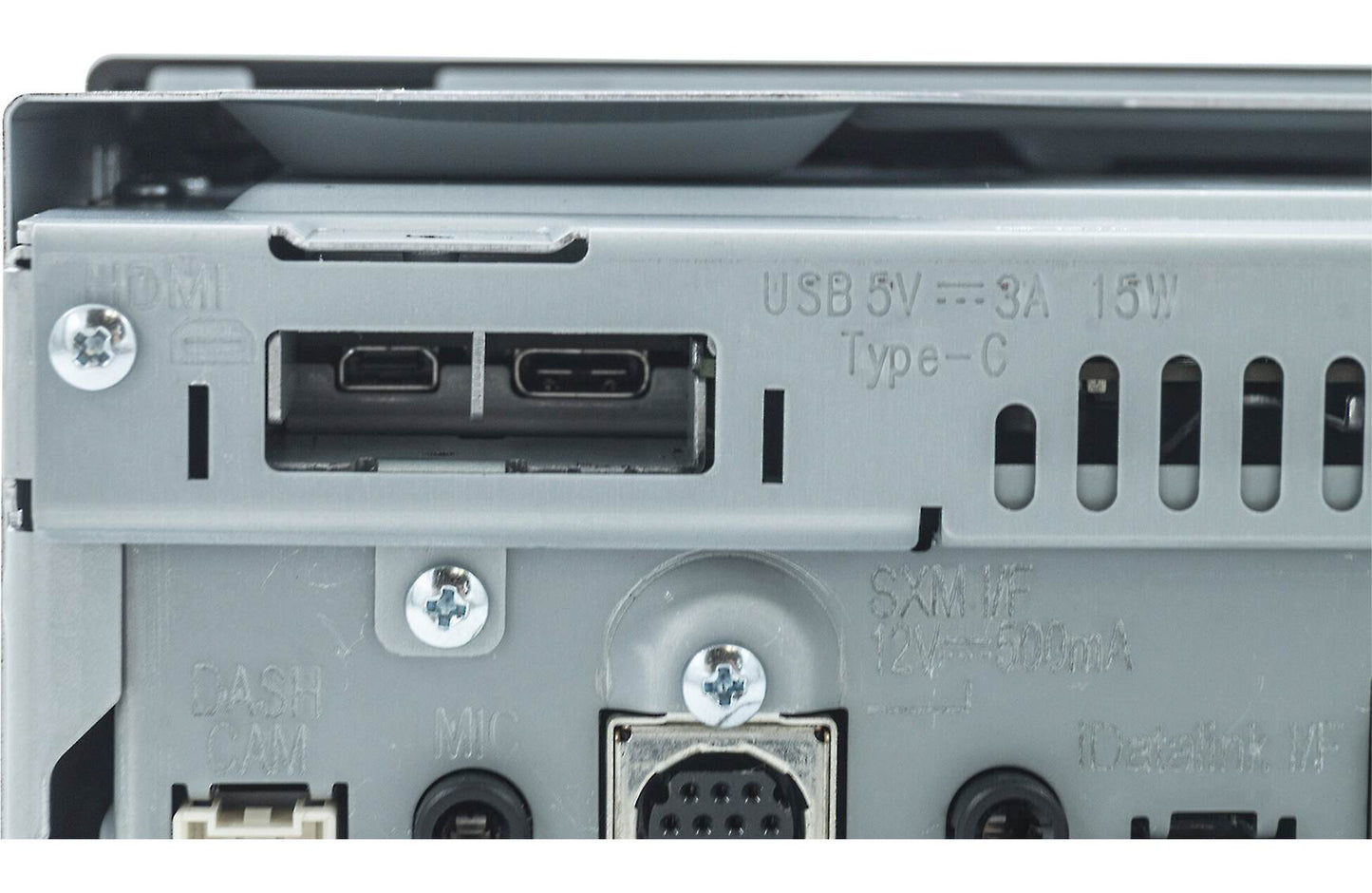

• USB: Rear USB Type-C port (USB-C to USB-A adapter and extension cable included)
• HDMI Input: Type-D input for external video sources (optional cables required)
• Cameras: 4 camera inputs; supports the included HD rear camera plus front, side, and dash camera configurations
• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner
• Kenwood camera links: CMOS-740HDLP, CMOS-320LP, CMOS-240U, CMOS-230LP

Audio & System Control

• 13-band graphic equalizer with digital time alignment

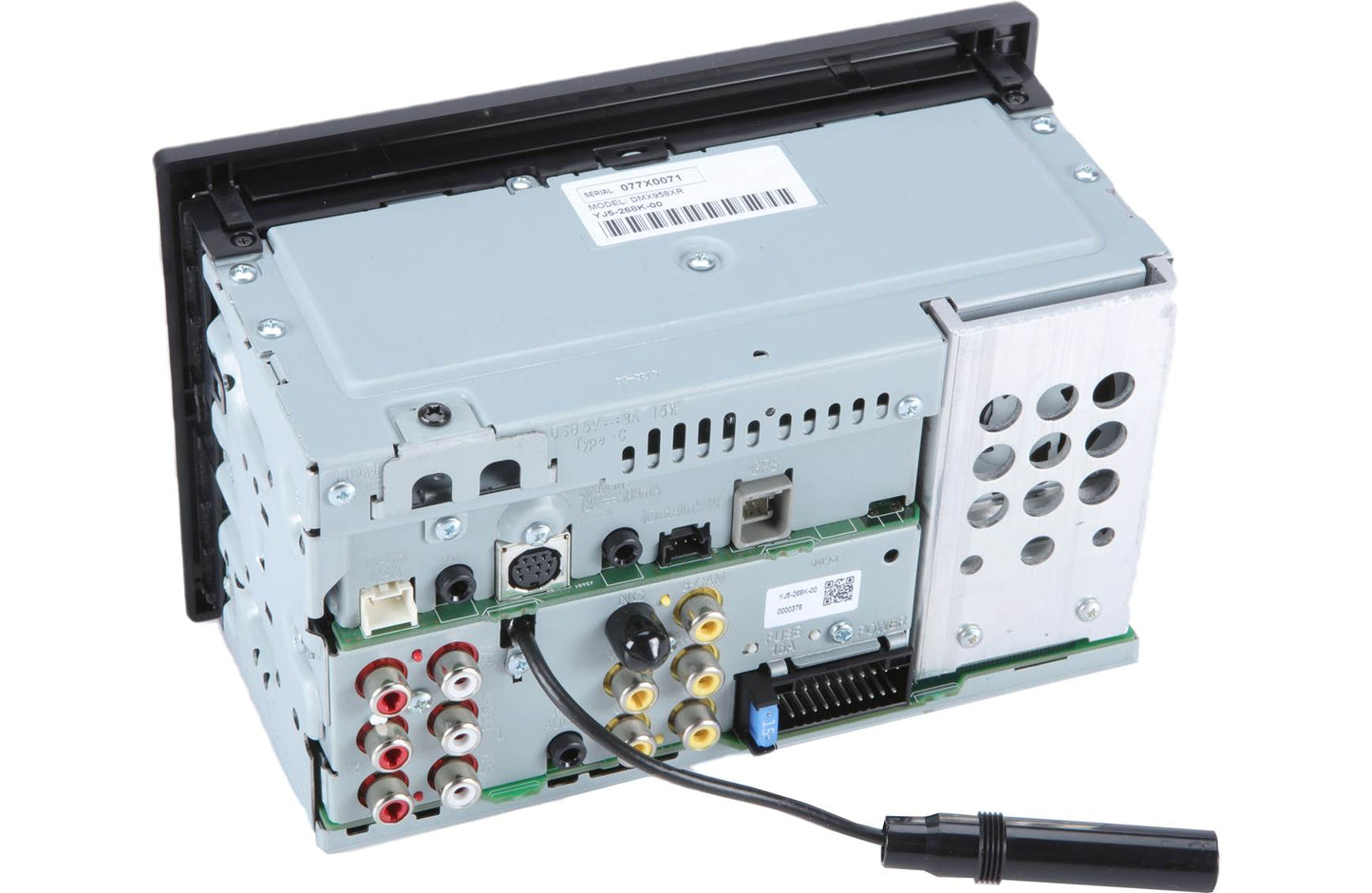

• 3 pairs of 5.0V gold-plated RCA preamp outputs (front, rear, and subwoofer)
• Independent 3-way crossover network for precise speaker management
• Drive EQ and advanced digital signal processing (DSP)
• Built-in internal amplifier (22 Watts RMS / 50 Watts Peak x 4 channels)

Installation & Fitment Notes

• Chassis Type: Double-DIN (in-dash)

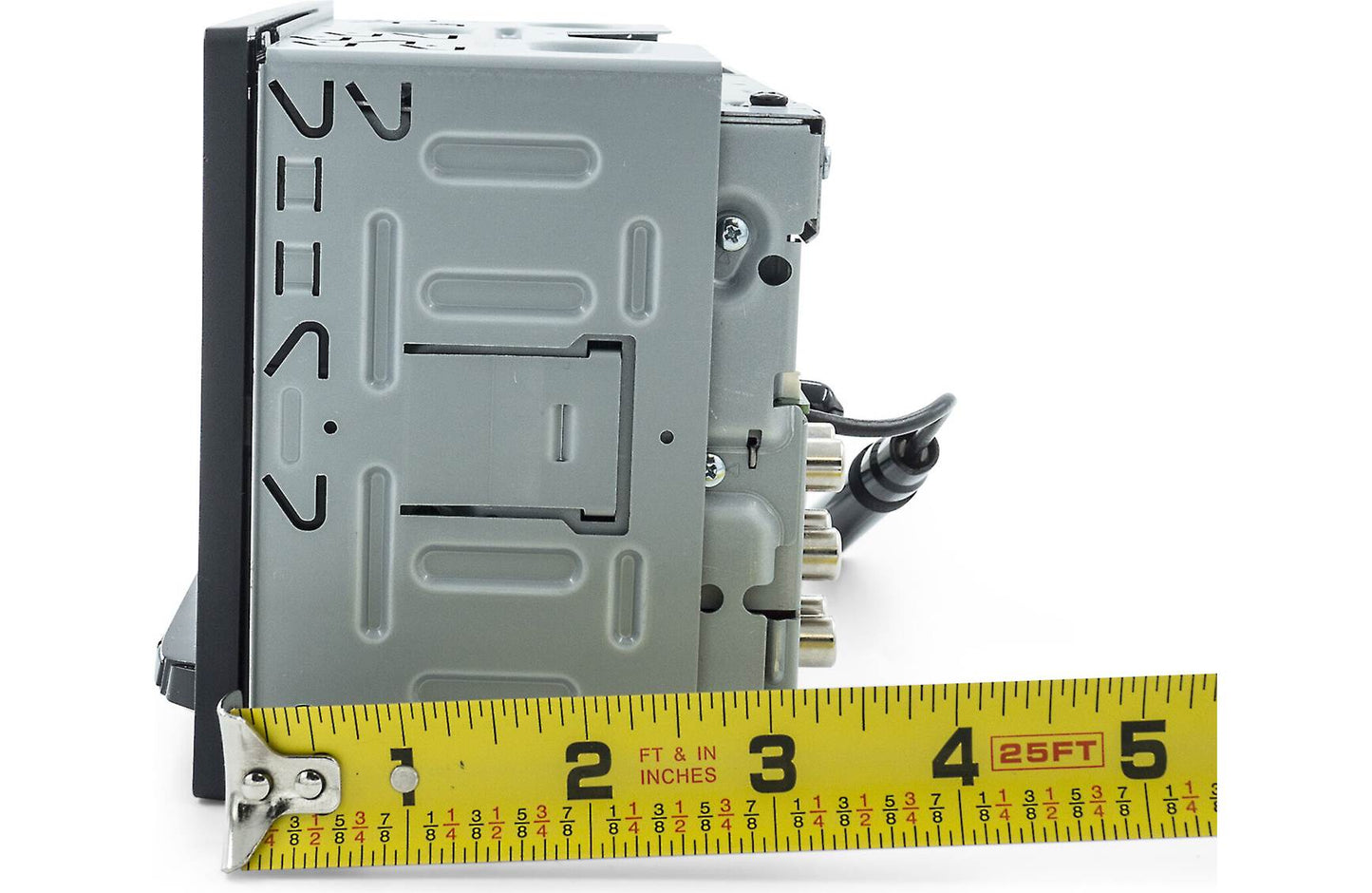

• Short Chassis: 3.35" (85mm) mounting depth for versatile installation
• Parking Brake: Connection required to access video playback and specific system settings

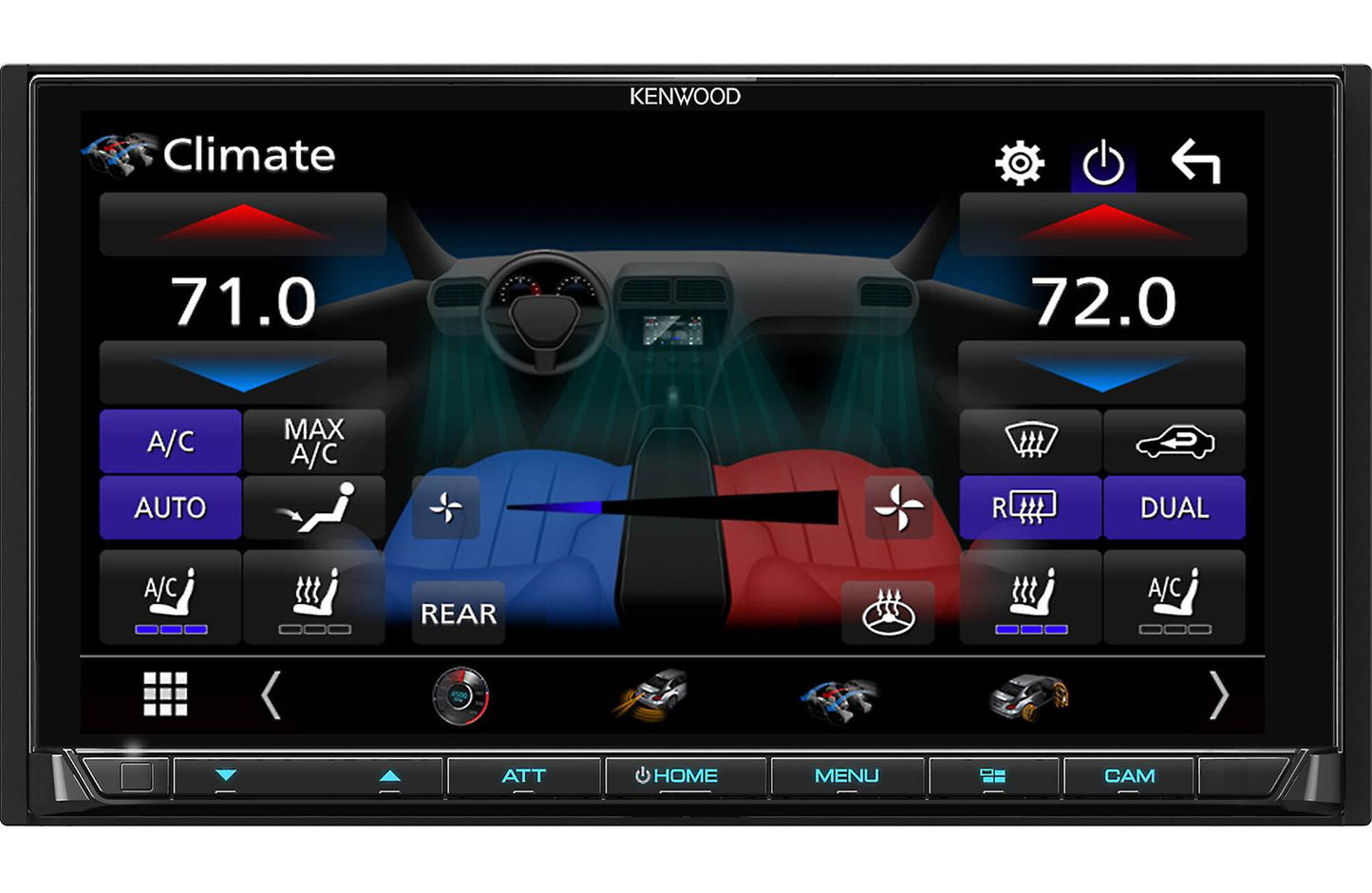

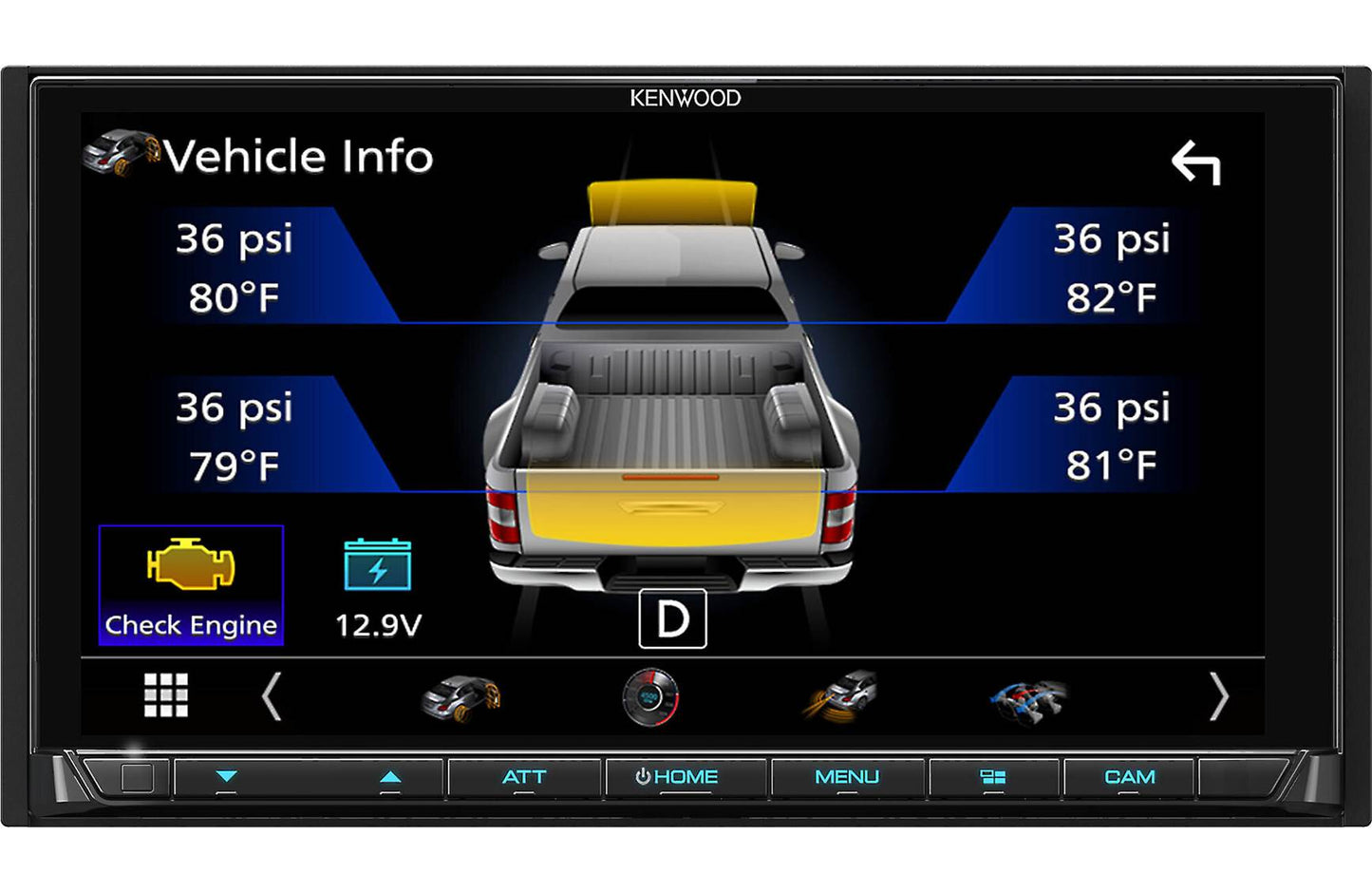

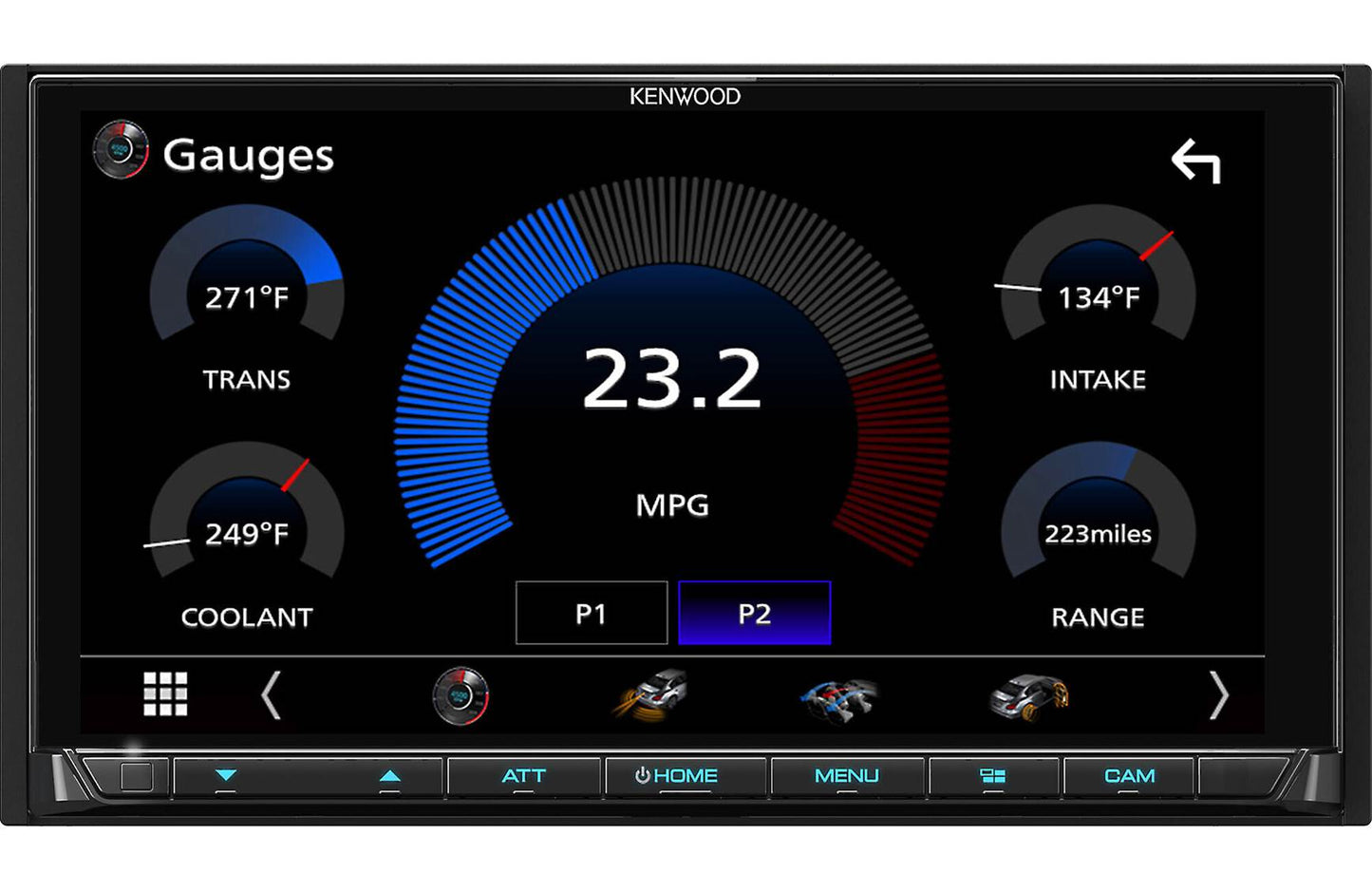

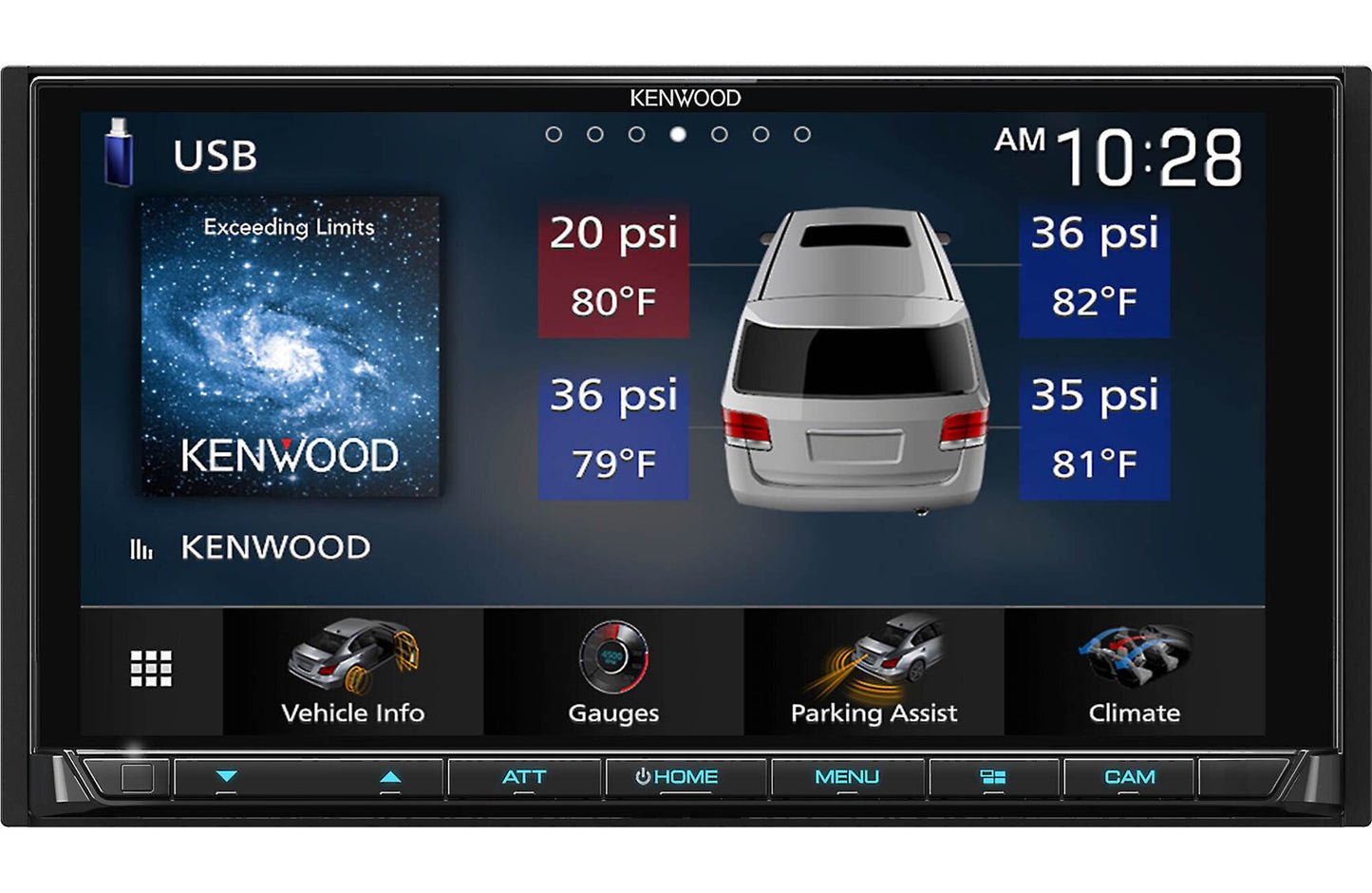

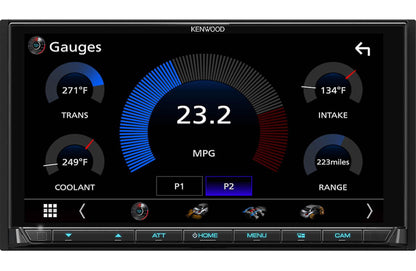

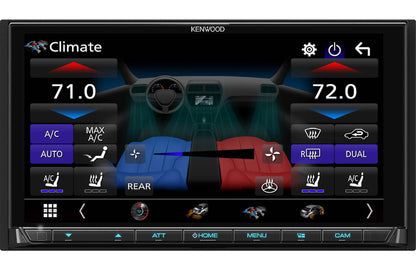

• Factory Integration: iDatalink Maestro RR/RR2 ready for retaining factory steering wheel controls, vehicle info, and climate data (module and adapter required; vehicle dependent)
• Dash kits, wiring harnesses, and antenna adapters are vehicle-specific and sold separately

Technical Specifications

• Receiver Model: DMX958XR
• Screen Resolution: 1280 x 720 (720p HD)
• USB Port: Type-C (3.0A)
• Preamp Voltage: 5.0 Volts
• Camera Model: CMOS-740HDLP
• Camera Resolution: 1280 x 720 HD
• Camera Field of View: 180° Horizontal / 103° Vertical
• Camera Sensor: 1/3.8" Color CMOS with HDR
• Camera IP Rating: IP67 (Waterproof/Dustproof)

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX958-740LP
• UPC: 19048239884
• Sold As: Each

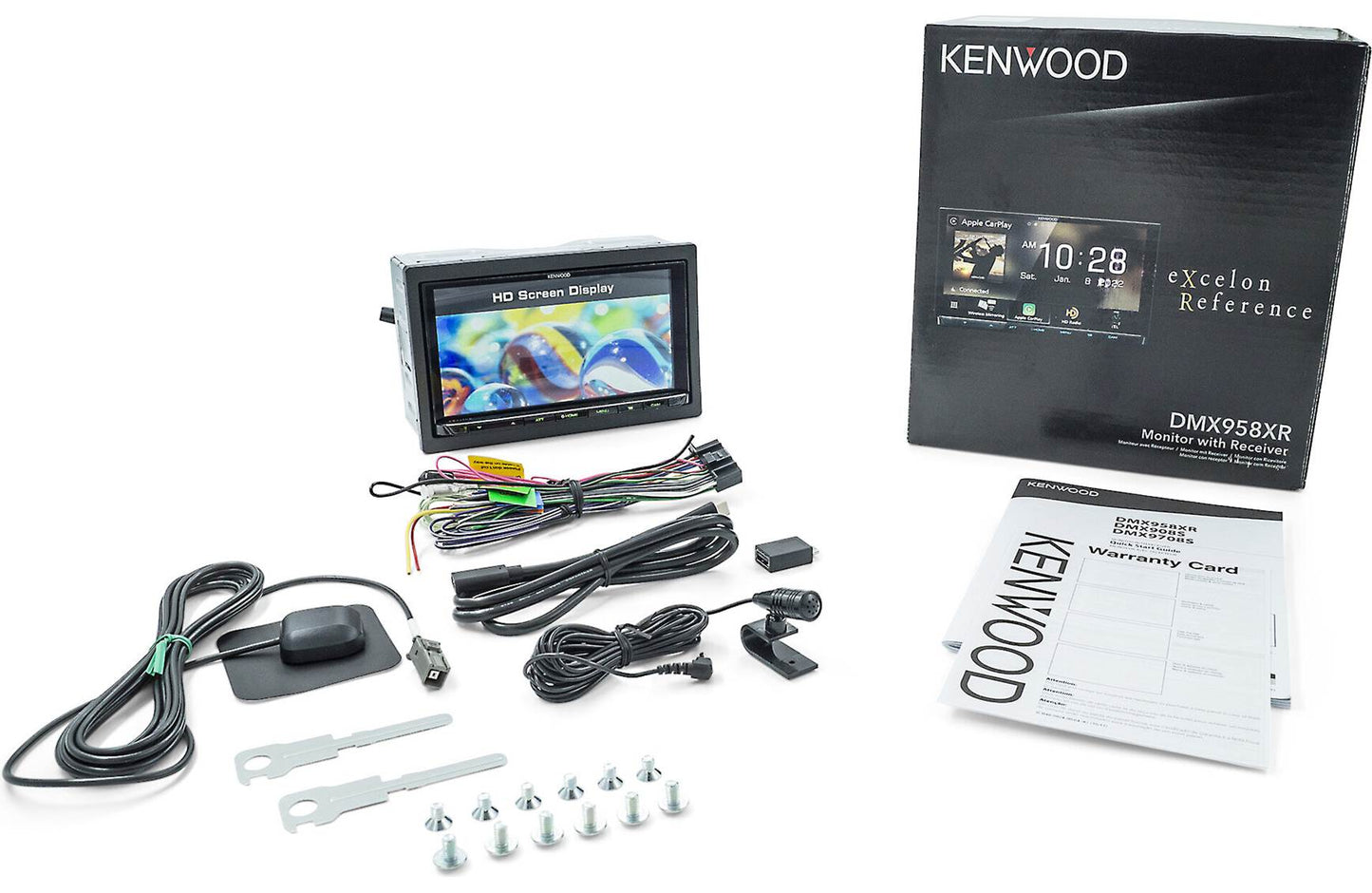

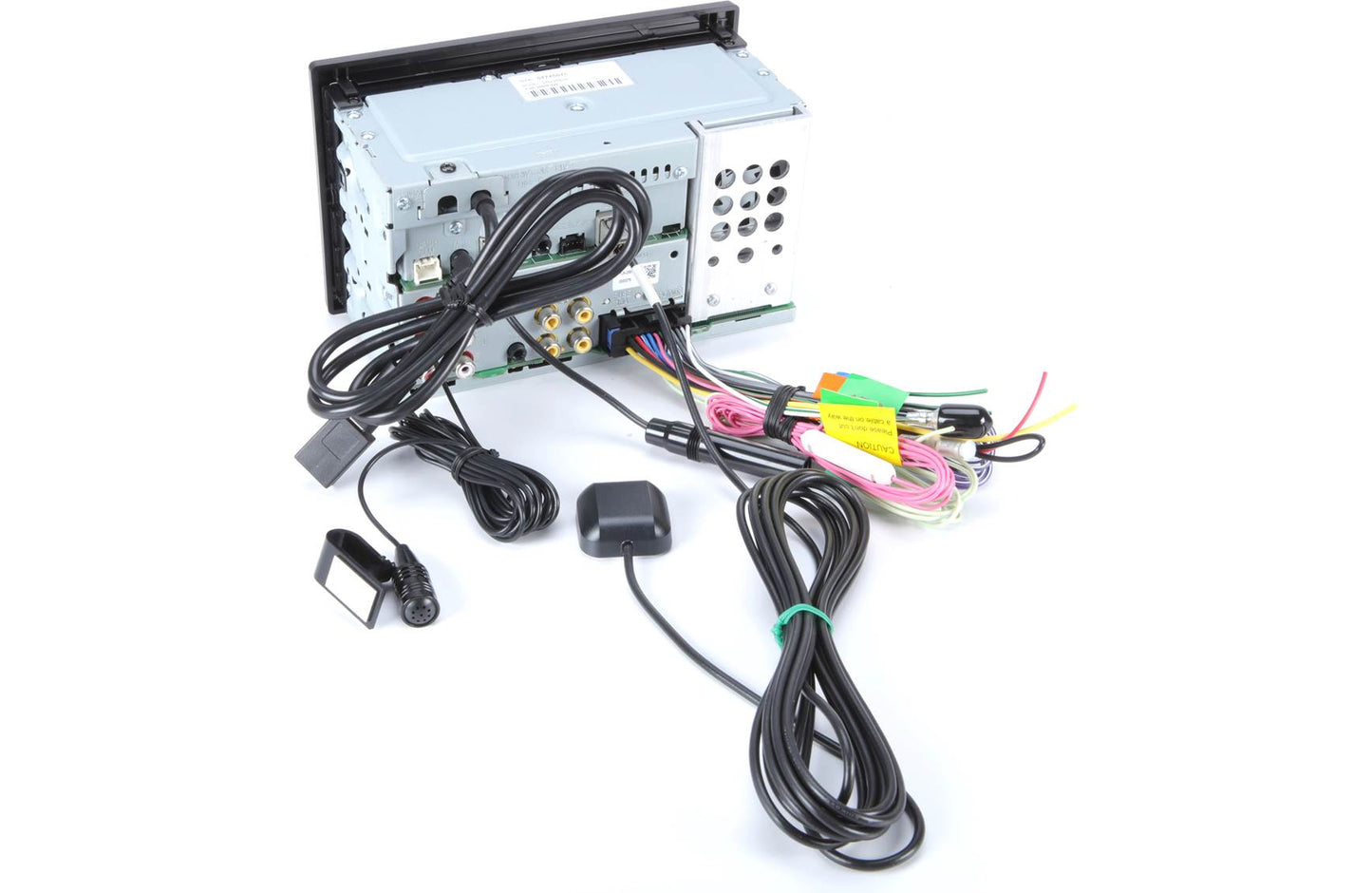

• Included Components: DMX958XR receiver, CMOS-740HDLP camera, CA-LPM10 license plate bracket, GPS antenna, microphone with bracket, USB-C to USB-A adapter, USB-C extension cable, wiring harness, and mounting hardware

Why Buy From MCOR Automotive

• Kenwood Preferred Retailer (online and in-store)
• Specialists in vehicle-specific integration (dash kits, interfaces, and factory-feature retention)
• Expert support for selecting the right components for a reliable and clean installation

What's Included

• Kenwood DMX958XR receiver
• CMOS-740HDLP backup camera

Bundle Benefit

This Kenwood bundle pairs the radio with a compatible Kenwood backup camera, making it easier to build a complete receiver-and-camera upgrade in one purchase. Vehicle-specific installation parts may still be required.

Vehicle Fitment & Installation Notes

• Most vehicles require additional installation parts when replacing the factory radio. Depending on the vehicle, you may need a dash kit, wiring harness, antenna adapter, steering wheel control interface, factory amplifier integration module, or other vehicle-specific parts.
• Vehicle-specific installation parts are sold separately unless included in the bundle.
• Use the MCOR Automotive Vehicle Fit Guide to help identify required parts for your vehicle, or contact MCOR Automotive through the chat button for help building the correct vehicle-specific install package.
• Do not assume universal fitment. Radio fitment and retained factory features depend on the vehicle, trim, factory audio system, and required installation interfaces.
