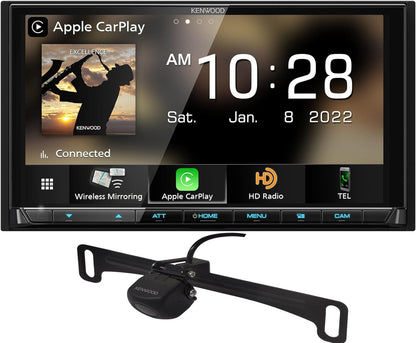

Kenwood eXcelon DMX958XR 6.8″ Digital Multimedia Receiver with Wireless CarPlay, Android Auto, HD Radio + CMOS-230LP Backup Camera

The Kenwood eXcelon DMX958-230LP bundle pairs the premium DMX958XR digital multimedia receiver with the CMOS-230LP license plate backup camera. This combination offers a high-definition 6.8" capacitive touchscreen interface with seamless wireless smartphone integration and a discreet, high-visibility rearview safety solution for any vehicle.

Designed for audiophiles and tech-forward drivers, the DMX958XR features a short-chassis design for easier installation and supports High-Resolution Audio for a superior listening experience. The included CMOS-230LP camera mounts directly to your license plate for a clean, factory-style look without the need for complex mounting hardware.

Key Features

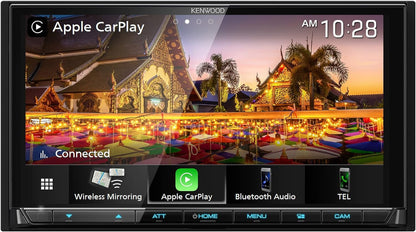

• 6.8" High Definition (1280 x 720) capacitive touchscreen display
• Wireless and wired Apple CarPlay
• Wireless and wired Android Auto
• Built-in HD Radio tuner
• USB Type-C connectivity with 3.0A rapid charging
• 4 camera inputs for comprehensive vehicle monitoring
• High-Resolution Audio Wireless (LDAC) and Hi-Res wired playback support

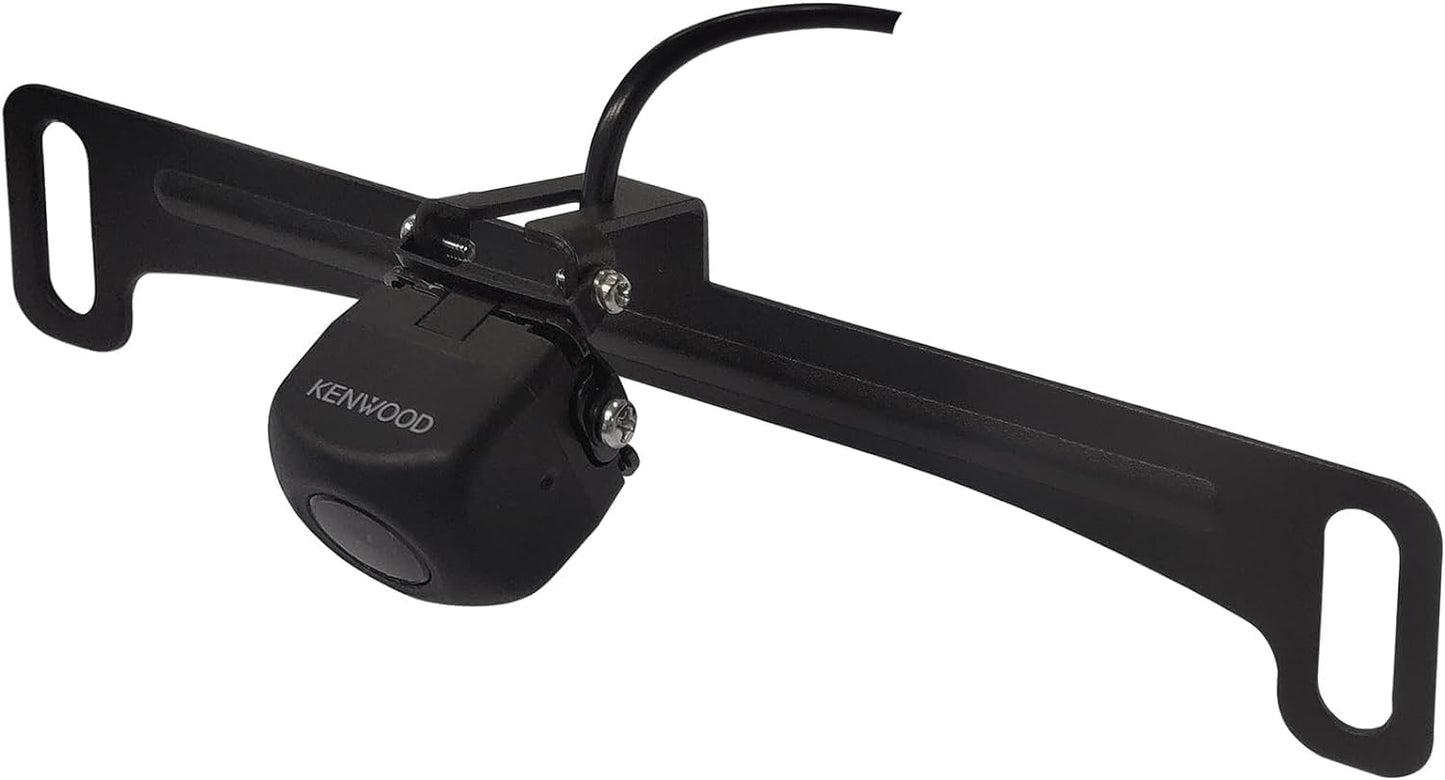

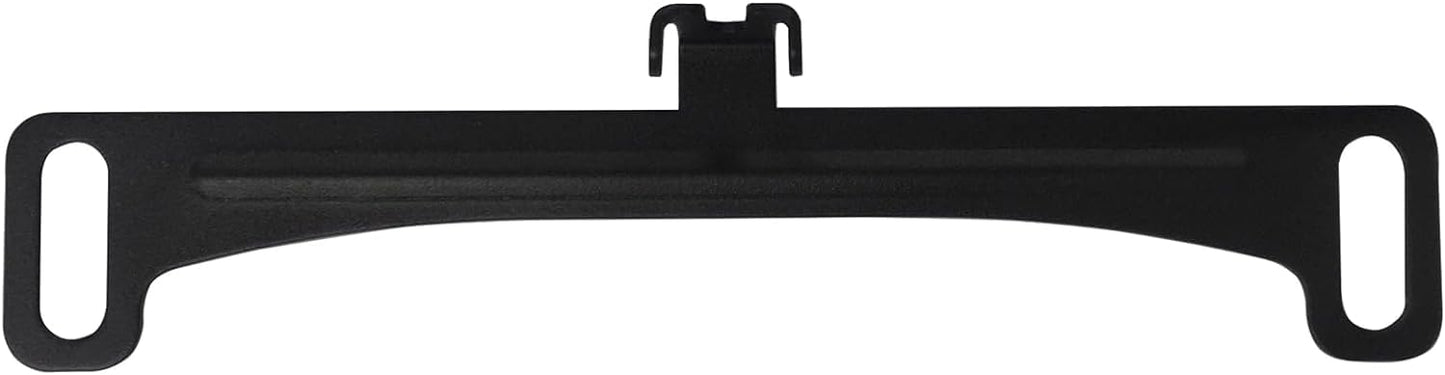

• Included CMOS-230LP rearview camera with license plate bracket

Connectivity & Integration

• Apple CarPlay: Wireless and wired connection via USB-C
• Android Auto: Wireless and wired connection via USB-C
• Bluetooth: Dual phone connection for hands-free calling and music streaming
• Wireless Mirroring: Compatible with select Android devices for screen casting

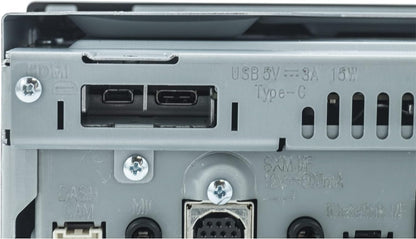

• USB: Rear USB Type-C port (USB-C to USB-A adapter and extension included)
• HDMI Input: Type-D input for external video sources (optional cables required)
• Cameras: 4 camera inputs; supports the included rearview camera plus front, side, and dash camera configurations
• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner

Audio & System Control

• 13-band graphic equalizer with digital time alignment
• 3 pairs of 5.0V gold-plated RCA preamp outputs (Front, Rear, Subwoofer)
• Independent 3-way crossover network for advanced system tuning
• Drive EQ and advanced digital signal processing (DSP)
• Built-in internal amplifier (22 Watts RMS / 50 Watts Peak x 4 channels)

Installation & Fitment Notes

• Chassis Type: Double-DIN (in-dash)
• Short Chassis: 3.35" (85mm) mounting depth for versatile installation in tight spaces
• Parking Brake: Connection required for video playback and specific system settings
• Factory Integration: iDatalink Maestro RR/RR2 ready for retaining steering wheel controls and displaying vehicle performance data (module required; vehicle dependent)
• Dash kits, wiring harnesses, and antenna adapters are vehicle-specific and sold separately

Technical Specifications

• Receiver Model: DMX958XR
• Screen Resolution: 1280 x 720 (HD)
• Preamp Voltage: 5.0 Volts
• USB Port: Type-C
• Camera Model: CMOS-230LP
• Camera Sensor: 1/3.6" Color CMOS
• Camera Field of View: 128° Horizontal / 103° Vertical
• Camera IP Rating: IP67 (Waterproof)

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX958-230LP
• UPC: 019048239907
• Sold As: Each

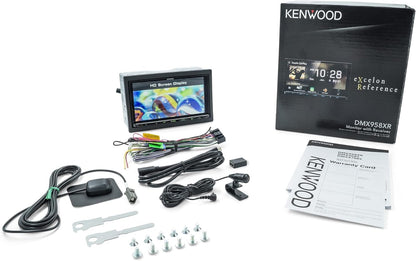

• Included Components: DMX958XR receiver, CMOS-230LP camera, license plate mounting bracket, GPS antenna, microphone with bracket, USB-C to USB-A adapter, wiring harness, and mounting hardware
