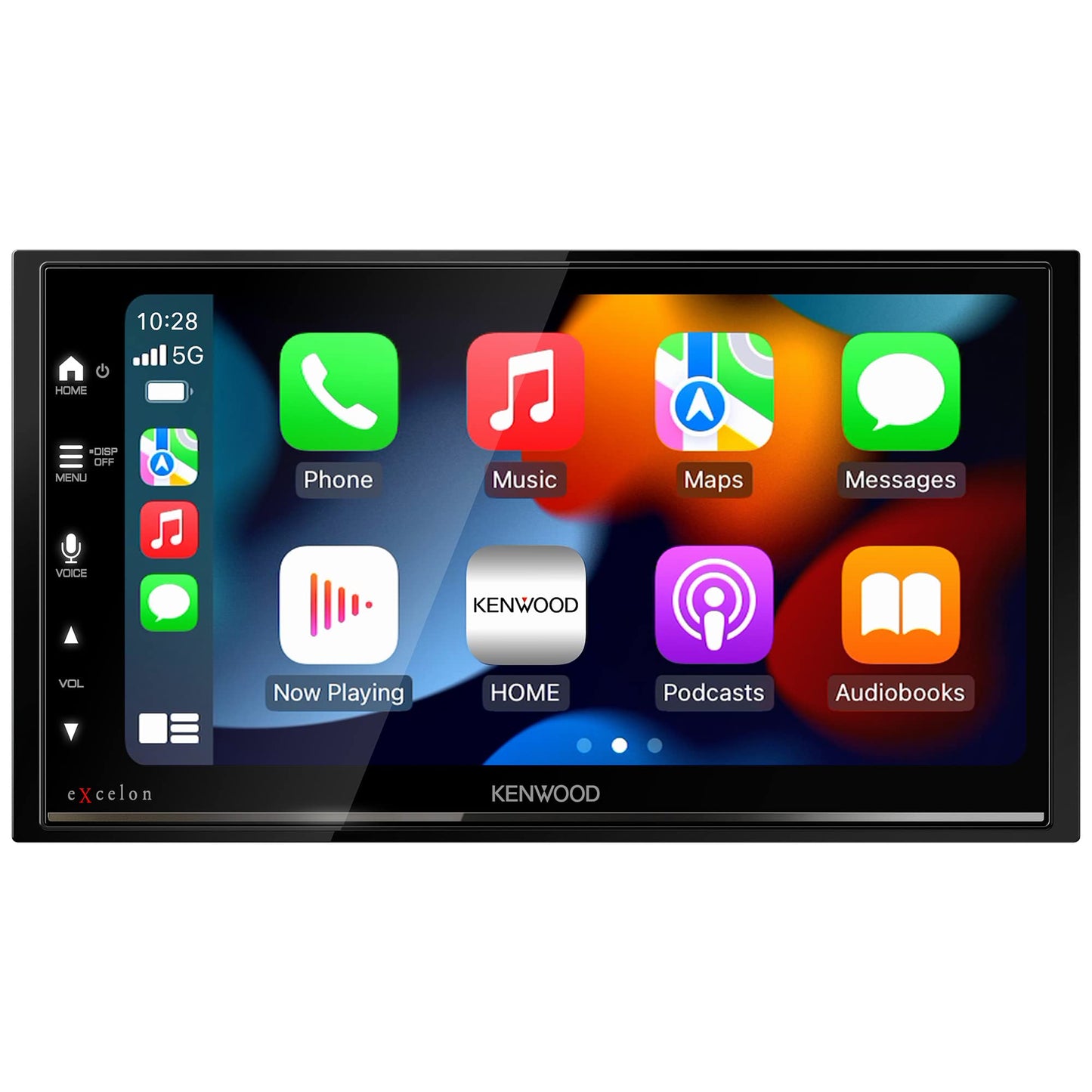

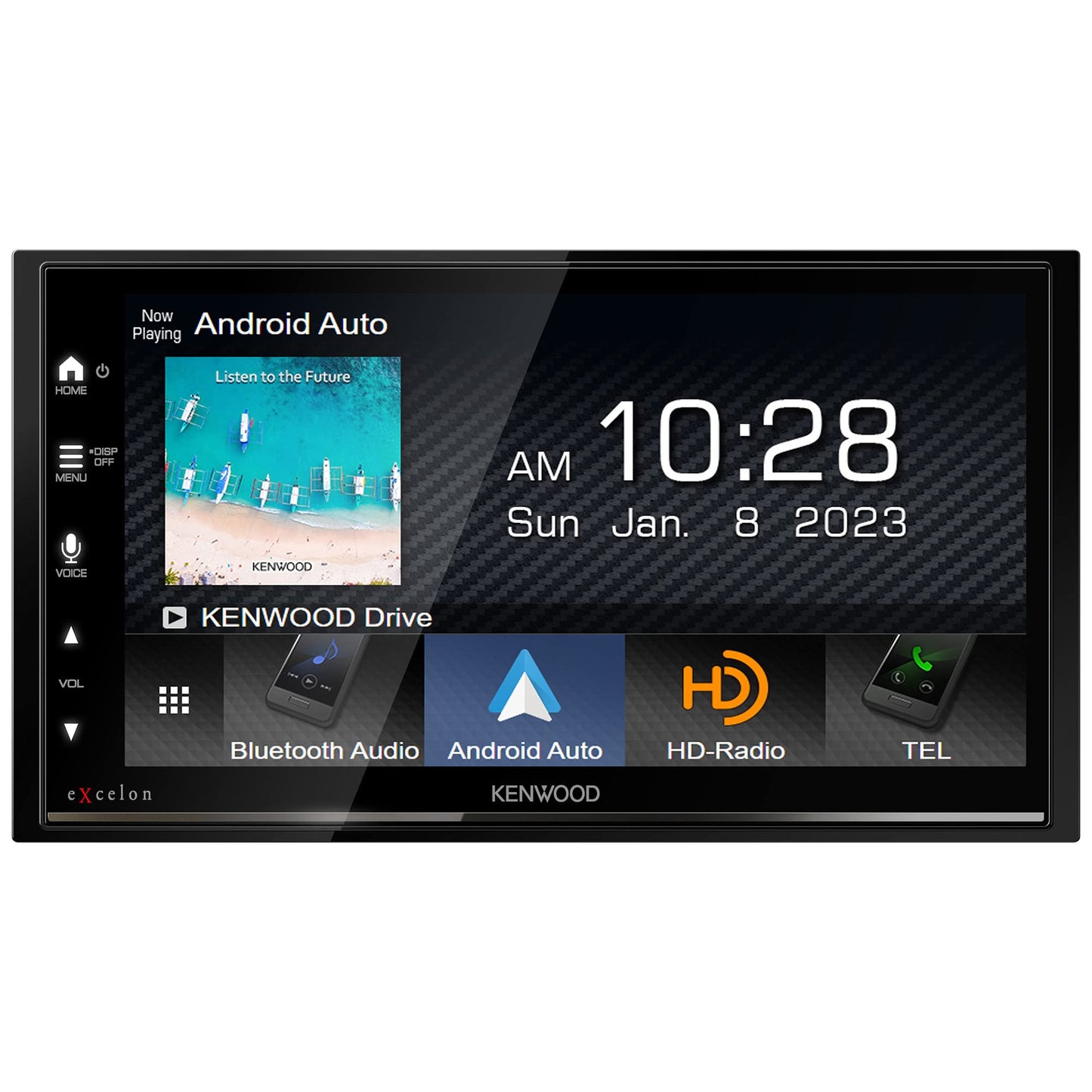

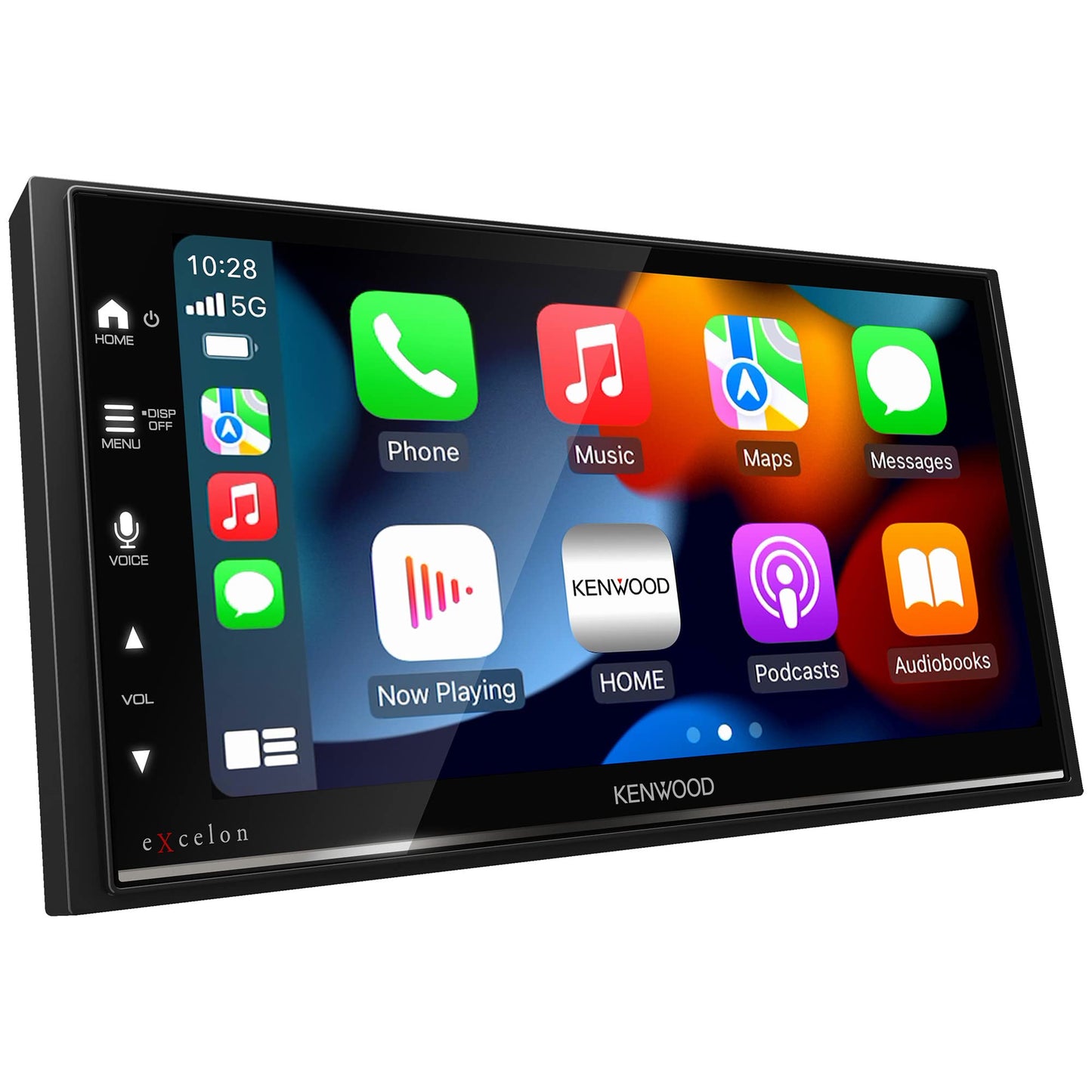

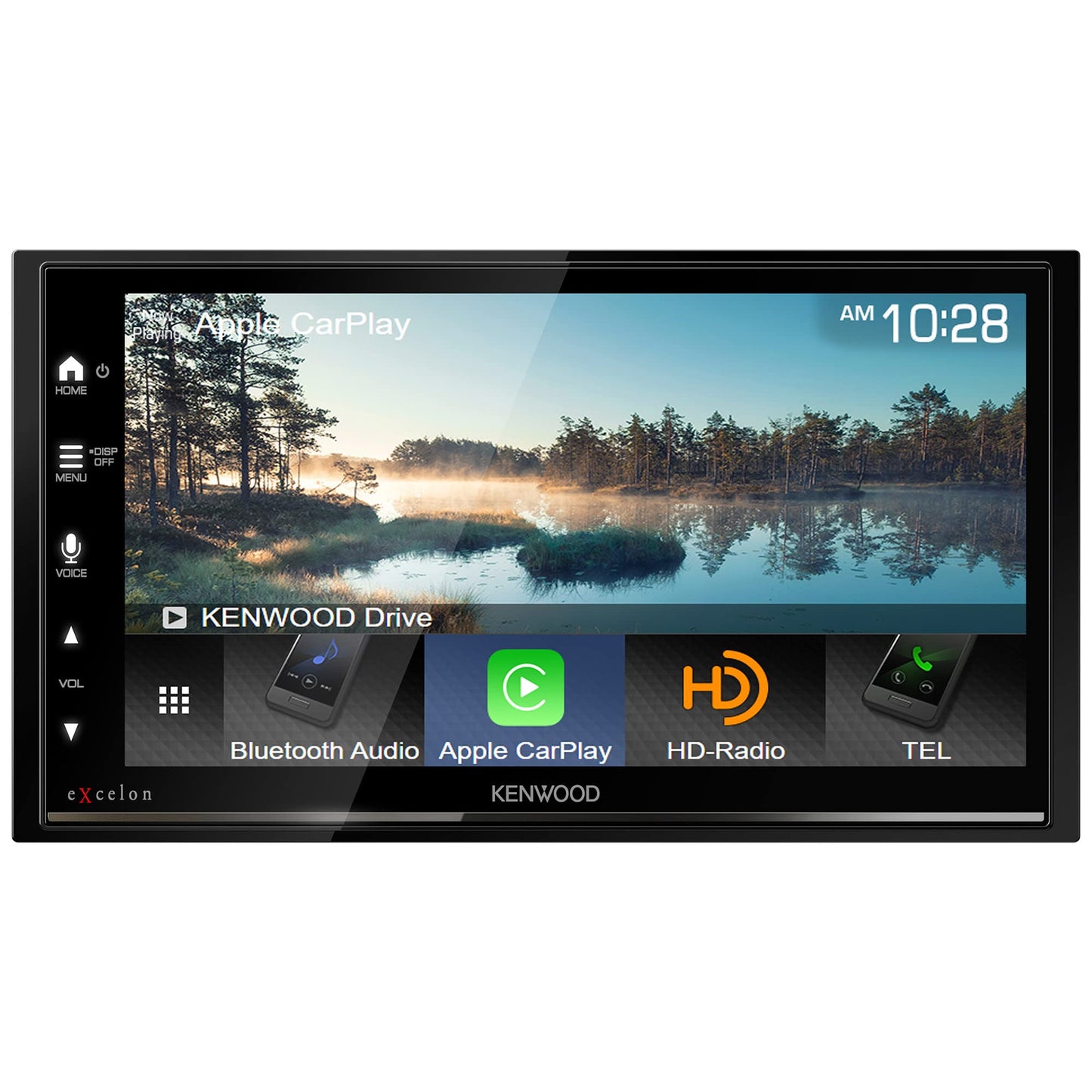

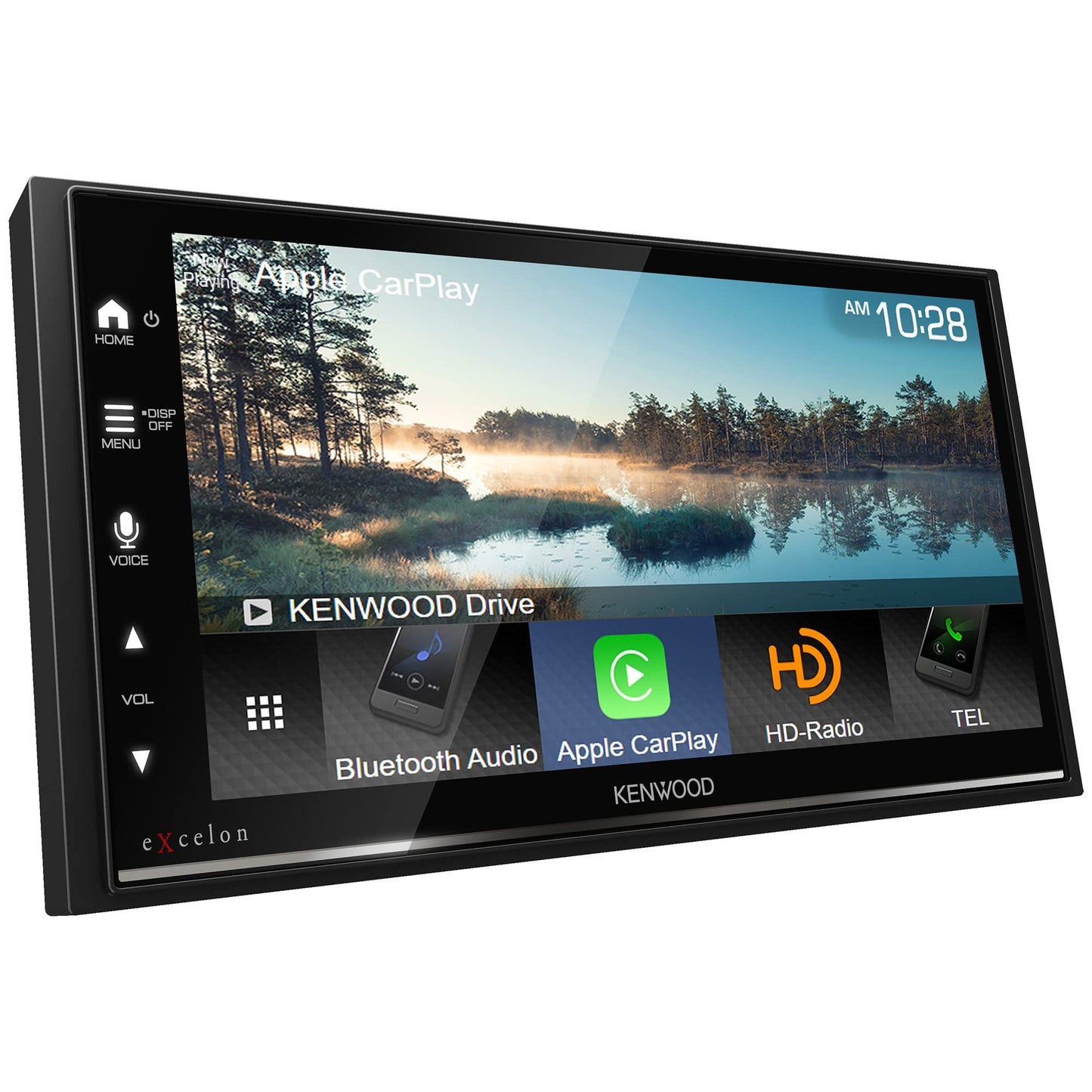

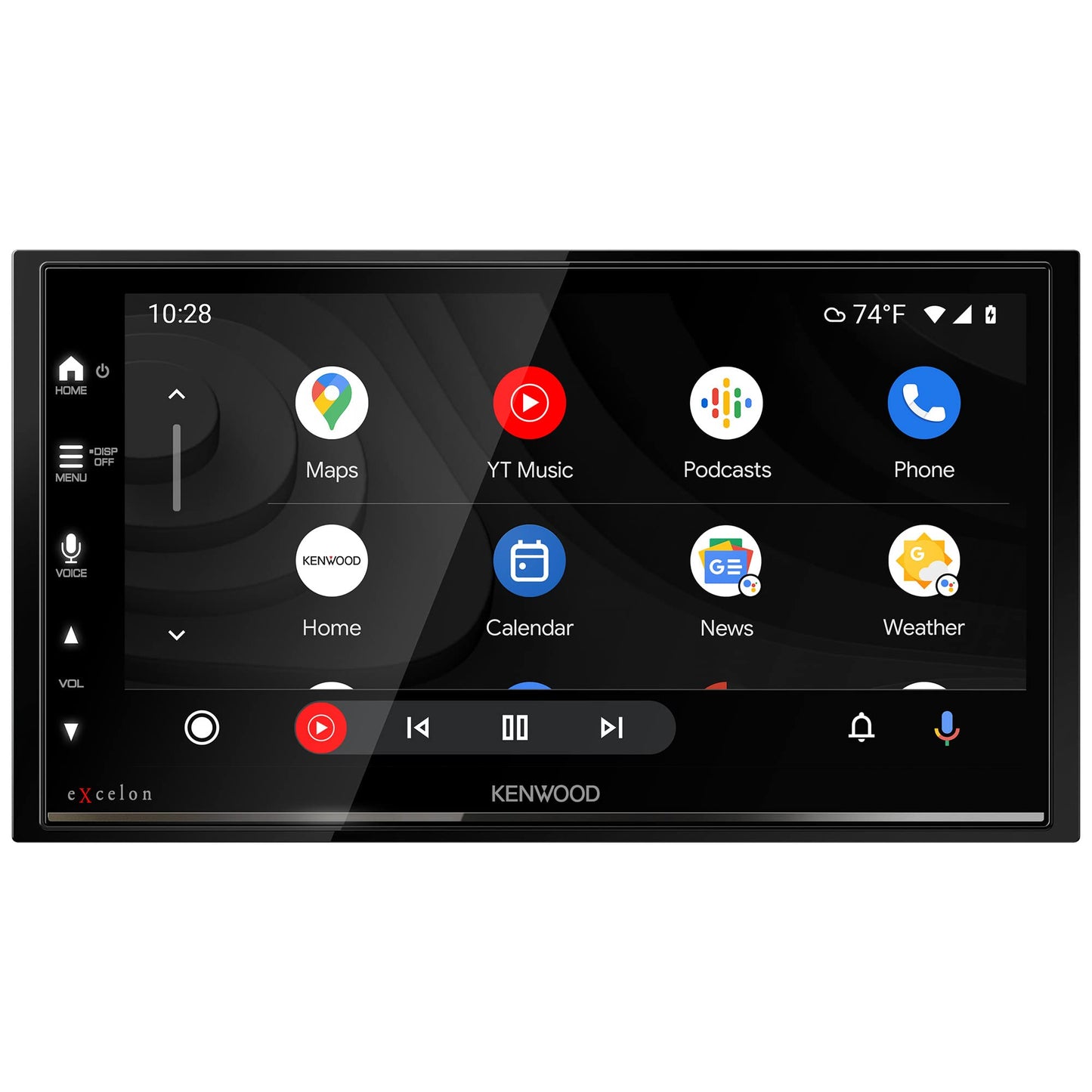

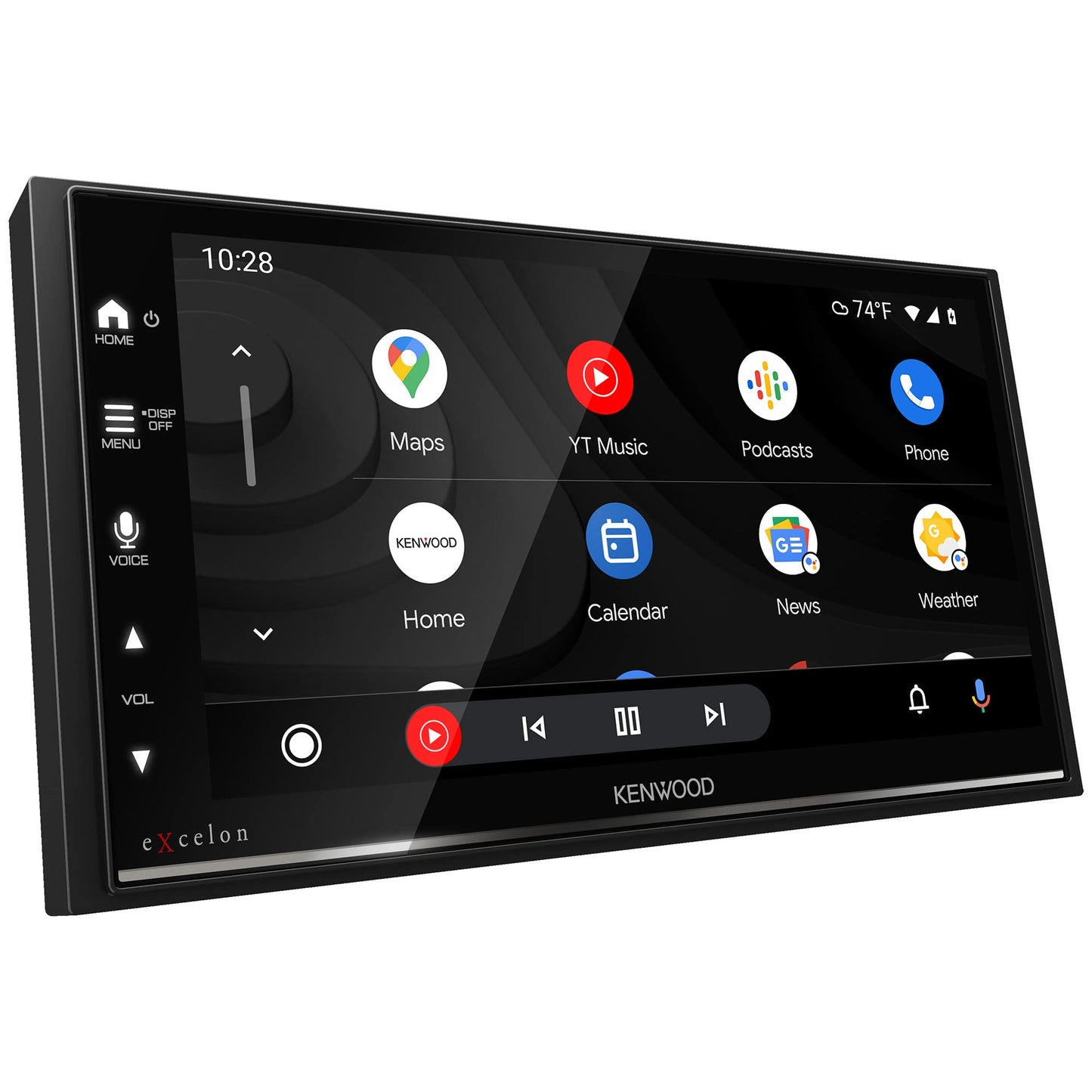

Kenwood eXcelon DMX709S 6.8" Receiver with Wired Apple CarPlay, Android Auto, HD Radio & 5V Preouts

The Kenwood eXcelon DMX709S is a 6.8" capacitive touchscreen multimedia receiver designed to modernize the factory dash with smartphone-driven control, HD Radio reception, and flexible system integration. Built within Kenwood’s eXcelon series, it focuses on clean signal output, stable connectivity, and compatibility with advanced vehicle interfaces.

This double-DIN receiver provides wired Apple CarPlay and Android Auto integration, built-in HD Radio, and system-tuning tools typically expected in higher-end installations. The short chassis design also makes installation easier in vehicles where dash depth is limited.

Key Features

• 6.8" WVGA capacitive touchscreen display
• Wired Apple CarPlay support
• Wired Android Auto support
• Built-in HD Radio tuner
• 13-band graphic EQ with digital time alignment
• Bluetooth hands-free calling and audio streaming
• 3 pairs of 5.0V preamp outputs
• Three camera inputs (third input requires optional CA-C3AV cable)
• HDMI input for compatible external devices

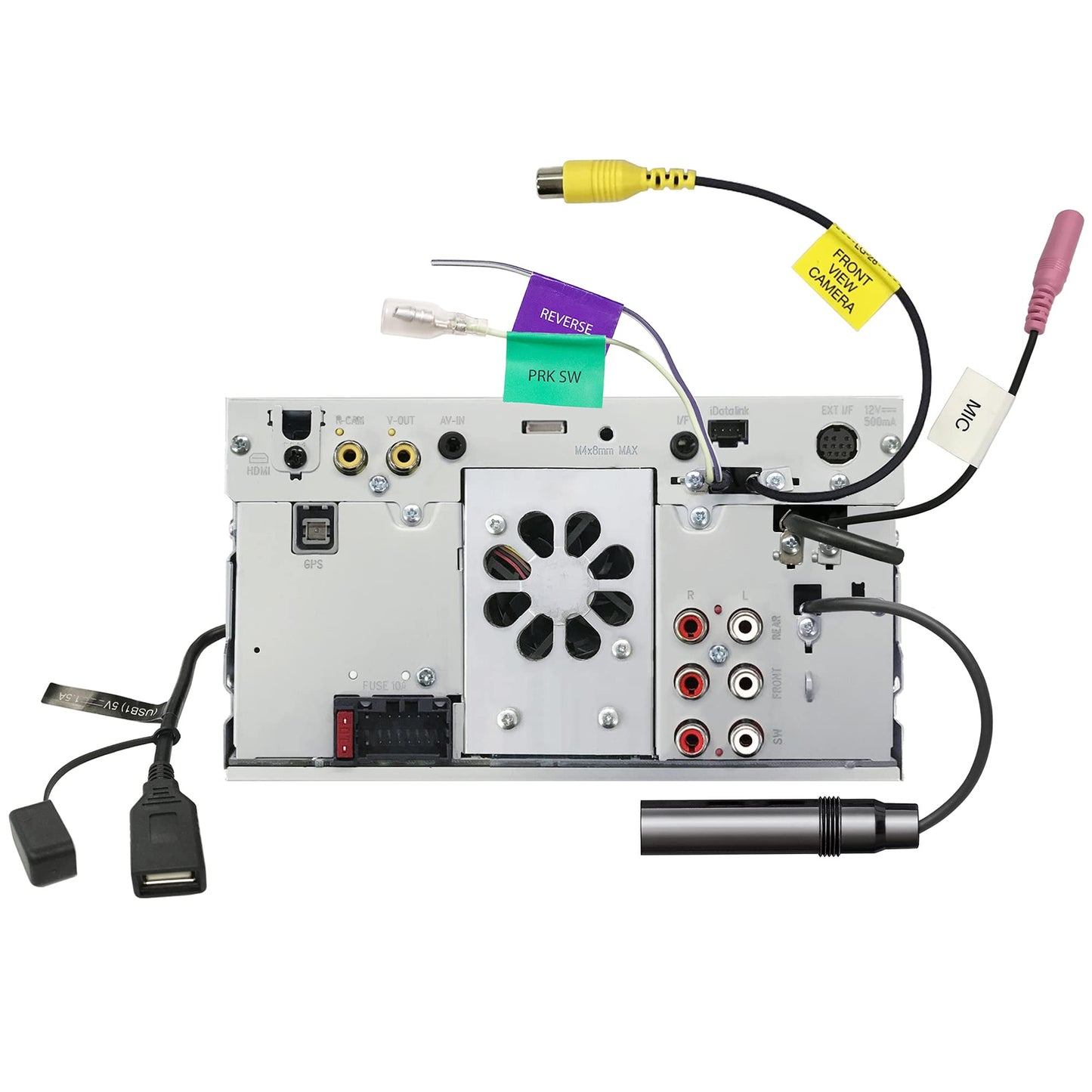

Connectivity & Integration

• Apple CarPlay: Wired
• Android Auto: Wired
• Bluetooth: Hands-free calling and wireless audio streaming
• USB: Rear USB input
• HDMI input: Supports compatible external video sources with the optional KCA-HD200 cable (sold separately)
• Cameras: Three camera inputs; the third requires the optional CA-C3AV cable (sold separately)
• SiriusXM: SiriusXM Radio Ready (tuner required): SXV300V1 SiriusXM Tuner
• Kenwood camera links: CMOS-740HDLP, CMOS-320LP, CMOS-240U, CMOS-230LP

Audio & System Control

• 13-band graphic equalizer for detailed system tuning
• Digital time alignment for proper speaker staging
• 3 pairs of RCA preamp outputs (5.0V)
• Built-in amplifier rated at 22W RMS × 4 channels
• Drive EQ sound enhancement

Installation & Fitment Notes

• Chassis type: Double-DIN in-dash receiver
• Short chassis design allows easier installation in tight dashboards
• Parking brake connection required to access certain settings and video functions
• Factory integration: Compatible with iDatalink Maestro RR and RR2 modules for retaining supported factory features and vehicle data display (module required; vehicle dependent)
• Dash kits, wiring harness adapters, antenna adapters, and vehicle-specific integration modules are required and sold separately

Technical Specifications

• Screen size: 6.8" capacitive touchscreen
• Smartphone integration: Wired Apple CarPlay; wired Android Auto
• Radio: AM/FM with built-in HD Radio
• Bluetooth: Built-in
• USB: Rear USB input
• HDMI: HDMI input supported
• Camera inputs: 3 (third input requires optional CA-C3AV cable, sold separately)
• Preamp outputs: 3 pairs (5.0V)
• Chassis type: Double-DIN

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX709S
• UPC: 019048234858
• Sold As: Each
• Included Components: DMX709S receiver, wiring harness, trim ring, mounting hardware, microphone, documentation

Why Buy From MCOR Automotive

• Kenwood Preferred Retailer (online and in-store)
• Specialists in vehicle-specific integration and factory feature retention
• Support for selecting the correct installation parts and configuring a reliable system

Vehicle Fitment & Installation Notes

• Most vehicles require additional installation parts when replacing the factory radio. Depending on the vehicle, you may need a dash kit, wiring harness, antenna adapter, steering wheel control interface, factory amplifier integration module, or other vehicle-specific parts.
• Vehicle-specific installation parts are sold separately unless included in the bundle.
• Use the MCOR Automotive Vehicle Fit Guide to help identify required parts for your vehicle, or contact MCOR Automotive through the chat button for help building the correct vehicle-specific install package.
• Do not assume universal fitment. Radio fitment and retained factory features depend on the vehicle, trim, factory audio system, and required installation interfaces.
