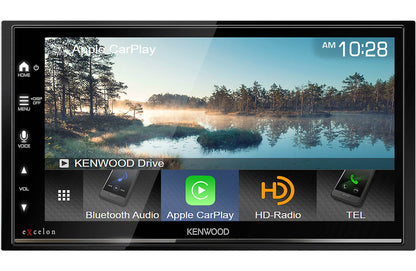

Kenwood eXcelon DMX709S 6.95" Touchscreen Car Stereo- Apple CarPlay, Android Auto + CMOS-320LP Backup Camera

The Kenwood eXcelon DMX709S paired with the CMOS-320LP multi-angle camera delivers a complete multimedia upgrade that combines modern smartphone integration with expanded rear-view visibility. The receiver’s capacitive touchscreen provides direct access to Apple CarPlay, Android Auto, Bluetooth audio, and HD Radio, while the included camera provides a wide viewing perspective to assist with reversing and parking.

This bundle is designed for vehicles where drivers want clean smartphone control along with the flexibility of Kenwood’s advanced camera system. The CMOS-320LP camera supports multiple selectable viewing modes, allowing the receiver to display wide, corner, or overhead-style perspectives depending on installation and preference.

Key Features

• 6.8" WVGA capacitive touchscreen multimedia receiver

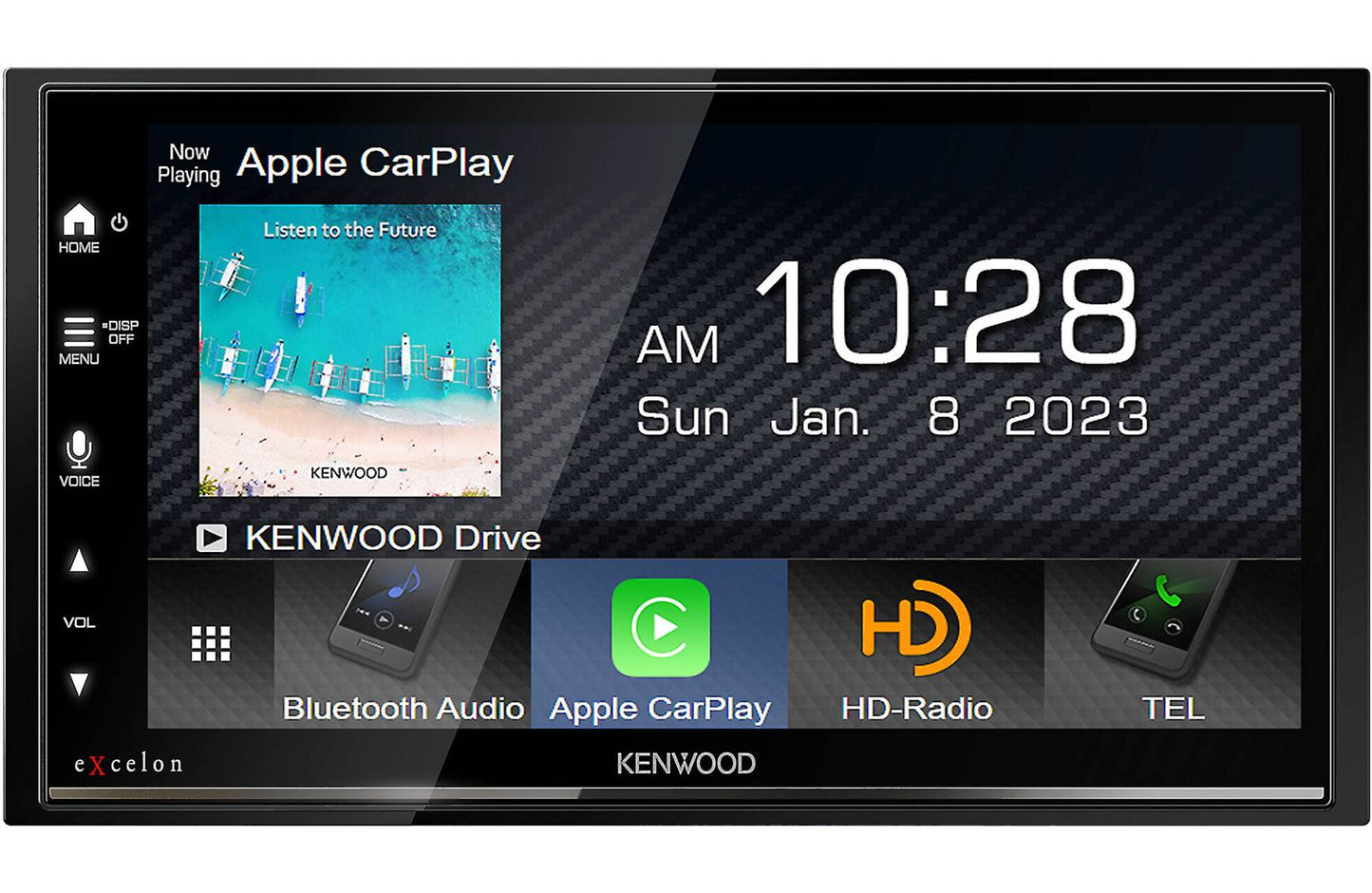

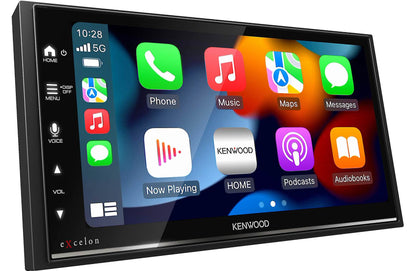

• Wired Apple CarPlay integration

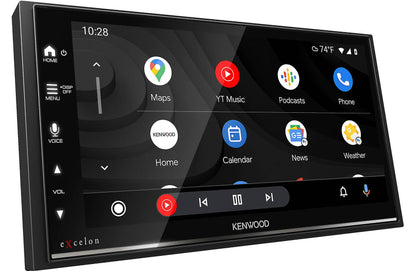

• Wired Android Auto integration
• Built-in HD Radio tuner
• Bluetooth hands-free calling and audio streaming
• 13-band EQ with digital time alignment
• 3 camera inputs
• 3 pairs of 5.0V preamp outputs
• Short chassis design for easier installation
• Included CMOS-320LP selectable multi-angle backup camera

Connectivity & Integration

• Apple CarPlay: Wired
• Android Auto: Wired
• Bluetooth: Hands-free calling and wireless audio streaming
• USB: Rear USB input
• HDMI input: HDMI input supports compatible external devices
• Cameras: 3 camera inputs supporting rear, front, or auxiliary cameras
• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner

Audio & System Control

• 13-band graphic EQ for detailed tuning
• Digital time alignment for speaker staging
• 3 pairs of RCA preamp outputs (5.0V)
• Drive EQ sound enhancement
• Built-in amplifier rated at 22W RMS × 4 channels

Installation & Fitment Notes

• Chassis type: Double-DIN multimedia receiver
• Short chassis design: Approx. 2-15/16" mounting depth for easier installation
• Parking brake connection required to access certain settings and video functions
• Factory integration: Compatible with iDatalink Maestro RR and RR2 modules for retaining supported vehicle features and displaying vehicle data (module required; vehicle dependent)
• Dash kits, wiring interfaces, antenna adapters, and vehicle-specific installation components are required and sold separately
• Camera installation: CMOS-320LP can be installed as a front or rear camera and supports selectable viewing modes through compatible Kenwood receivers

Technical Specifications

• Receiver model: DMX709S
• Screen size: 6.8" WVGA capacitive touchscreen
• Smartphone integration: Wired Apple CarPlay; wired Android Auto
• Radio: AM/FM with built-in HD Radio
• Bluetooth: Built-in
• USB: Rear USB input
• Camera inputs: 3
• Preamp outputs: 3 pairs, 5.0V
• Chassis type: Double-DIN
• Camera model: CMOS-320LP
• Camera sensor: 1/3.6" color CMOS sensor, approx. 330,000 pixels
• Camera viewing angle: Approx. 195° horizontal / 145° vertical
• Camera features: Selectable multi-angle views including wide, corner, and overhead modes
• Camera design: Waterproof housing

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX709-320LP
• UPC: 019048240019
• Sold As: Each

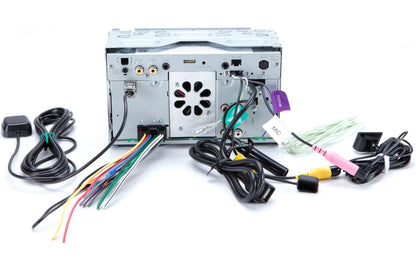

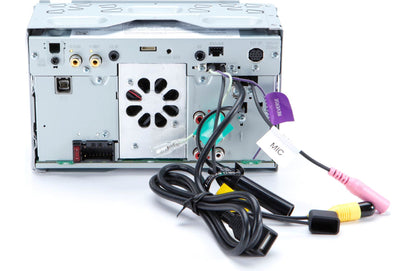

• Included Components: DMX709S receiver, CMOS-320LP multi-angle camera with mounting hardware, camera cable harness, receiver wiring harness, Bluetooth microphone, mounting hardware, documentation
