Audison Forza AF M8.14 bit 8-Channel DSP Amplifier, 90W x8 RMS @4Ω

Which Forza amplifier fits your build?

Compare the AF C8.14 bit and AF M8.14 bit against your speaker layout, speaker impedance, signal inputs and tuning plan. Choose for the needs of the full system rather than maximum wattage alone. Installation wiring and tuning requirements depend on the vehicle and system.

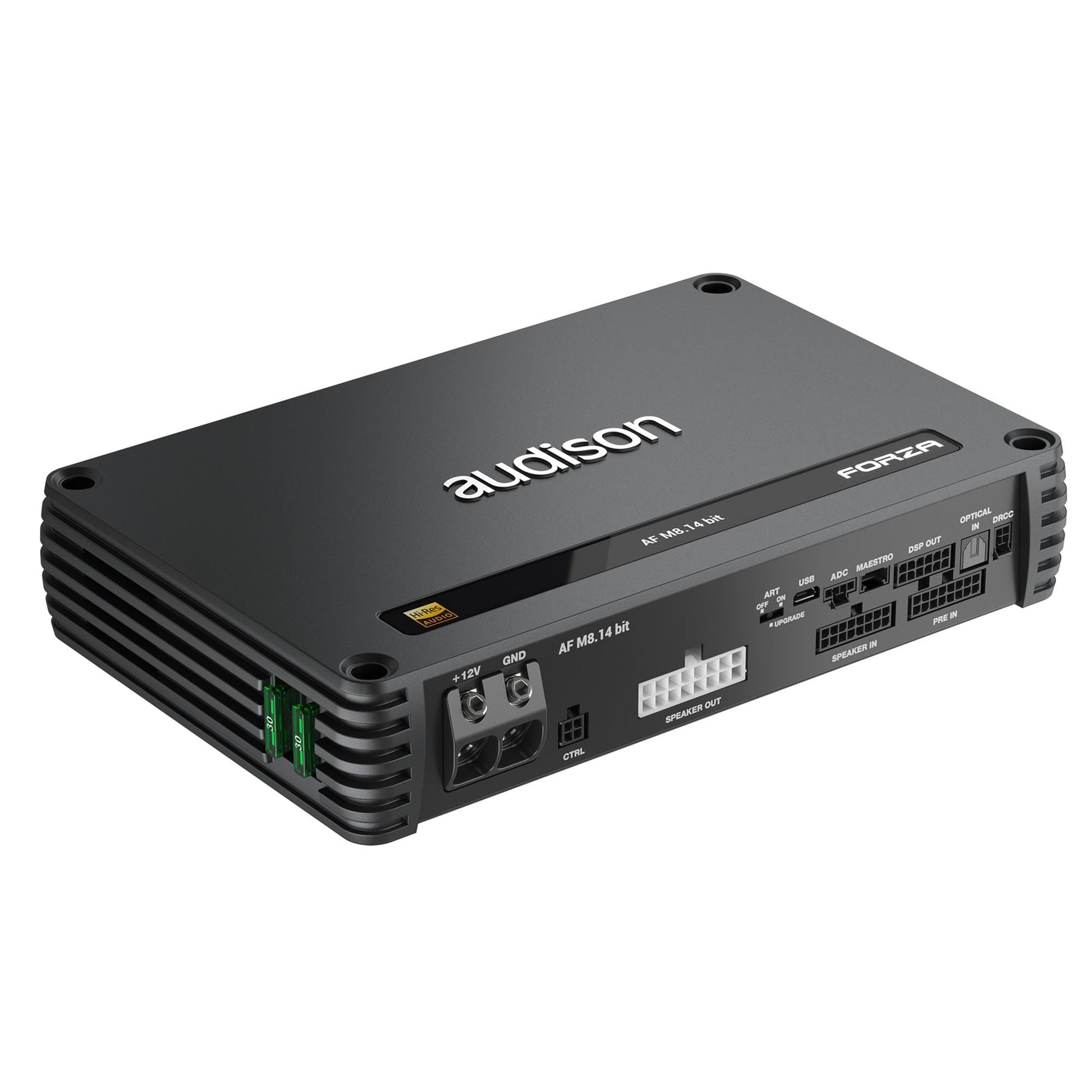

Audison Forza AFM8.14bit is a high-performance 8-channel full-range D-Class amplifier integrated with a 14-channel DSP platform engineered for modern OEM-integration and sound quality system architectures. Delivering 8 × 90W @ 4Ω, the AFM8.14bit is capable of powering complex active front stages, multi-zone configurations, and OEM premium audio overhauls with advanced DSP tuning control.

The Forza DSP platform provides channel-flexible I/O routing, time alignment, parametric EQ, filtering, and system preset management through the bit Drive software ecosystem. Designed to interface with factory head units and monitored OEM premium systems, the AFM8.14bit forms the core of advanced OEM+ system design where stealth integration and uncompromised sound quality are required.

Key Performance Features

• 8-channel full-range D-Class amplifier
• 14-channel DSP processor with flexible routing
• 8 × 90W @ 4Ω high-efficiency output
• OEM high-level input with diagnostics & de-equalization
• bit Drive software for full DSP control
• Compatible with the optional Audison DRC MP CAN controller; sold separately
• Ideal core for OEM premium audio replacement

Continuous Power (RMS)

Rated at 14.4V DC, 1% THD, with all channels driven.

• 4Ω: 90W × 8
• 2Ω: 140W × 8
• Bridged at 4Ω: 280W × 4 (channel pairs 1/2, 3/4, 5/6 and 7/8)

DSP & System Architecture

• Channels: 14 DSP / 8 amplified, plus 6 processed preamp outputs for compatible external amplifiers
• Functions: Time alignment, EQ, crossovers, routing
• Presets: Multi-preset memory for tuning profiles
• Software: bit Drive ecosystem

Installation Space & Connections

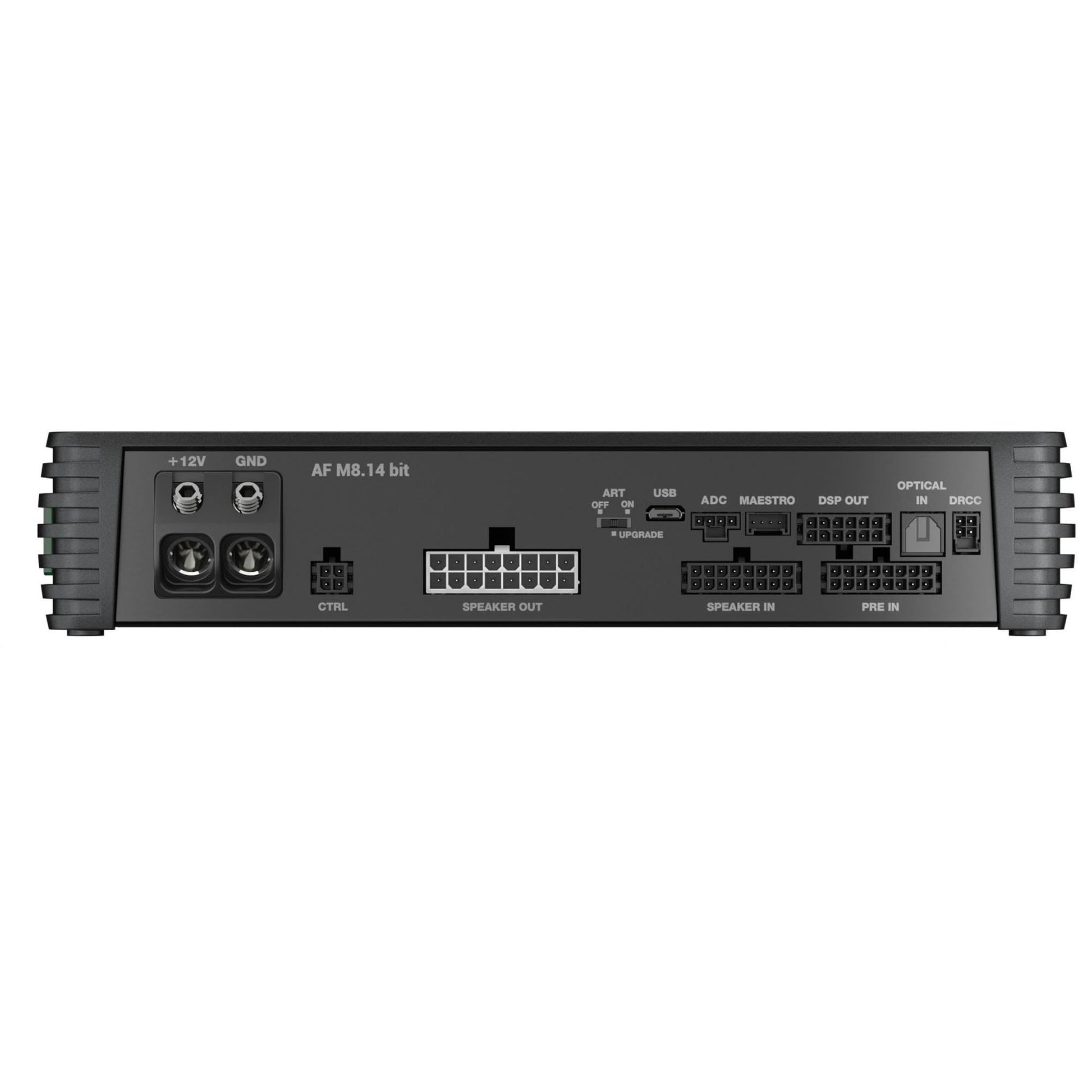

Amplifier dimensions: 240 × 47 × 156 mm (9.44 × 1.85 × 6.14 inches). Allow additional room for wiring and ventilation. Eight analog inputs and an optical Toslink input support system integration; confirm the factory signal, interfaces and installation requirements for your vehicle before ordering.

OEM Integration Notes

• Designed for modern monitored OEM audio systems
• Supports factory head unit retention
• High-level input with diagnostics handling
• Ideal for premium OEM replacement & DSP active front stages

System Use Cases

• 3-way active front stage + rear fill + sub (external amp)
• OEM premium system amplifier replacement
• DSP-driven SQ daily drivers
• Stealth OEM+ installations

DSP Ecosystem Pairing

• Controllers: Optional DRC MP CAN remote (sold separately)
• Speakers: Prima / Voce / Thesis
• Platform: bit Drive tuning suite

What’s Included

• (1) AFM8.14bit Amplifier
• User documentation

Why Buy From MCOR Automotive

• Authorized Audison Forza retailer
• OEM integration & DSP SQ specialists
• Technical support for real system architectures
• 20+ years of high-end 12-volt system design experience

Fitment, Installation & Warranty Notes

• Fitment Help: Need help confirming fitment, compatibility, amplifier matching, or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
• Authorized Retailer: MCOR Automotive is an authorized Audison retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
