Audison APK 165 P Prima Series 6.5" 2-Way Component Speakers (Set)
Audison APK 165 P Prima Series 6.5" 2-Way Component Speakers (Set)
Regular price
$499.99 USD
Regular price
$499.99 USD
Sale price
$499.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

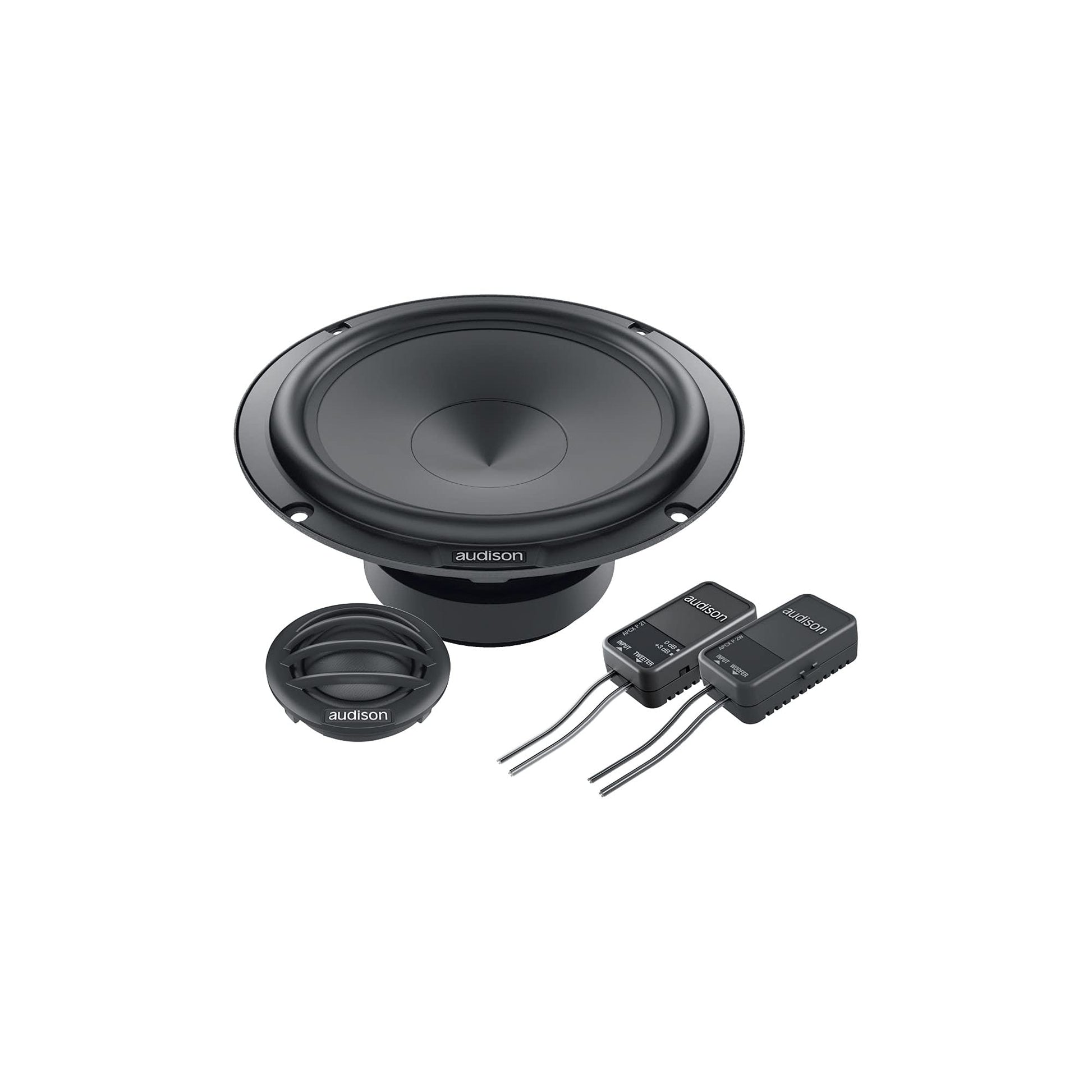

Audison APK 165 P Prima Series 6.5" 2-Way Component Speaker Set; AP 1P + AP 6.5P + Grilles
Product Overview

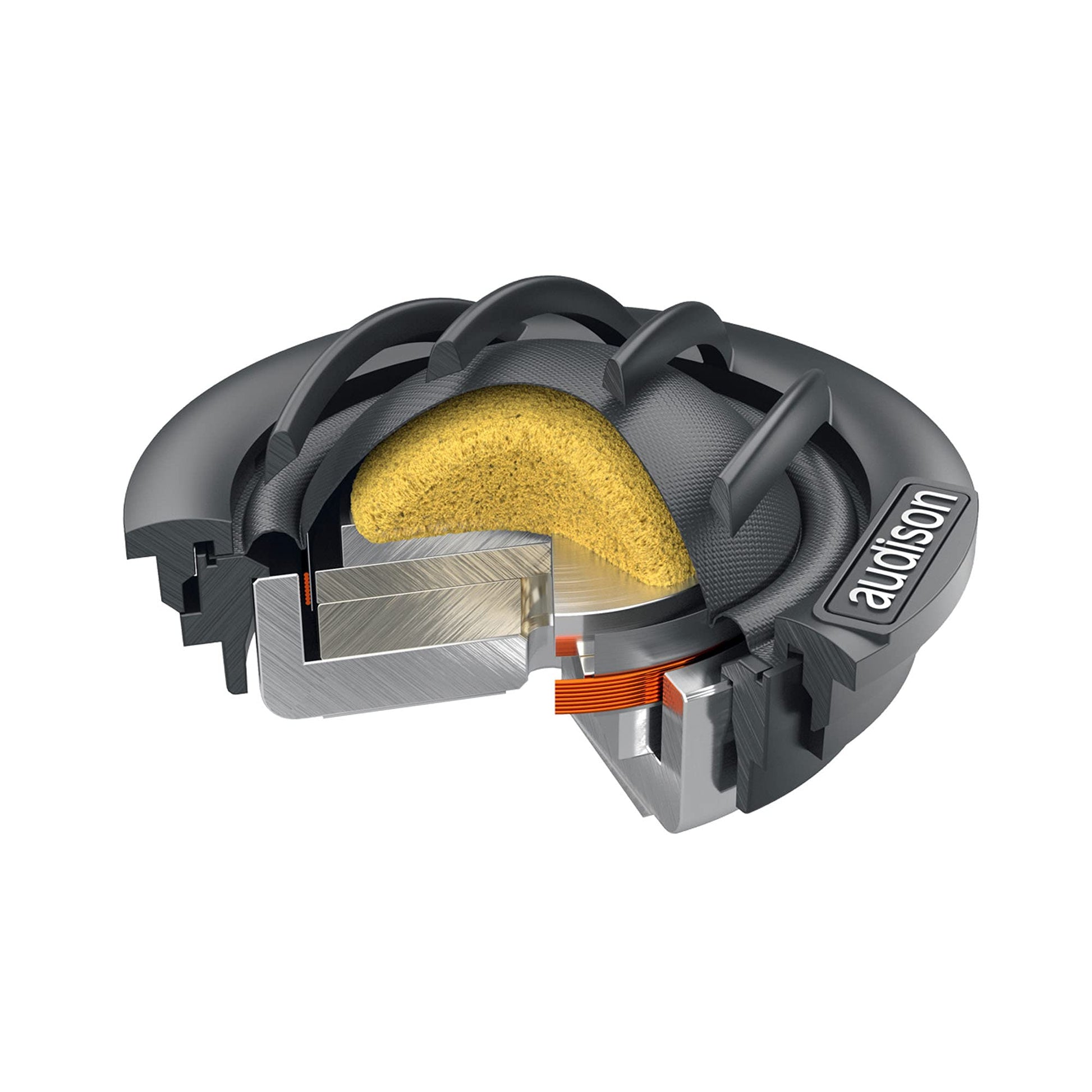

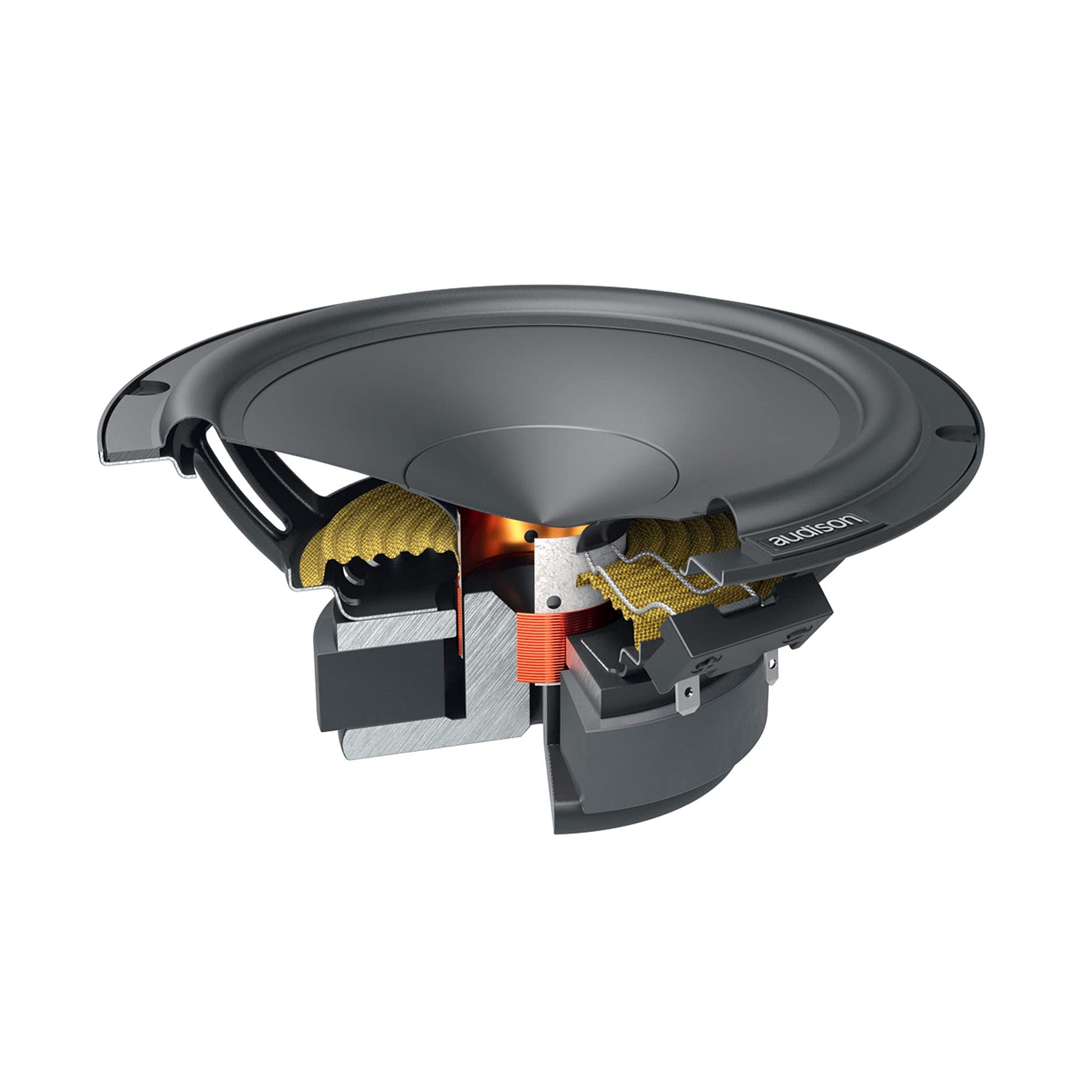

The new Prima APK 165P two-way loudspeaker system, capable of handling up to 345 W peak, is the ideal combination to fully exploit the power of the AP F8.9 bit or all other Prima amplifiers used in high power configurations. The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The woofer has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency.
Features
- Increased excursion of the mobile group for a superior dynamic response.
- Optimized electro-acoustic parameters to maximize performance for OEM placements.
- Magnetic group sized for perfect control even at maximum cone excursion.
- CCAW (Copper-Clad Aluminum Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power.
- Compact size basket for easy OEM installations.
Technical Specs LF
| Woofer Size | 165 mm (6.5 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 345 W |
| Power Handling - Continuous | 115 W |
| Frequency Response | 50 ÷ 24k |
| Voice Coil Diameter | 32 mm (1.26 in) |
| Magnet Size | 100 x 40 x 18 |
| Crossover Level Adjustment | Tweeter Level; 0 / +3 |
Technical Specs HF
| Tweeter Size | 29 mm (1.14 in) |
| Voice Coil Diameter | 25 mm (1.26 in) |
| Dome Material | TETOLON FIBER |
Electric-acoustic Specs LF
| Re | 3.1 Ohm |
| Fs | 60 Hz |
| Mms | 14.6 g |
| Cms | 0.47 |
| BL | 5.35 |
| Qms | 7.6 |
| Qes | 1,74 |
| Qts | 0.55 |
| Vas | 11.4 l |
| Le | 0.29 mH |
| D | 132 sq mm (20.46 sq in) |
| Spl | 89.5 dB |
| Xmax | 5.6 mm (0.22 in) |
Kit Tech Data
| Crossover Low-Pass | Low-Pass: 4 kHz @ 6 dB/Oct |
| Crossover Hi-Pass | Hi-Pass: 4 KHz @ 12dB/Oct. |
| Cone Diameter | 132 mm |
General
| Weight Woofer | 1.45 kg |
| Weight Tweeter | 0.067 kg |
