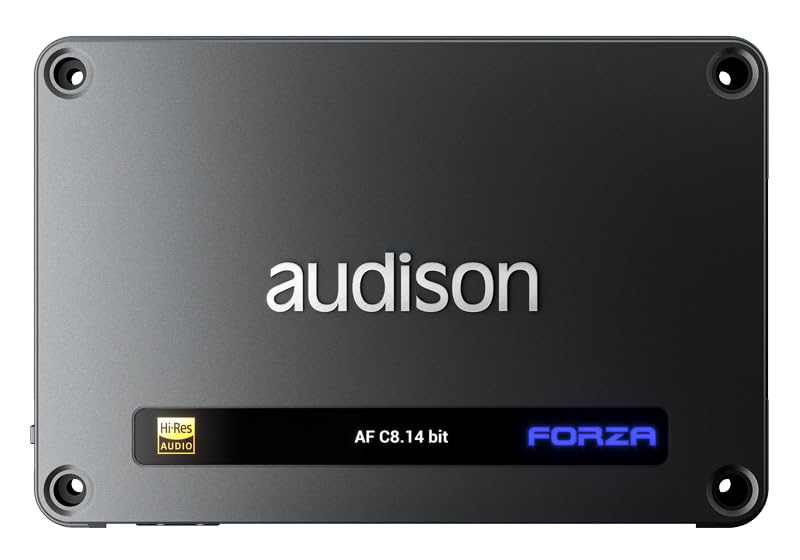

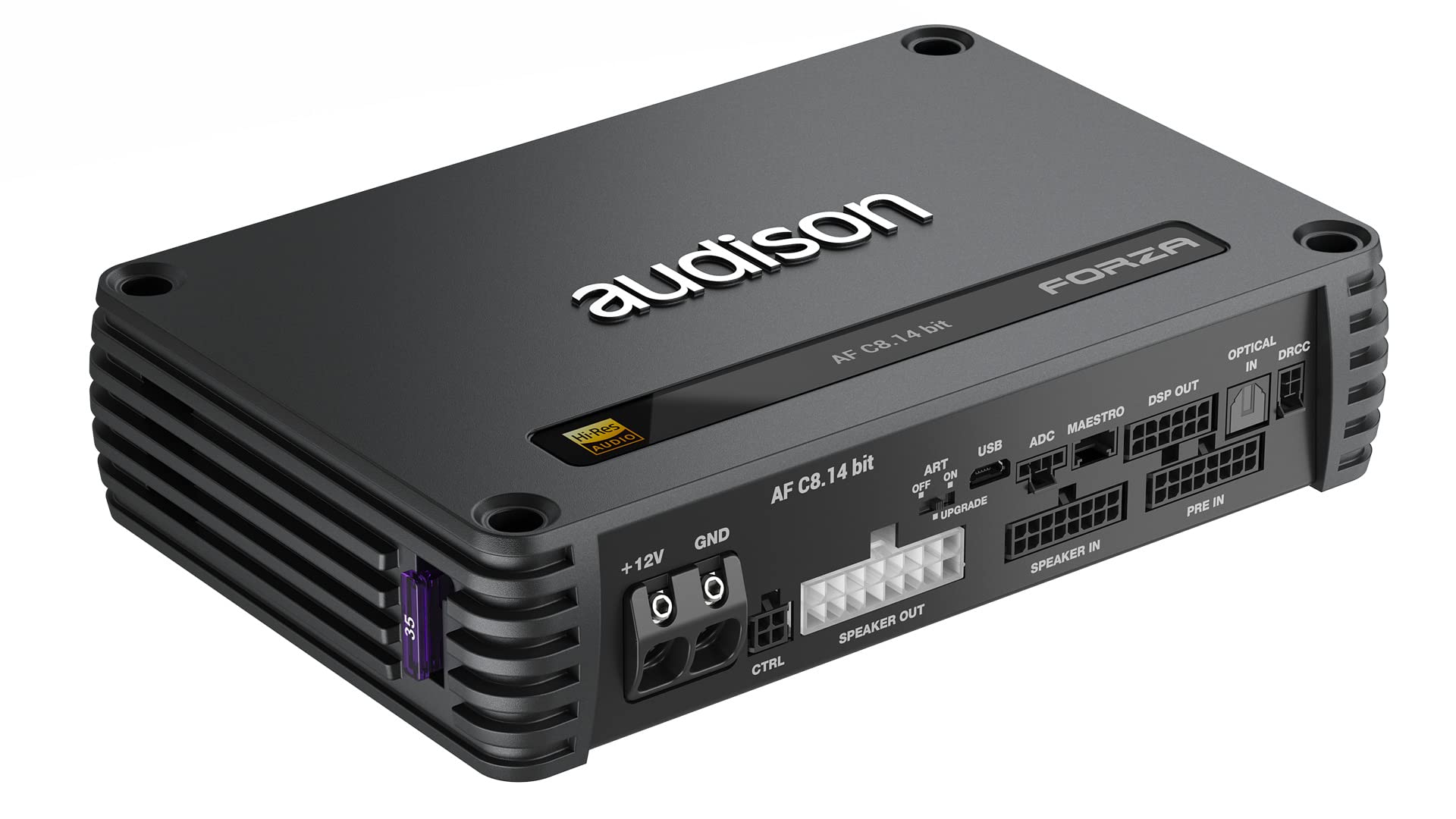

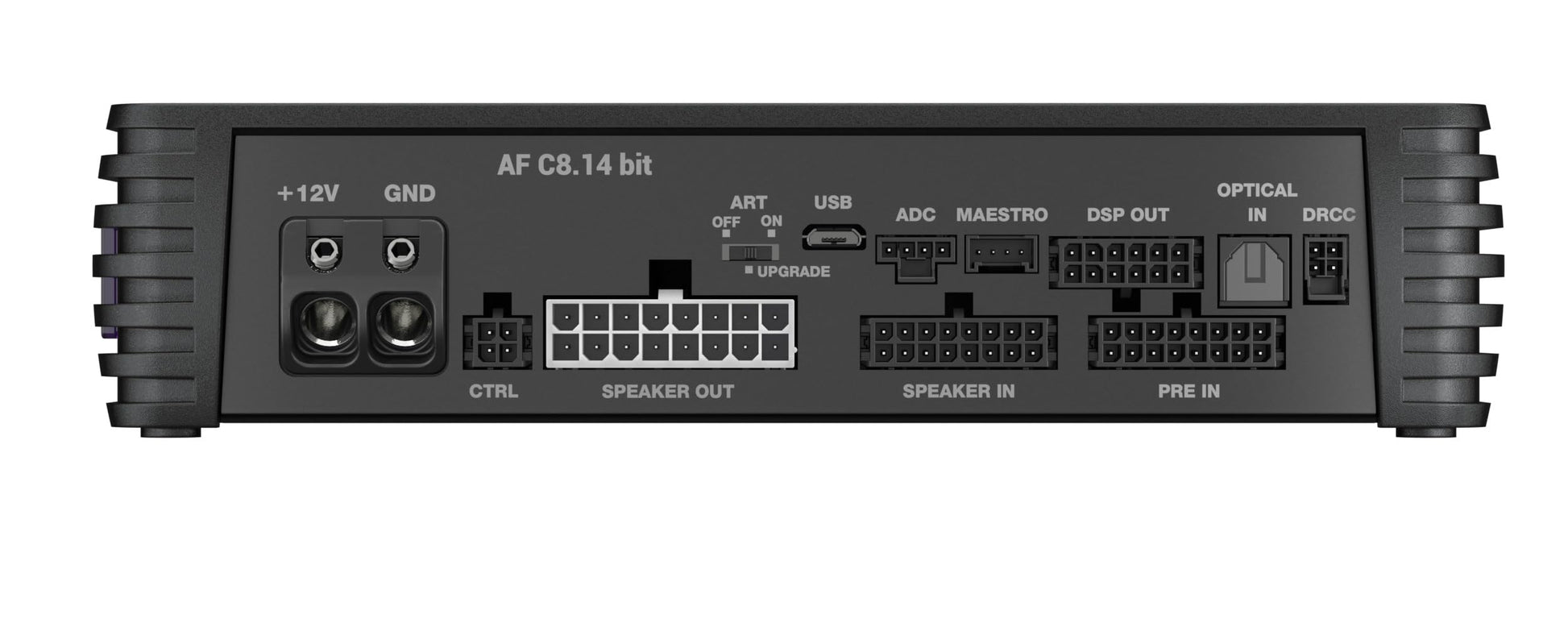

Audison AF-C8.14bit 8-Channel Amplifier + 14-Channel DSP (1120W System)

Audison AF-C8.14bit is a high-end 8-channel full-range D-Class amplifier featuring a 14-channel DSP platform and up to 1120W total system power for advanced OEM-integration and sound-quality system architecture. As part of the Forza ecosystem, the AF-C8.14bit serves as the core signal processing and amplification hub for active front stages, premium OEM amplifier replacement, and DSP-controlled multi-channel audio design.

With flexible routing, time alignment, EQ, crossover management, and preset control via the bit Drive software suite, the AF-C8.14bit enables modern OEM+ system execution while retaining factory head units, premium OEM sources, or digital transport devices.

Key Performance Features

• 8-channel full-range D-Class amplification
• 14-channel DSP for routing, filtering, EQ, and presets
• 1120W system rating for multi-driver architectures
• OEM high-level inputs with diagnostics & de-EQ processing
• bit Drive software ecosystem support
• CAN-bus compatible for DRC MP CAN control
• Designed for OEM premium audio replacement

Power Ratings (Nominal)

• Total System Output: 1120W (multi-channel)
• Channel Configuration: Full-range x 8
• Impedance Behavior: 4Ω / 2Ω stable (architecture dependent)
• Bridging: Supported for active system design

DSP & System Architecture

• DSP Channels: 14
• Processing: Time alignment / PEQ / Crossovers / Routing

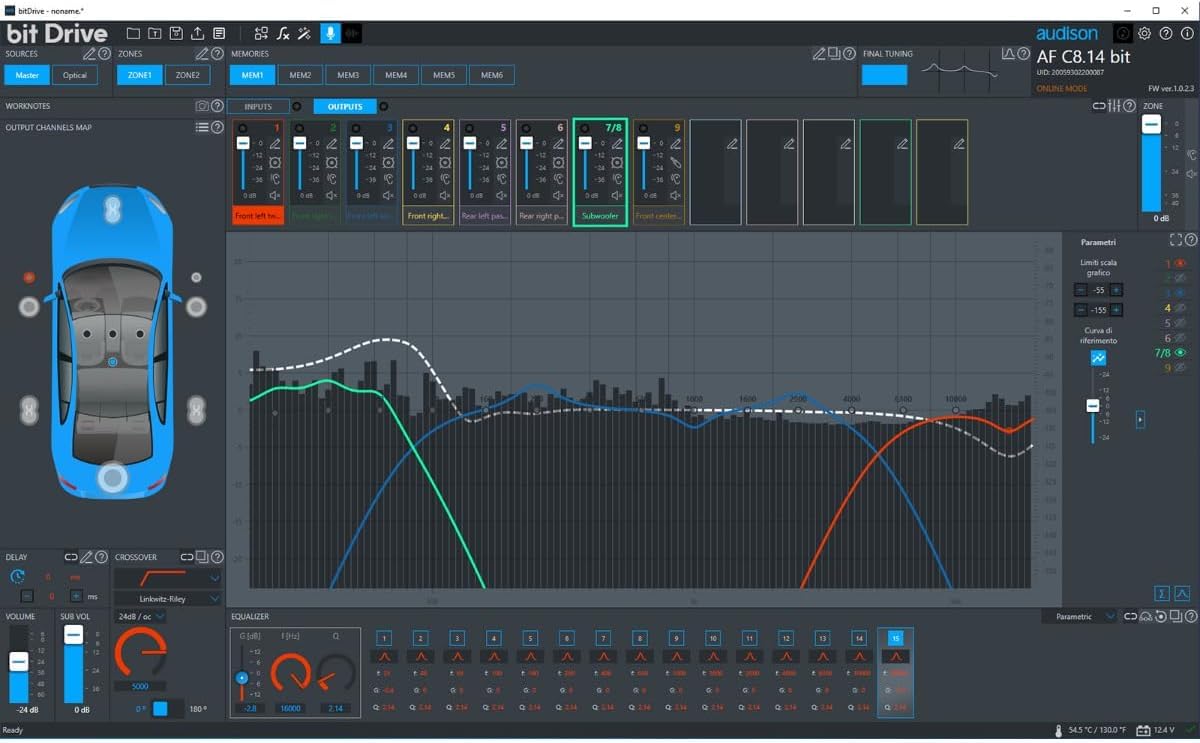

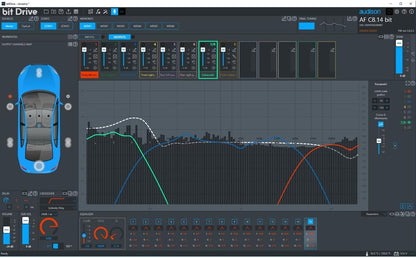

• Software: bit Drive tuning platform
• Presets: Multi-profile memory for different listening modes

OEM Integration Notes

• Supports factory head unit retention
• High-level input with monitored OEM diagnostics compatibility
• Ideal for replacing factory premium amplifiers
• Stealth OEM+ friendly installation footprint

Ideal System Applications

• 3-way active front stage + rear + sub (external or bridged)
• OEM premium system replacement
• DSP-controlled SQ daily drivers
• Advanced OEM+ multi-channel builds

DSP Ecosystem Pairing

• Controllers: DRC MP CAN (preset + sub + volume)
• Speakers: Prima / Voce / Thesis
• Platform: bit Drive ecosystem

What’s Included

• (1) AF-C8.14bit Amplifier
• User documentation

Why Buy From MCOR Automotive

• Authorized Audison Forza retailer
• OEM integration & DSP SQ specialists
• Technical support for real vehicle system design
• 20+ years of high-end 12-volt engineering experience

Dimensions

Dimension A	200 mm
Dimension B	134 mm
Dimension C	47 mm
