Audison AVK 6 S II 6.5" 250W 4-Ohm Hi-Res Component Speakers

Product Overview

The Audison VOCE II AVK 6 S II system, equipped with the high-power AV 6.5 S II woofer and Hi-Res Audio certified AV 1.0 II tweeter, delivers superb performance. The integration of AVCX 2 W and AVCX 2 T crossovers simplifies installation while enabling advanced sound tuning, including bi-amplification and meticulous adjustments for tweeter level and mid contour. These crossovers, built with high-quality components, ensure a harmoniously balanced audio experience, enhancing durability and clarity. This setup achieves seamless integration and superior sound customization, making it an ideal solution for sophisticated car audio upgrades.

Features

AV 6.5 S II

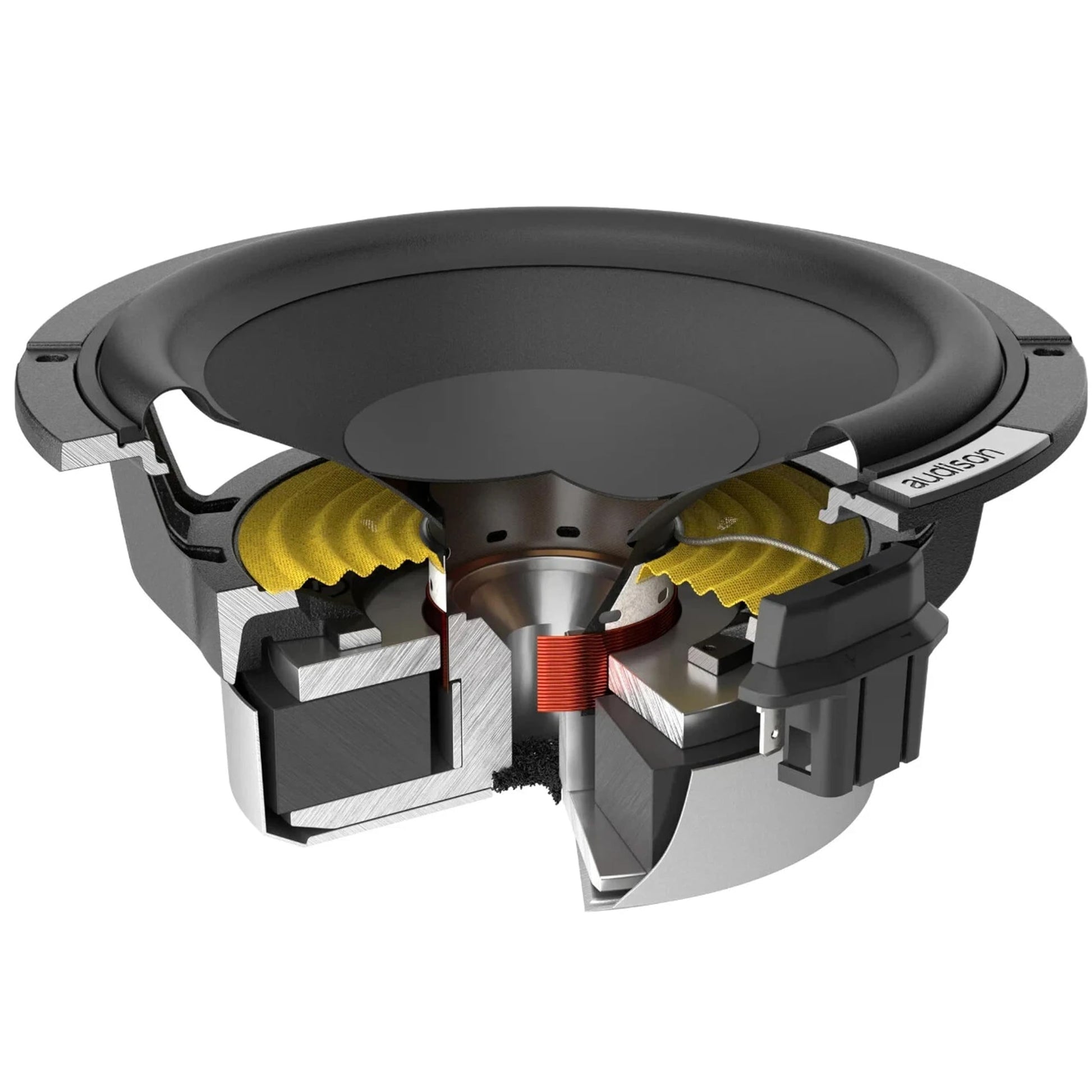

• 1.4” (36 mm) CCAW (Copper Clad Aluminum Wire) voice coil: Maximizes excursion capability and heat dissipation, allowing the driver to reach 100W RMS power, delivering powerful bass free from dynamic compression, even at high listening volumes.
• Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in in the motor.
• Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
• FEM-optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
• Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for wide frequency response and clean reproduction, even in midrange frequencies.
• Die-Cast Aluminum Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
• High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
• Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
• eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

AVK 6 S II - High-Performance Compact System with Passive Crossover

The Audison AV K 6 S II has been designed to offer high performance in a compact format, ensuring great installation versatility thanks to the reduced depth of the AV 6.5 S II woofer and the AV 1.0 II tweeter. This system is the ideal solution for those looking for superior sound reproduction while maintaining a simple and versatile installation.

AV 1.0 II Tweeter - Pure Performance with Versatile Installation

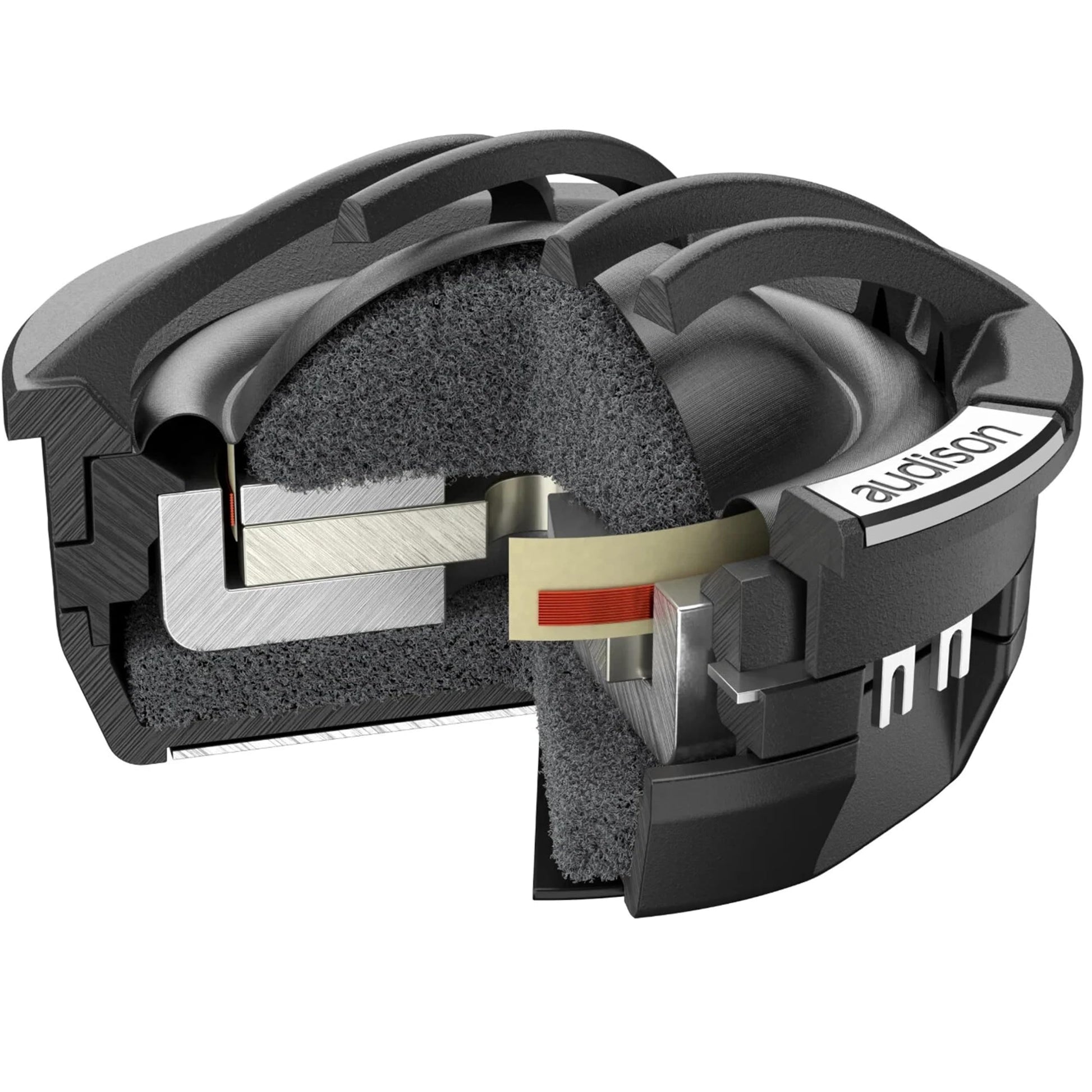

The compact AV 1.0 II tweeter is Hi-Res Audio certified, it can extend beyond 40 kHz, delivering detailed high-frequency reproduction with optimal off-axis dispersion, making it perfect for OEM cabin installations. The tweeter is equipped with AIF (Any Install Faceplate) technology, reducing installation time and offering three different mounting accessories, including:

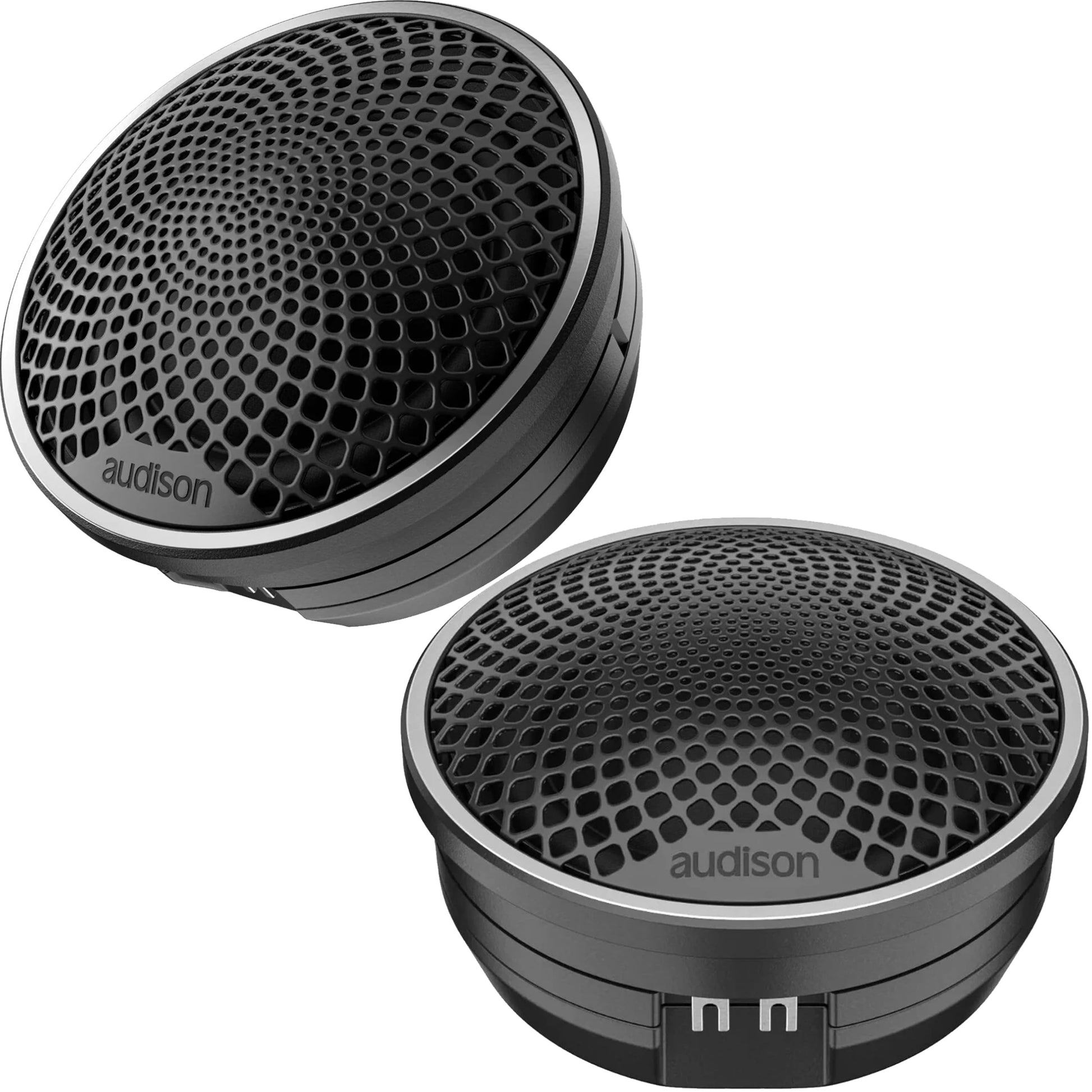

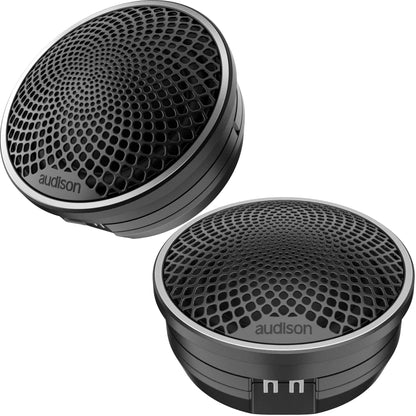

• Mesh grille for the best compromise between protection and performance in A-pillar installations.

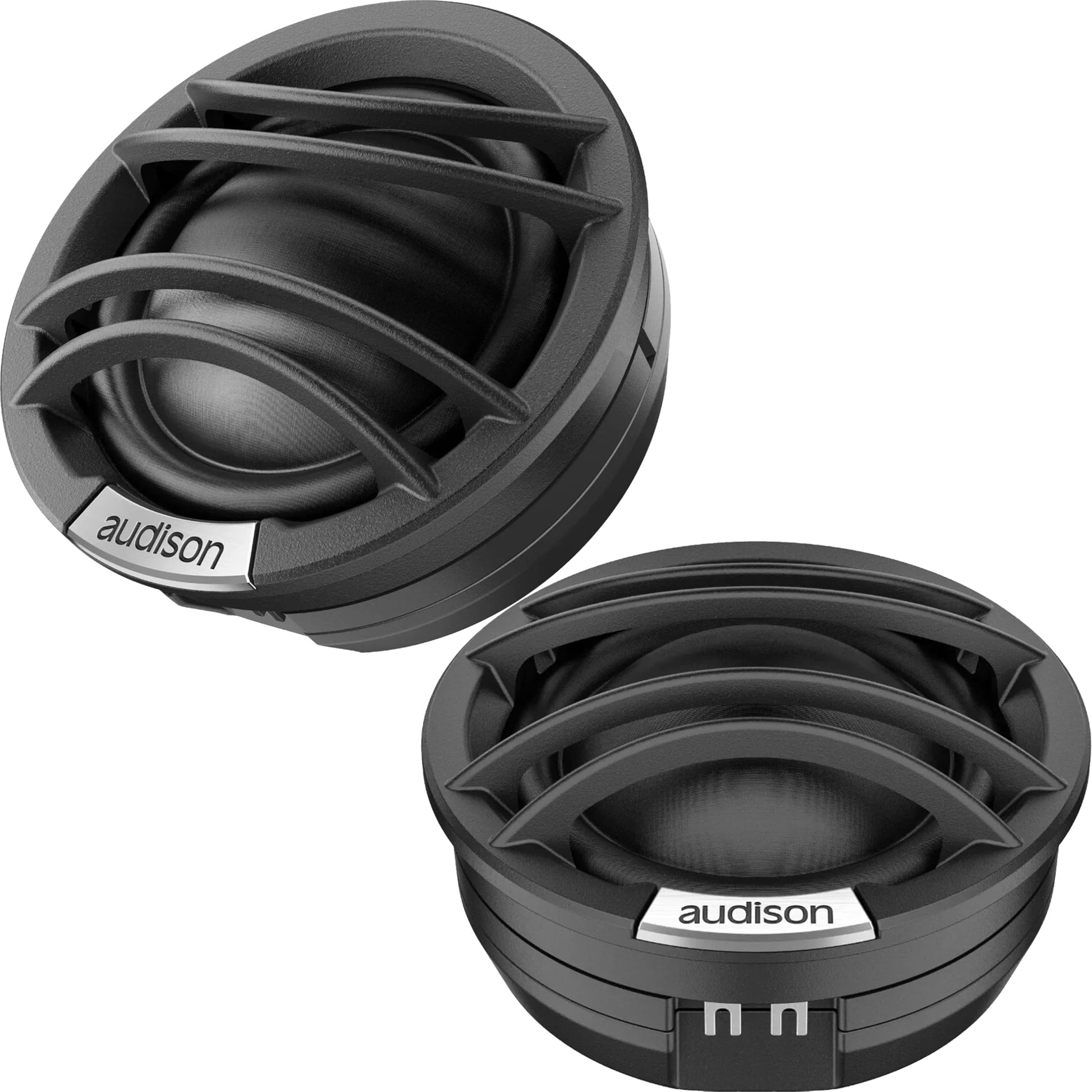

• Spoke grille for maximum acoustic performance.
• Customizable faceplate to adapt to any configuration.
• Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.

AV 1.0 II Tweeter - Maximum Installation Flexibility

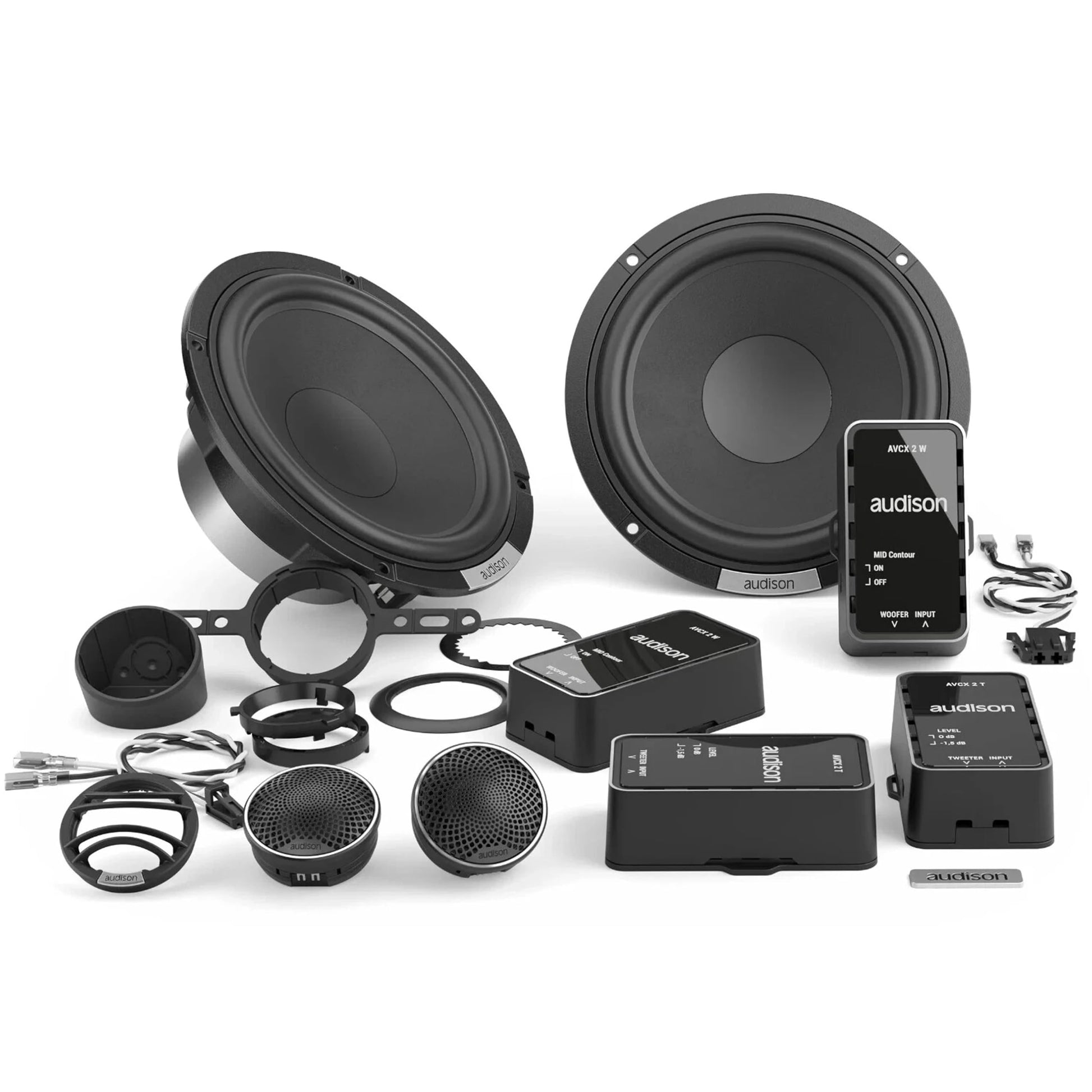

Additionally, they come with four mounting accessories that make installation quick and easy:

1. Watch band: For versatile and secure mounting.
2. Double-angle cup: For custom installations with different angles.
3. Flush Mounting Ring: For a clean, discreet flush installation.
4. Metal mounting spring: For stable, secure mounting.

This range of accessories and mounting options allows installers to adapt the VOCE II tweeters to any environment, ensuring the best possible sound performance.

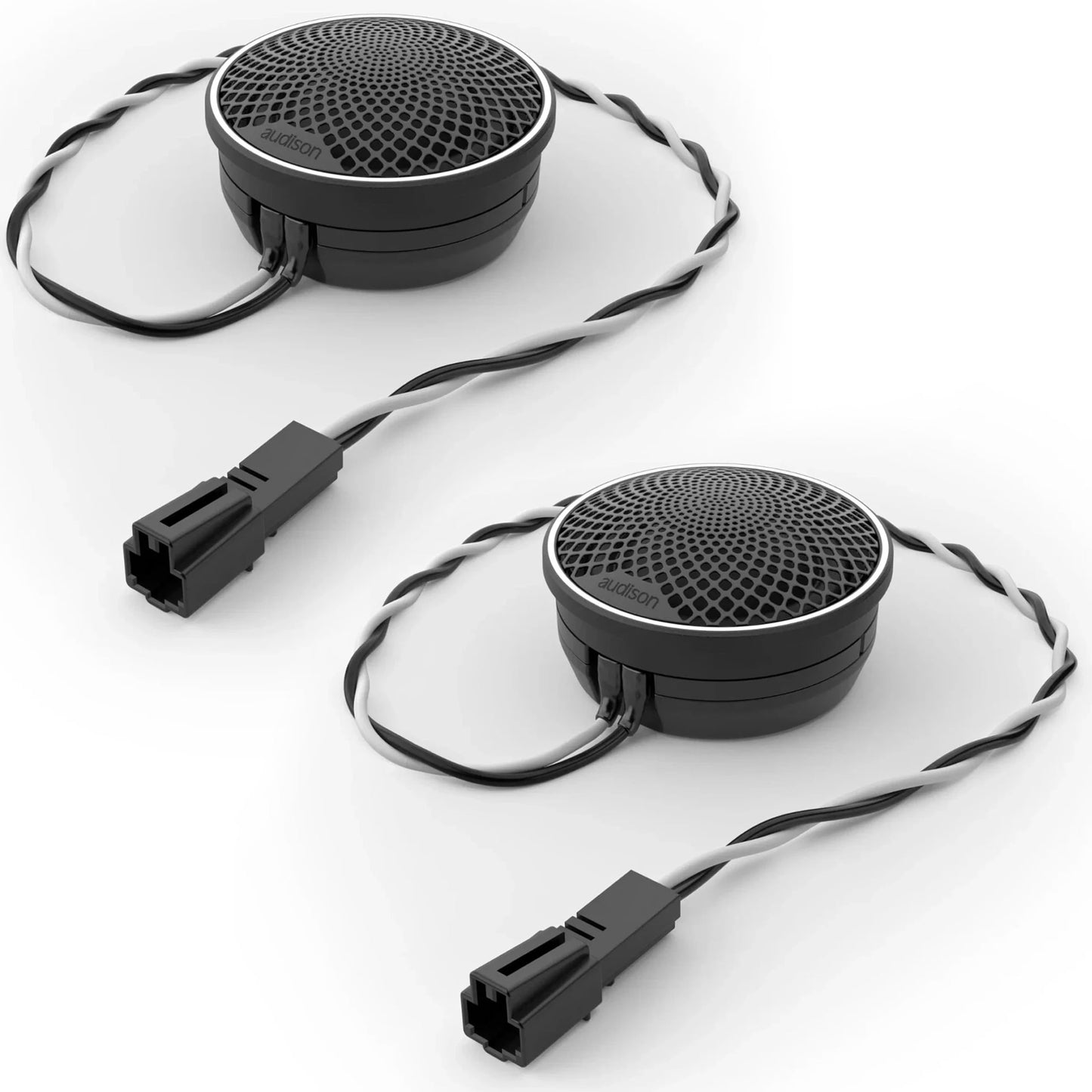

Each VOCE II product includes pre-wired cables for quick, reliable installation, along with aluminum bi-adhesive AUDISON logos, allowing users to add a distinctive, personalized touch.

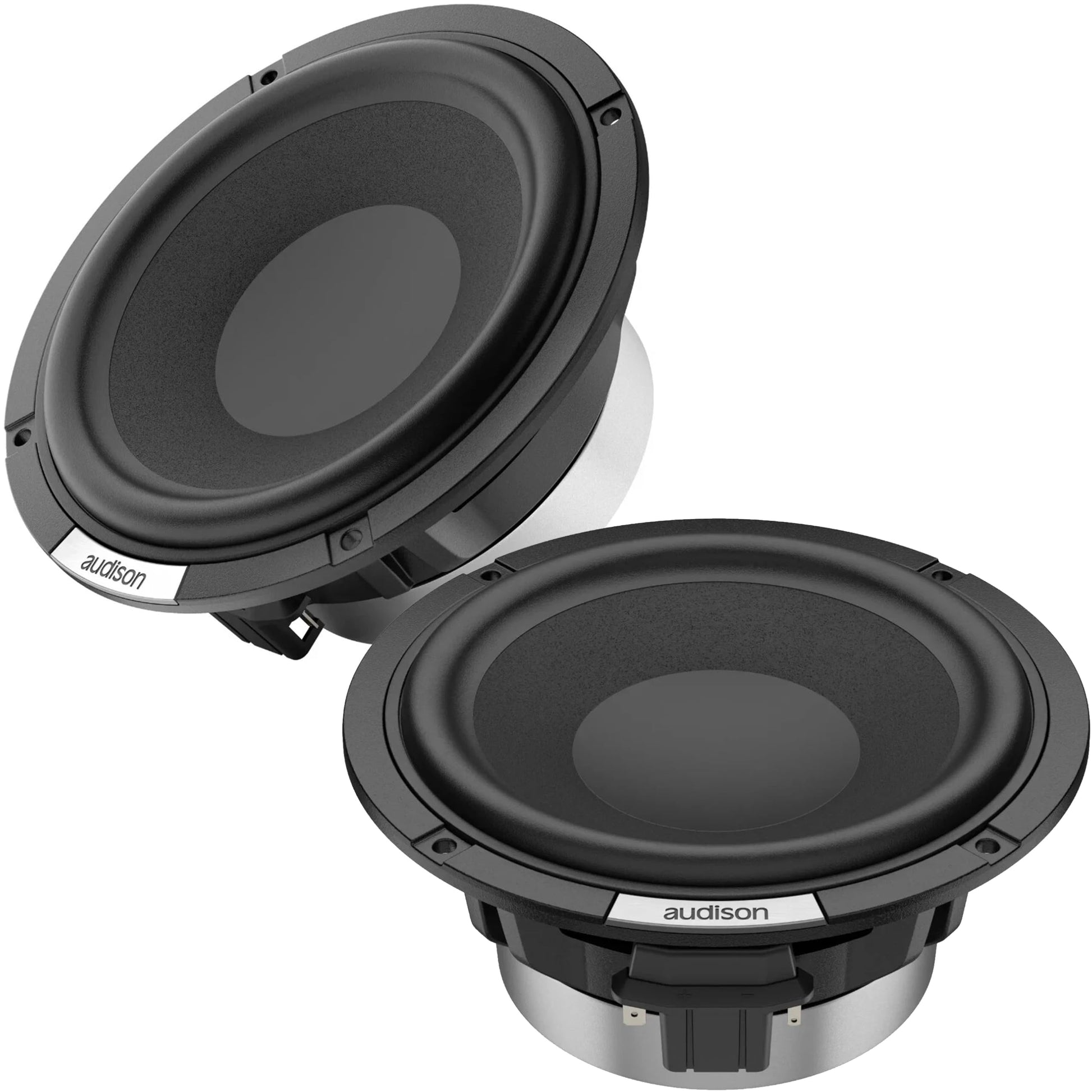

AV 6.5 S II Woofer - Power and Compactness for Superior Sound Quality

The AV 6.5 S II woofer is designed to deliver top-level performance despite its reduced installation depth. Capable of handling up to 100W RMS, this woofer combines compactness with performance, ensuring powerful and well-defined bass, ideal for dynamic and controlled reproduction.

The woofer features a 36 mm CCAW (Copper Clad Aluminum Wire) voice-coil and an optimized magnetic assembly, ensuring wide excursion and precise control even during the most intense dynamic peaks, while always maintaining natural, distortion-free sound.

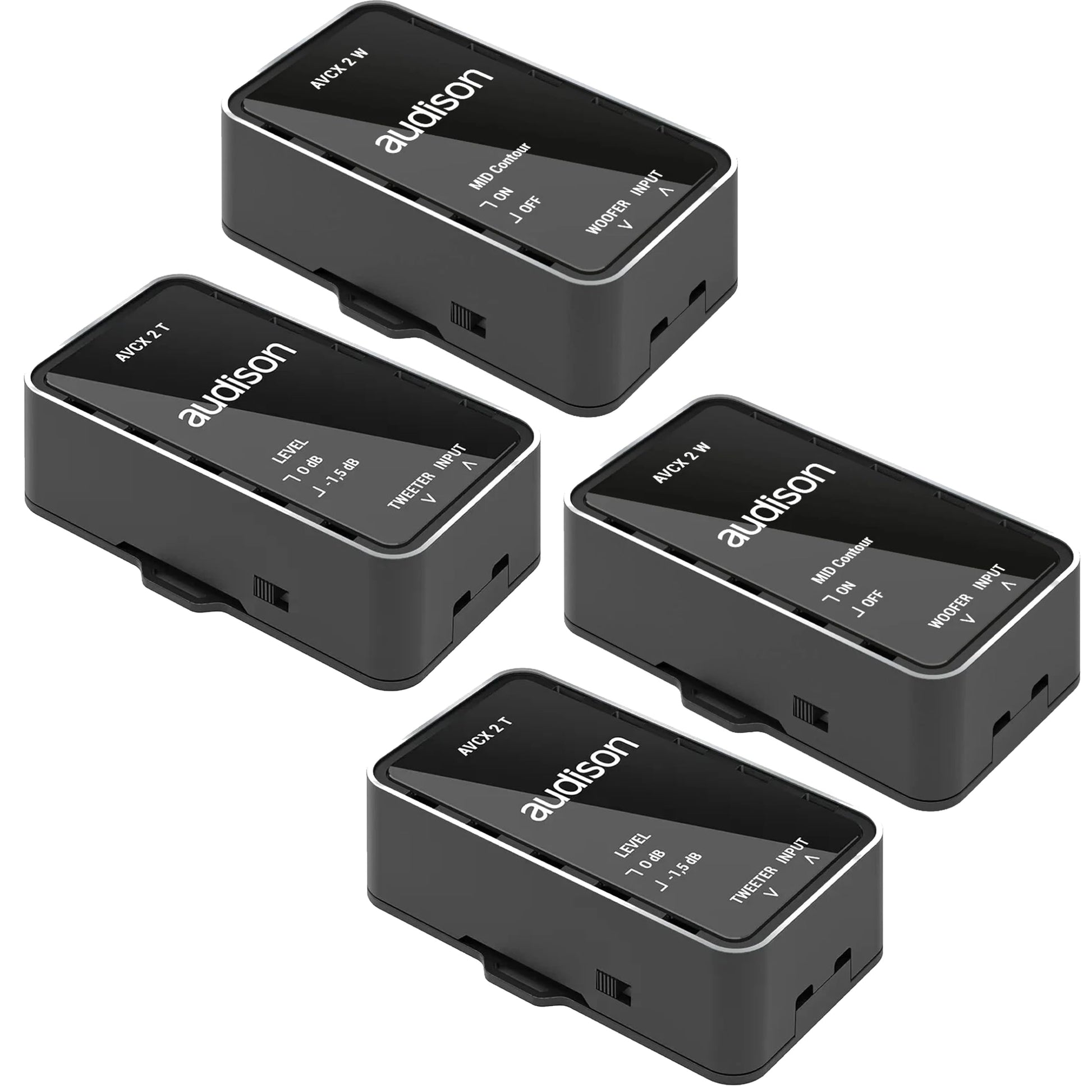

AVCX 2 W and AVCX 2 T: Compact Passive Crossovers for Precision Tuning

The AVK 6S II system comes with two separate, compact passive crossovers:



•AVCX 2 W for the woofer

•AVCX 2 T for the tweeter



These crossovers are designed to take up minimal space and simplify installation, facilitating cable management. Despite their compact size, the carefully selected components ensure optimal crossover performance between the tweeter and woofer, resulting in precise and natural sound reproduction. Audison’s engineers have worked a small miracle, managing to deliver compact dimensions with high performance. Thanks to this meticulous work, the AVK 6 S II system offers excellent reproduction across the entire acoustic spectrum, ensuring an immersive and well-balanced listening experience. This version is optimized for clarity and engagement, effectively communicating the product’s features to car audio enthusiasts and professionals.

Technical Specs LF

Woofer Size	165 mm (6.5 in)
Impedance	4 Ohm
Power Handling - Peak	250 W
Power Handling - Continuous	125 W
Frequency Response	50 - 5500 Hz
Voice Coil Diameter	36 mm (1.42 in)
Magnet Material	HIGH DENSITY FLUX FERRITE
Magnet Size	92 x 42 x 15 mm
Cone Material	PRESSED PAPER CONE
Crossover Type	Two Way Separate case for Woofer (AVCX 2 W - Full/6dB Oct.) & Tweeter (AVCX 2 T - 12dB/Oct.)
Crossover Level Adjustment	AVCX 2 T: Tweeter Level: 0 / -1.5 dB; AVCX 2 W: Woofer Mid-Contour On / Off

Technical Specs HF

Tweeter Size	25.4 mm (1 in)
Frequency Response	1200 - 40000 Hz
Power Handling - Peak	150 W
Voice Coil Diameter	25 mm (1.42 in)
Dome Material	TETOLON FIBER

Electric-acoustic Specs LF

Re	2.9 Ohm
Fs	67 Hz
Mms	13.2 g
Cms	0.43
BL	4.9
Qms	6.76
Qes	0.67
Qts	0.61
Vas	10.28 l
Le	0.3 mH
Spl	91 dB
Xmax	4.2 mm (0.17 in)

Kit Tech Data

Crossover Low-Pass	AVCX 2 W: Woofer, Full/6dB Oct.
Crossover Hi-Pass	AVCX 2 T: Tweeter, 12dB/Oct.
Crossover Cut Off	3.5 kHz (Mid-Contour Off)
Cone Diameter	128.35 mm

General

Weight Woofer	1.3 kg
Weight Tweeter	0.14 kg
Weight Crossover	0.1 kg

Dimensions

Dimension A	165 mm (6.5 in)
Dimension A1	43.8 mm
Dimension B	140.8 mm (5.54 in)
Dimension C	65.6 mm (2.58 in)
Dimension D	61 mm (2.4 in)
Dimension B1	40.8 mm
Dimension C1	25.5 mm
Dimension D1	16.1 mm

Frequency Response

Tweeter

Woofer
