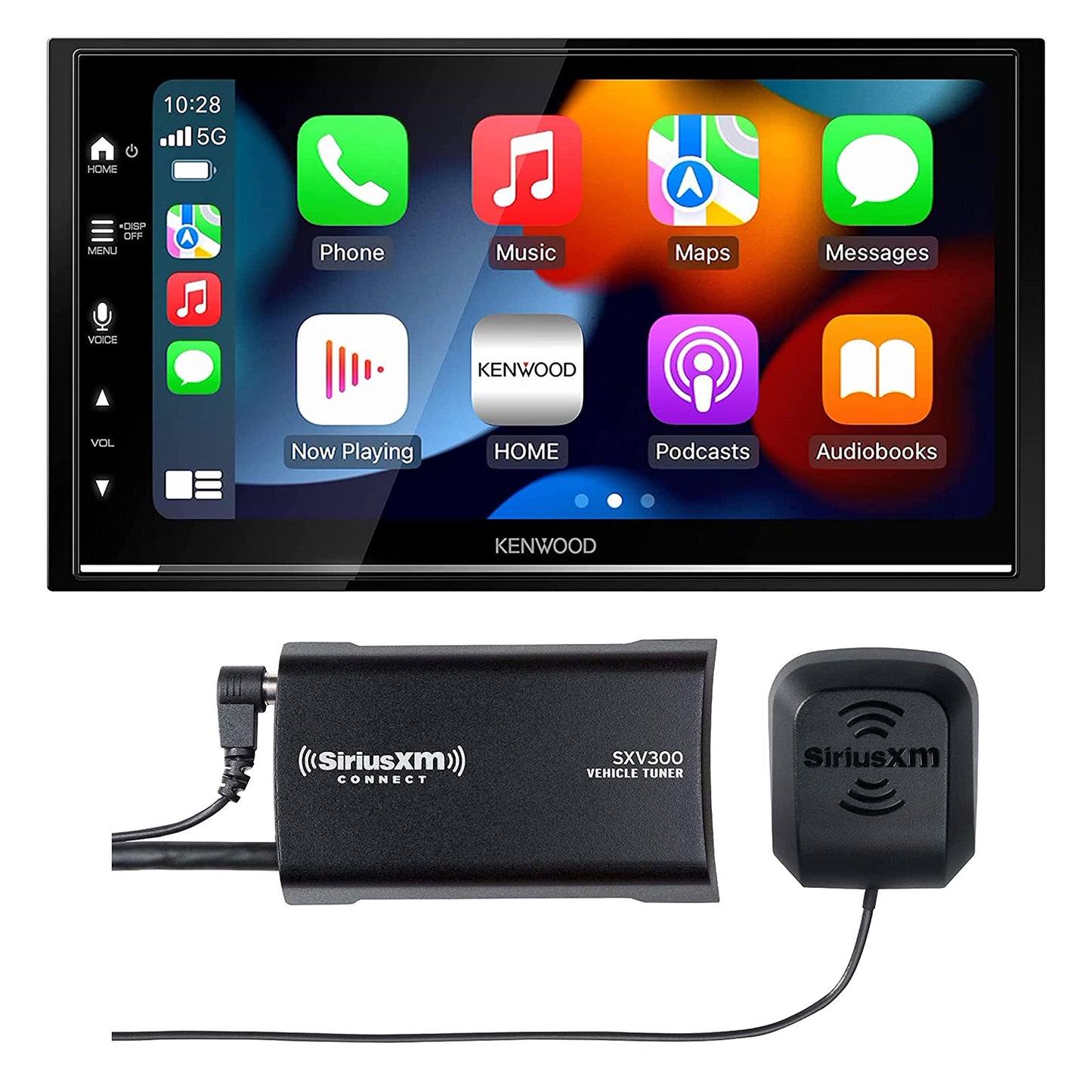

Kenwood DMX8709S 6.8" Touchscreen Car Stereo – Wireless CarPlay/Android Auto + SXV300V1 SiriusXM Tuner

The Kenwood eXcelon DMX8709-SXM bundle pairs the high-performance DMX8709S 6.8" digital multimedia receiver with the SXV300V1 SiriusXM satellite radio tuner. This package is the ultimate solution for drivers seeking premium smartphone integration and coast-to-coast entertainment. Featuring a vibrant capacitive touchscreen, the DMX8709S provides a seamless interface for Wireless Apple CarPlay and Wireless Android Auto. As part of the eXcelon series, this unit is engineered with high-quality audio components and 4.0V gold-plated preamp outputs to ensure your satellite radio and digital music libraries are delivered with absolute clarity.

Key Features

• 6.8" Capacitive touchscreen display
• Wireless and wired Apple CarPlay
• Wireless and wired Android Auto
• Included SiriusXM SXV300V1 Satellite Radio Tuner
• Built-in Bluetooth for dual phone pairing and audio streaming
• USB Mirroring for select Android devices
• 13-band EQ and digital time alignment
• 3 pairs of 4.0V gold-plated RCA preamp outputs
• 3 camera inputs for enhanced vehicle safety

Connectivity & Integration

• Apple CarPlay: Wireless and wired connection support
• Android Auto: Wireless and wired connection support
• Bluetooth: Dual phone connection for hands-free calling and high-quality streaming
• Wireless Mirroring: Compatible with select Android devices via Wi-Fi
• USB: Rear USB port with 1.5A rapid charging
• Cameras: 3 camera inputs; supports rear-view, front, and side camera configurations
• SiriusXM: SiriusXM Tuner included in this bundle: SXV300V1 SiriusXM Tuner
• Kenwood camera links: CMOS-740HDLP, CMOS-320LP, CMOS-240U, CMOS-230LP

Audio & System Control

• 13-band graphic equalizer with digital time alignment
• 3 pairs of 4.0V gold-plated RCA preamp outputs (Front, Rear, Subwoofer)
• High-Resolution Audio Wireless (LDAC) support
• Independent 3-way crossover network
• Drive EQ and advanced digital signal processing (DSP)
• Built-in internal amplifier: 22 Watts RMS / 50 Watts Peak x 4 channels

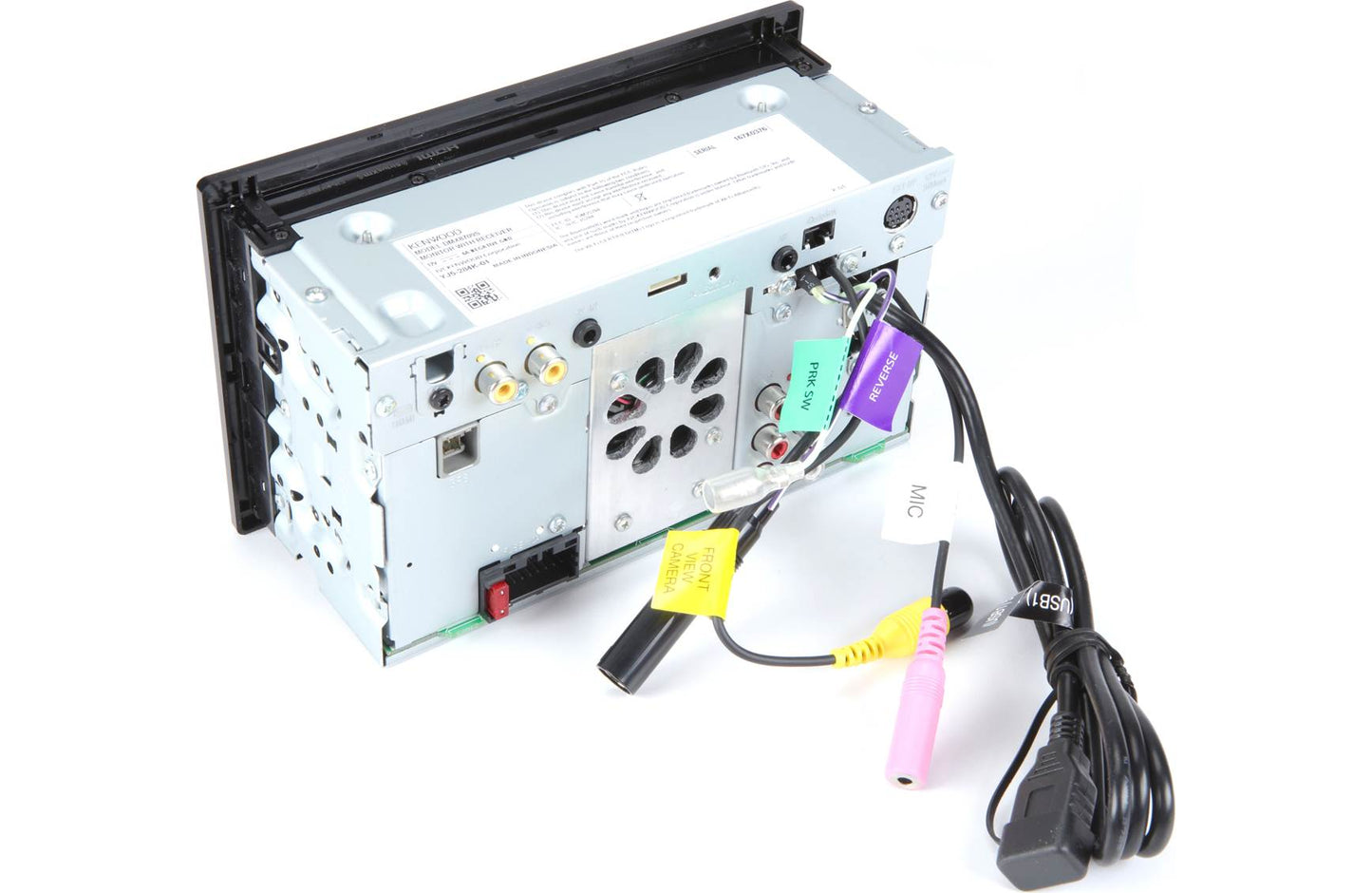

Installation & Fitment Notes

• Chassis Type: Double-DIN
• Short Chassis Design: 2.95" (75mm) mounting depth for flexible installation in shallow dashes
• Parking brake connection required for video playback and advanced setup menus
• Factory Integration: iDatalink Maestro RR/RR2 ready for retaining steering wheel controls and vehicle data (module required; vehicle dependent)
• Dash kits, wiring harnesses, and antenna adapters are vehicle-specific and sold separately

Technical Specifications

• Receiver Model: DMX8709S
• Screen Size: 6.8" Capacitive
• Smartphone Integration: Wireless/Wired CarPlay and Android Auto
• Preamp Voltage: 4.0 Volts
• Camera Inputs: 3
• SiriusXM Tuner: Included (SXV300V1)
• Chassis Depth: 75mm (2-15/16")

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX8709-SXM
• UPC: 019048236678
• Sold As: Each
• Included Components: DMX8709S receiver, SXV300V1 tuner, GPS antenna, microphone, wiring harness, and mounting hardware
