Audison AF M12.14 bit 12-Channel Class-D DSP Amplifier, 60W x12 RMS @4Ω
Audison AF M12.14 bit 12-Channel Class-D DSP Amplifier, 60W x12 RMS @4Ω
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

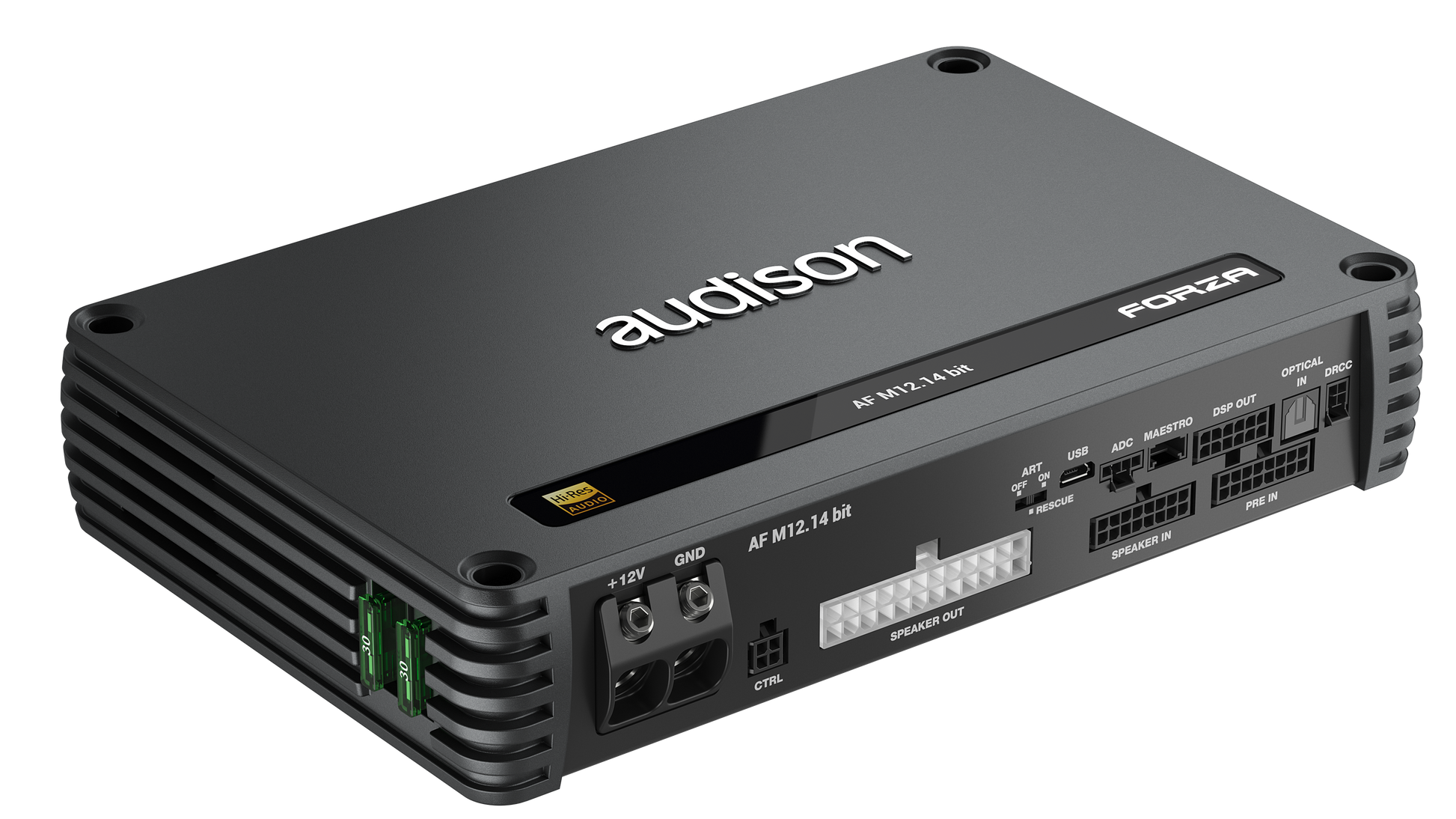

Audison AF M12.14 bit is a 12-channel Class-D DSP amplifier designed for advanced OEM integration, active speaker systems, and multi-channel car audio builds. It combines 12 amplified output channels with a 14-channel DSP platform for flexible system tuning and expansion.
Build your Audison system around the AF M12.14 bit
Choosing speakers as well as an amplifier? Start with one of these front-speaker options. All add-ons are optional and sold separately, not included with this amplifier.
- Premium front stage: Voce II AVK 6 S II component speaker set — 6.5-inch, 4-ohm woofers and separate tweeters with supplied passive crossovers.
- Lower-cost front-stage option: Prima APK 165P component speaker set — a 6.5-inch, 4-ohm woofer/tweeter system with supplied passive crossovers.
Using the supplied passive crossovers lets a front pair run from two amplifier channels. An active system needs a separate channel for each driver and correctly configured DSP protection; confirm the channel plan and tuning before connecting tweeters.
Optional control and streaming
- DRC MP CAN remote controller — convenient Forza volume, source and preset control.
- B-CON II Bluetooth receiver — add a wireless music source through the amplifier's optical input. Streaming quality depends on the phone and codec.
Optional bass without using speaker channels: The Audison APBX 10 AS2 powered subwoofer enclosure has its own amplifier. Feed its low-level input from a correctly configured DSP preamp output; it still needs its own fused power, ground and installation wiring.
Confirm before ordering: Speaker diameter alone does not guarantee fit. Check mounting depth, tweeter space, brackets, wiring, factory-audio integration and amplifier settings. Use our Vehicle Fit Guide and ask MCOR to check your system plan if you need help.
Key Performance Features
- 12-channel Class-D amplifier with integrated 14-channel DSP processing
- 60 W × 12 RMS @ 4Ω with all channels driven
- 90 W × 12 RMS @ 2Ω for higher-output multi-speaker systems
- Fully bridgeable channel pairs for up to 180 W × 6 RMS @ 4Ω
- Native DSP operation at 24 bit / 96 kHz with extended audio bandwidth
- 1080 W total RMS power output
System Configuration & Flexibility
- 12 amplified output channels for active front, rear, center, rear-fill, and multi-speaker OEM upgrade layouts
- 14 DSP-controlled output channels: 12 amplified channels plus 2 preamp outputs
- Bridgeable channel pairs support 6-channel high-power configurations
- Supports high-level, low-level, and digital input integration
- Compatible with Audison bit Drive software for signal routing, EQ, crossover, delay, and system tuning control
Power Output
- RMS @ 4Ω: 60 W × 12
- RMS @ 2Ω: 90 W × 12
- Bridged RMS @ 4Ω: 180 W × 6
- Total RMS Power: 1080 W
Signal Control & Protection
- Adjustable crossover control through integrated DSP
- Full, high-pass, low-pass, and band-pass filter options
- Linkwitz-Riley, Butterworth, Bessel, Chebyshev, and QLP filter types available through DSP control
- 20 Hz – 20 kHz crossover frequency range
- Phase control, all-pass filters, parametric/graphic output EQ, and time alignment
- Automatic remote turn-on from speaker-level input signal
Installation Notes
- Compact chassis measures 9.44 in. × 1.85 in. × 6.14 in.
- Requires proper power, ground, and speaker wiring for a 12-channel amplifier installation
- Power supply voltage: 11 – 15 VDC
- Fuse rating: 2 × 30A
- Minimum speaker load: 2Ω stereo or 4Ω bridged
- PC tuning connection uses Micro USB and Audison bit Drive software
Technical Specifications
- Brand: Audison
- Series: Forza
- Model: AF M12.14 bit
- Amplifier Class: Class-D
- Amplified Channels: 12
- DSP Output Channels: 14
- Total RMS Power: 1080 W
- RMS Power @ 4Ω: 60 W × 12
- RMS Power @ 2Ω: 90 W × 12
- Bridged RMS Power @ 4Ω: 180 W × 6
- THD @ 1 kHz, 4Ω, 70% Rated Power: 0.03%
- Bandwidth: 10 Hz – 42 kHz
- Damping Factor: 80
- Signal-to-Noise Ratio, Master Input: 98 dBA
- Signal-to-Noise Ratio, Optical Input: 105 dBA
- Pre-In Inputs: 0.6 – 6 VRMS
- High-Level Inputs: 8
- Low-Level Inputs: 8
- Digital Input: Optical S/PDIF
- Pre Outputs: 2
- Sub Out: 5V RMS RCA pre-out
- DSP Processing: 24 bit / 96 kHz
- Size: 9.44 in. × 1.85 in. × 6.14 in.
- Weight: 4.49 lb.
Identifiers & Packaging
- Manufacturer Part Number (MPN): AF M12.14 bit
- UPC: 8018823136723
- Sold As: Each

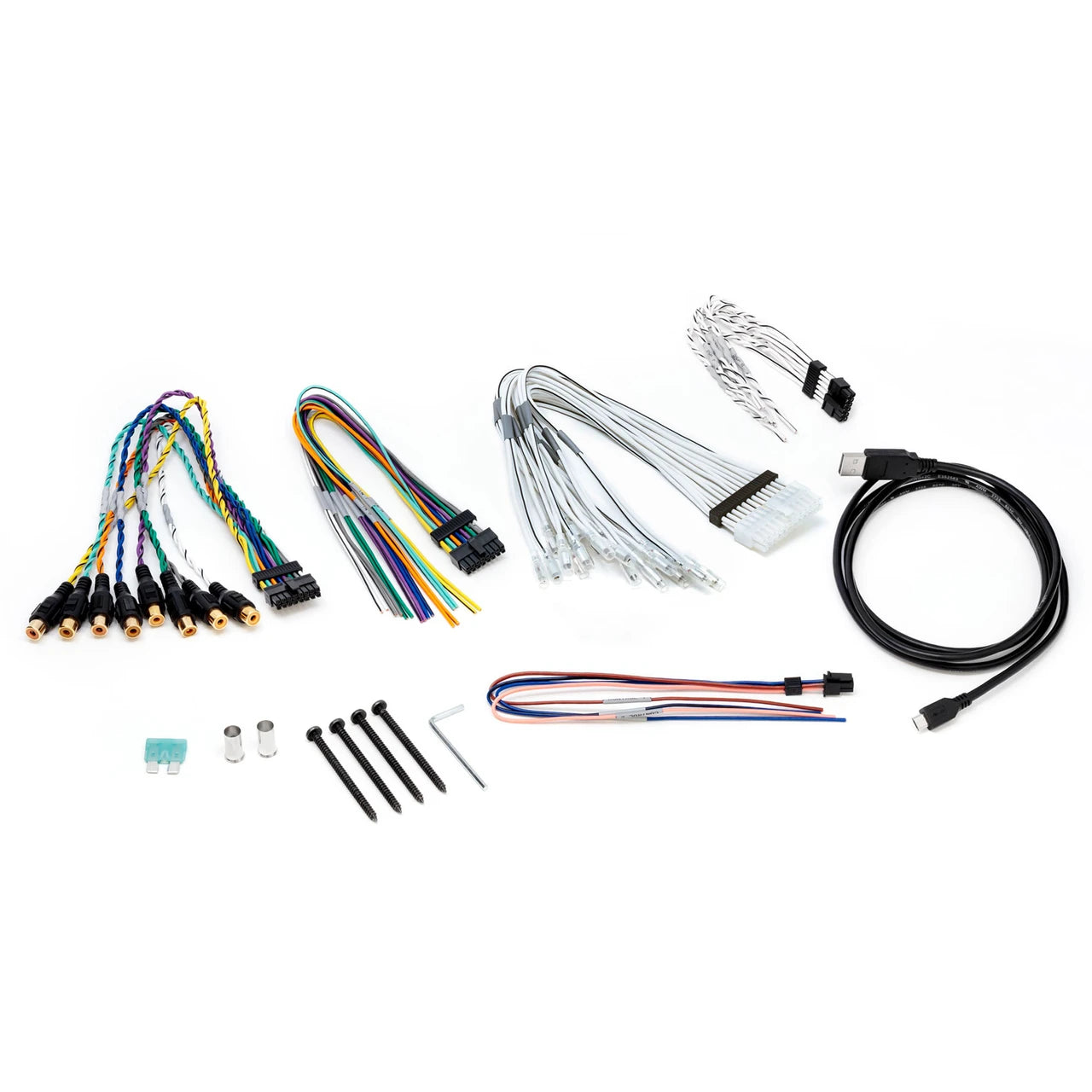

- Included Components: Amplifier, USB cable, control cable, DSP output cable, 12-channel speaker output cable, 8-channel pre-in cable, 8-channel speaker input cable, installation hardware, documentation
Why Buy From MCOR Automotive
- Authorized retailer for the brands we sell
- Specialists in vehicle-specific audio integration
- Expert support for amplifier matching and clean system setup
Fitment, Installation & Warranty Notes
- Fitment Help: Need help confirming fitment, compatibility, amplifier matching, or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
- Authorized Retailer: MCOR Automotive is an authorized Audison retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
