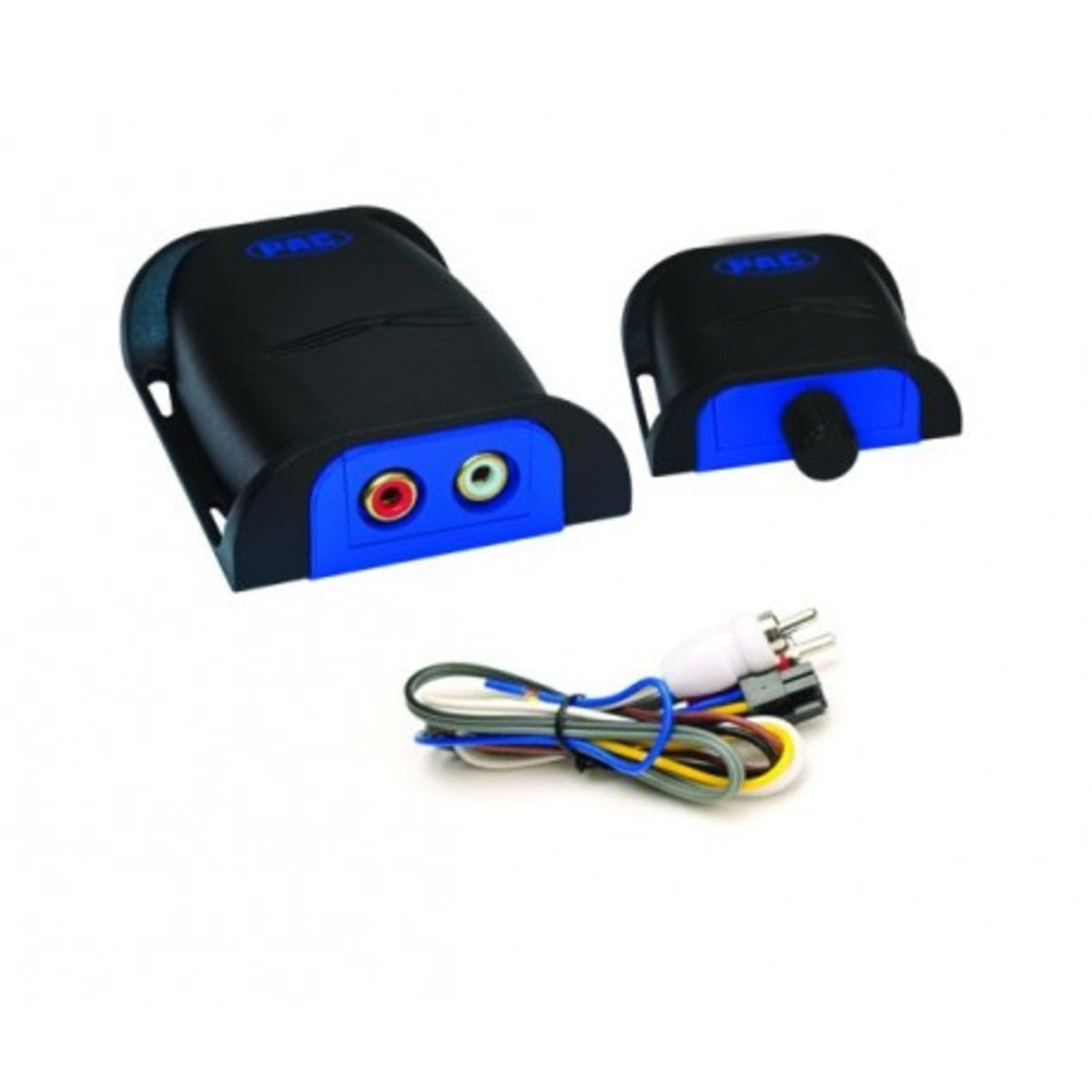

PAC LP7-2R LocPRO 2-Channel Line Output Converter with Remote Level Control

The PAC LP7-2R LocPRO 2-Channel Line Output Converter with Remote Level Control lets you add an aftermarket amplifier or powered subwoofer to a radio that does not provide the RCA preamp outputs your new equipment needs. Its transformer-isolated passive design converts speaker-level audio to an RCA-level signal without requiring a separate power connection. It is a practical universal solution when a vehicle-specific amplifier interface is not required.

At a Glance

• Two-channel input and stereo RCA output
• Accepts speaker-level signals from a compatible factory or aftermarket radio
• Adjustable stereo gain for matching the source to the amplifier input
• Rated for up to 55 watts of speaker-level input per channel
• 20 Hz-20 kHz frequency response (±1.5 dB)
• Compact single-harness design with wire-tie or screw mounting provisions
• Built-in remote-turn-on circuit for the connected amplifier
• Includes a wired remote level controller

Compatibility & What You Need

• Source: Connect to full-range speaker-level outputs from a compatible factory or aftermarket radio. Do not use a bass-only factory channel unless the new amplifier is powering only a subwoofer.
• Amplifier: Connect the converter's RCA outputs to an aftermarket amplifier or powered subwoofer with RCA inputs.
• Vehicle connection: A matching PAC vehicle-specific T-harness can simplify installation in supported vehicles; otherwise the factory speaker wiring must be identified and connected correctly.
• Factory load sensing: Some radios require an AudioControl AC-LGD-20 or AudioControl AC-LGD-60 load-generating device. Use only when the vehicle or PAC application information calls for it.
• Amplifier wiring: The amplifier or powered subwoofer still requires correctly fused power and ground wiring. Those parts are sold separately.
• Professional installation and gain setting are strongly recommended.

Technical Specifications

What's Included

• One genuine PAC LP7-2R line output converter
• Product-specific connection harness or removable terminals
• Wired remote level controller
• Manufacturer instructions

Application disclaimer: A universal line output converter is not a vehicle-specific radio-retention interface. Factory amplified, data-bus, active-noise-cancellation, multi-way, or digitally connected audio systems can require additional integration parts. Confirm the available source channels and the complete system design before ordering.
