Kenwood KCA-A150EX 1.5m Extension Cable for DAX Direct Replacement Receivers
Kenwood KCA-A150EX 1.5m Extension Cable for DAX Direct Replacement Receivers
Couldn't load pickup availability
Buy with the right details confirmed
Confirm your exact year, model, factory equipment, and any required companion parts before ordering.
Check your vehicle in the MCOR Fit Guide- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

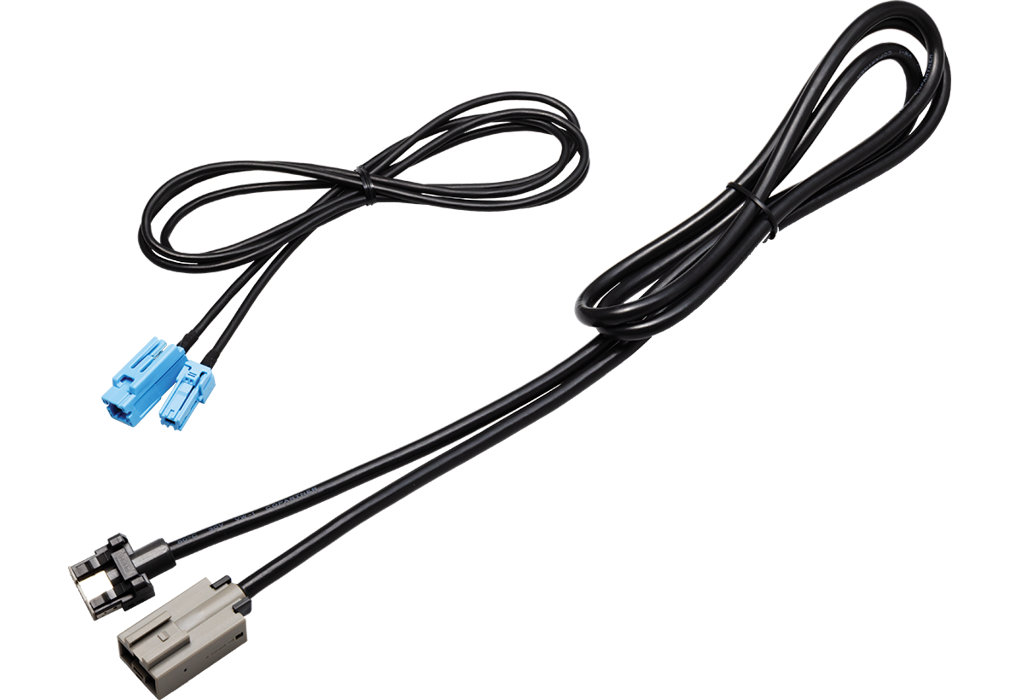

The Kenwood KCA-A150EX is a 1.5-meter (4.9-foot) extension cable set for compatible Kenwood Direct Replacement receivers when the display and radio chassis must be mounted farther apart than the standard cable allows. Select DAX/APX vehicle installations require this cable, so it should be treated as a required installation component only when shown by the current vehicle application.
At a Glance
- Extends the display-to-chassis video and power connections by 1.5 meters / 4.9 feet
- Designed for compatible Kenwood Direct Replacement receivers with a separate display and chassis
- Compatible receiver families include DAX1050XR, DAX800XR, and DAX8000S
- Required only in specific vehicle and APX kit combinations
- Extension cable set only; receiver, vehicle-specific APX kit, and Maestro RR/RR2 interface are sold separately
Confirmed Direct-Fit Applications
The KCA-A150EX is required in the current Kenwood Direct Replacement coverage for the applications below. Match the vehicle, model year, factory screen, and APX kit exactly.
| Make | Model | Years | Factory Screen | Required APX Kit |
|---|---|---|---|---|
| Chevrolet | Corvette | 2014-2019 | 8-inch | APX-S8-GM3 |
| Chevrolet | Impala | 2014-2019 | 8-inch | APX-S8-GM3 |
| Chevrolet | Silverado | 2020-2023 | 8-inch | APX-S8-GM2 |
| GMC | Acadia | 2020-2023 | 8-inch | APX-S8-GM4 |
| GMC | Sierra | 2020-2023 | 8-inch | APX-S8-GM2 |
Compatibility & What You Need
This is not a complete radio-installation solution. A compatible Kenwood DAX receiver, the correct vehicle-specific iDatalink Maestro APX kit, and an ADS-MRR or ADS-MRR2 interface are also required. Use the MCOR Vehicle Fit Guide to confirm the complete system for your exact vehicle and factory equipment before ordering.
Technical Specifications
- Model: KCA-A150EX
- Cable length: 1.5 meters / 4.9 feet
- Cable set: One display video extension cable and one display power extension cable
- Application: Separated display-and-chassis installation for compatible Kenwood Direct Replacement receivers
Identifiers & Packaging
- Manufacturer Part Number: KCA-A150EX
- UPC: 019048242129
- Sold As: One cable set
- Warranty: 1 year
