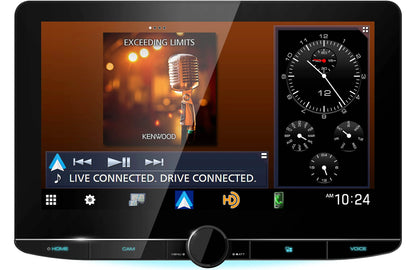

Kenwood eXcelon Reference DAX1050XR 10.1" HD Direct-Fit Multimedia Receiver

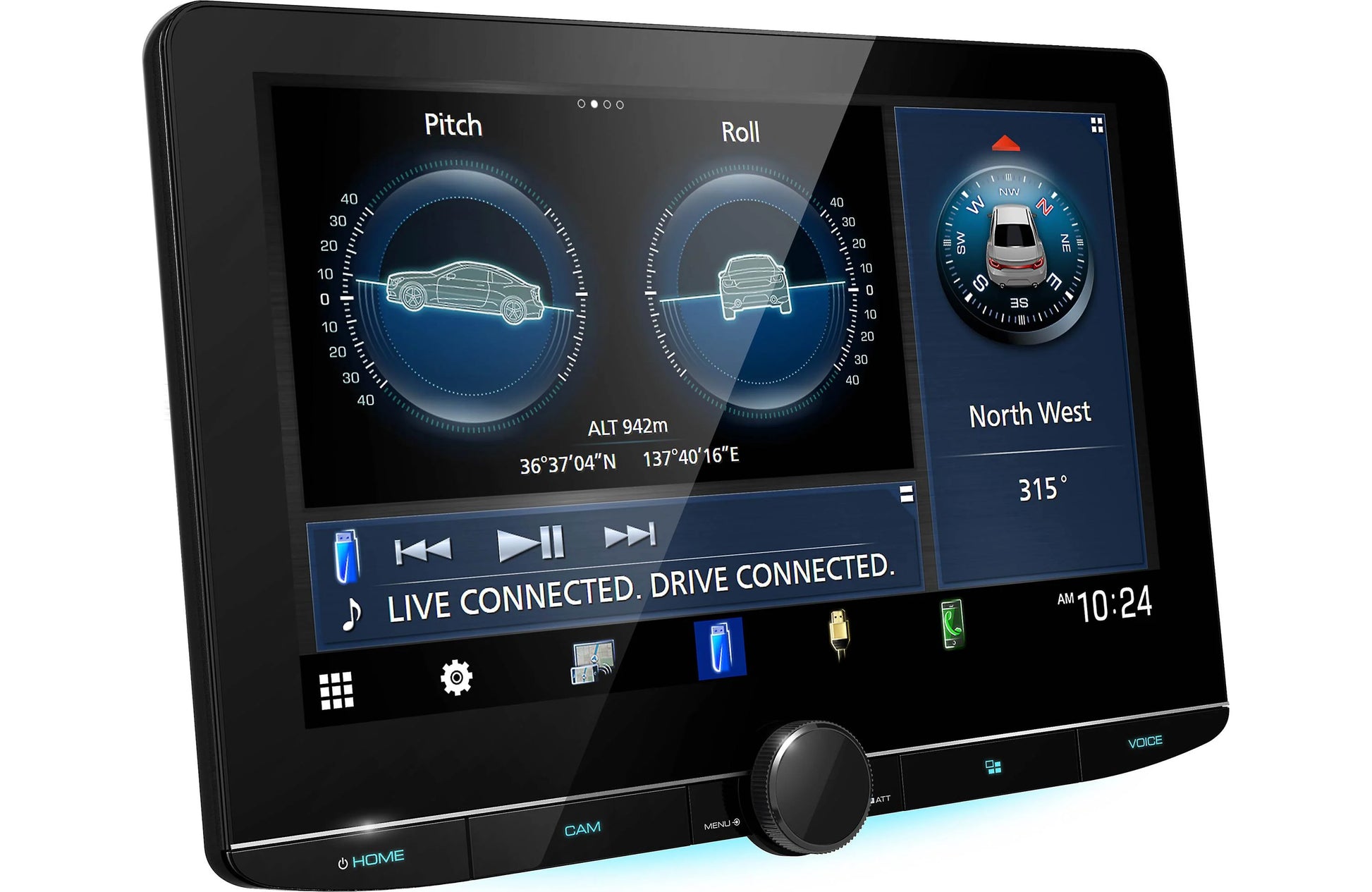

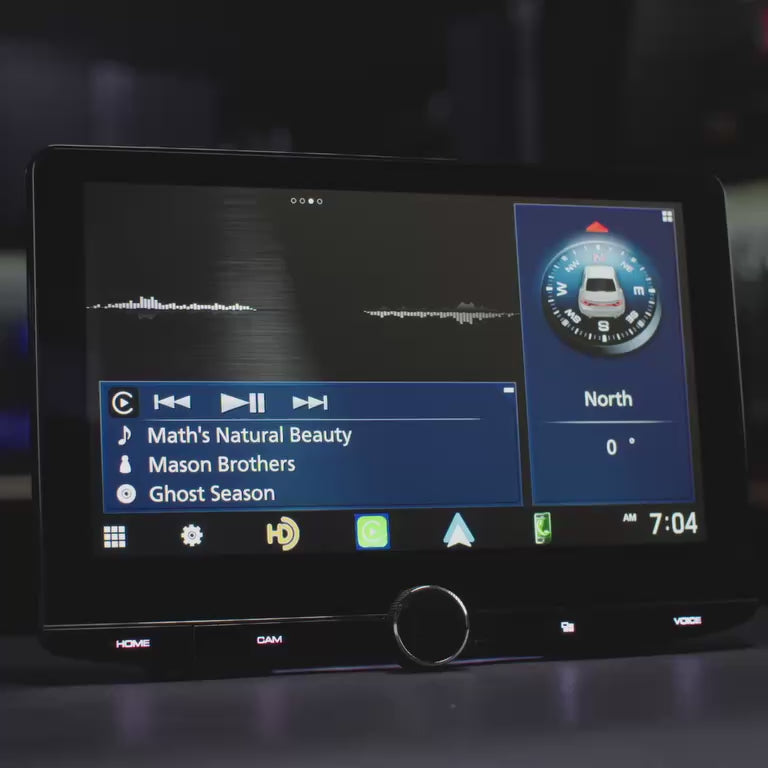

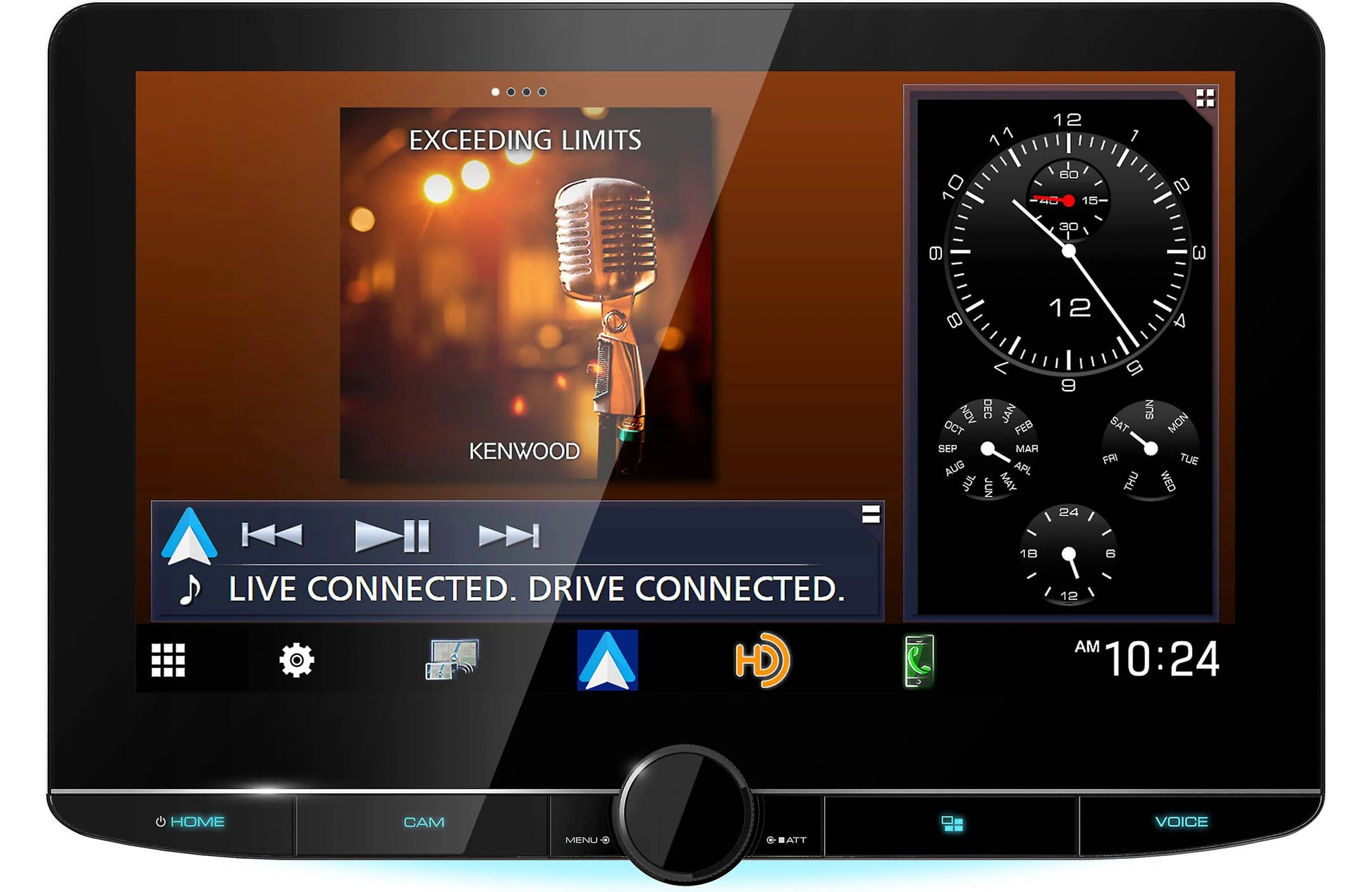

Kenwood eXcelon Reference DAX1050XR is a 10.1" high-definition floating panel multimedia receiver designed as a direct-replacement solution for select vehicles using iDatalink Maestro APX integration. It combines a bright HD capacitive touchscreen, wireless Apple CarPlay and Android Auto, High-Resolution Audio support, and multiple camera inputs in a modular chassis that tucks cleanly into OEM dashboards.

Key Features

• 10.1" HD capacitive touchscreen with floating panel mechanism for flexible positioning
• Direct replacement design using iDatalink Maestro APX parts for factory-style integration

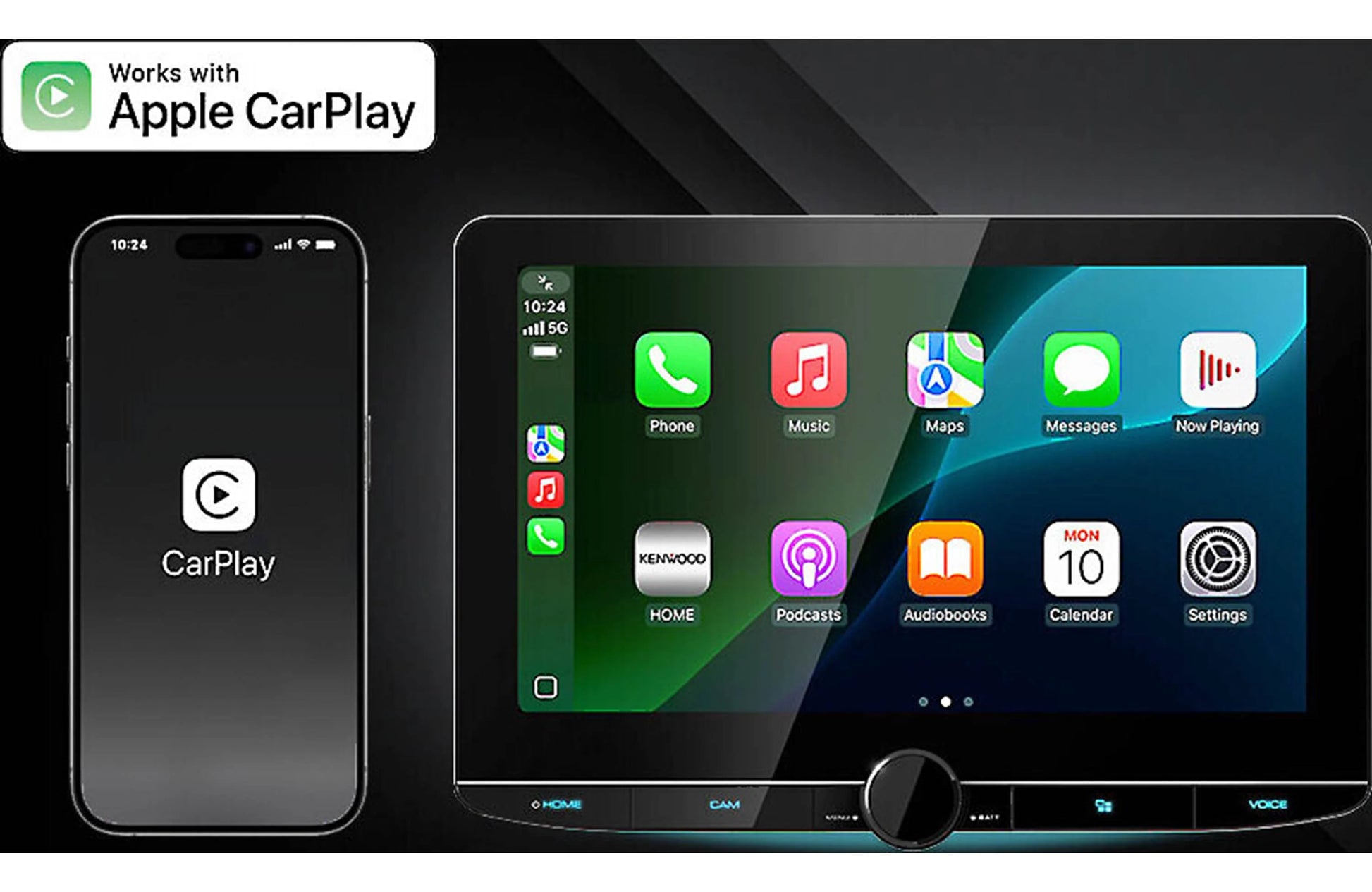

• Wireless and wired Apple CarPlay and Android Auto for seamless smartphone control
• High-Resolution Audio and LDAC wireless support for studio-grade sound quality
• Built-in HD Radio tuner, Bluetooth, Wi-Fi, and SiriusXM-ready connectivity
• Three sets of 5V preamp outputs plus digital optical output for advanced system building
• Four camera inputs with HD front and rear camera support for expanded safety and visibility
• 13-band graphic EQ, time alignment, and advanced tuning tools for precise sound control

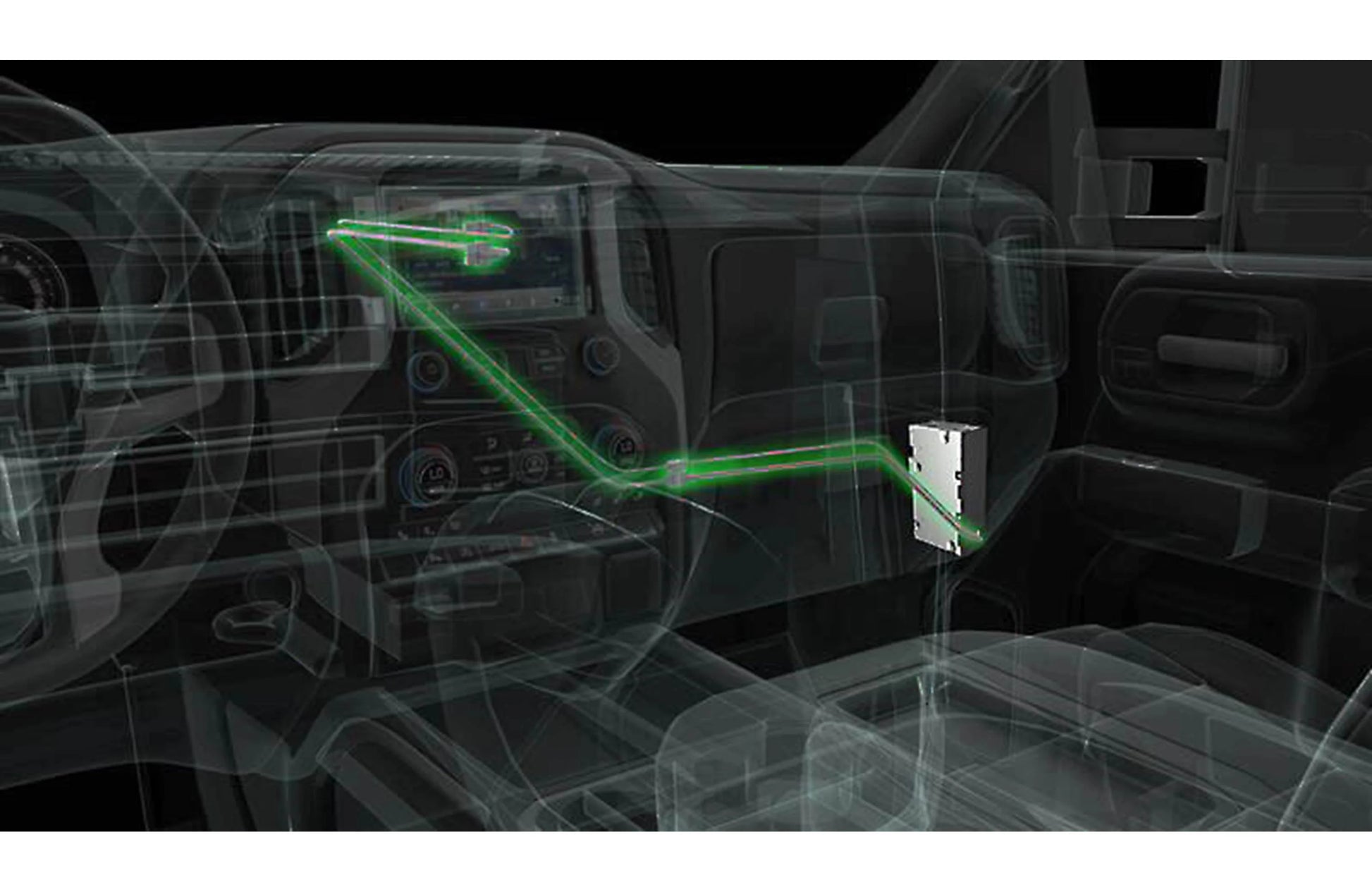

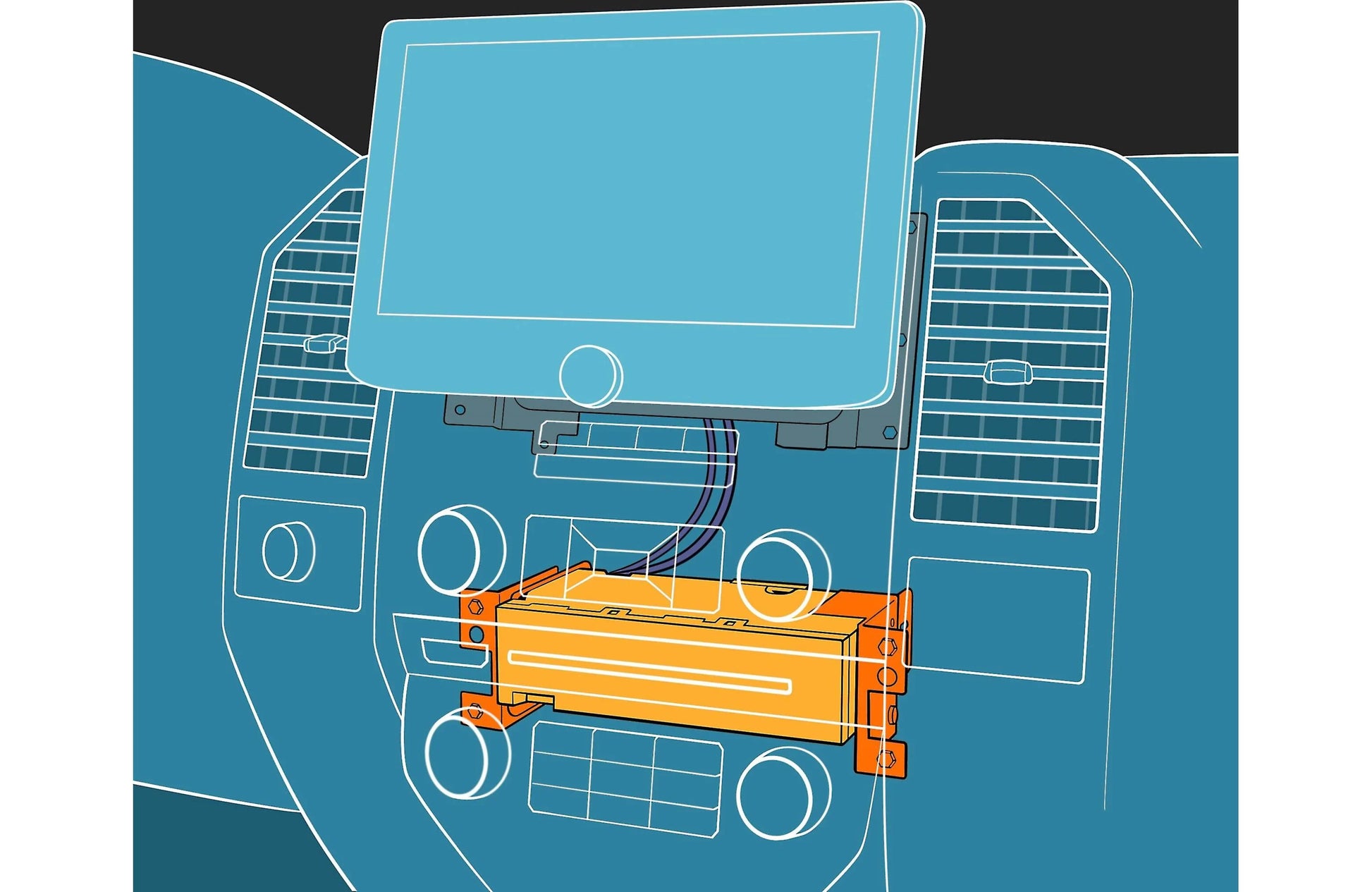

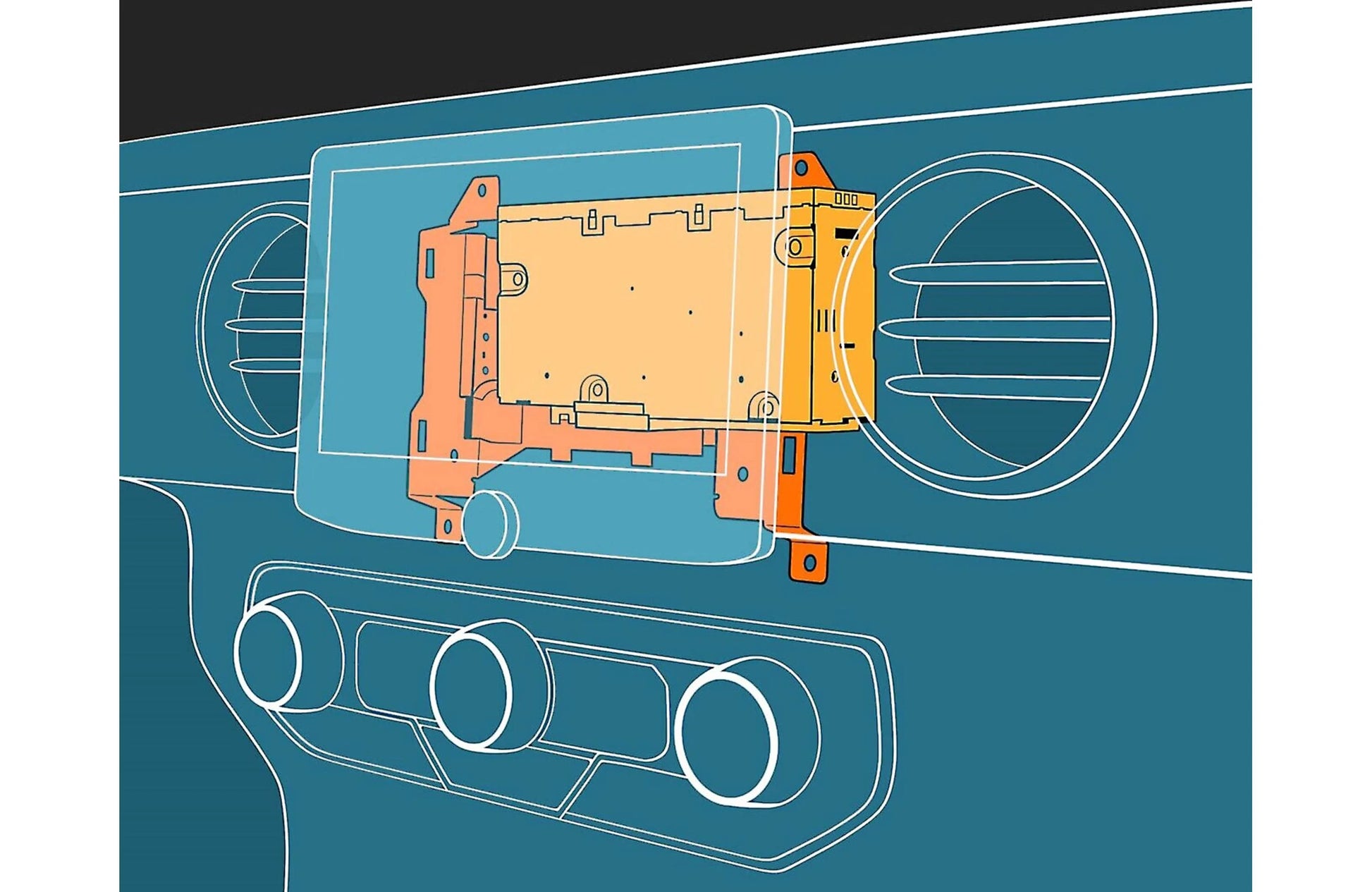

• Separated display and chassis architecture for more flexible OEM fitment options
• requires iDatalink Maestro APX kits (see compatibility chart below)
• requires the iDatalink Maestro ADS-MRR or ADS-MRR2 interface module
• requires direct plug-in wiring harness (receiver includes no wiring for power, ground, and signal)

Performance

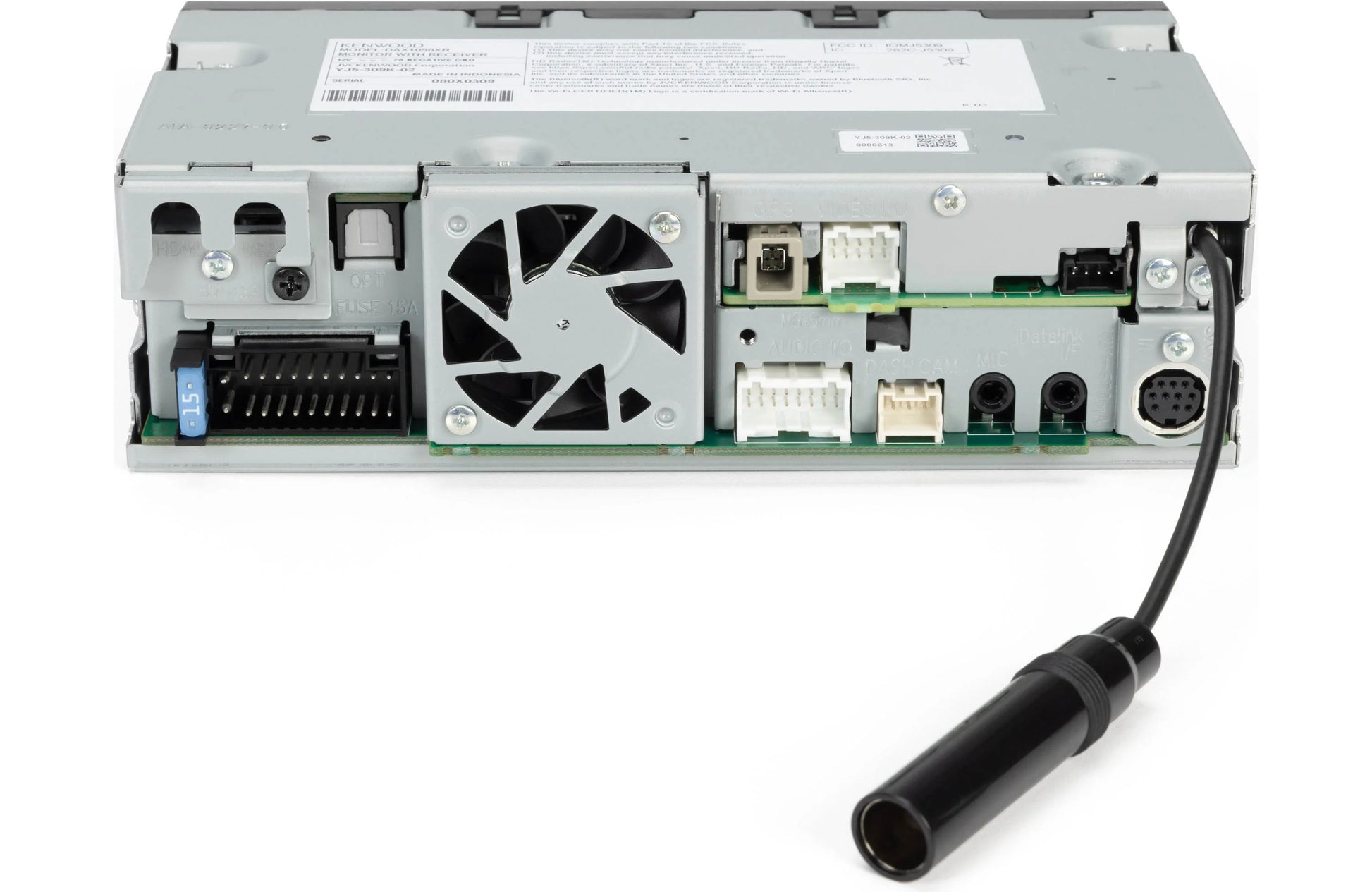

The DAX1050XR is built for drivers who want a flagship-level source unit that can anchor a full aftermarket system. Its optically bonded HD display stays visible in harsh light, while the modular chassis mounts deep in the dash for a clean OEM-style install. With 5V preouts, digital optical out, and robust tuning tools, it can feed high-end amplifiers and DSP with a low-noise, high-resolution signal.

Wireless CarPlay, wireless Android Auto, and Wi-Fi make everyday use feel seamless—navigation, streaming, and voice control are all one touch or one command away. For builds that include multiple cameras, the four camera inputs and HD compatibility make it easy to cover front, rear, and side views.

Technical Highlights

Ideal Applications

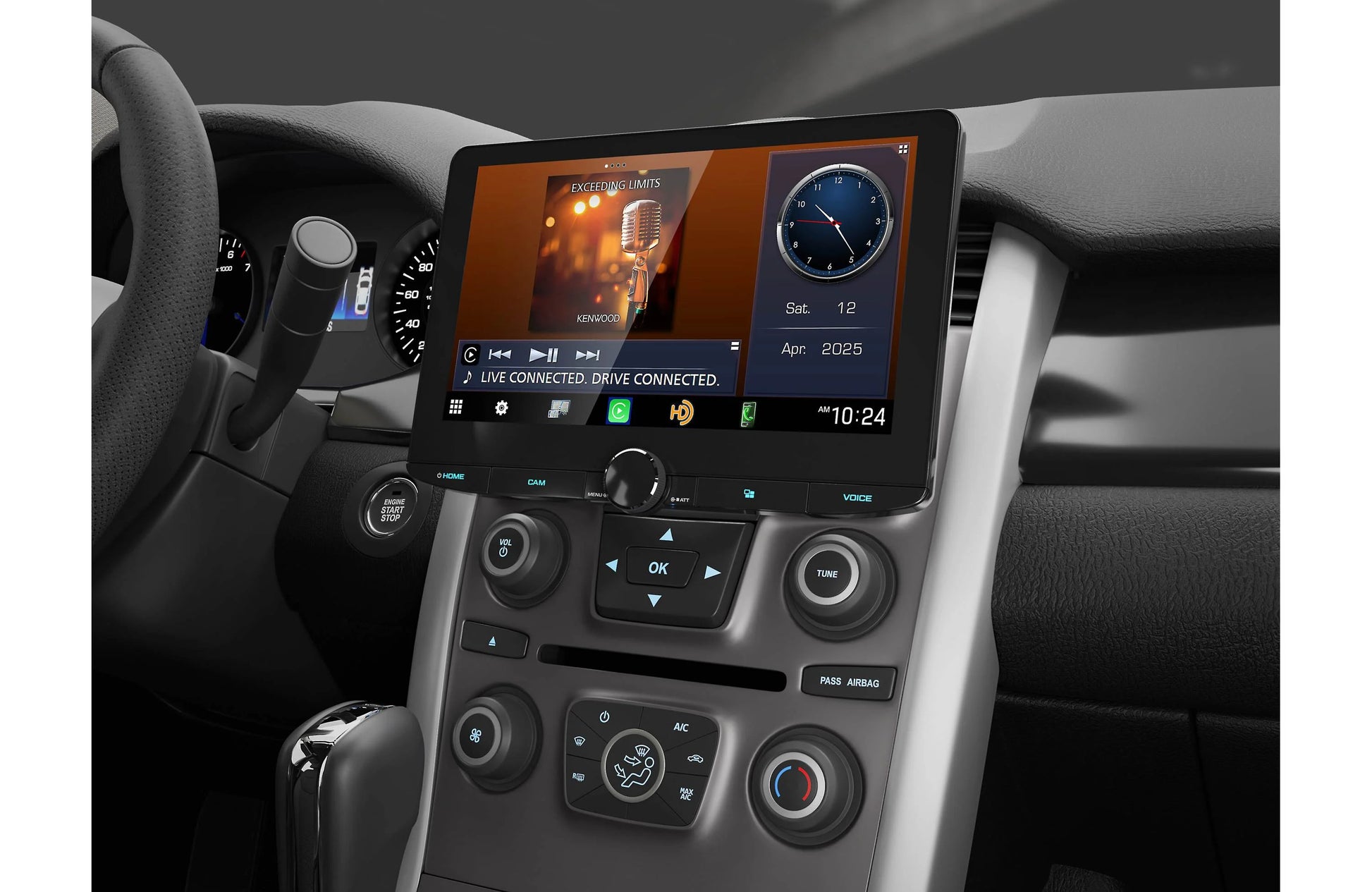

• OEM dash replacements where a large floating display and factory control retention are required
• High-end systems using DSP and multiple amplifiers for full active front stages and subwoofers
• Vehicles running multiple cameras for parking, towing, or off-road visibility

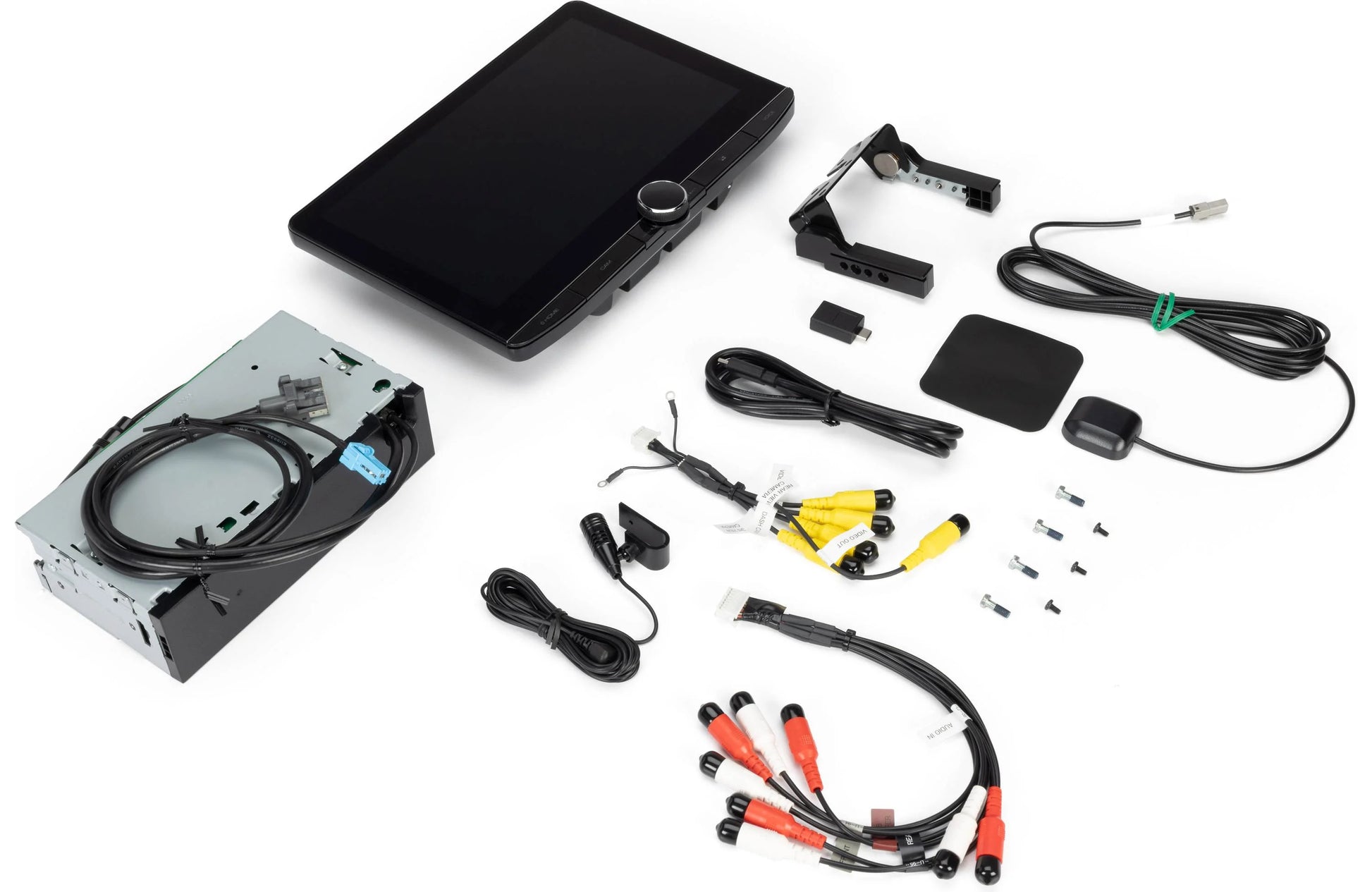

What’s Included

• Kenwood eXcelon Reference DAX1050XR multimedia receiver

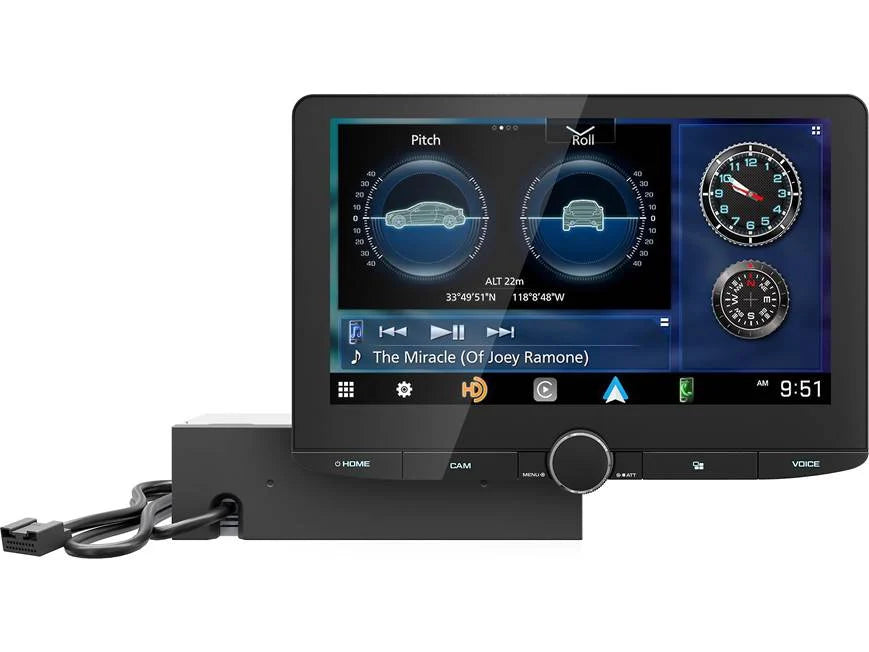

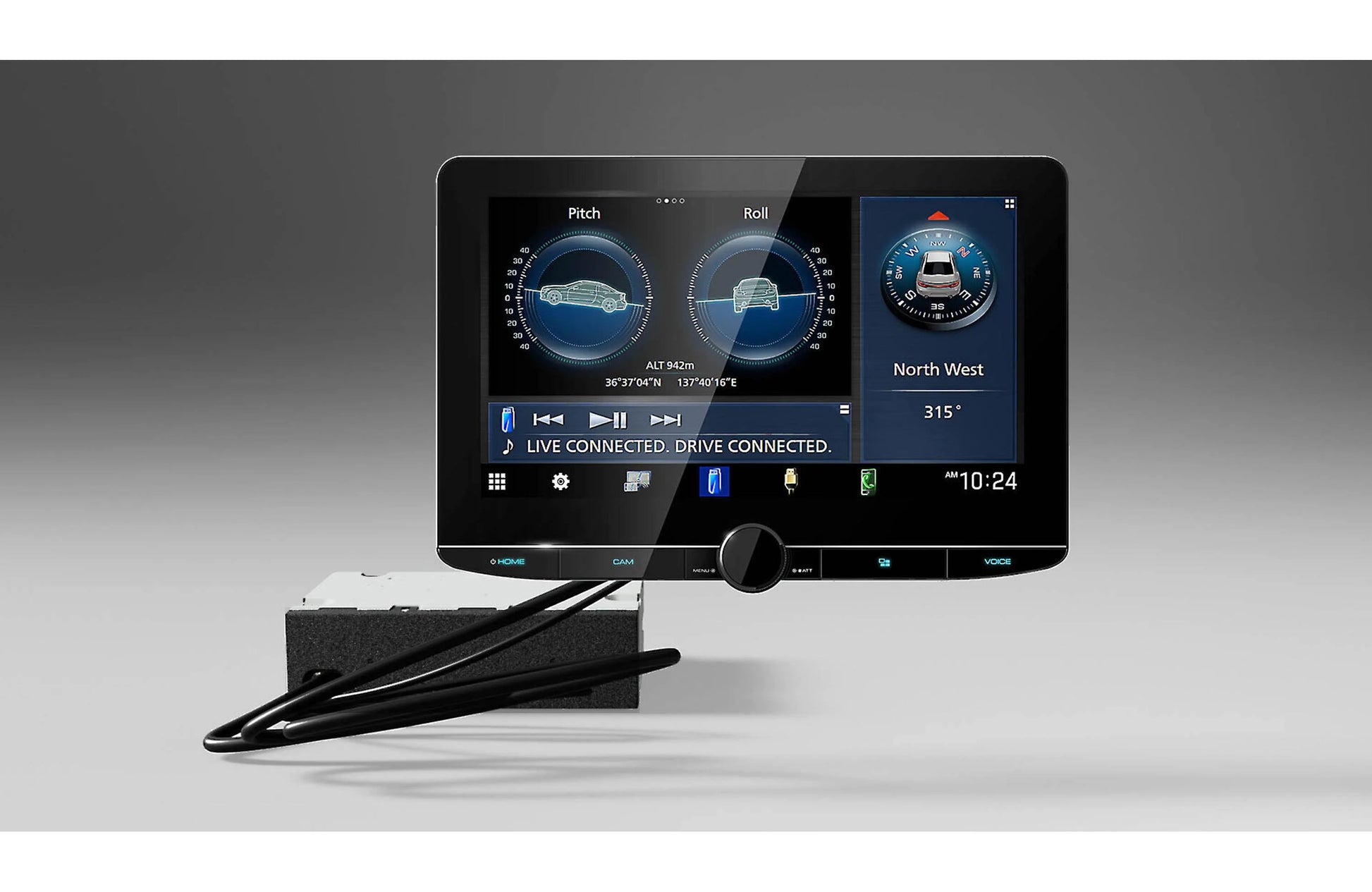

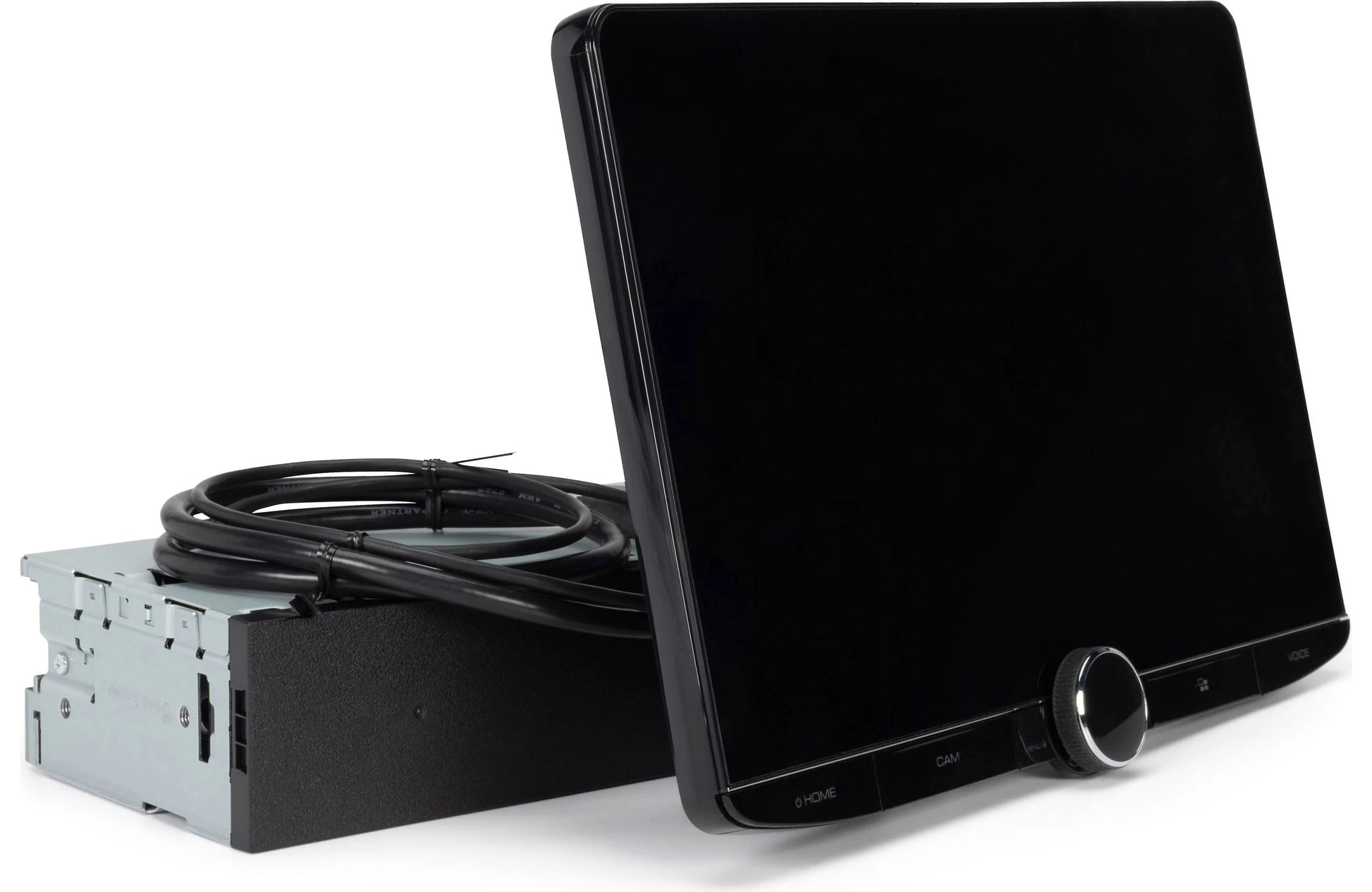

• 10.1" floating HD display and modular chassis

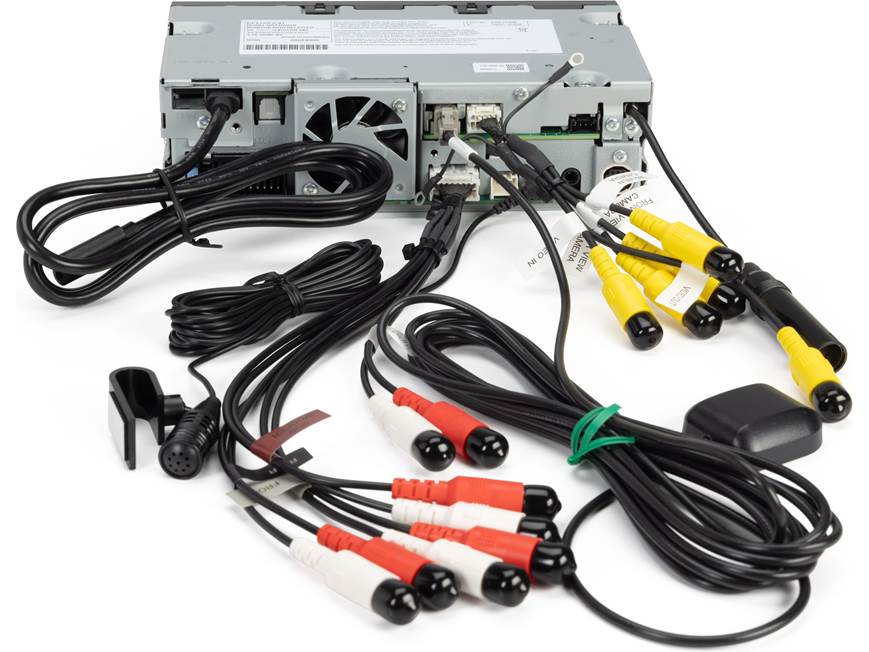

• Wiring harnesses and mounting hardware (vehicle-dependent)
• Owner’s manual and documentation

Why Buy From MCOR Automotive

• Authorized Kenwood eXcelon Reference dealer
• 22+ years designing and installing high-end multimedia and audio systems
• Integration help with Maestro, DSP, amplifiers, and multi-camera layouts
• Trusted partner for OEM-style upgrades that look factory but perform like full aftermarket

DAX1050XR: Vehicle-Specific APX Installation Paths

This is the application table for DAX1050XR, not a combined list for every Kenwood Direct Replacement radio. Matching the year and model alone is not enough: check the original screen, factory navigation/audio system, APX kit and current Maestro firmware. The floating 10.1-inch screen is not supported in every vehicle that accepts an 8-inch DAX receiver.

Select your exact vehicle and factory equipment in the MCOR Fit Guide.

• Sold separately: the exact APX kit and compatible Maestro interface. Use ADS-MRR2 for the documented APX-S8-GM2 / GM6-RR2-DS path. Other supported paths use ADS-MRR or ADS-MRR2 as specified by the vehicle firmware.
• Head-unit connection: add ACC-HU-KEN1 for the plug-in connection, or follow the APX manual's professional hardwiring instructions.
• Extension cable: KCA-A150EX is required for the applications identified below.
• Amplified vehicles: GM APX-S8-GM1/GM2/GM3/GM4 paths do not retain the factory amplifier; a bypass/replacement-amplifier plan is required. Certain later Ford/Lincoln applications also require bypass. Do not assume Bose, Sony, B&O, THX or Revel is retained simply because the radio fits.
• Programming and retained features: use the current vehicle-specific Maestro firmware and radio firmware. Review camera, USB, microphone, climate-control and factory-feature retention in the exact APX installation manual before purchase.

Cross-checked October 13, 2026 against the official Kenwood Direct Replacement guide, current Maestro APX application coverage and APX installation instructions. The booklet contains broad platform ranges; exact body generation and factory-equipment restrictions take precedence.

Vehicle Fitment & Installation Notes

• Most vehicles require additional installation parts when replacing the factory radio. Depending on the vehicle, you may need a dash kit, wiring harness, antenna adapter, steering wheel control interface, factory amplifier integration module, or other vehicle-specific parts.
• Vehicle-specific installation parts are sold separately unless included in the bundle.
• Use the MCOR Automotive Vehicle Fit Guide to help identify required parts for your vehicle, or contact MCOR Automotive through the chat button for help building the correct vehicle-specific install package.
• Do not assume universal fitment. Radio fitment and retained factory features depend on the vehicle, trim, factory audio system, and required installation interfaces.
