iDatalink Maestro APX-S8-FO1 Dash Kit for Kenwood DAX8000S/DAX800XR – Ford & Lincoln 8″ OEM Screen
iDatalink Maestro APX-S8-FO1 Dash Kit for Kenwood DAX8000S/DAX800XR – Ford & Lincoln 8″ OEM Screen
Couldn't load pickup availability
***This Item requires an additional 3-5 Days Handling Time***
The iDatalink Maestro APX-S8-FO1 is a vehicle-specific dash and screen integration kit engineered to install select Kenwood APX-compatible 8-inch multimedia receivers into supported Ford and Lincoln vehicles equipped with an OEM 8" screen. Built for OEM-style fit and clean cosmetics, APX-S8-FO1 is designed to work with Maestro APX integration architecture so the upgraded Kenwood display looks factory-correct while retaining the vehicle’s integrated layout.
Key Features
- Vehicle-specific Maestro APX installation kit for supported Ford and Lincoln platforms
- Designed for vehicles equipped with an OEM 8" screen
- OEM-style dash integration with factory-correct screen positioning
- Supports APX 10" display compatibility on select applications (see chart)
- Built for clean, serviceable installation when paired with the correct APX-ready Kenwood receiver
Performance
APX-S8-FO1 is intended for builds where the goal is a modern Kenwood multimedia upgrade without the floating-screen look. When matched to the correct vehicle and APX-ready receiver, it delivers a factory-style appearance and stable mounting, improving long-term durability and serviceability versus improvised dash solutions.
Because Ford and Lincoln infotainment packages vary by year and trim, correct fitment depends on having the OEM 8" screen configuration and the correct APX-compatible Kenwood receiver and supporting Maestro components. If any part of the vehicle configuration is mismatched, the kit may not apply even if the model/year appears in general lists.
Technical Specifications
| Installation Kit – APX-S8-FO1 | |
|---|---|
| Kit Type | Vehicle-Specific Dash & Screen Integration Kit (Maestro APX) |
| Vehicle Screen Requirement | OEM 8" Screen |
| Compatible Display Size | 8" (10" compatible on select applications) |
| Vehicle Brands | Ford / Lincoln |
| Professional Installation | Recommended |
Vehicle Compatibility (APX-S8-FO1)
| Make | Model | Years | OEM Screen | 10" Compatible | Notes |
|---|---|---|---|---|---|
| Ford | C-MAX | 2012-2018 | 8" | ||
| Ford | Edge | 2011-2020 | 8" | Y | |
| Ford | Escape | 2013-2019 | 8" | ||
| Ford | Expedition | 2015-2019 | 8" | Y | |
| Ford | Explorer | 2011-2019 | 8" | Y | |
| Ford | Super Duty | 2013-2016 | 8" | Y | |
| Ford | F-150 | 2013-2020 | 8" | Y | |
| Ford | Super Duty | 2017-2019 | 8" | Y | |
| Ford | Flex | 2013-2019 | 8" | Y | |
| Ford | Focus | 2012-2018 | 8" | ||
| Ford | Fusion | 2013-2020 | 8" | Y | |
| Ford | Mustang | 2015-2023 | 8" | Y | |
| Ford | Ranger | 2019-2023 | 8" | Y | |
| Ford | Taurus | 2013-2018 | 8" | Y | |
| Lincoln | MKC | 2015-2019 | 8" | Y | |
| Lincoln | MKS | 2013-2016 | 8" | Y | |
| Lincoln | MKT | 2017-2013 | 8" | Y | (Year range shown as 2017-2013 in source.) |
| Lincoln | MKX | 2011-2018 | 8" | Y | |
| Lincoln | MKZ | 2013-2020 | 8" | Y | |
| Lincoln | Nautilus | 2019-2020 | 8" | Y | |
| Lincoln | Navigator | 2015-2017 | 8" | Y |
Ideal Applications
- Ford and Lincoln vehicles with factory 8" screens needing an OEM-style APX dash solution
- Installations where a flush, factory-correct screen position is required
- APX builds pairing an APX-ready Kenwood receiver with Maestro integration components

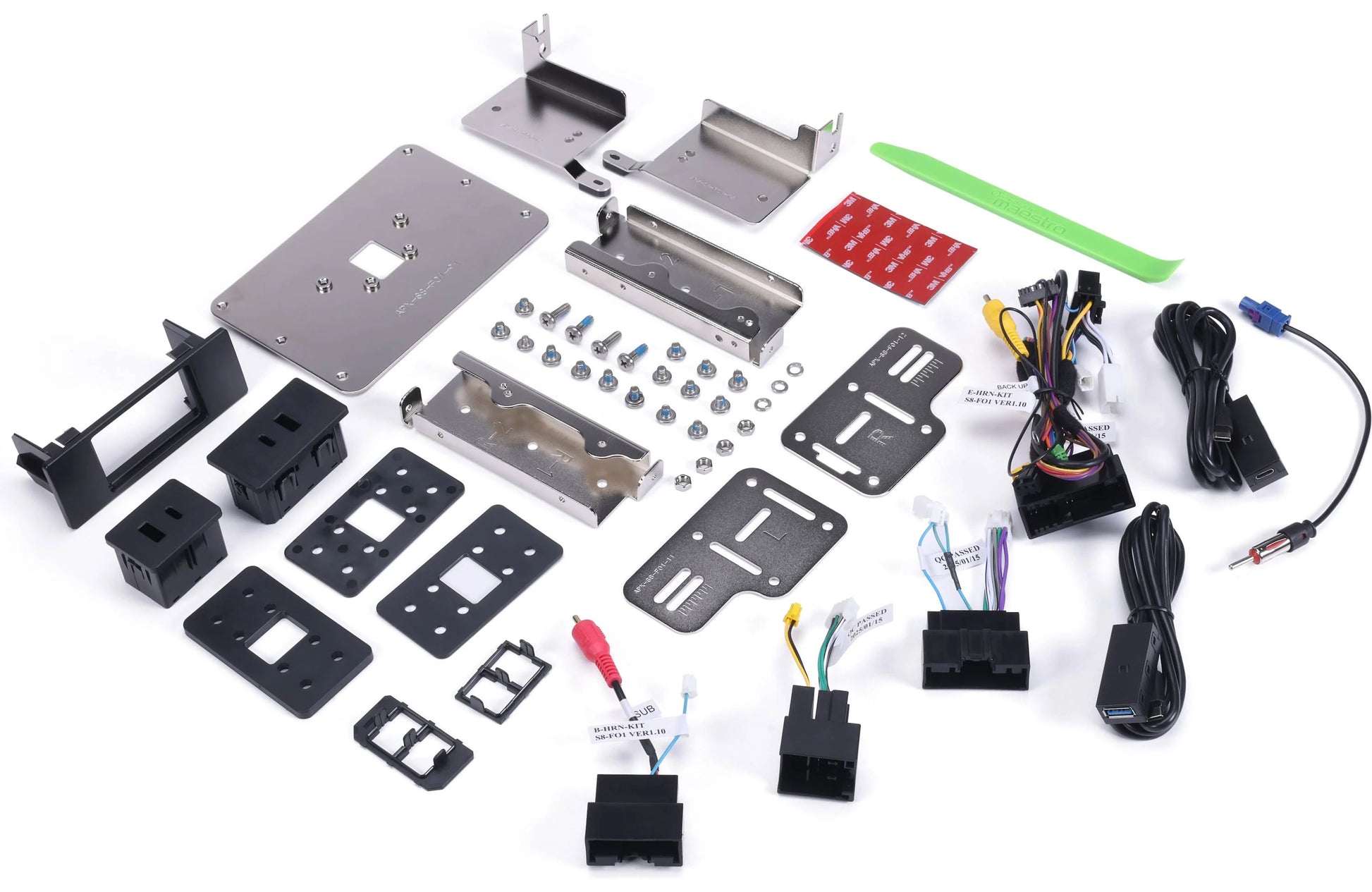

What’s Included
- Installation documentation
- APX-S8-F01-01 mounting plate
- APX-S8-FO1-01 bracket
- APX-SB-FO1-02 bracket
- APX-S8-FO1-13 mounting bracket
- APX-SB-FO1-14 mounting bracket
- APX-S8-FO1-13 bracket
- APX-S8-FO1-14 bracket
- Vehicle/interface harness
- Sub harness
- A-HRN-KIT speaker harness
- C-HRN-KIT speaker harness
- USB-C cable
- USB-C to USB-A cable
- Large USB housing
- Small USB housing
- USB trim-panel
- 2 USB trim-rings
- 3 USB trim-plates
- Antenna adapter
- 3M tape
- Pry-tool
- Ten M5x6mm screws
- Four M5x16mm screws
- Four M5x8mm screws
- 4 Nuts
- 4 Split-washers
- "GND" screw
- Quick Start Guide
