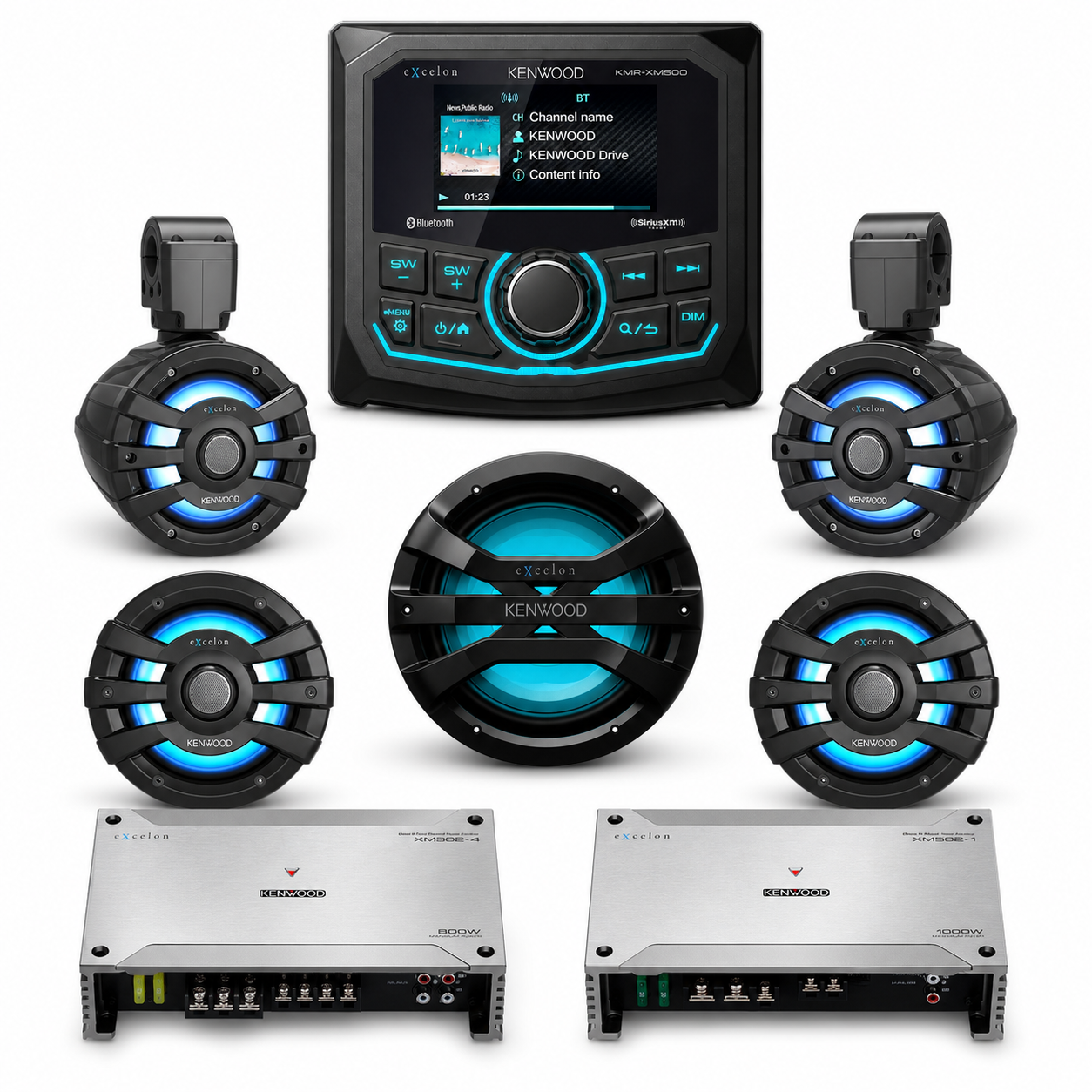

Kenwood KMR-XM500 Complete Marine Stereo System with XM65TBL, XM65BL, XM1041BL Subwoofer + Amplifiers

This item requires an additional 3-5 days of handling time.

This Kenwood-approved marine and powersports bundle is built around Kenwood’s IP66 gauge-mount receiver, a strong starting point for space-conscious marine and powersports systems. The listed speakers and any amplifiers or subwoofers are included exactly as shown in the bundle contents, giving customers a clearer starting point for a complete weather-ready audio system.

What's Included

• KMR-XM500 — eXcelon Motorsports Receiver, Mounts in 3" Diameter Hole, 2.7" Color LCD, IP66 Rated, FM & Weatherband Tuner, Bluetooth 5.0 for Music Streaming & AVRCP, USB, Backup Camera Input, Three 5V RCA Preouts (F,R &Sub), 13 Band EQ, SXM Ready, Variable Color Backlighting
• XM302-4 — Marine/Motorsports 4ch Amplifier with 50W x 4 @ 4ohms, 75W x 4 @ 2ohms, 600W Maximum Power, Conformal Coated Main PCB, Pro& RCA Inputs, Stainless Steel Mounting Screws
• XM502-1 — Marine/Motorsports Mono Amplifier with 300W @ 4ohms, 500W @ 2ohms, 1000W Maximum Power, Conformal Coated Main PCB, Pro& RCA Inputs, Stainless Steel Mounting Screws
• XM1041BL — 10" Motorsports Subwoofer, Black grill and frame, 21 Color RGB Lighting and Remote Controller, 4-Ohm, Free-Air/Infinite Baffle Design, 300Watt RMS Power Handling, IPX6 Water Resiustance, ASTM Salt Spray and UV tested
• XM65TBL — Marine/Powersports Tower Speakers with Black Enclosures, 6.5" 2-Way Speaker, 21-Color Front & Back RGB Illumination, Cast Alluminum Mounting Clamp for 1-1/2" to 2" diameter round structure, IPX6 Water Resistant Rated, 6-pin waterproof speaker/RGB connector with 3 Meter length, Remote Control for RGB Color, Mode, Pulse, 75 Watts RMS Power Handling, 4 Ohm Impedance
• XM65BL — 6.5" 2-Way Black Coaxial Speakers Marine/Powersports for 5-1/2" Diameter Mounting Hole, 21-Color Front & Back RGB Illumination, IPX6 Water Resistant Rated, 6-pin waterproof speaker/RGB connector with 10" length, Remote Control for RGB Color, Mode, Pulse, 75 Watts RMS Power Handling, 4 Ohm Impedance

Why this bundle makes sense

• Genuine Kenwood marine and powersports components under an official Kenwood bundle part number
• Weather-focused source and speaker components selected for boats and open-cabin vehicles
• Clear component quantities so installers can plan channels, amplifier loading, mounting locations, and wiring
• Authorized Kenwood retailer support and applicable manufacturer warranty coverage

Receiver Highlights

• 3-inch gauge-style mounting design for marine and powersports applications
• 2.7-inch color TFT/LCD display for improved daytime visibility
• IP66-rated waterproof and dustproof front panel
• AM/FM and Global Weather Band tuner built in
• Bluetooth audio streaming support
• Rear USB port with charging
• Rear-view camera input
• Three 5.0V RCA preouts for front, rear, and subwoofer system expansion
• 13-band equalizer and independent subwoofer volume control
• SiriusXM Ready compatibility with optional tuner

System configuration: XM65TBL tower pair, XM65BL coaxial pair, 1 XM1041BL subwoofer, XM302-4 and XM502-1 amplifiers.

Optional SiriusXM: This receiver is SiriusXM Ready. Add the SiriusXM SXV300V1 tuner for satellite radio; tuner and subscription are sold separately.

KMR-XM500 core component details

The Kenwood eXcelon KMR-XM500 is a purpose-built marine and motorsports digital media receiver designed for boats, UTVs, side-by-sides, and other open-environment installations where durability, compact mounting, and clean system expansion matter.

It is a strong fit for builds that need a weather-resistant source unit with Bluetooth streaming, weather band access, external amplifier integration, and sunlight-friendly display visibility without moving to a full touchscreen chassis.

Key Features

• 3-inch gauge-style mounting design for marine and powersports applications
• 2.7-inch color TFT/LCD display for improved daytime visibility
• IP66-rated waterproof and dustproof front panel
• AM/FM and Global Weather Band tuner built in
• Bluetooth audio streaming support
• Rear USB port with charging
• Rear-view camera input
• Three 5.0V RCA preouts for front, rear, and subwoofer system expansion
• 13-band equalizer and independent subwoofer volume control
• SiriusXM Ready compatibility with optional tuner

Connectivity & Integration

• Bluetooth: Built-in Bluetooth for wireless audio streaming
• USB: Rear USB input for media playback and charging
• Playable USB audio files: FLAC, MP3, WMA, and AAC
• Camera input: Single rear-view camera input
• SiriusXM: SiriusXM Ready with optional tuner
• Remote control expansion: Wired remote ready with optional compatible remote

Audio & System Control

• 13-band EQ for detailed sound tuning
• Independent subwoofer volume control
• 3 pairs of 5.0V RCA preamp outputs for front, rear, and subwoofer channels
• Built-in amplifier for direct speaker connection
• Designed to expand all-weather systems with external amplifiers and subwoofers

Installation & Fitment Notes

• Chassis type: 3-inch gauge-style marine/motorsports receiver
• Mounting format: Fits a 3-inch diameter mounting hole / gauge opening
• Compact chassis depth helps in tighter helm, dash, and powersports mounting locations
• Built for harsh environments with weather-resistant construction
• Vehicle-, vessel-, and application-specific accessories are sold separately

Technical Specifications

• Model: KMR-XM500
• Display: 2.7-inch color TFT/LCD
• Mounting type: 3-inch gauge-style mount
• Tuner: AM/FM/Global Weather Band
• USB: Rear USB input
• Camera input: 1 rear-view camera input
• Preamp outputs: 3 preouts, 5.0V
• EQ: 13-band graphic equalizer

XM65BL included component details

KENWOOD eXcelon XM65BL – 6.5" Black Marine / Powersports Coaxial Speakers with RGB Illumination (Pair)

The Kenwood eXcelon XM65BL is a premium 6.5" 2-way coaxial speaker pair built specifically for motorcycles, UTVs, ATVs, Jeeps, and marine applications where open-air volume and durability are critical. With 75W RMS power handling, a 6.5" PP mica cone woofer, and a 1" silk balanced-dome tweeter, the XM65BL delivers tight midbass, clean vocals, and crisp highs that cut through wind and engine noise without falling apart at volume.

IPX6 water protection, UV-resistant materials, and stainless hardware make the XM65BL ideal for saltwater and freshwater environments as well as harsh off-road use. Integrated RGB illumination with a dedicated RF controller lets you tune the look of your system with multiple colors and patterns while keeping current draw under control.

Key Performance Features

• Engineered for high-output outdoor audio in powersports & marine environments
• 2-way coaxial design for full-range sound from a compact 6.5" package
• IPX6-rated construction resists powerful water spray and harsh weather
• RGB multi-color illumination with extensive control over color, speed, and brightness
• Optimized for use with Kenwood eXcelon Motorsports amplifiers

Illumination & Control

• RF wireless RGB controller included
• 21 illumination colors
• 21 lighting mode patterns
• 8 brightness levels
• 7 speed settings for motion effects
• Up to 12 pairs of XM-series speakers can be connected and synchronized

Technical Specifications — Kenwood XM65BL

• Speaker Size: 6.5" 2-way coaxial
• Woofer: PP (polypropylene) mica cone
• Tweeter: 1" silk balanced-dome tweeter
• RMS Power Handling: 75W
• Nominal Impedance: 4Ω
• Frequency Response: 65Hz – 20kHz
• Sensitivity (1W/1m): 87dB
• Water Protection: IPX6 rated (protection from powerful water spray)
• Cutout Diameter: 5-15/32" (13.9cm)
• Mounting Depth: 2-15/16" (7.5cm)
• Grille / Finish: Black, UV-resistant
• Included Controller: RF RGB remote with color, mode, speed & brightness control

System & Application Notes

• Ideal for bagger front/rear locations, UTV pods, Jeep sound bars, and marine speaker positions
• Designed to be driven by Kenwood eXcelon Motorsports amplifiers (XM302-4, XM802-5, etc.) for reliable power and voicing consistency
• Works as a direct upgrade from many factory 6.5" speakers in outdoor-rated systems

Ideal Install Platforms

• Harley and metric motorcycles
• UTV / Side-by-Side and ATV builds
• Jeep and off-road open-cabin vehicles
• Freshwater and saltwater boats
• Custom powersports and marine audio systems

XM302-4 included component details

The Kenwood eXcelon XM302-4 is a compact 4-channel Class D marine and motorsports amplifier built for systems that need clean full-range speaker power in a durable, space-conscious chassis. Its conformal-coated design and compact footprint make it a strong fit for boats, UTVs, and other powersports builds where moisture resistance, efficient output, and installation flexibility all matter.

For buyers powering front and rear speakers in a marine or motorsports system, the XM302-4 delivers solid 4-channel performance with the filter control and input flexibility needed for a clean, properly matched install.

Key Features

• 4-channel Class D marine / motorsports amplifier
• 600 watts max power
• 50W x 4 RMS at 4 ohms
• 75W x 4 RMS at 2 ohms
• 150W x 2 bridged at 4 ohms
• Conformal-coated circuit board for marine use
• Speaker-level inputs
• Signal sensing turn-on
• High-Resolution Audio compliant
• Protective terminal cover

Inputs & Integration

• Amplifier type: 4-channel Class D
• Inputs: RCA preamp inputs and speaker-level inputs
• Signal sensing: Signal Sensing Turn-On supported
• Application: Marine, powersports, and vehicle audio system builds requiring full-range speaker amplification
• One-sided connection layout: Designed for easier installation and cleaner wiring

Power & System Control

• RMS power at 4 ohms: 50W x 4
• RMS power at 2 ohms: 75W x 4
• Bridged power: 150W x 2 at 4 ohms
• High-pass filter: Variable 50Hz to 200Hz
• Low-pass filter: Variable 50Hz to 200Hz
• Bass boost: 0dB to 18dB on B channel
• Built to run full-range speakers cleanly in compact marine and motorsports systems

Installation & Fitment Notes

• Chassis size: Compact amplifier footprint for tighter installations
• Dimensions: 8-3/8" W x 2-1/16" H x 5-7/8" D
• Marine construction: Conformal-coated board with protective caps and covers to help resist moisture and dust
• Proper power wire, fuse protection, ground connection, and amplifier mounting location are required and sold separately unless stated otherwise
• Final performance depends on correct speaker impedance, gain setting, wiring, and system design

Technical Specifications

• Model: XM302-4
• Amplifier class: Class D
• Channels: 4
• Maximum power: 600W
• RMS at 4 ohms: 50W x 4
• RMS at 2 ohms: 75W x 4
• Bridged RMS: 150W x 2 at 4 ohms
• Variable high-pass filter: 50Hz to 200Hz, -12dB/oct
• Variable low-pass filter: 50Hz to 200Hz, -12dB/oct
• Bass boost: 40Hz, 0dB to +18dB
• Speaker-level input: Yes
• Signal sensing turn-on: Yes
• High-Resolution Audio: Compliant

Identifiers & Packaging

• Manufacturer Part Number (MPN): XM302-4
• UPC: 019048233868
• Sold As: Each
• Included Components: Amplifier, speaker-level input harness, mounting hardware, and manufacturer-supplied documentation as packaged by Kenwood

XM502-1 included component details

***This Item requires an additional 3-5 Days Handling Time***

The Kenwood eXcelon XM502-1 is a compact Class D mono marine and motorsports amplifier built for systems that need dedicated subwoofer power in a durable, space-conscious chassis. Its conformal-coated design and compact footprint make it a strong fit for boats, UTVs, and other powersports builds where moisture resistance, clean power, and installation flexibility all matter.

For buyers adding real bass output to a marine or motorsports audio system, the XM502-1 delivers solid mono subwoofer power with the control features needed to properly match a subwoofer enclosure and dial in cleaner low-frequency performance.

Key Features

• Mono Class D marine / motorsports amplifier
• 1000 watts max power
• 300W x 1 RMS at 4 ohms
• 500W x 1 RMS at 2 ohms
• Conformal-coated circuit board for marine use
• Speaker-level inputs
• Signal sensing turn-on
• Wired bass level control included

Inputs & Integration

• Amplifier type: Mono Class D
• Inputs: RCA preamp inputs and speaker-level inputs
• Signal sensing: Signal Sensing Turn-On supported
• Remote bass control: Wired level control included
• Application: Marine, powersports, and vehicle audio system builds requiring dedicated subwoofer amplification

Power & System Control

• RMS power at 4 ohms: 300W x 1
• RMS power at 2 ohms: 500W x 1
• Low-pass filter: Variable 50Hz to 200Hz
• Infrasonic filter: 25Hz fixed
• Bass boost: 0dB to 18dB
• Built specifically to drive a dedicated subwoofer channel in compact marine and motorsports systems

Installation & Fitment Notes

• Chassis size: Compact amplifier footprint for tighter installations
• Dimensions: 9-3/4" W x 2-1/16" H x 6-5/8" D
• Marine construction: Conformal-coated main board for marine and motorsports environments
• Proper power wire, fuse protection, ground connection, and amplifier mounting location are required and sold separately unless stated otherwise
• Final performance depends on correct subwoofer impedance, enclosure design, gain setting, and wiring

Technical Specifications

• Model: XM502-1
• Amplifier class: Class D
• Channels: Mono
• Maximum power: 1000W
• RMS at 4 ohms: 300W x 1
• RMS at 2 ohms: 500W x 1
• Variable low-pass filter: 50Hz to 200Hz
• Infrasonic filter: 25Hz fixed
• Bass boost: 0dB to 18dB
• Speaker-level input: Yes
• Signal sensing turn-on: Yes

Identifiers & Packaging

• Manufacturer Part Number (MPN): XM502-1
• UPC: 019048233875
• Sold As: Each
• Included Components: Amplifier, wired bass level control, mounting hardware, and manufacturer-supplied documentation as packaged by Kenwood

XM65TBL included component details

KENWOOD eXcelon XM65TBL – 6.5" Black Marine / Powersports Tower Speakers (Pair)

The Kenwood eXcelon XM65TBL is a premium 6.5" 2-way tower speaker pair engineered for high-output open-air audio environments where wind, vehicle noise, and outdoor conditions challenge lesser systems. Designed for wake towers, UTV/side-by-side cages, open-air Jeeps, and marine applications, the XM65TBL delivers tight midbass, clear highs, and sustained volume that outperforms stock speakers and entry-level marine audio.

Built with marine-grade UV-resistant materials, corrosion-resistant hardware, and moisture-sealed surrounds, the XM65TBL thrives in saltwater, freshwater, and off-road conditions. Integrated RGB illumination with RF remote control allows for customizable lighting effects with minimal electrical draw, making these speakers a standout choice for custom audio and aesthetic upgrades.

Key Performance Features

• 7.7" 2-way coaxial design for full-range outdoor audio
• Long-throw woofer for enhanced midbass and output
• Balanced-dome tweeter for extended high-frequency clarity
• Marine-grade materials resist UV, moisture, and corrosion
• Integrated RGB illumination with RF remote control
• Engineered for powerful open-air SPL and powersports environments

Illumination & Control

• RF wireless RGB controller included
• 21 selectable color options
• 21 lighting mode patterns
• 8 brightness levels
• 7 speed settings for motion effects
• Capable of synchronizing multiple speaker pairs

Technical Specifications — Kenwood XM65TBL

• Speaker Size: 6.5" coaxial tower
• RMS Power Handling: 75W
• Peak Power Handling: 300W
• Impedance: 4Ω
• Frequency Response: 60Hz – 20kHz
• Sensitivity: 90dB (typical)
• Woofer Material: Composite UV-resistant cone
• Tweeter: Balanced-dome tweeter
• Water Resistance: Marine-grade protection
• Finish: UV-stable black grille & enclosure
• Mounting Depth: 2.56" (65 mm)
• Applications: Boats, Wake Towers, UTVs, ATVs, Jeeps, Marine, Powersports

System & Amplifier Notes

Designed to be driven by compatible Kenwood eXcelon marine/powersports amplifiers to maintain voicing and output consistency in outdoor environments. Recommended amplifier range is 50–100W RMS per channel at 4Ω for ideal performance.

Ideal Install Platforms

• Wakeboard and ski towers
• UTV / Side-by-Side roll cages
• Open-air Jeep and off-road vehicles
• Freshwater and saltwater boats
• Powersports custom audio systems

Included XM1041BL subwoofer

One black Kenwood eXcelon XM1041BL 10-inch illuminated marine subwoofer is included. It is rated at 300 watts RMS / 1,300 watts peak and uses an IPX6-rated water-resistant cone with variable illumination; the matching illumination remote is included.

Bundle Identification

• Official Kenwood package SKU / MPN: XM500-65BLSYS
• Bundle UPC: 019048244505

Installation and system planning

Confirm mounting dimensions, cutout sizes, speaker quantity, amplifier channel and impedance requirements, power and ground cable sizing, RCA and speaker-wire routing, antenna needs, and environmental exposure before ordering. Marine-rated wiring, mounting hardware, and installation accessories are not included unless specifically listed. Professional installation is recommended for complete amplified systems.

Why Buy From MCOR Automotive

• Authorized Kenwood retailer
• Brand-new, genuine Kenwood components
• Manufacturer warranty support applies to eligible components
• US-based product and installation support
