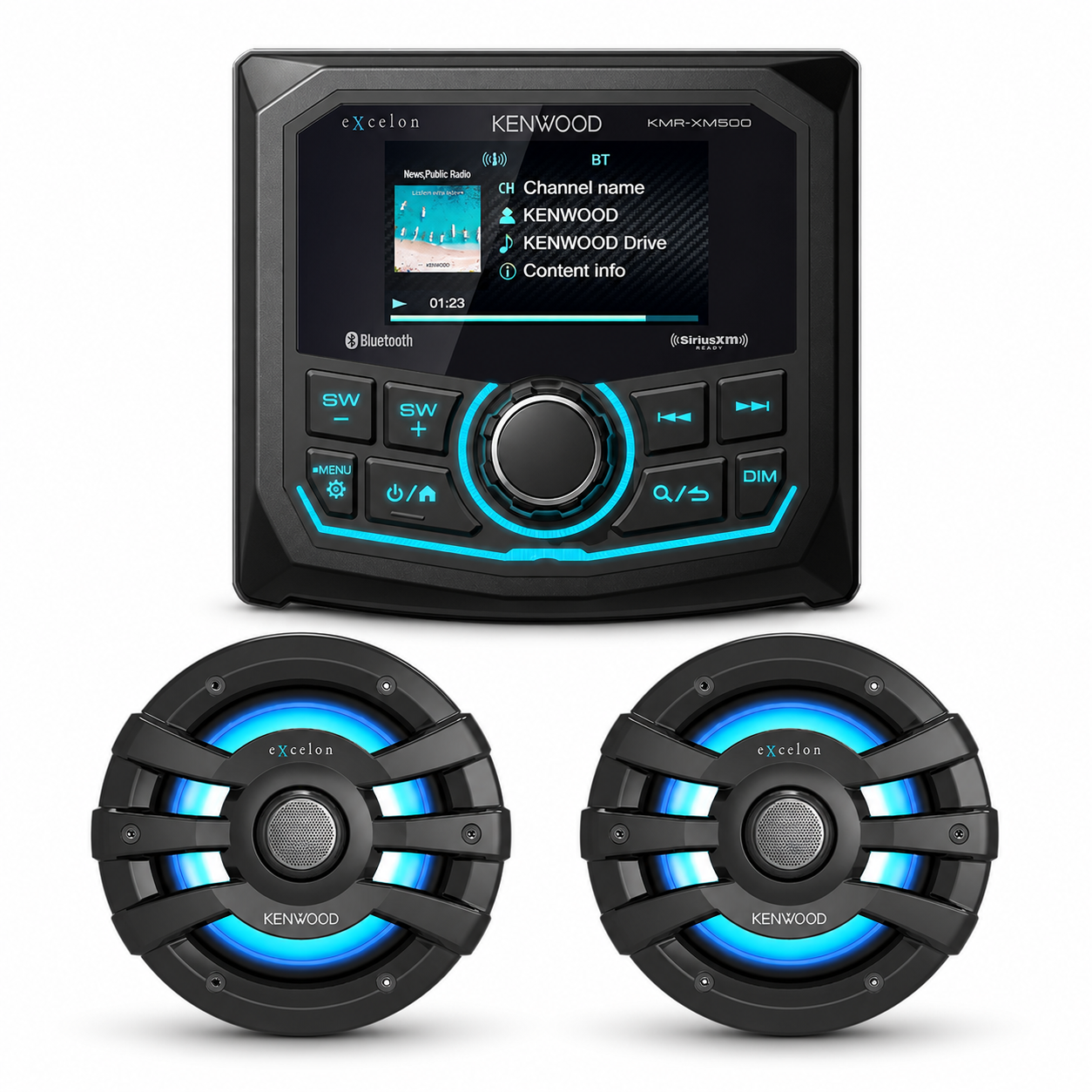

Kenwood KMR-XM500 Marine Stereo Bundle with 1 Pair of XM65BL (2 Speakers)

This item requires an additional 3-5 days of handling time.

This Kenwood-approved marine and powersports bundle is built around Kenwood’s IP66 gauge-mount receiver, a strong starting point for space-conscious marine and powersports systems. The listed speakers and any amplifiers or subwoofers are included exactly as shown in the bundle contents, giving customers a clearer starting point for a complete weather-ready audio system.

What's Included

• KMR-XM500 — eXcelon Motorsports Receiver, Mounts in 3" Diameter Hole, 2.7" Color LCD, IP66 Rated, FM & Weatherband Tuner, Bluetooth 5.0 for Music Streaming & AVRCP, USB, Backup Camera Input, Three 5V RCA Preouts (F,R &Sub), 13 Band EQ, SXM Ready, Variable Color Backlighting
• XM65BL — 6.5" 2-Way Black Coaxial Speakers Marine/Powersports for 5-1/2" Diameter Mounting Hole, 21-Color Front & Back RGB Illumination, IPX6 Water Resistant Rated, 6-pin waterproof speaker/RGB connector with 10" length, Remote Control for RGB Color, Mode, Pulse, 75 Watts RMS Power Handling, 4 Ohm Impedance

Why this bundle makes sense

• Genuine Kenwood marine and powersports components under an official Kenwood bundle part number
• Weather-focused source and speaker components selected for boats and open-cabin vehicles
• Clear component quantities so installers can plan channels, amplifier loading, mounting locations, and wiring
• Authorized Kenwood retailer support and applicable manufacturer warranty coverage

Receiver Highlights

• 3-inch gauge-style mounting design for marine and powersports applications
• 2.7-inch color TFT/LCD display for improved daytime visibility
• IP66-rated waterproof and dustproof front panel
• AM/FM and Global Weather Band tuner built in
• Bluetooth audio streaming support
• Rear USB port with charging
• Rear-view camera input
• Three 5.0V RCA preouts for front, rear, and subwoofer system expansion
• 13-band equalizer and independent subwoofer volume control
• SiriusXM Ready compatibility with optional tuner

System configuration: 2 XM65BL speakers (1 pair).

Optional SiriusXM: This receiver is SiriusXM Ready. Add the SiriusXM SXV300V1 tuner for satellite radio; tuner and subscription are sold separately.

KMR-XM500 core component details

The Kenwood eXcelon KMR-XM500 is a purpose-built marine and motorsports digital media receiver designed for boats, UTVs, side-by-sides, and other open-environment installations where durability, compact mounting, and clean system expansion matter.

It is a strong fit for builds that need a weather-resistant source unit with Bluetooth streaming, weather band access, external amplifier integration, and sunlight-friendly display visibility without moving to a full touchscreen chassis.

Key Features

• 3-inch gauge-style mounting design for marine and powersports applications
• 2.7-inch color TFT/LCD display for improved daytime visibility
• IP66-rated waterproof and dustproof front panel
• AM/FM and Global Weather Band tuner built in
• Bluetooth audio streaming support
• Rear USB port with charging
• Rear-view camera input
• Three 5.0V RCA preouts for front, rear, and subwoofer system expansion
• 13-band equalizer and independent subwoofer volume control
• SiriusXM Ready compatibility with optional tuner

Connectivity & Integration

• Bluetooth: Built-in Bluetooth for wireless audio streaming
• USB: Rear USB input for media playback and charging
• Playable USB audio files: FLAC, MP3, WMA, and AAC
• Camera input: Single rear-view camera input
• SiriusXM: SiriusXM Ready with optional tuner
• Remote control expansion: Wired remote ready with optional compatible remote

Audio & System Control

• 13-band EQ for detailed sound tuning
• Independent subwoofer volume control
• 3 pairs of 5.0V RCA preamp outputs for front, rear, and subwoofer channels
• Built-in amplifier for direct speaker connection
• Designed to expand all-weather systems with external amplifiers and subwoofers

Installation & Fitment Notes

• Chassis type: 3-inch gauge-style marine/motorsports receiver
• Mounting format: Fits a 3-inch diameter mounting hole / gauge opening
• Compact chassis depth helps in tighter helm, dash, and powersports mounting locations
• Built for harsh environments with weather-resistant construction
• Vehicle-, vessel-, and application-specific accessories are sold separately

Technical Specifications

• Model: KMR-XM500
• Display: 2.7-inch color TFT/LCD
• Mounting type: 3-inch gauge-style mount
• Tuner: AM/FM/Global Weather Band
• USB: Rear USB input
• Camera input: 1 rear-view camera input
• Preamp outputs: 3 preouts, 5.0V
• EQ: 13-band graphic equalizer

XM65BL included component details

KENWOOD eXcelon XM65BL – 6.5" Black Marine / Powersports Coaxial Speakers with RGB Illumination (Pair)

The Kenwood eXcelon XM65BL is a premium 6.5" 2-way coaxial speaker pair built specifically for motorcycles, UTVs, ATVs, Jeeps, and marine applications where open-air volume and durability are critical. With 75W RMS power handling, a 6.5" PP mica cone woofer, and a 1" silk balanced-dome tweeter, the XM65BL delivers tight midbass, clean vocals, and crisp highs that cut through wind and engine noise without falling apart at volume.

IPX6 water protection, UV-resistant materials, and stainless hardware make the XM65BL ideal for saltwater and freshwater environments as well as harsh off-road use. Integrated RGB illumination with a dedicated RF controller lets you tune the look of your system with multiple colors and patterns while keeping current draw under control.

Key Performance Features

• Engineered for high-output outdoor audio in powersports & marine environments
• 2-way coaxial design for full-range sound from a compact 6.5" package
• IPX6-rated construction resists powerful water spray and harsh weather
• RGB multi-color illumination with extensive control over color, speed, and brightness
• Optimized for use with Kenwood eXcelon Motorsports amplifiers

Illumination & Control

• RF wireless RGB controller included
• 21 illumination colors
• 21 lighting mode patterns
• 8 brightness levels
• 7 speed settings for motion effects
• Up to 12 pairs of XM-series speakers can be connected and synchronized

Technical Specifications — Kenwood XM65BL

• Speaker Size: 6.5" 2-way coaxial
• Woofer: PP (polypropylene) mica cone
• Tweeter: 1" silk balanced-dome tweeter
• RMS Power Handling: 75W
• Nominal Impedance: 4Ω
• Frequency Response: 65Hz – 20kHz
• Sensitivity (1W/1m): 87dB
• Water Protection: IPX6 rated (protection from powerful water spray)
• Cutout Diameter: 5-15/32" (13.9cm)
• Mounting Depth: 2-15/16" (7.5cm)
• Grille / Finish: Black, UV-resistant
• Included Controller: RF RGB remote with color, mode, speed & brightness control

System & Application Notes

• Ideal for bagger front/rear locations, UTV pods, Jeep sound bars, and marine speaker positions
• Designed to be driven by Kenwood eXcelon Motorsports amplifiers (XM302-4, XM802-5, etc.) for reliable power and voicing consistency
• Works as a direct upgrade from many factory 6.5" speakers in outdoor-rated systems

Ideal Install Platforms

• Harley and metric motorcycles
• UTV / Side-by-Side and ATV builds
• Jeep and off-road open-cabin vehicles
• Freshwater and saltwater boats
• Custom powersports and marine audio systems

Bundle Identification

• Official Kenwood package SKU / MPN: XM500-65BL
• Bundle UPC: 019048244468

Installation and system planning

Confirm mounting dimensions, cutout sizes, speaker quantity, amplifier channel and impedance requirements, power and ground cable sizing, RCA and speaker-wire routing, antenna needs, and environmental exposure before ordering. Marine-rated wiring, mounting hardware, and installation accessories are not included unless specifically listed. Professional installation is recommended for complete amplified systems.
