JL Audio CS110TG-TW3 PowerWedge 10" Enclosed Subwoofer 400W RMS 2Ω 010-03164-00 (93237)
JL Audio CS110TG-TW3 PowerWedge 10" Enclosed Subwoofer 400W RMS 2Ω 010-03164-00 (93237)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

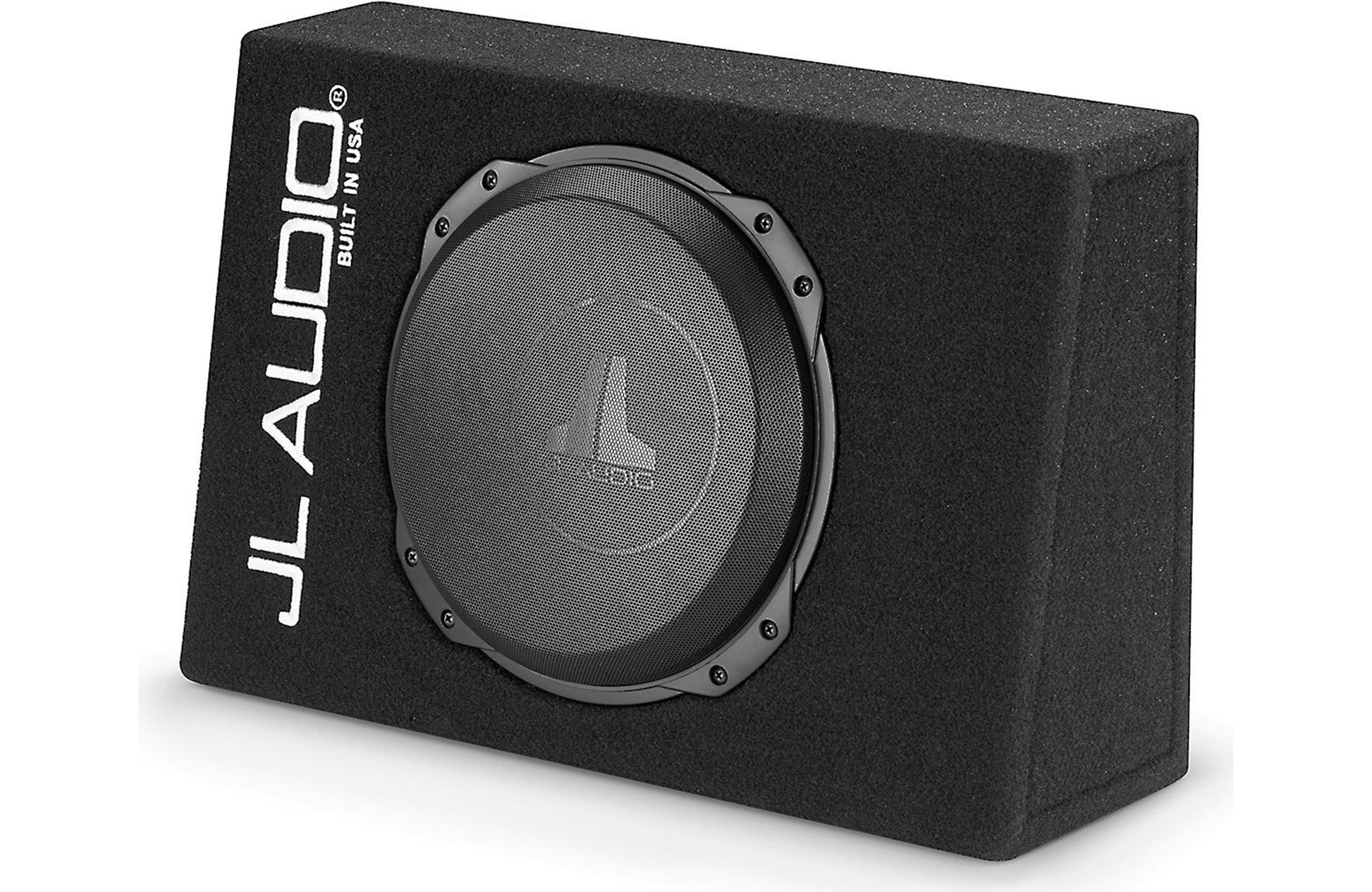

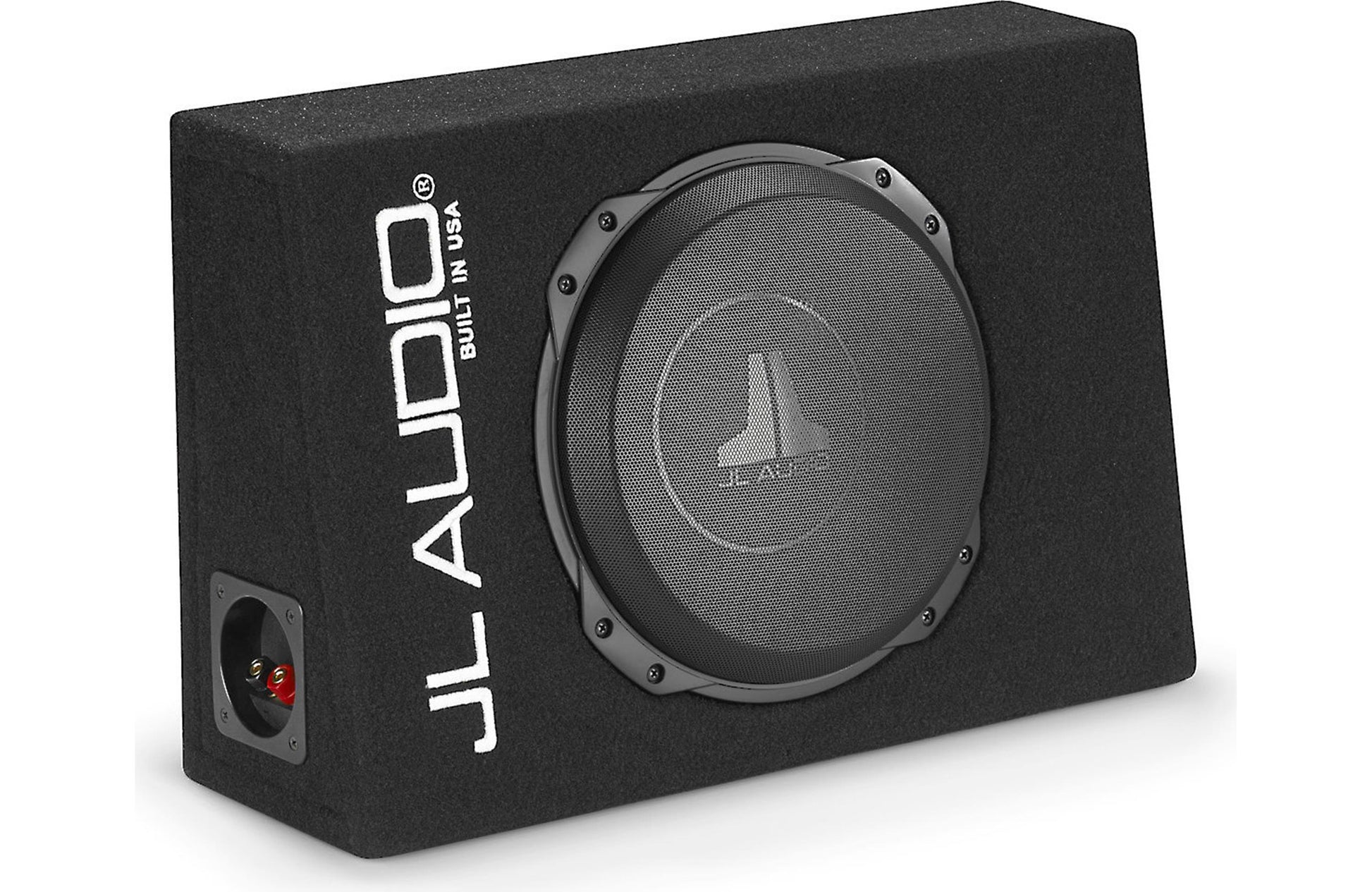

JL Audio CS110TG-TW3 PowerWedge 10" Enclosed Subwoofer is a sealed enclosure system designed around JL Audio’s shallow-mount 10TW3 driver. Engineered for tight-space and truck-focused installs, the CS110TG-TW3 delivers clean, articulate low-frequency performance with the transient accuracy sealed systems are known for.
The 10TW3 platform uses long-excursion geometry, high motor force, and concentric tube architecture to achieve strong bass output in a shallow format. The enclosure is wired for a nominal 2 Ω load and rated for 400 W RMS continuous power, providing efficient amplifier matching without excessive footprint. A steel-mesh grille offers added protection in utility environments.
Key Features
- Sealed PowerWedge™ enclosure with shallow 10TW3 subwoofer
- Compact and truck-friendly footprint
- 400 W RMS continuous power handling
- 2 Ω nominal impedance for amplifier efficiency
- Sealed-box accuracy and transient response
- Steel-mesh grille protection
- Pre-wired and ready to install
Amplifier Matching (Sold Separately)
- JL Audio RD500/1 — 500 W @ 2 Ω (set gain for a clean ~400 W target)
- JL Audio JD500/1 — 500 W @ 2 Ω (compact, efficient, gain-limited)
- JL Audio HD750/1 — premium high-current option (run gain-limited for headroom and control)
Technical Specifications
| Model | CS110TG-TW3 |
| Garmin PN | 010-03164-00 |
| JL Legacy PN | 93237 |
| UPC | 699440932372 |
| Subwoofer Size | 10" (250 mm) |
| Driver | 10TW3 shallow-mount |
| Continuous Power (RMS) | 400 W |
| Nominal Impedance | 2 Ω |
| Enclosure Type | Sealed |
| Construction | MDF, carpet, steel-mesh grille |
| Approx. Dimensions (W×H×D) | ~20.0" × 13.25" × 6.0" |
| Approx. Weight | ~23.2 lb (10.5 kg) |
| Warranty | 2 Years |
Ideal Applications
- Truck and compact vehicle installs with restricted depth
- Systems emphasizing sealed-box articulation and musical accuracy
- DSP-managed bass systems requiring clean transient response
- Pairing with JL Audio mono amplifiers
What’s Included
- JL Audio CS110TG-TW3 sealed enclosure system
- Steel-mesh protective grille
- Documentation / warranty
Why Buy From MCOR Automotive
- Authorized JL Audio dealer with real-world truck install experience
- Support for amplifier matching and system tuning
- Guidance on placement, gain structure, and crossover setup
Fitment & Installation Help
Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
Authorized Retailer & Warranty
MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
