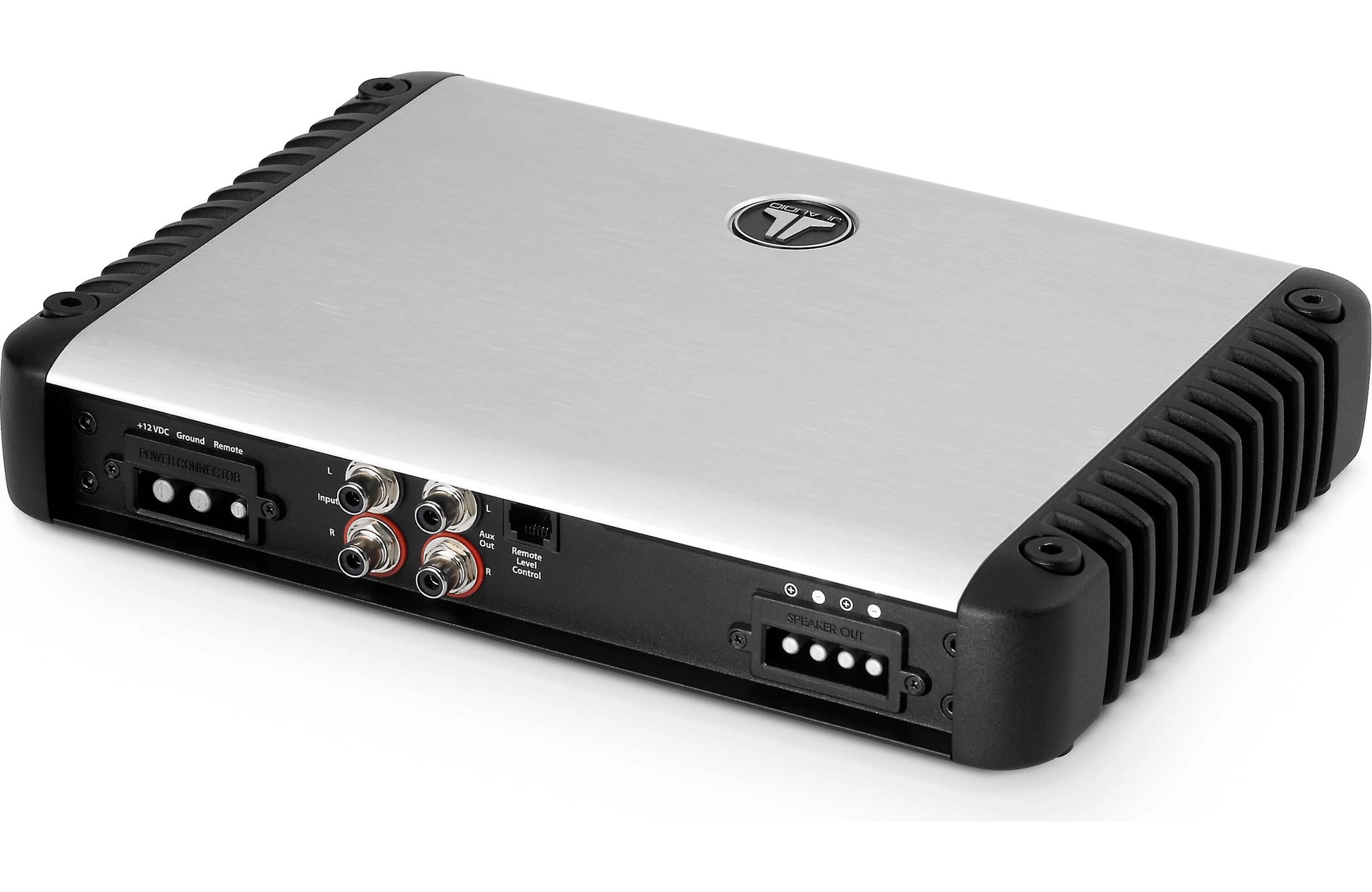

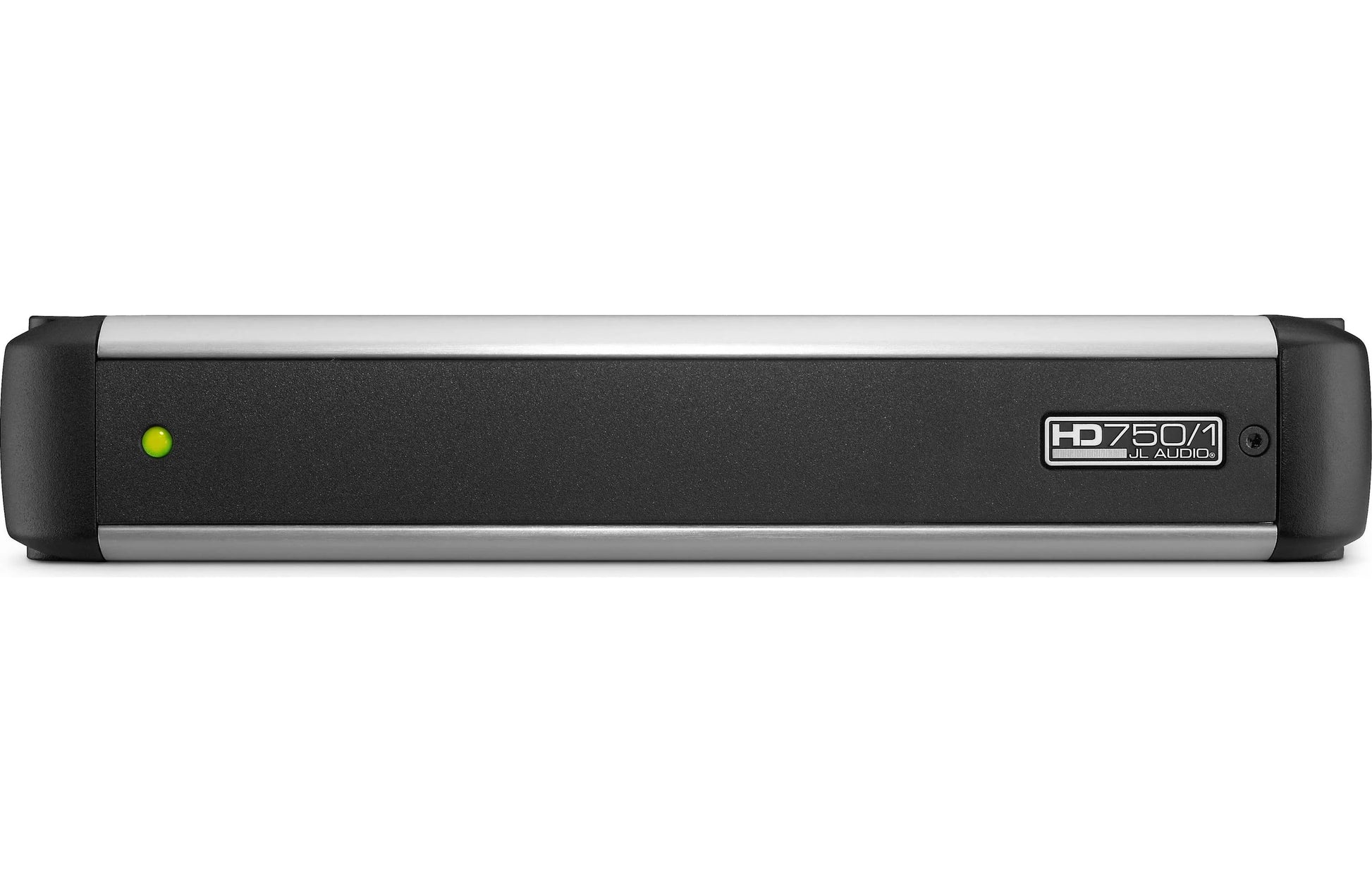

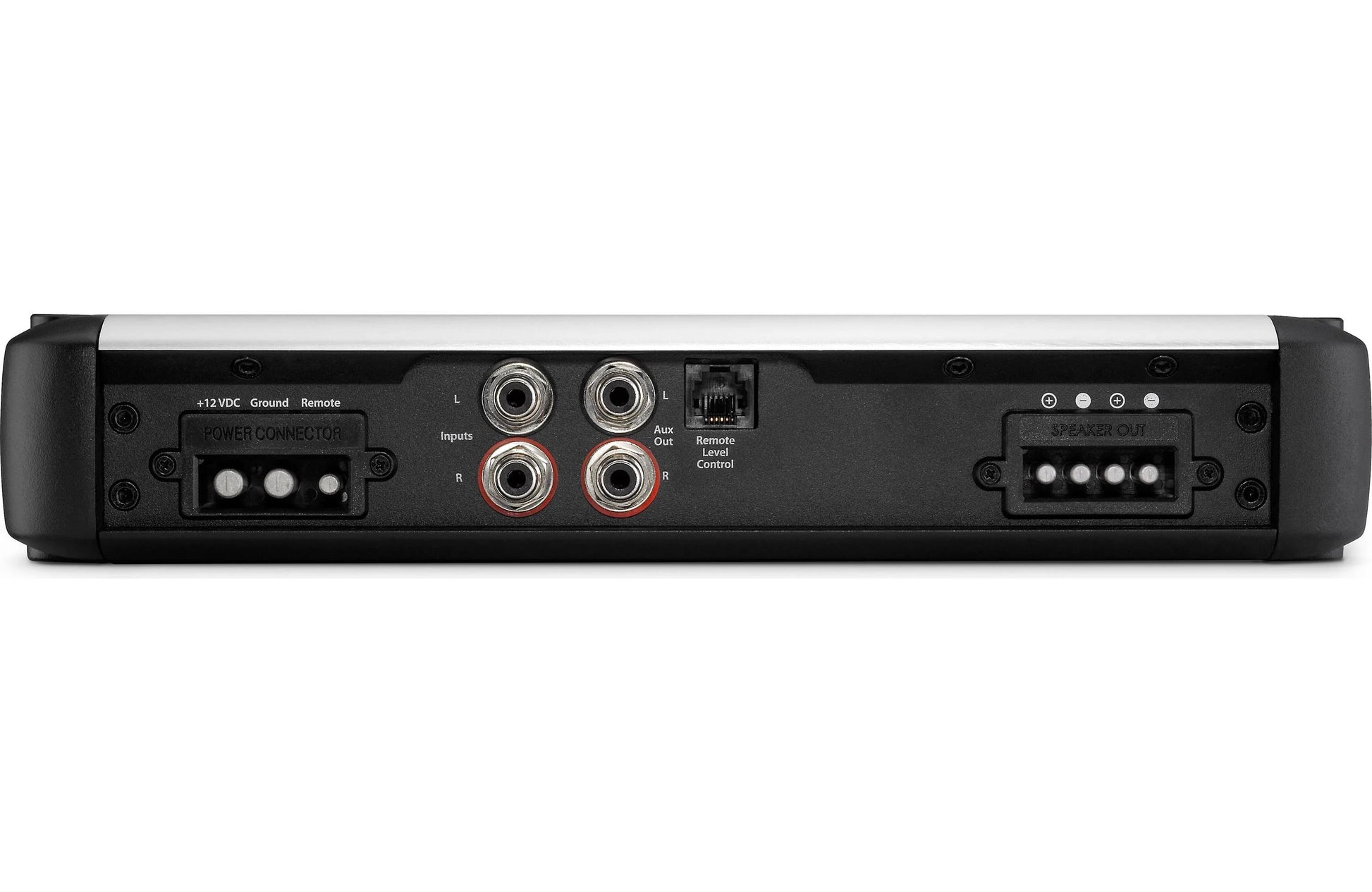

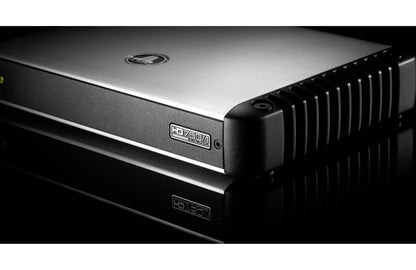

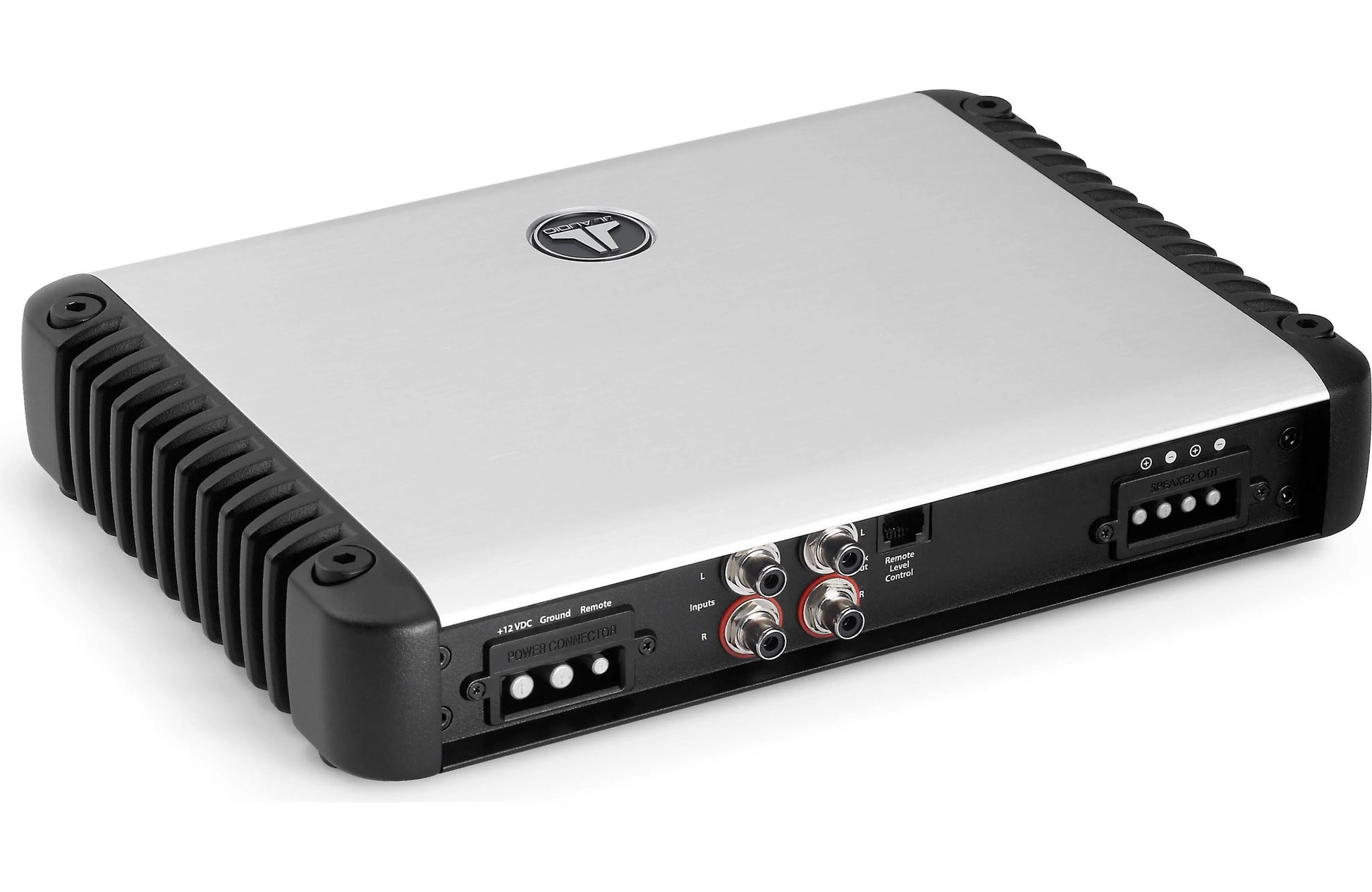

JL Audio HD750/1 Monoblock Class D Wide-Range Amplifier, 750W 98220

This ultra-compact monoblock amplifier employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 750 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

While targeted primarily to subwoofer applications, the HD750/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.

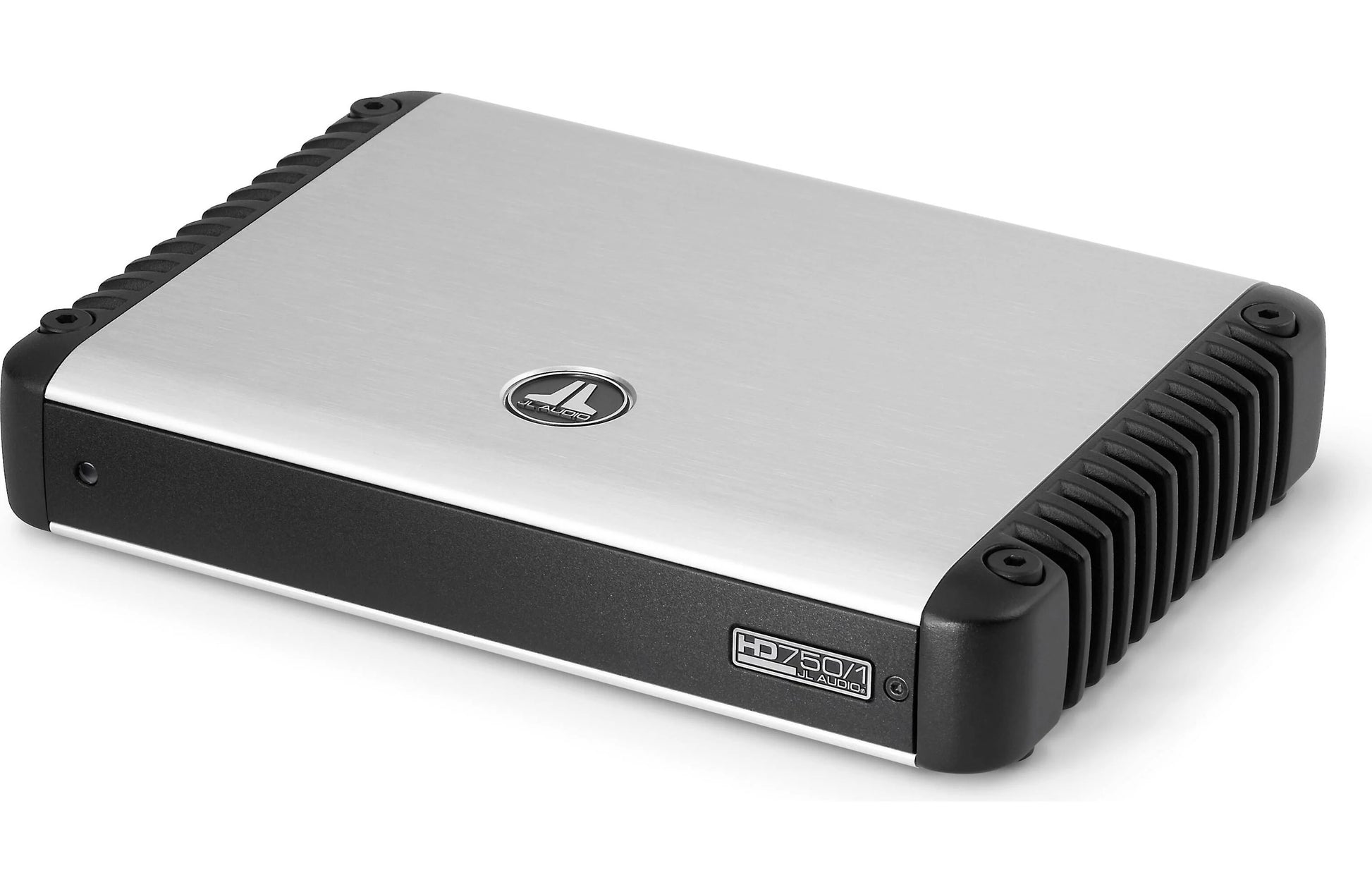

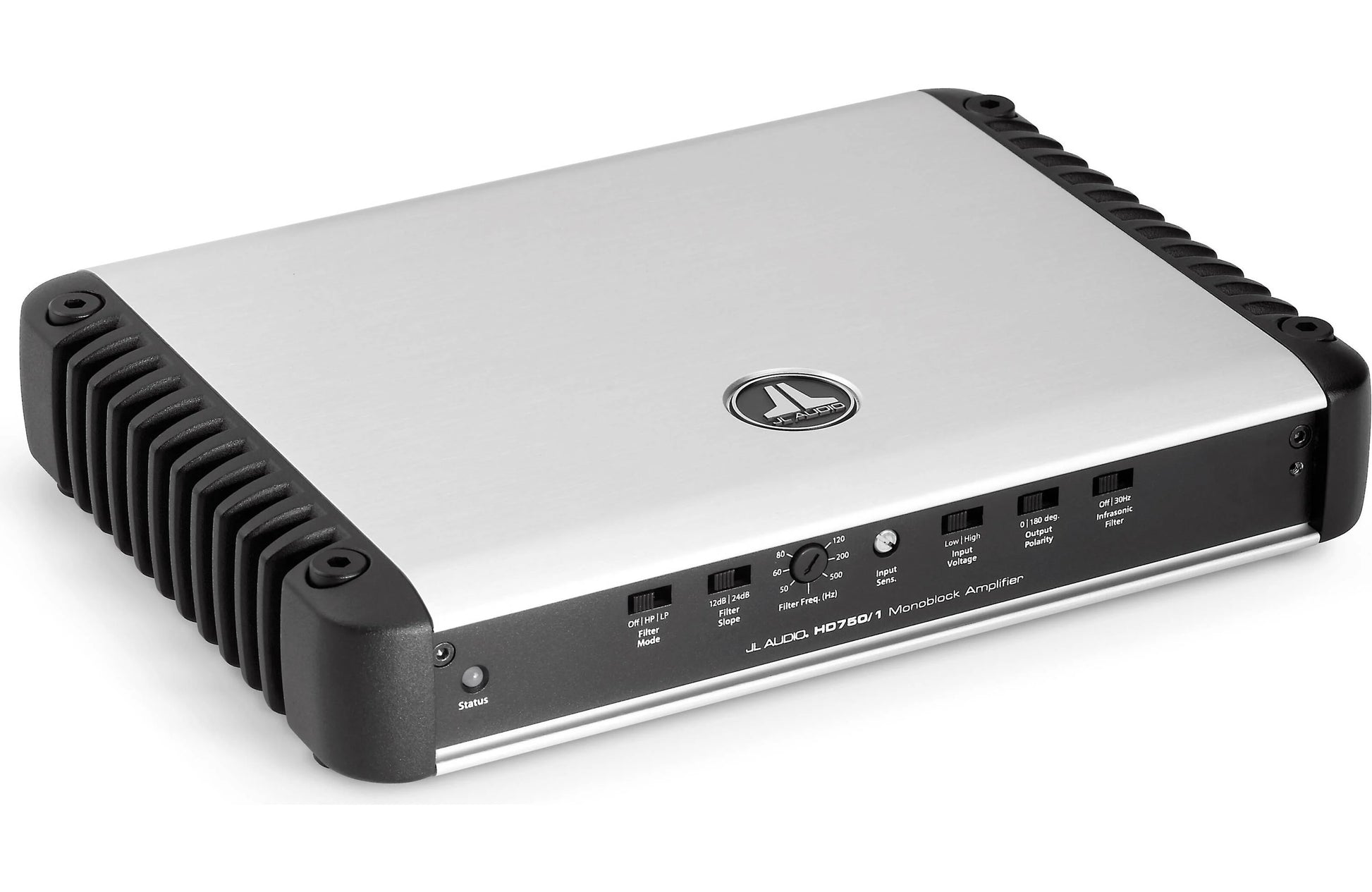

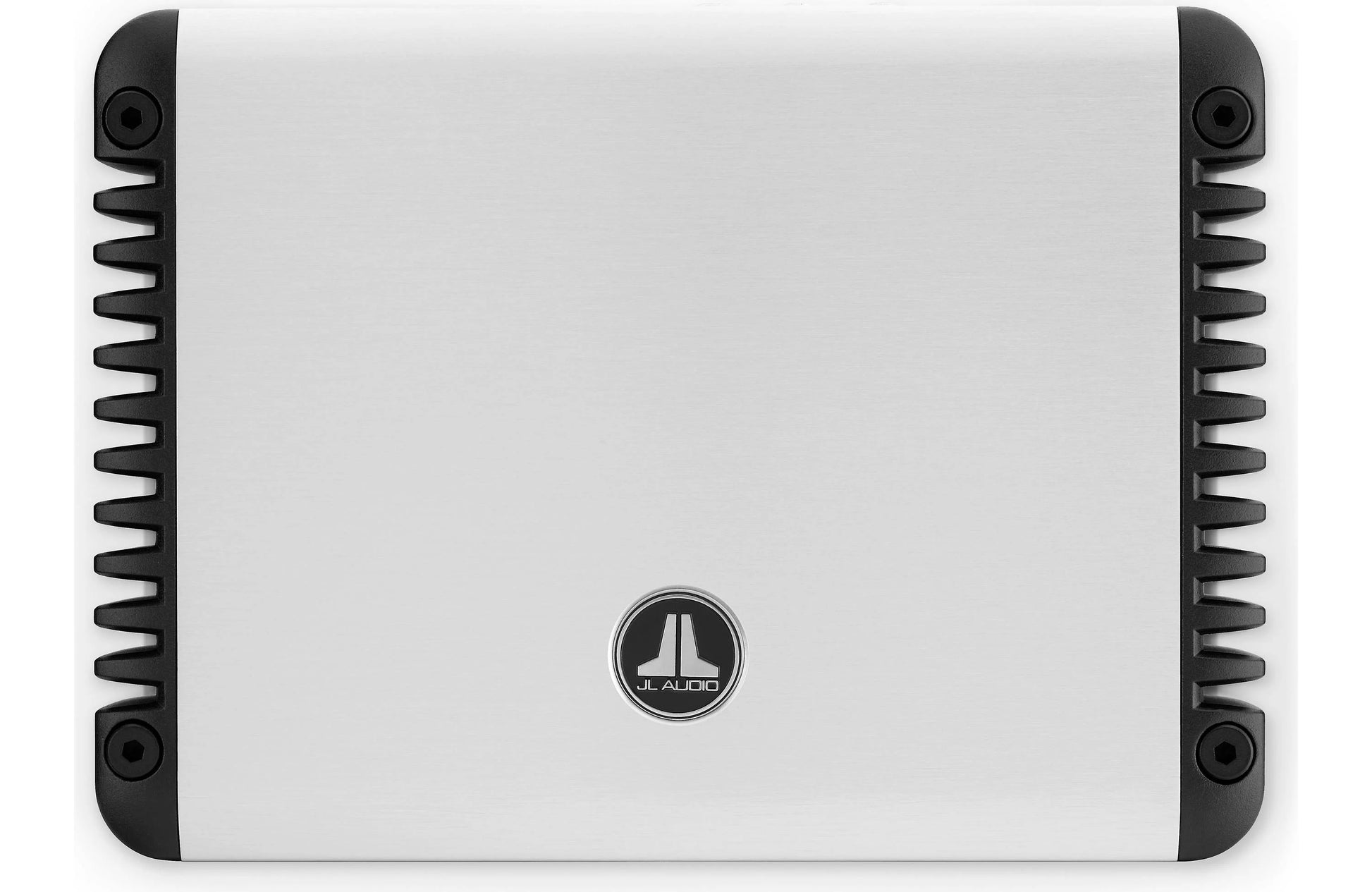

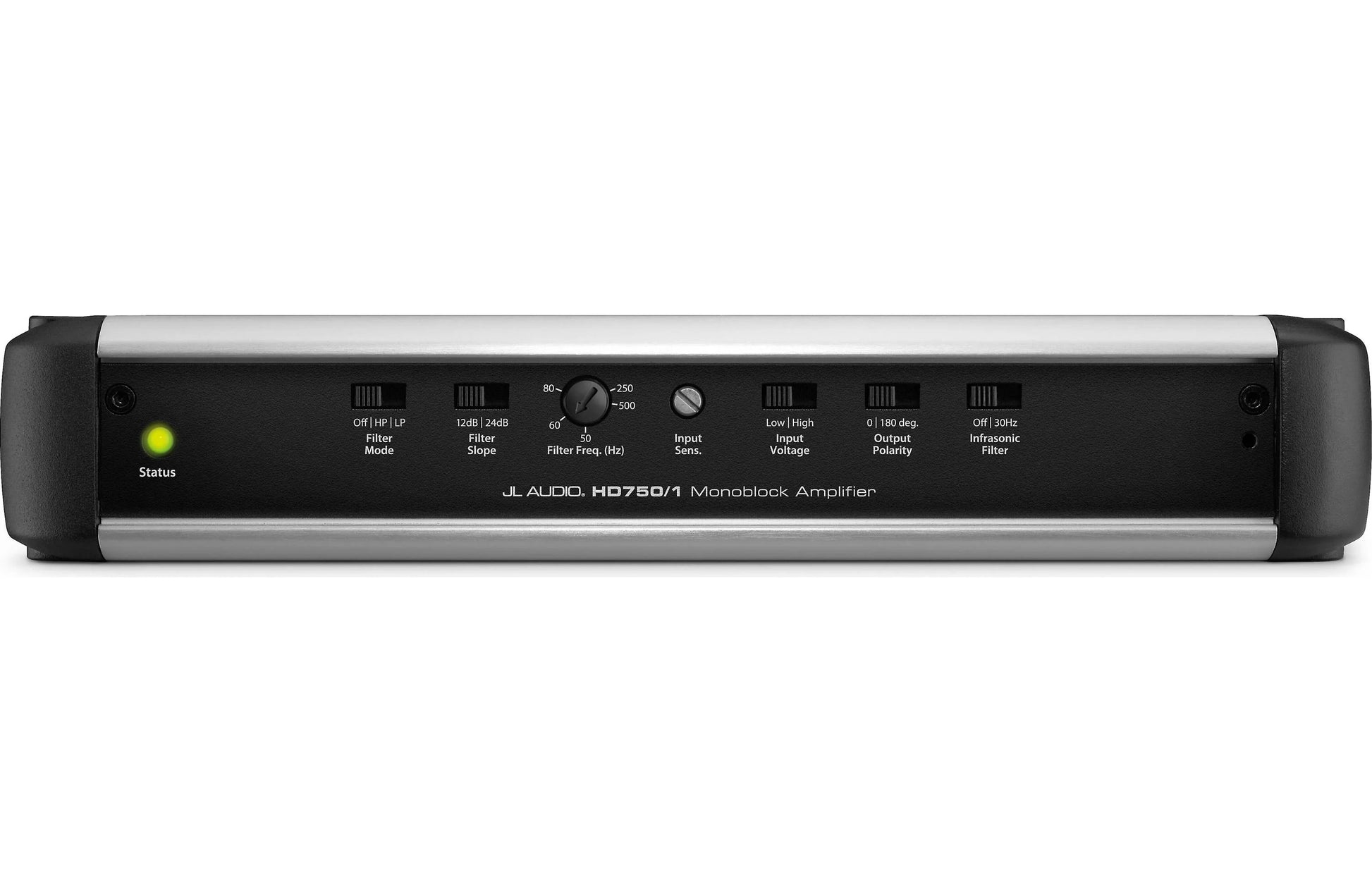

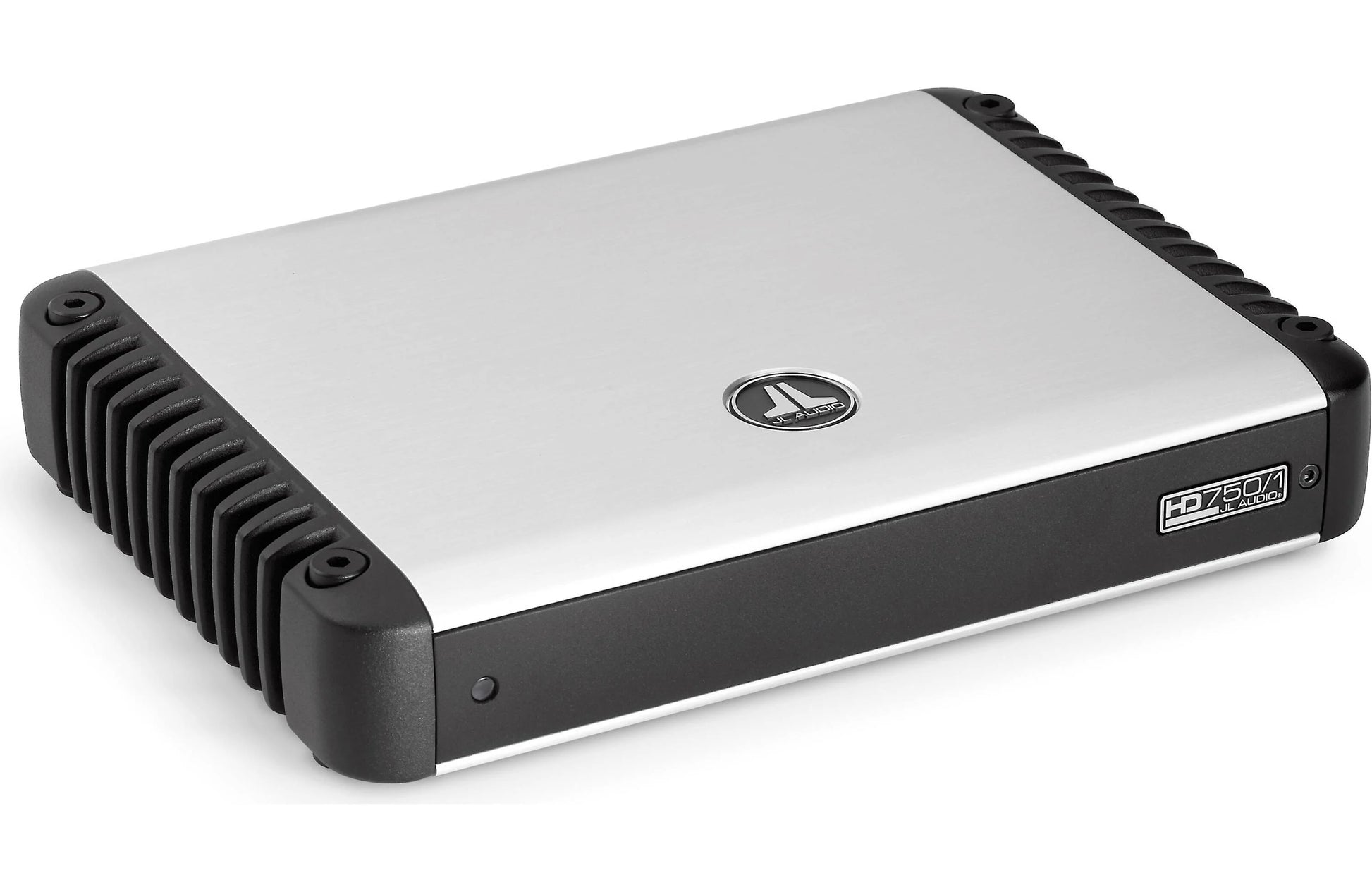

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

@ 4 Ω	750 W RMS x 1
@ 3 Ω	750 W RMS x 1
@ 2 Ω	750 W RMS x 1
@ 1.5 Ω	750 W RMS x 1



General Specifications

Frequency Response	6 Hz - 8 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power	>110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels)	>88 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω	>500 / 50 Hz
Damping Factor @ 2 Ω	>250 / 50 Hz
THD+N @ Rated Power (Main Channels)	<0.03% @ 4 Ω
Input Voltage Range @ RCA Inputs	Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge	4 AWG wire
Fuse Rating	60 A (AFS, AGU or MaxiFuse™)



Physical Specifications

Height (H)	1.93 in / 49 mm
Width (W)	10.74 in / 273 mm
Depth (D)	7.85 in / 199 mm
Net Weight	6.6 lb / 2.99 kg
