JL Audio
JL Audio CS110LG-TW3 PowerWedge 10" Enclosed Subwoofer 400W RMS 2Ω 010-03058-00 (93238)
JL Audio CS110LG-TW3 PowerWedge 10" Enclosed Subwoofer 400W RMS 2Ω 010-03058-00 (93238)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

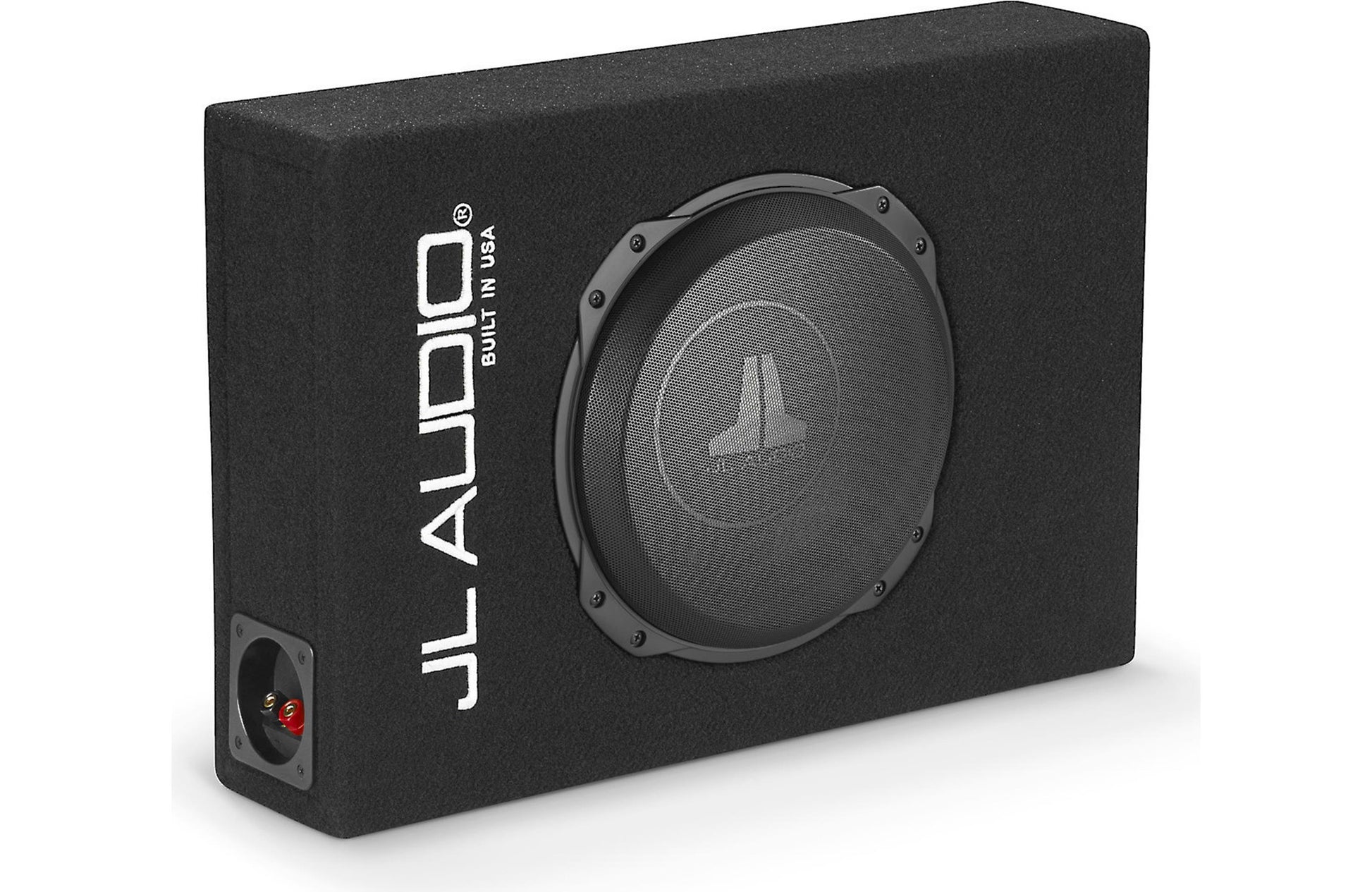

JL Audio CS110LG-TW3 PowerWedge 10" Enclosed Subwoofer is a compact sealed subwoofer system featuring JL Audio’s shallow-mount 10TW3 driver for tight, musical bass response in space-restricted installs. The TW3 platform combines long-excursion motor design with a concentric tube architecture to achieve strong low-frequency output while maintaining significantly reduced mounting depth.
Rated at 400 W RMS continuous and wired to a nominal 2 Ω impedance, the CS110LG-TW3 pairs efficiently with modern mono amplifiers and DSP-managed bass systems. The sealed enclosure maximizes transient accuracy for hi-fi playback and blends well with front-stage component speakers. Wrapped in dark automotive carpet with recessed steel-mesh grille protection, the system ships pre-wired and ready to connect.
Key Features
- Sealed PowerWedge™ enclosure with shallow 10TW3 driver
- 400 W RMS continuous power handling
- 2 Ω nominal impedance for efficient amplifier loading
- Sealed-box architecture for articulate, accurate bass
- Low-profile shallow-mount subwoofer platform
- Steel-mesh grille for driver protection
- Pre-wired and ready to install
Amplifier Matching (Sold Separately)
- JL Audio RD500/1 — 500 W @ 2 Ω (set gain for a clean ~400 W target)
- JL Audio JD500/1 — 500 W @ 2 Ω (compact, efficient, gain-limited)
- JL Audio HD750/1 — premium high-current option (run gain-limited for headroom and control)
Technical Specifications
| Model | CS110LG-TW3 |
| Garmin PN | 010-03058-00 |
| JL Legacy PN | 93238 |
| UPC | 699440932388 |
| Subwoofer Size | 10" (250 mm) |
| Driver | 10TW3 shallow-mount |
| Continuous Power (RMS) | 400 W |
| Nominal Impedance | 2 Ω |
| Enclosure Type | Sealed |
| Construction | MDF, carpet, steel-mesh grille |
| Approx. Dimensions (W×H×D) | ~19.75" × 13.25" × 5.25" |
| Approx. Weight | ~22.2 lb (10.1 kg) |
| Warranty | 2 Years |
Ideal Applications
- Truck and compact vehicle systems with limited cargo depth
- High-fidelity builds requiring sealed transient accuracy
- DSP-managed bass systems adjusting crossover and alignment
- Pairing with JL Audio mono amplifiers
What’s Included
- JL Audio CS110LG-TW3 sealed enclosure system
- Steel-mesh grille (installed)
- Documentation / warranty
Why Buy From MCOR Automotive
- Authorized JL Audio dealer with sub system tuning experience
- Support pairing subs and amplifiers for real-world installs
- Guidance on placement, gain structure, and crossover strategy
Fitment & Installation Help
Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
Authorized Retailer & Warranty
MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
