JL Audio HO110-W6v3 10" H.O. Wedge™ Enclosed Subwoofer 600W RMS 2Ω 010-03243-00 (93310)
JL Audio HO110-W6v3 10" H.O. Wedge™ Enclosed Subwoofer 600W RMS 2Ω 010-03243-00 (93310)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

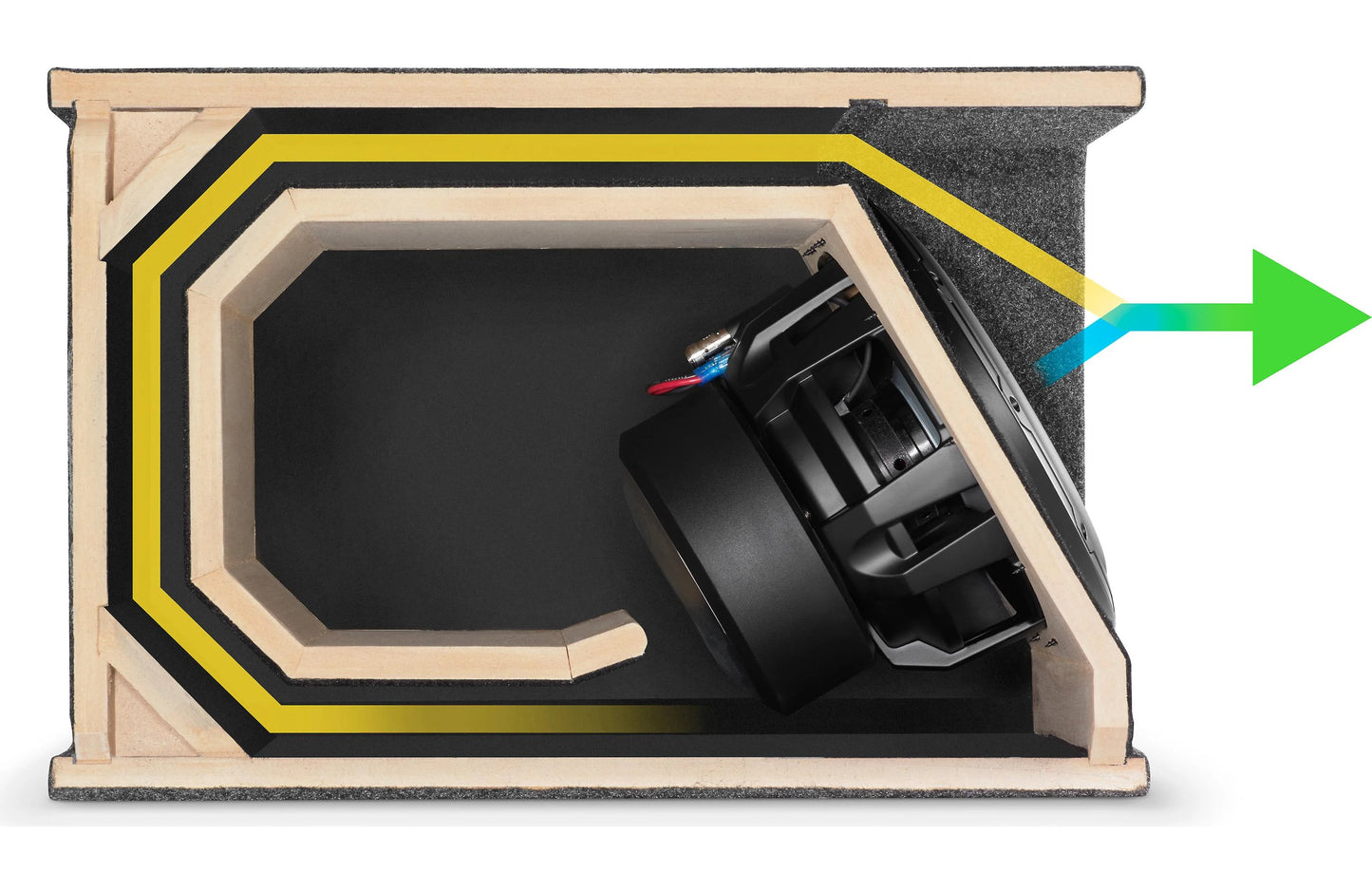

JL Audio HO110-W6v3 10" H.O. Wedge™ Enclosed Subwoofer is a high-output, factory-loaded subwoofer system engineered around a single 10W6v3 driver and JL Audio’s patented chamber-coupled, slot-ported H.O. Wedge™ enclosure. Designed to deliver deep, authoritative bass from a compact footprint, this system balances output, efficiency, and control for demanding enthusiast and OEM-plus builds.

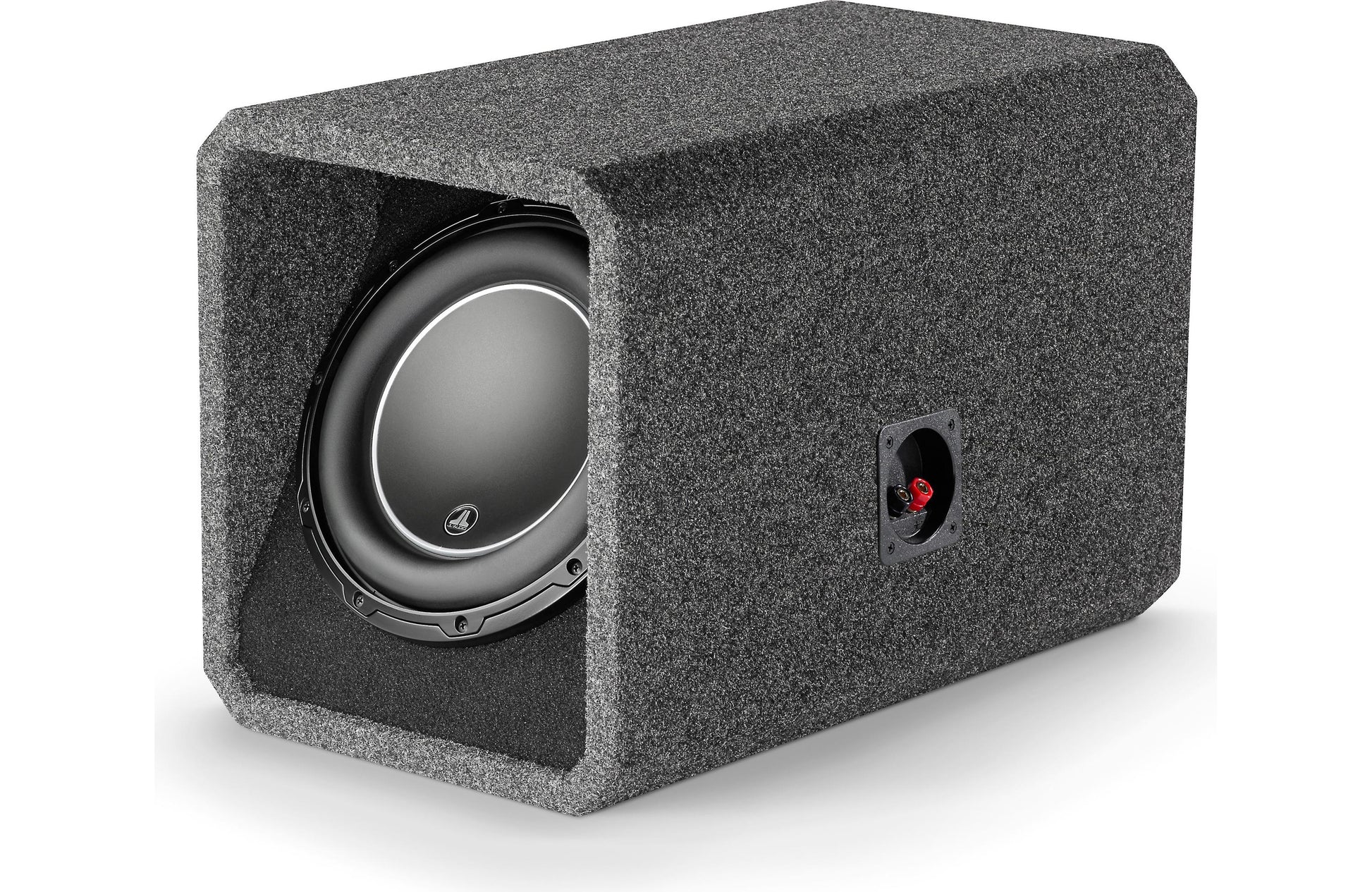

Rated for 600 W RMS continuous power handling and wired for a 2 Ω nominal load, the HO110-W6v3 pairs perfectly with modern high-current mono amplifiers. The rear-firing port and optimized wedge geometry maximize low-frequency extension while keeping enclosure size manageable. Finished in dark gray automotive-grade carpet with a black baffle insert, the enclosure is shipped fully assembled, wired, and ready to integrate.
Key Features
- High-output 10" H.O. Wedge™ enclosed subwoofer system
- Single JL Audio 10W6v3 long-excursion subwoofer factory-loaded
- 600 W RMS continuous power handling
- 2 Ω system nominal impedance
- Chamber-coupled, slot-ported enclosure for strong low-bass authority
- Rear-firing port with compact wedge footprint
- Carpeted MDF construction with recessed driver mounting
Amplifier Matching (Sold Separately)
For best performance and reliability, pair with a quality mono amplifier capable of clean output at 2 Ω:
- JL Audio RD500/1 — solid daily-driver match with controlled output
- JL Audio JD1000/1 — increased headroom, run gain-limited
- JL Audio HD750/1 — premium high-current option, ideal for maximum control and authority (gain-limited)
Technical Specifications
| Model | HO110-W6v3 |
| Garmin PN | 010-03243-00 |
| JL Legacy PN | 93310 |
| UPC | 699440933100 |
| Subwoofer Size | 10" (250 mm) |
| Driver | 10W6v3 long-excursion subwoofer |
| Continuous Power (RMS) | 600 W |
| Recommended Amplifier Power | 200–600 W RMS |
| System Nominal Impedance | 2 Ω |
| Enclosure Type | Chamber-coupled slot-ported, rear-firing |
| Finish | Dark gray automotive carpet with black baffle |
| Grille | Not included (optional SGR-10W6v2/v3 available) |
| Approx. Dimensions (W × H × D) | Approx. 12.13" × 14" × 21.75" |
| Approx. Weight | Approx. 47.8 lb (21.7 kg) |
| Warranty | 2 Years |
Ideal Applications
- Cars and trucks needing compact, high-output bass
- Systems with limited trunk or cargo space
- Enthusiast builds using high-current mono amplifiers
- Users wanting premium low-frequency impact without oversized enclosures
What’s Included
- JL Audio HO110-W6v3 enclosed subwoofer system
- Pre-wired internal connections and binding posts
- Documentation / warranty information
Why Buy From MCOR Automotive
- Authorized JL Audio dealer with performance subwoofer expertise
- Support for amplifier selection, wiring, and enclosure placement
- Guidance on gain structure, crossover setup, and system integration
Fitment & Installation Help
Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
Authorized Retailer & Warranty
MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
