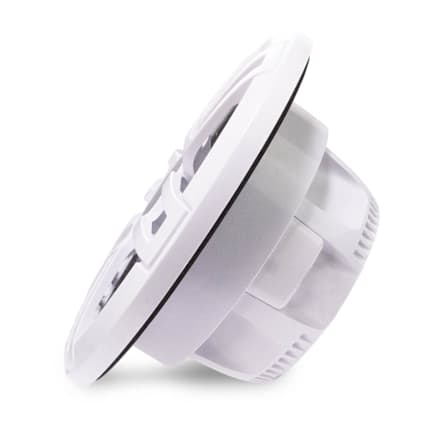

Fusion XS Series Marine Speakers, 7.7" 240-Watt Peak Sports Marine Speakers (Pair) with RGB LED Lighting — 010-02197-20

Fusion XS Series Marine Speakers, 7.7" 240-Watt Peak Sports Marine Speakers (Pair) with RGB LED Lighting — 010-02197-20

$249.99 USD
$249.99 USD
Sale Sold out
Shipping calculated at checkout.
Before you order

Buy with the right details confirmed

Review the application and system requirements

Confirm the size, power, connections, and included or separately required parts described on this page.

Fusion XS Series Marine Speakers, 7.7" 240-Watt Peak Sports Marine Speakers (Pair) with RGB LED Lighting — Tailor the look of your boat with the included interchangeable grille colors, while adding a 7.7-inch XS Series speaker pair for full-range music. Match the continuous power rating and mounting dimensions below to your system.

Why choose this model

  • Interchangeable grille colors included in the selected classic or sports style
  • IP65 marine protection
  • 4-ohm nominal impedance
  • Three-year manufacturer warranty
  • RGB LED lighting; an appropriate lighting controller and fused supply are separate.

Specifications and product identity

Manufacturer part number 010-02197-20
UPC 753759221478
Item condition New
Warranty 3 years
Water And Dust Rating IP65
Continuous Power Handling (Rms) 7.7": 60 W
Sensitivity (Spl @ 1 W/1 M) 7.7": 92 dB
Frequency Response (+/- 3 Db) 7.7": 70 Hz-18 khz
Nominal Impedance 4 Ω
Mounting Diameter Clearance 7.7": 6.38" (162 mm)
Mounting Depth Clearance 7.7": 3.03" (77 mm)

Compatibility and installation planning

  • Match amplifier output, impedance and crossover settings to the continuous (RMS) rating. Peak power is not the continuous amplifier-sizing target.
  • A nominal speaker size does not guarantee drop-in fit. Check the cutout, mounting depth and clearance behind the installation surface.

What’s included

  • One pair of speakers
  • Manufacturer documentation
  • Sports gray and white grilles
  • Mounting screws

Related products and system add-ons

Sold separately. Check the compatibility notes above and each linked product before adding accessories.

Build the right system with MCOR

Need help matching the receiver, speakers, amplifier or installation accessories? Contact MCOR with your existing equipment model numbers and installation details before ordering.
