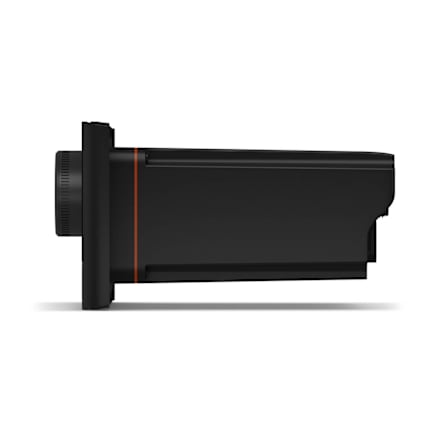

Fusion MS-RA210 2-zone DSP marine stereo — 010-02250-00
Fusion MS-RA210 2-zone DSP marine stereo — 010-02250-00
Regular price
$399.99 USD
Regular price
Sale price
$399.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Before you order
Buy with the right details confirmed
✓
Review the application and system requirements
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Fusion MS-RA210 2-zone DSP marine stereo — The RA210 balances a compact helm footprint with a color display, two-zone control and Fusion DSP for a focused marine system.
Why choose this model
- 2.7-inch optically bonded color LCD
- Two audio zones and four amplified speaker channels
- Fusion DSP configured through the Garmin Audio app
- Bluetooth, USB and AUX playback
- NMEA 2000 integration and NRX wired-remote support
- SiriusXM-ready; compatible tuner and subscription sold separately
Specifications and product identity
| Manufacturer part number | 010-02250-00 |
|---|---|
| UPC | 753759240363 |
| Item condition | New |
| Dimension | 6.18" x 2.68" x 4.99" (156 x 68 x 126.6 mm) |
| Water Rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Display | 2.7" optically bonded color LCD |
| Current (Max) | 15 A |
| Power Input | 10.8 - 16 VDC |
| Rated Power Output (4 Ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Auxiliary Inputs (Rca) | 1 |
| Usb 2.0 Ports | 1 |
| Speaker Connections | 4 (2 zone amplified) |
| Rca Pre-Out (Left, Right And Subwoofer) | 2 zones (requires external amplification) |
| Line Out | 2 (L + R per zone, requires external amplification) |
| Subwoofer Out | 2 (1 mono output per zone, requires external amplification) |
Compatibility and installation planning
- Confirm mounting cutout, rear clearance, system voltage and network requirements before ordering. Water ratings depend on correct installation.
- Speakers, external amplifiers, antennas and optional network equipment are separate unless explicitly listed below.
What’s included
- Fusion MS-RA210 marine stereo
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- Documentation
- One 2-meter (6-ft) NMEA 2000 drop cable
Related products and system add-ons
Sold separately. Check the compatibility notes above and each linked product before adding accessories.
- Fusion XS Series Marine Speakers, 6.5" 200-Watt Peak Classic Marine Speakers (Pair)
- Fusion Marine Speaker Cables, 16 AWG (1.3 sq mm), 25 ft (7.62 m) Cable
- Fusion Stealth Antenna
- Explore the Fusion marine audio collection
Build the right system with MCOR
Need help matching the receiver, speakers, amplifier or installation accessories? Contact MCOR with your existing equipment model numbers and installation details before ordering.
