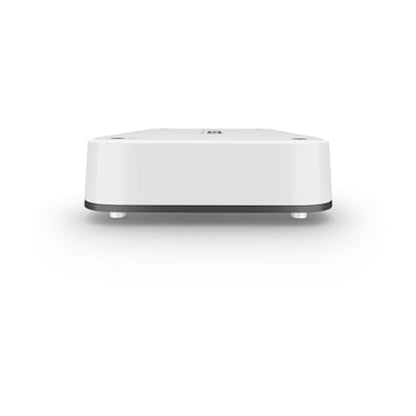

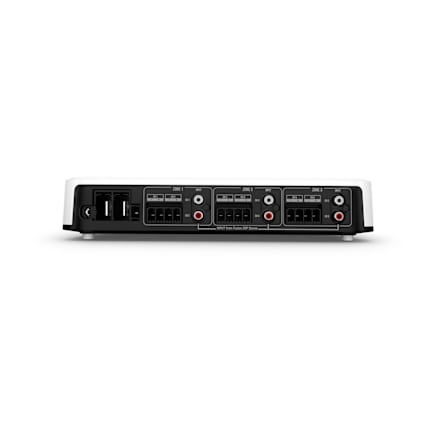

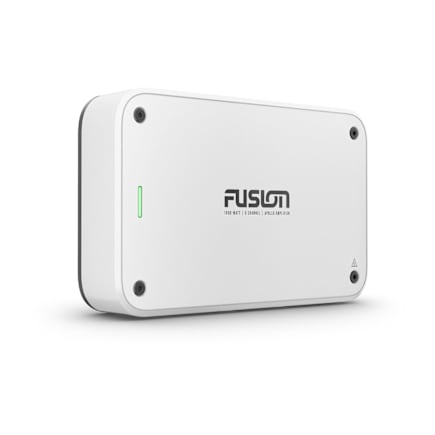

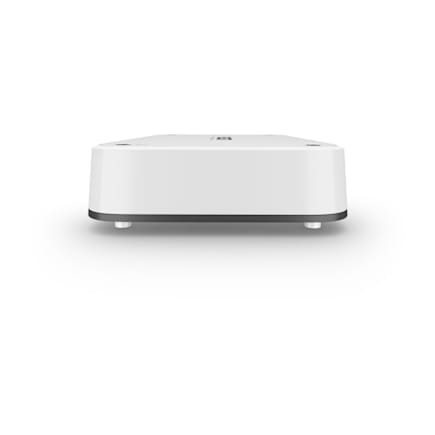

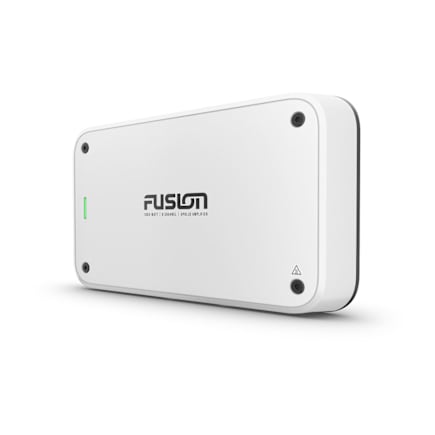

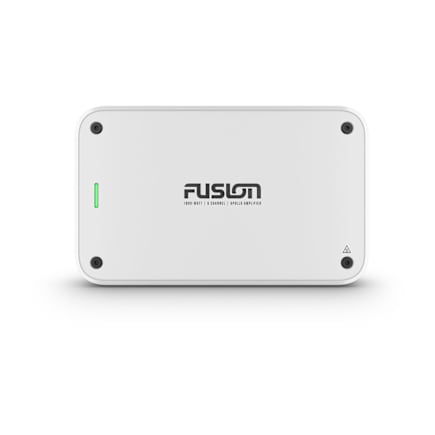

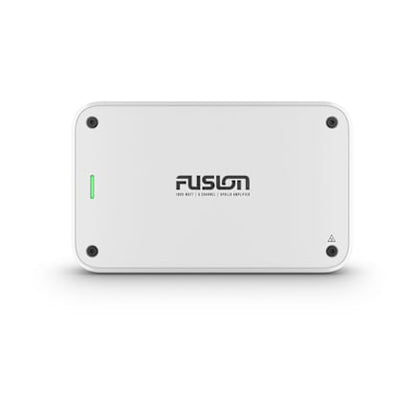

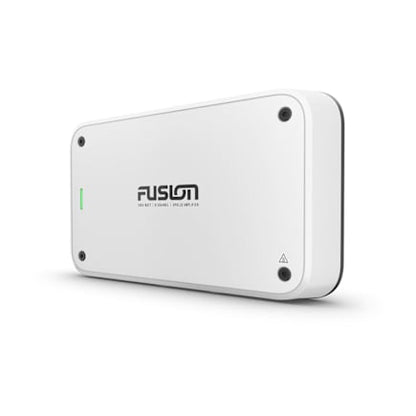

Fusion Apollo 6-Channel Marine Amplifier — 010-02284-65
Fusion Apollo 6-Channel Marine Amplifier — 010-02284-65
Regular price
$899.99 USD
Regular price
Sale price
$899.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Before you order
Buy with the right details confirmed
✓
Review the application and system requirements
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Fusion Apollo 6-Channel Marine Amplifier — Add dedicated amplification to a compatible Fusion DSP system, with app-based setup and clear channel planning for your speakers or subwoofer.
Why choose this model
- Designed exclusively for Fusion DSP-enabled stereos
- Easy Tune configuration using the Garmin Audio app on a compatible smartphone
- Included mounting bracket
- Status LED provides operating/fault indication
- Marine-oriented construction with conformal-coated circuit board
Specifications and product identity
| Manufacturer part number | 010-02284-65 |
|---|---|
| UPC | 753759329624 |
| Item condition | New |
| Continuous power at 14.4 V, less than 1% THD | 150 W x 6 at 4 ohms; 290 W x 6 at 2 ohms |
| Amplifier design | Class D |
| Environmental rating | IPX2 — protected mounting required |
| Manufacturer warranty | 3 years |
| Bridged output at 4 ohms | 580 W x 3 |
Compatibility and installation planning
- Requires a compatible Fusion DSP-enabled stereo. Do not pair with a non-DSP RA60, RA70 or BB100 as if it were a universal amplifier.
- Power/ground wire, battery-side fuse protection, signal cables and speaker wire are separate. Size the complete circuit for the exact amplifier and cable run.
- The full-size Apollo installation instructions specify 4-AWG marine-grade, fully tinned copper power/ground cable for most installations. Longer runs can need heavier cable; confirm the current installation manual and fuse requirement for this SKU.
What’s included
- Apollo 6-Channel amplifier
- Mounting bracket
- Power/speaker connection hardware
- Mounting hardware and installation documentation
- 3 speaker connectors with high-power mode adapters
Related products and system add-ons
Sold separately. Check the compatibility notes above and each linked product before adding accessories.
- Fusion MS-RA210 2-zone DSP marine stereo
- Fusion Performance RCA Cables, 2 Channel, 6 ft Cable
- Fusion Marine Speaker Cables, 12 AWG (3.3 sq mm), 25 ft (7.62 m) Cable
- Kicker 47KMPK4 4-AWG marine amplifier power kit — suggested wiring starting point, not an automatic complete-match guarantee. Confirm cable length and fit the exact fuse required by the amplifier installation instructions; the kit’s supplied fuse may need to be changed.
- Explore the Fusion marine audio collection
Build the right system with MCOR
Need help matching the receiver, speakers, amplifier or installation accessories? Contact MCOR with your existing equipment model numbers and installation details before ordering.
