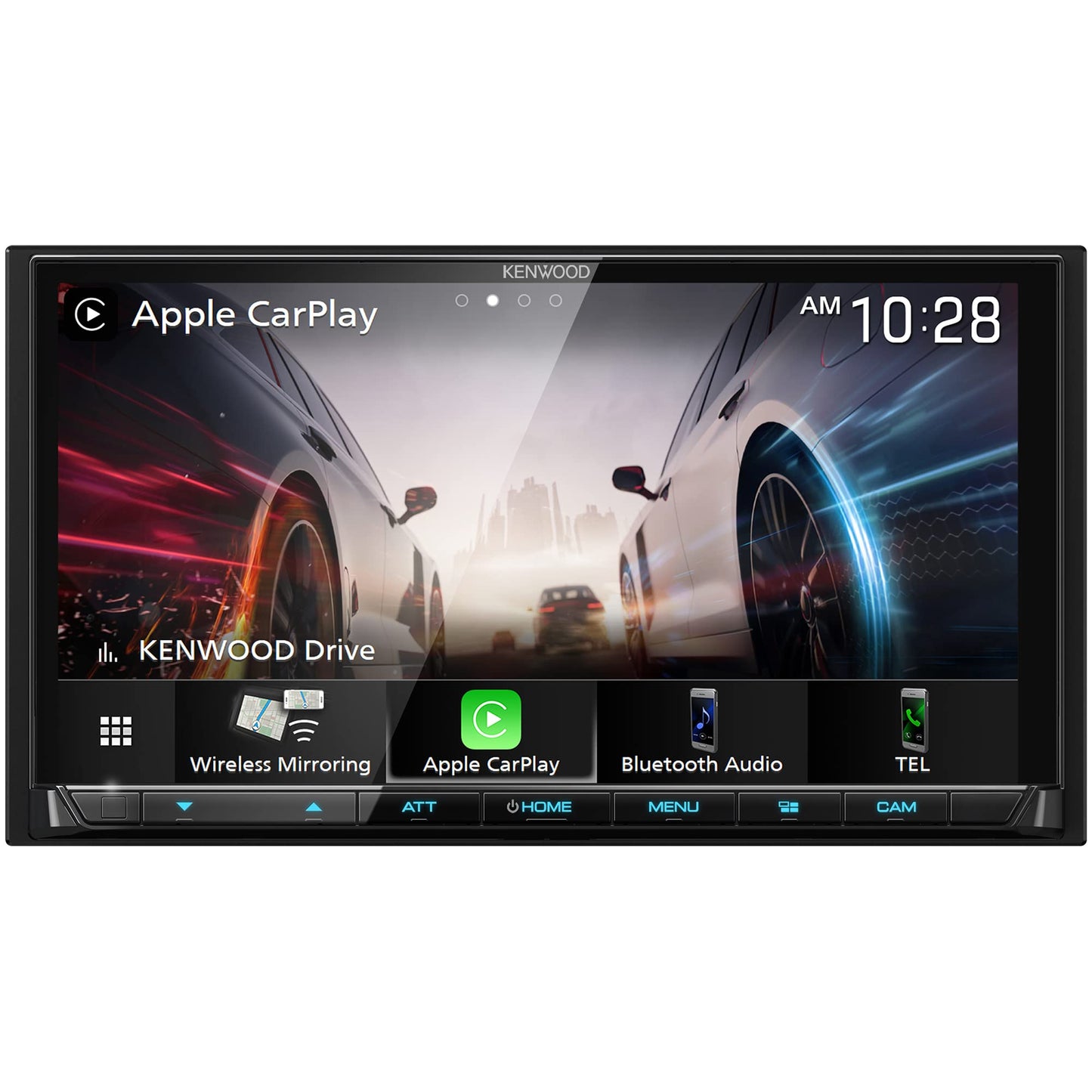

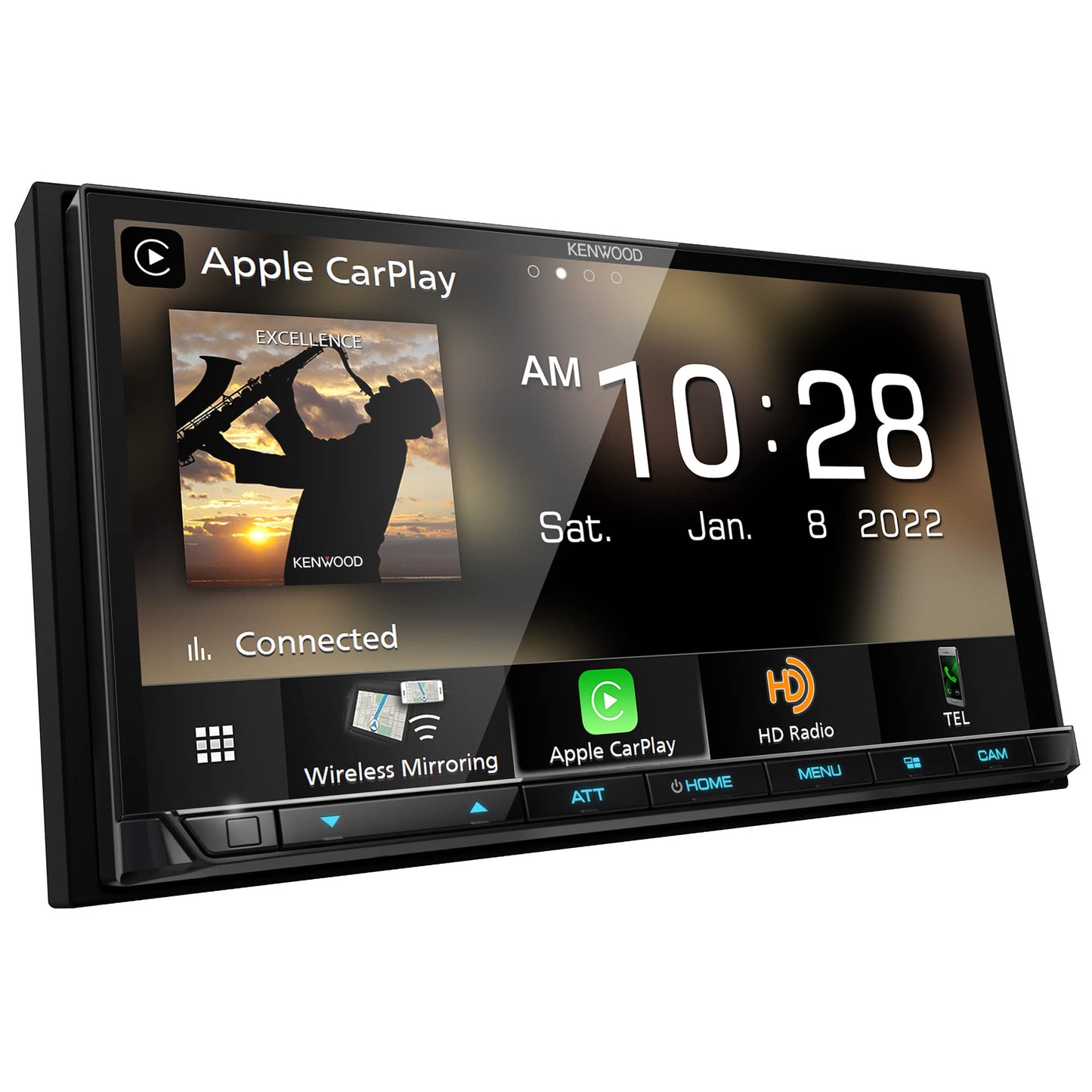

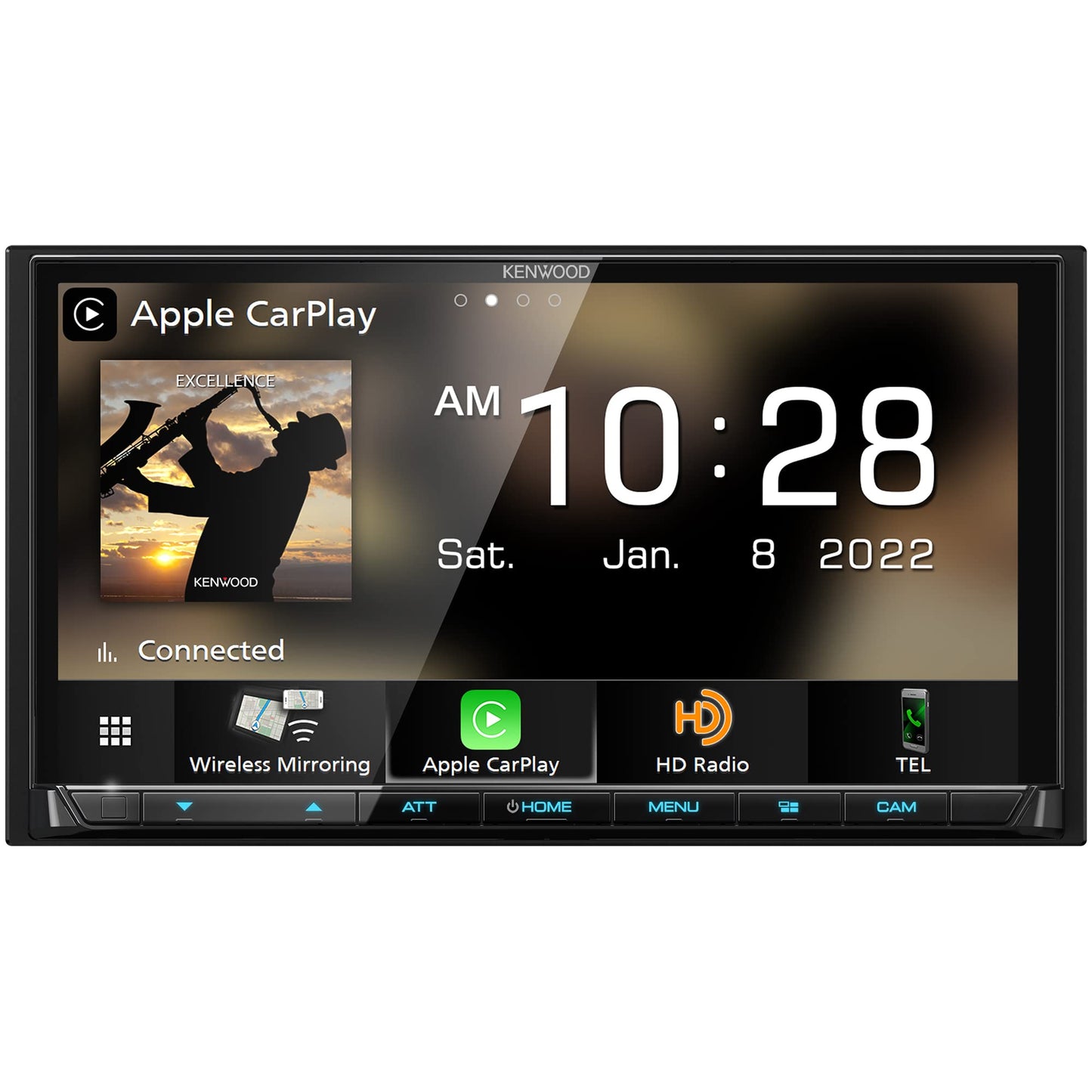

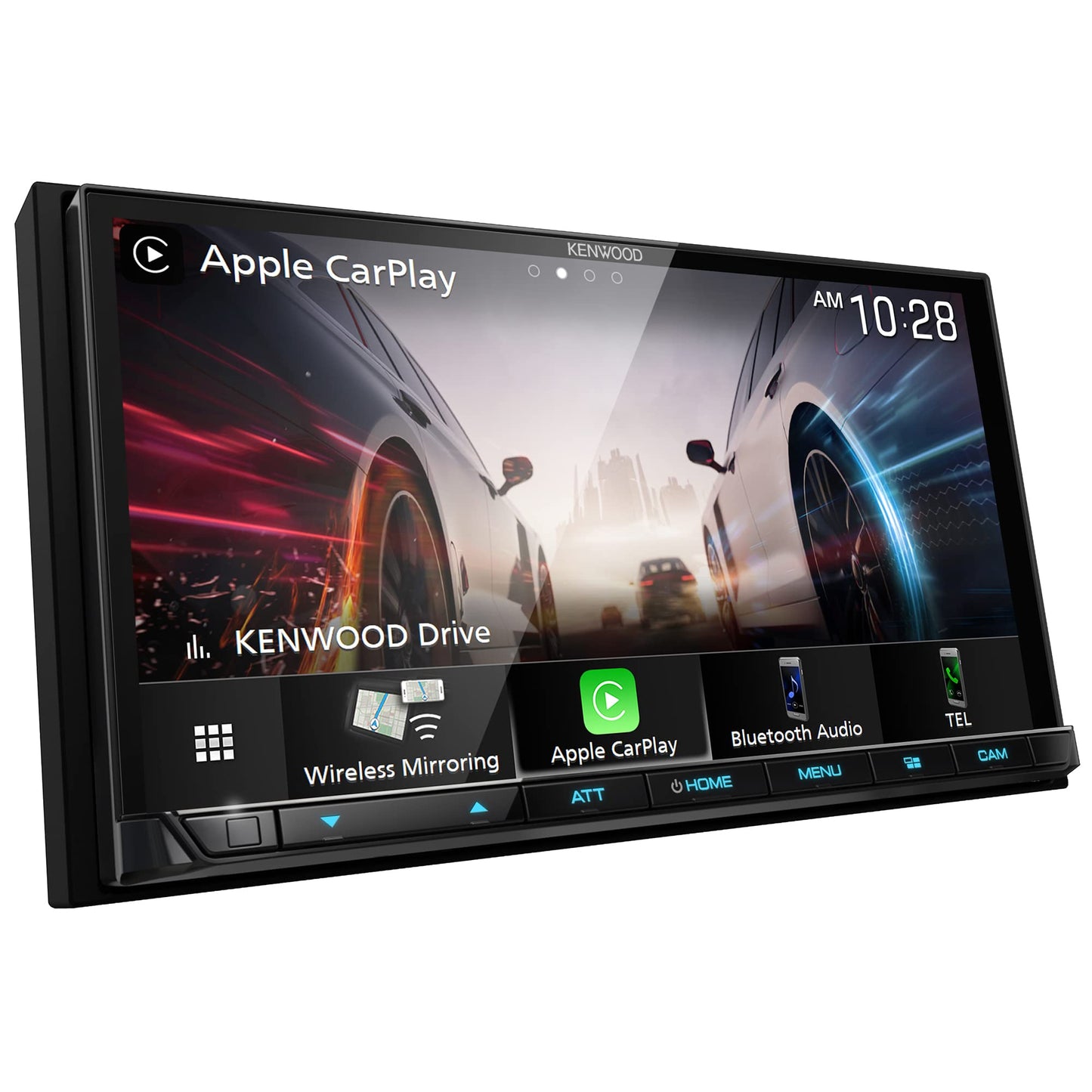

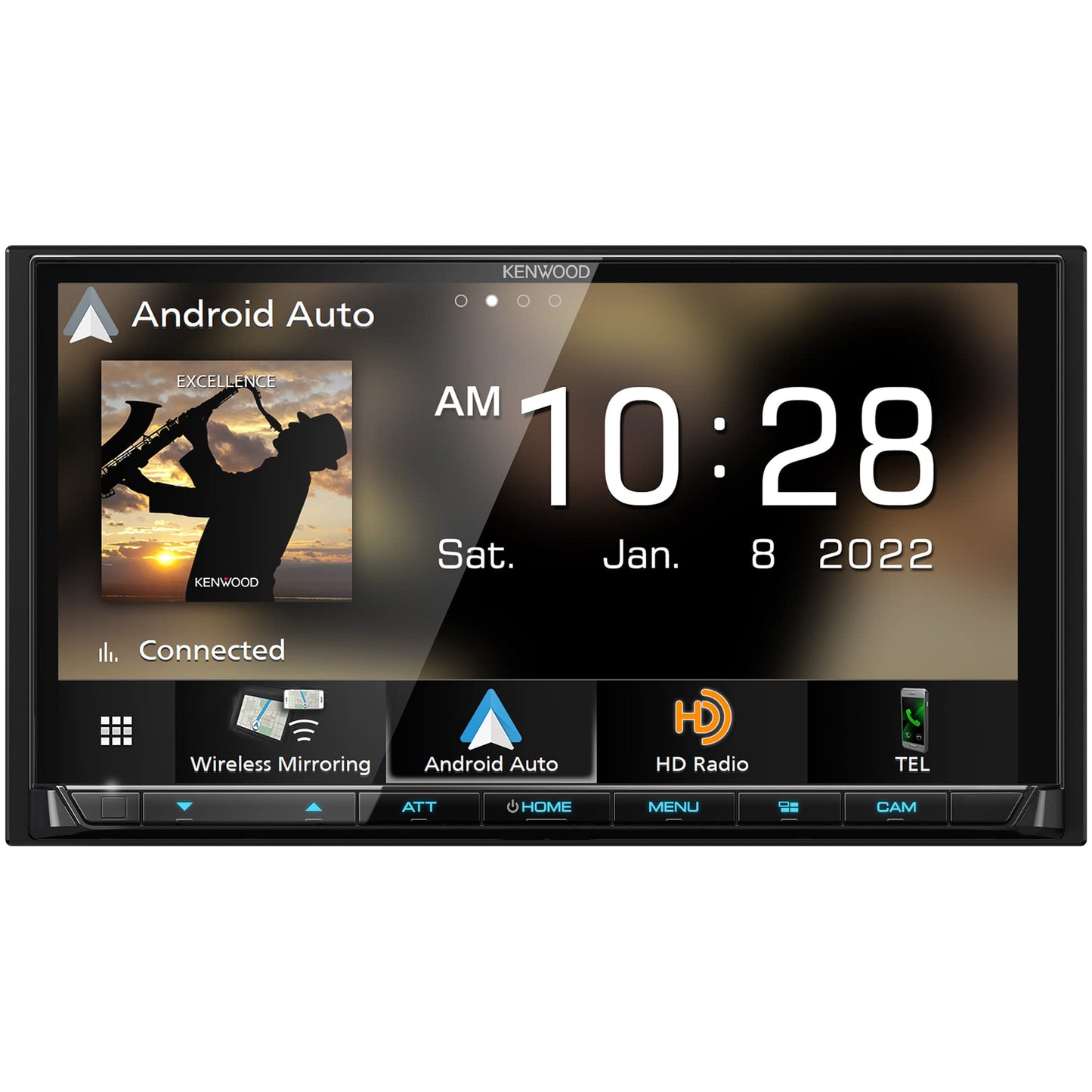

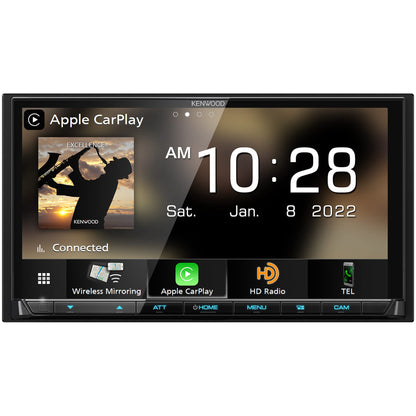

Kenwood eXcelon DMX908S 6.75″ Digital Multimedia Receiver with Wireless Apple CarPlay, Android Auto, HD Radio & 5V Preouts

The Kenwood eXcelon DMX908S is a high-performance digital multimedia receiver designed for enthusiasts who demand superior sound quality and seamless smartphone connectivity. Featuring a vibrant 6.95" capacitive touchscreen, this receiver provides a responsive and crystal-clear interface for managing your music, navigation, and vehicle settings without the clutter of a disc slot.

As part of the eXcelon series, the DMX908S is built with audiophile-grade components, including 5.0V preamp outputs to ensure a clean, powerful signal for aftermarket amplifiers. Its short-chassis design allows for flexible installation in vehicles with limited depth behind the dashboard.

Key Features

• 6.95" Capacitive touchscreen display
• Wireless and wired Apple CarPlay
• Wireless and wired Android Auto
• Built-in HD Radio tuner
• USB Type-C connectivity with 3.0A rapid charging
• High-Resolution Audio playback support
• 4 camera inputs for enhanced vehicle safety
• 3 pairs of 5.0V gold-plated preamp outputs

Connectivity & Integration

• Apple CarPlay: Wireless and wired connection via USB-C
• Android Auto: Wireless and wired connection via USB-C
• Bluetooth: Dual phone connection for hands-free calling and high-quality audio streaming
• Wireless Mirroring: Compatible with select Android devices
• USB: Rear USB Type-C port (USB-C to USB-A adapter and extension cable included)
• HDMI Input: Type-D input for external video sources (optional cables required)
• Cameras: 4 camera inputs; supports rearview, front, and side cameras plus Kenwood dash cam integration
• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner
• Kenwood camera links: CMOS-740HDLP, CMOS-320LP, CMOS-240U, CMOS-230LP

Audio & System Control

• 13-band graphic equalizer with digital time alignment
• 3 pairs of 5.0V gold-plated RCA preamp outputs (Front, Rear, Subwoofer)
• Independent 3-way crossover network for precise system tuning
• Drive EQ and advanced digital signal processing (DSP)
• High-Resolution Audio Wireless (LDAC) support
• Built-in internal amplifier (22 Watts RMS / 50 Watts Peak x 4 channels)

Installation & Fitment Notes

• Chassis Type: Double-DIN (in-dash)
• Short Chassis: 3.35" (85mm) mounting depth for versatile installation
• Parking Brake: Connection required to access video playback and advanced system settings
• Factory Integration: iDatalink Maestro RR/RR2 ready for retaining steering wheel controls and displaying vehicle performance data (module required; vehicle dependent)
• Dash kits, wiring harnesses, and antenna adapters are vehicle-specific and sold separately

Technical Specifications

• Receiver Model: DMX908S
• Screen Size: 6.95" Capacitive
• Preamp Voltage: 5.0 Volts
• USB Port: Type-C (3.0A)
• HDMI Input: Type-D
• Camera Inputs: 4
• Audio Format Support: FLAC, WAV, MP3, WMA, AAC

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX908S
• UPC: 019048233929
• Sold As: Each
• Included Components: DMX908S receiver, GPS antenna, microphone with bracket, USB-C extension cable, USB-C to USB-A adapter, wiring harness, and mounting hardware

Why Buy From MCOR Automotive

• Kenwood Preferred Retailer (online and in-store)
• Specialists in vehicle-specific integration (dash kits, interfaces, and factory-feature retention)
• Expert support for selecting the right parts to ensure a clean, reliable installation

Vehicle Fitment & Installation Notes

• Most vehicles require additional installation parts when replacing the factory radio. Depending on the vehicle, you may need a dash kit, wiring harness, antenna adapter, steering wheel control interface, factory amplifier integration module, or other vehicle-specific parts.
• Vehicle-specific installation parts are sold separately unless included in the bundle.
• Use the MCOR Automotive Vehicle Fit Guide to help identify required parts for your vehicle, or contact MCOR Automotive through the chat button for help building the correct vehicle-specific install package.
• Do not assume universal fitment. Radio fitment and retained factory features depend on the vehicle, trim, factory audio system, and required installation interfaces.
