Kenwood eXcelon DMX908S 6.75″ Digital Multimedia Receiver with Wireless CarPlay, Android Auto, HD Radio + CMOS-230 Low-Profile Backup Camera

This Kenwood eXcelon DMX908-230 bundle combines the high-performance DMX908S 6.95" digital multimedia receiver with the CMOS-230 low-profile rearview camera. Designed for the discerning driver, this package brings flagship smartphone connectivity and enhanced safety to your vehicle with a clean, professional finish. The DMX908S offers a stunning capacitive touchscreen and deep integration with your smartphone, while the CMOS-230 provides a clear, wide-angle view of what's behind you, mounting discreetly to your license plate.

Key Features

• 6.95" WVGA Capacitive Touch Screen
• Wireless and wired Apple CarPlay
• Wireless and wired Android Auto
• Built-in HD Radio tuner
• USB Type-C connectivity for high-speed charging and data
• 4 camera inputs for comprehensive vehicle visibility

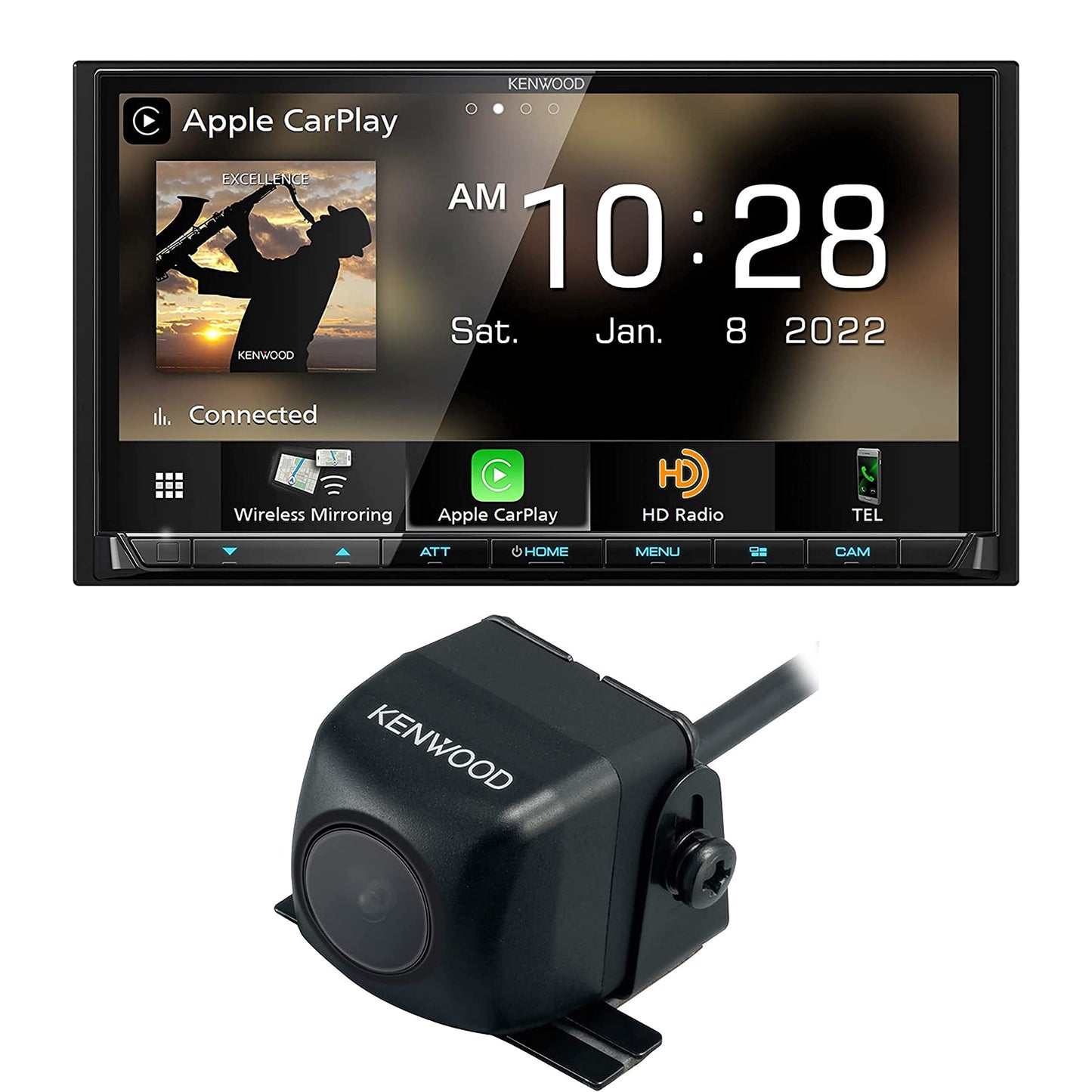

• Included CMOS-230 low-profile rearview camera with license plate bracket
• 3 pairs of 5.0V gold-plated RCA preamp outputs
• 2-Year eXcelon Warranty

Connectivity & Integration

• Apple CarPlay: Wireless and wired connection support
• Android Auto: Wireless and wired connection support
• Bluetooth: Built-in with dual phone connection and high-quality audio streaming
• Wireless Mirroring: Compatible with select Android devices for screen mirroring
• USB: Rear USB Type-C port (supports up to 3.0A charging)
• HDMI Input: Micro HDMI (Type-D) input for external media sources
• Cameras: 4 camera inputs; supports front, rear, and side camera configurations
• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner

Audio & System Control

• 13-band graphic equalizer with digital time alignment
• High-Resolution Audio support via USB and LDAC Bluetooth streaming
• 3 pairs of 5.0V RCA preamp outputs for clean signal to external amplifiers
• Independent crossover network for front, rear, and subwoofer channels
• Drive EQ helps overcome road noise for clearer audio performance

Installation & Fitment Notes

• Chassis type: Double-DIN (in-dash)
• Shallow chassis: Short depth (approx. 3-3/8") for easier installation in tight dash cavities
• Factory integration: iDatalink Maestro RR/RR2 ready for retaining factory features and displaying vehicle data (module required; sold separately)
• Camera mounting: Includes license plate bracket for a low-profile, centered camera installation
• Parking brake connection required to access specific menu settings and video playback
• Vehicle-specific dash kits, wiring harnesses, and antenna adapters are required and sold separately

Technical Specifications

• Receiver model: DMX908S
• Screen size: 6.95" WVGA capacitive touchscreen
• Smartphone integration: Wireless/wired Apple CarPlay; wireless/wired Android Auto
• HD Radio: Built-in tuner
• USB: USB Type-C
• HDMI: Micro HDMI (Type-D)
• Preamp outputs: 3 pairs, 5.0V
• Camera inputs: 4 inputs
• Camera model: CMOS-230
• Camera angle of field: Approx. 128° horizontal / 103° vertical
• Camera design: Waterproof / Low-profile

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX908-230
• UPC: 019048236586
• Sold As: Each

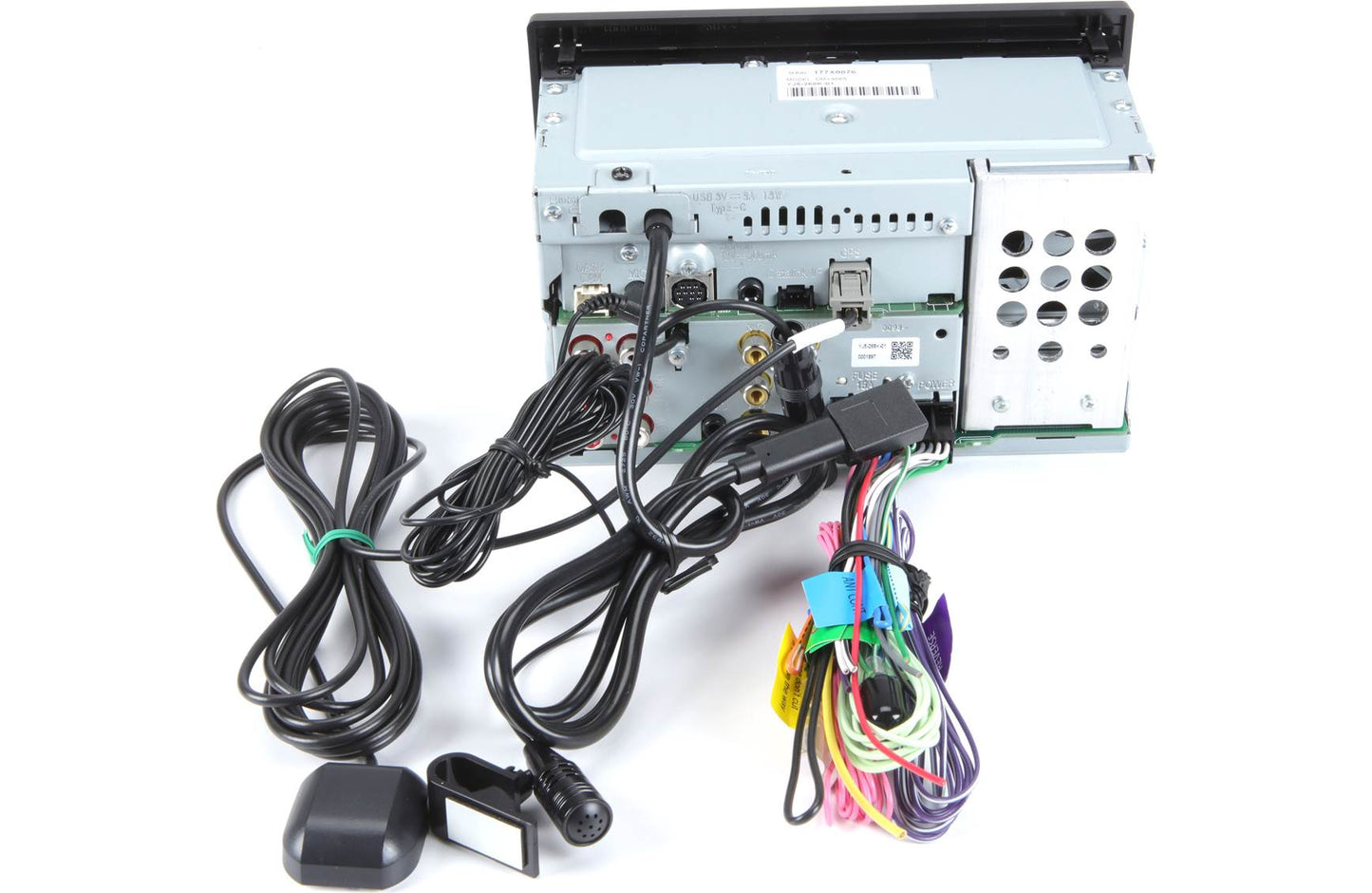

• Included Components: DMX908S receiver, CMOS-230 camera with license-plate mounting attachment, USB Type-C cable, wiring harness, mounting hardware, documentation
