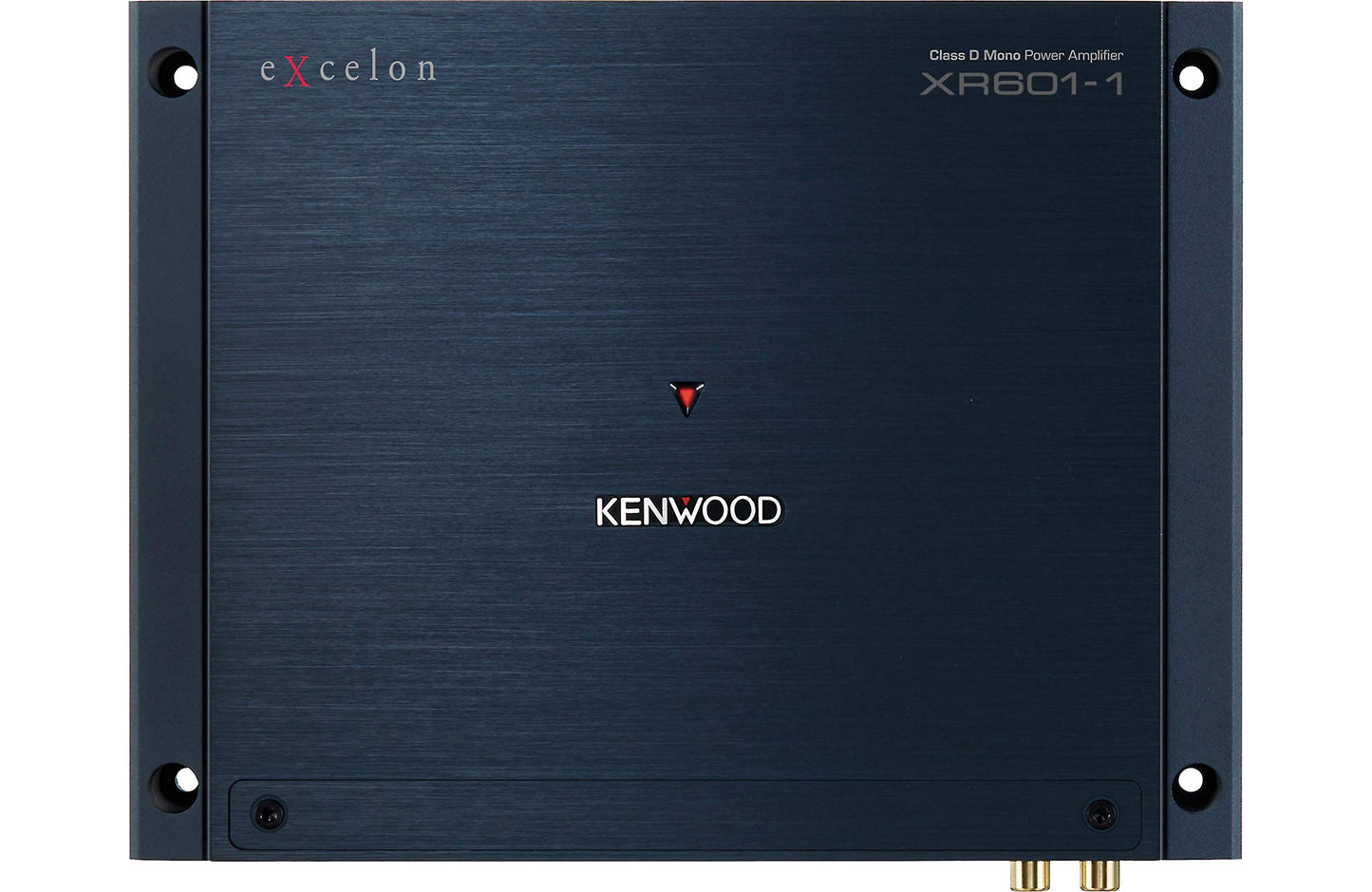

Kenwood eXcelon XR601-1 Class D Mono Subwoofer Amplifier – 600W RMS Total

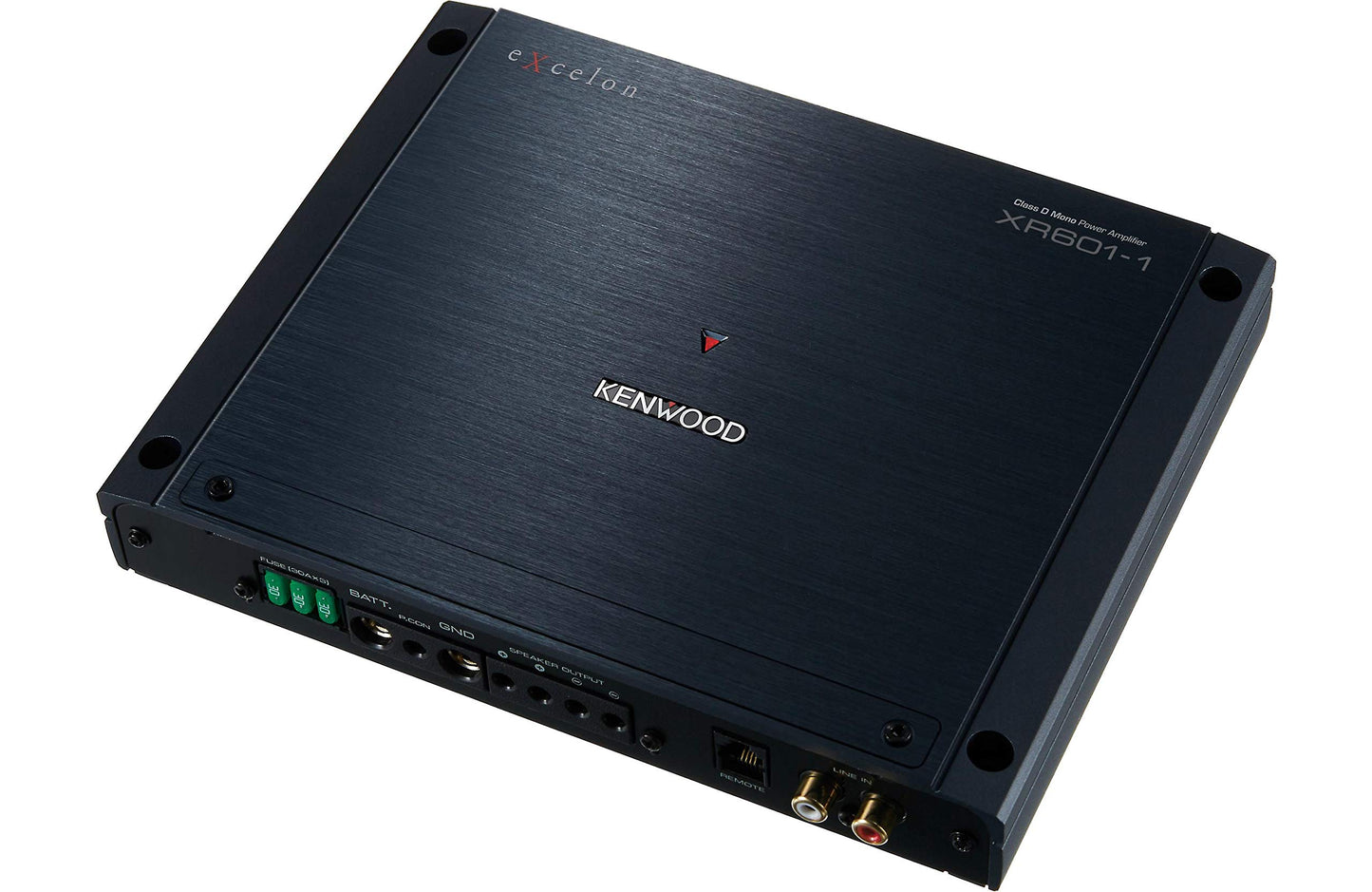

The Kenwood eXcelon XR601-1 is a compact Class D mono amplifier built for buyers who want real subwoofer power without giving up installation flexibility. Its low-profile chassis makes it easier to fit in tighter vehicle spaces while still delivering serious bass output for aftermarket subwoofer systems.

This amplifier is rated at 400 watts RMS x 1 at 4 ohms and 600 watts RMS x 1 at 2 ohms, with a variable low-pass filter, infrasonic filter, bass boost, speaker-level inputs, and signal-sensing turn-on. That makes it a strong fit for factory integration builds, clean stealth installs, and everyday systems that need dependable mono sub power from a compact chassis.

Key Features

• Class D mono subwoofer amplifier
• 400 watts RMS x 1 at 4 ohms
• 600 watts RMS x 1 at 2 ohms
• Compact low-profile eXcelon Reference chassis
• Variable low-pass filter
• Variable infrasonic filter
• Variable bass boost

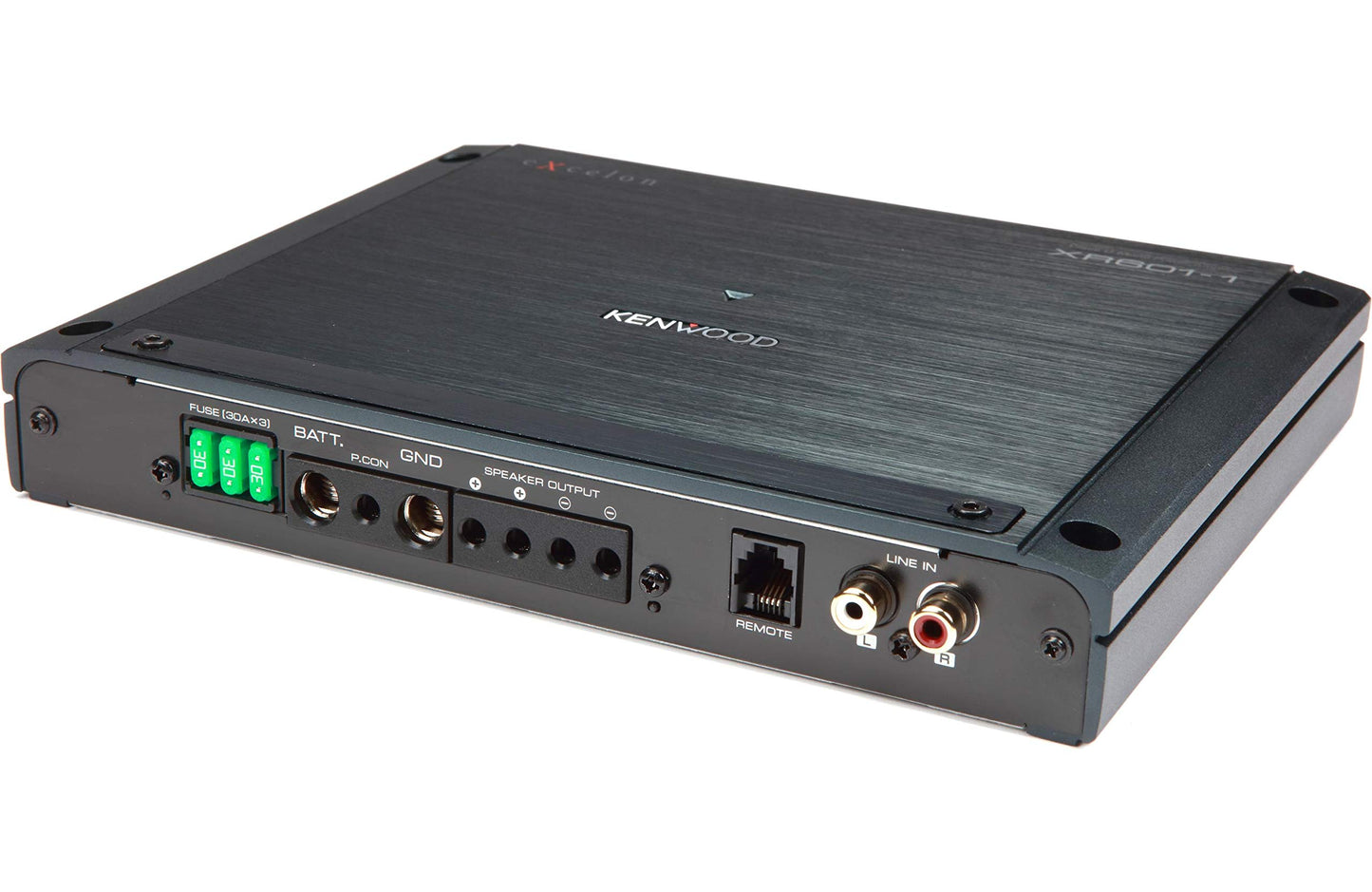

• Speaker-level inputs
• Signal-sensing turn-on
• Wired remote bass controller included
• 2-year warranty

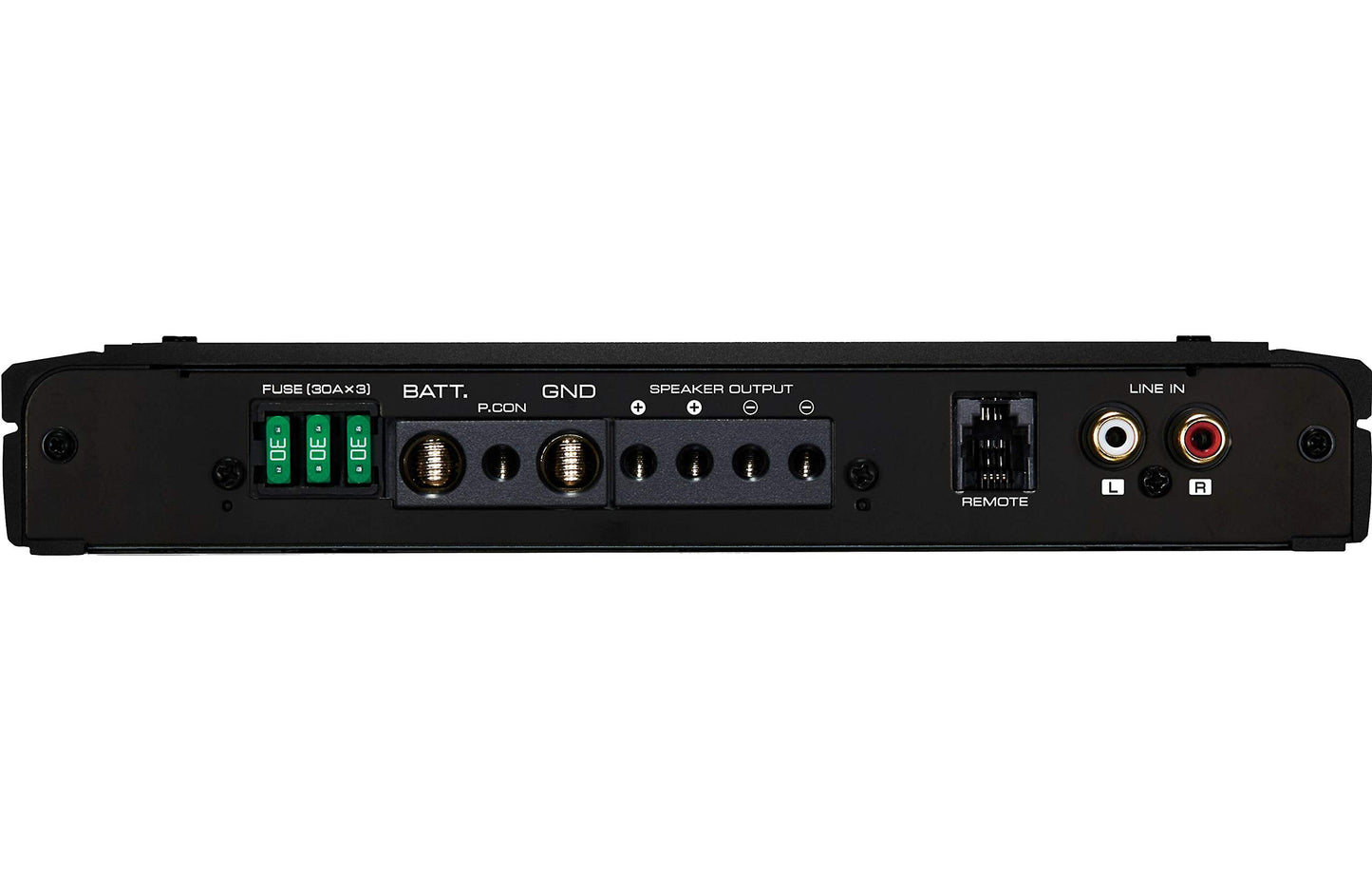

Connectivity & Integration

• Amplifier type: Mono Class D subwoofer amplifier
• Speaker-level input: Yes, for easier integration with compatible factory or aftermarket source units
• Signal-sensing turn-on: Yes
• Remote level control: Wired remote bass controller included
• Application: Designed for powering a subwoofer or mono bass channel in aftermarket car audio systems

Power & System Control

• CTA-2006-D rated output of 400W x 1 at 4 ohms and 600W x 1 at 2 ohms
• Frequency response rated at 20Hz-200Hz (±1dB)

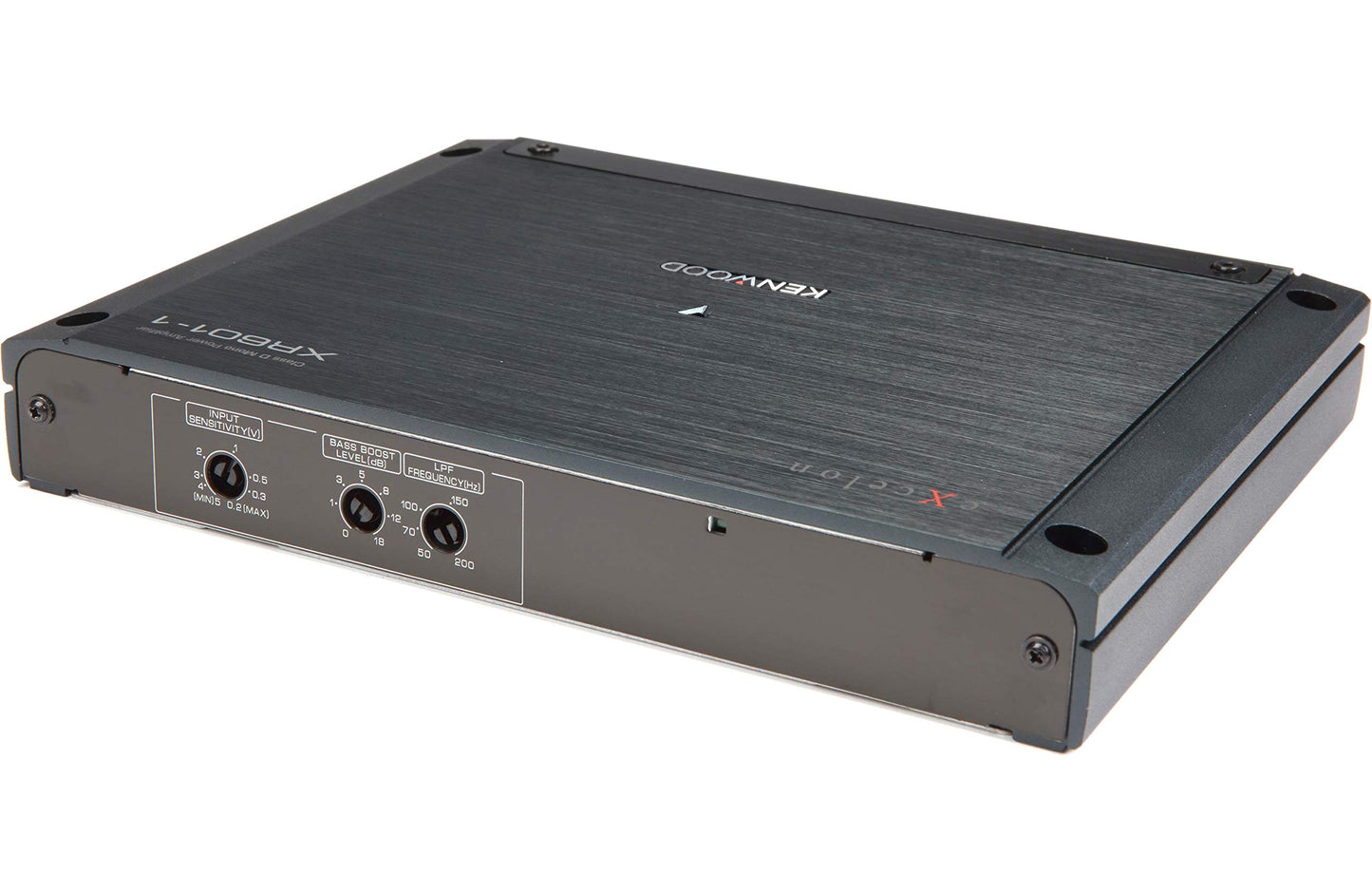

• Variable low-pass filter for dialing in subwoofer crossover settings
• Variable infrasonic filter helps control unusable ultra-low bass
• Variable bass boost adds low-frequency emphasis when desired
• Compact design works well in builds where space is limited but clean bass output still matters

Installation & Fitment Notes

• Amplifier type: Mono subwoofer amplifier
• Chassis size: Compact footprint for easier mounting in tight spaces
• Dimensions: 8-11/16" W x 1-3/8" H x 6-5/8" D
• Operating voltage: 14.4V nominal, 11V-16V allowable
• Current consumption: 46A
• Proper power wire, ground, fuse protection, and speaker load configuration should be confirmed before installation
• This amplifier is intended for subwoofer duty and is not a full-range multi-channel amplifier

Technical Specifications

• Model: XR601-1
• Amplifier class: Class D
• Channels: Mono
• RMS power at 4 ohms: 400W x 1
• RMS power at 2 ohms: 600W x 1
• Maximum dynamic power: 500W at 4 ohms
• Frequency response: 20Hz-200Hz (±1dB)
• Input sensitivity: 0.2V-5.0V
• Input impedance: 10k ohms
• Signal-to-noise ratio: 100dB
• Dimensions: 220 x 35 x 169mm
• Weight: 1.6kg

Identifiers & Packaging

• Manufacturer Part Number (MPN): XR601-1
• UPC: 019048238405
• Sold As: Each
• Included Components: XR601-1 amplifier, wired remote bass controller, and manufacturer-supplied accessories/documentation
