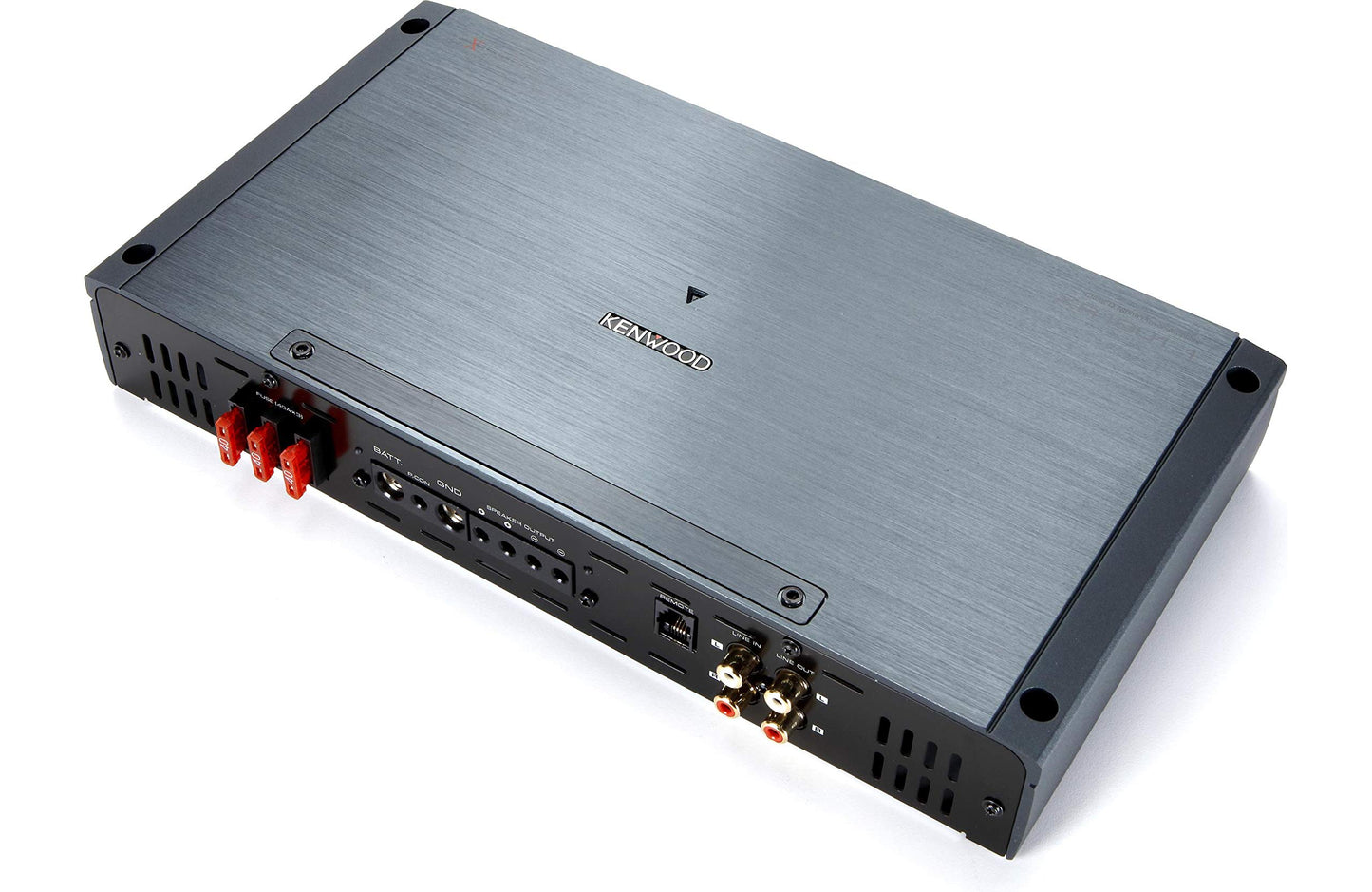

Kenwood eXcelon XR1001-1 1000-Watt Class D Mono Subwoofer Amplifier

The Kenwood eXcelon XR1001-1 is a high-output Class D mono amplifier built for buyers who want serious subwoofer power without giving up installation flexibility. Its compact eXcelon chassis is designed to fit tighter vehicle spaces while still delivering the clean, controlled bass output needed for stronger aftermarket subwoofer systems.

This amplifier is rated at 500 watts RMS x 1 at 4 ohms and 1000 watts RMS x 1 at 2 ohms, making it a strong fit for dedicated subwoofer duty in daily-driven systems, stealth installs, and factory-integration builds that need real mono power. Kenwood also equips it with a variable low-pass filter, infrasonic filter, bass boost, speaker-level inputs, signal-sensing turn-on, cooling fan, and included wired remote bass control.

Key Features

• 1000-watt Class D mono subwoofer amplifier
• 500 watts RMS x 1 at 4 ohms
• 1000 watts RMS x 1 at 2 ohms
• Compact eXcelon chassis

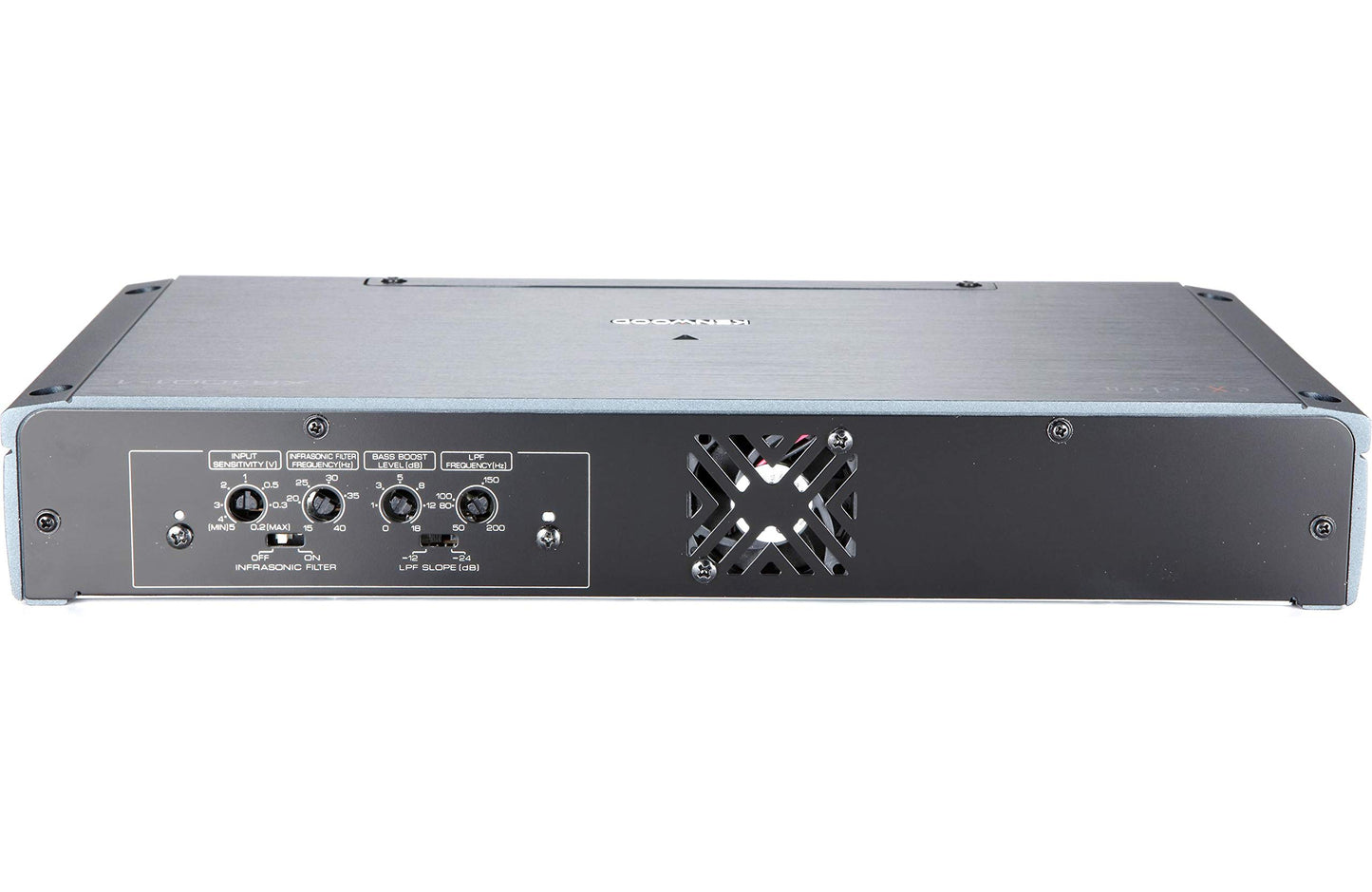

• Variable low-pass filter
• Variable infrasonic filter
• Variable bass boost
• Speaker-level inputs
• Signal-sensing turn-on
• Cooling fan

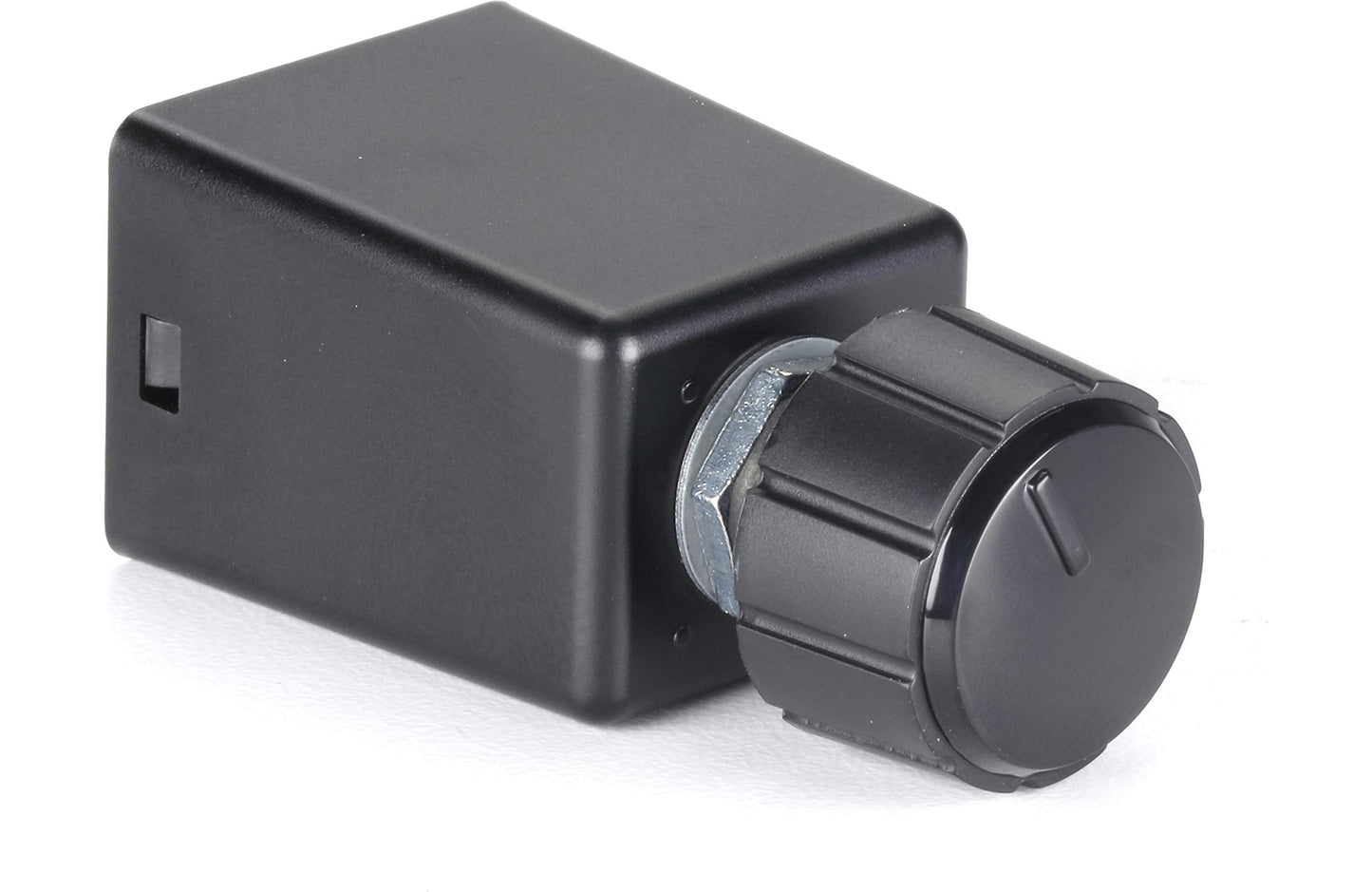

• Wired remote bass controller included
• 2-year warranty

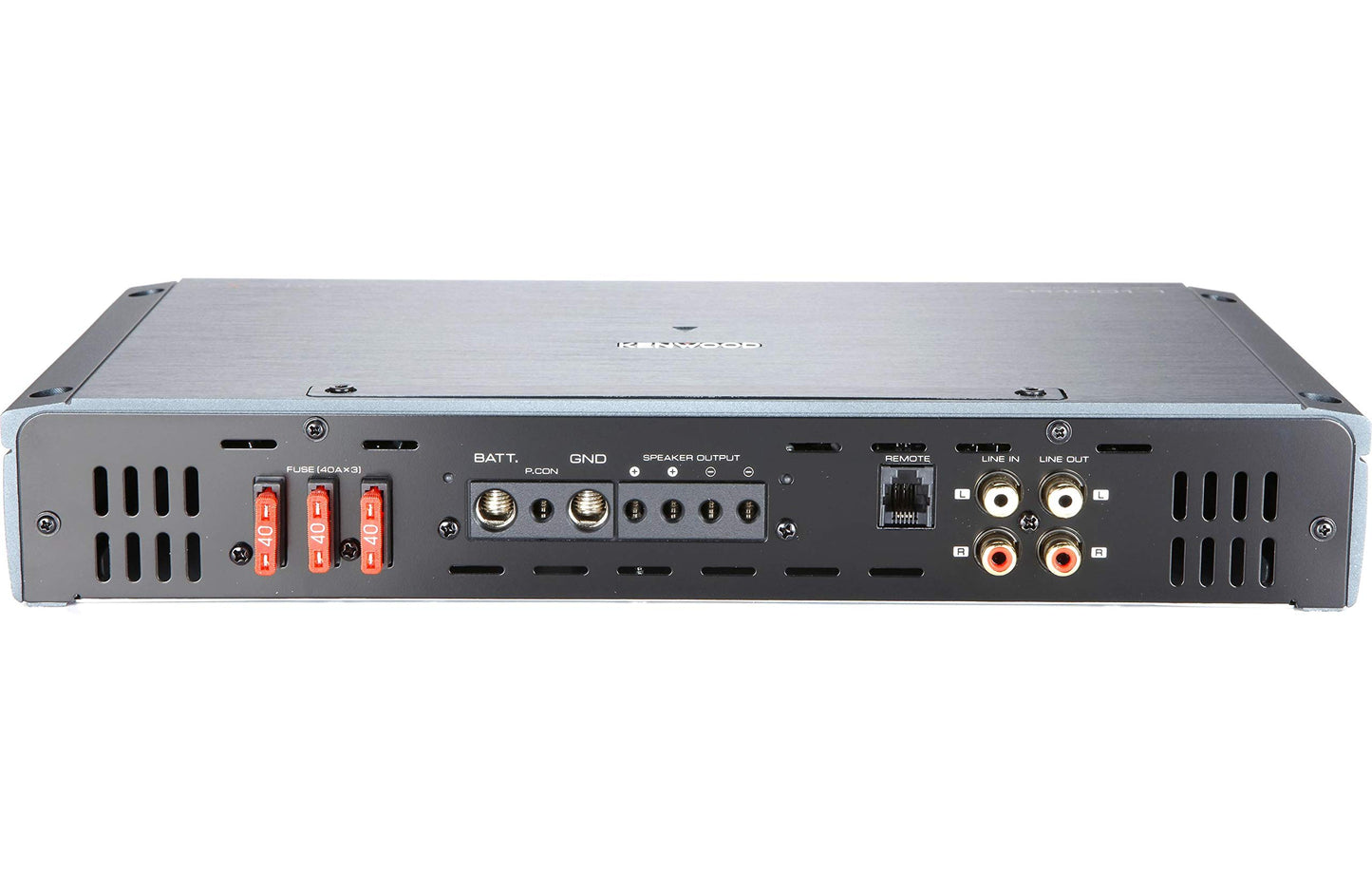

Connectivity & Integration

• Amplifier type: Mono Class D subwoofer amplifier
• Speaker-level input: Yes, for easier integration with compatible factory or aftermarket source units
• Signal-sensing turn-on: Yes
• Remote level control: Wired remote bass controller included
• Application: Designed for powering a subwoofer or mono bass channel in aftermarket car audio systems

Power & System Control

• CTA-2006 rated output of 500W x 1 at 4 ohms and 1000W x 1 at 2 ohms
• Maximum power rating of 2000 watts
• Frequency response rated at 20Hz-200Hz
• Variable low-pass filter for dialing in subwoofer crossover settings
• Variable infrasonic filter helps control unusable ultra-low bass
• Variable bass boost adds low-frequency emphasis when desired
• Cooling fan helps manage heat in higher-output installs

Installation & Fitment Notes

• Amplifier type: Mono subwoofer amplifier
• Chassis size: Compact footprint for easier mounting in tighter spaces
• Dimensions: 12-5/8" W x 2" H x 6-5/8" D
• Operating voltage: 14.4V nominal, 11V-16V allowable
• Proper power wire, ground, fuse protection, and speaker load configuration should be confirmed before installation
• This amplifier is intended for subwoofer duty and is not a full-range multi-channel amplifier

Technical Specifications

• Model: XR1001-1
• Amplifier class: Class D
• Channels: Mono
• RMS power at 4 ohms: 500W x 1
• RMS power at 2 ohms: 1000W x 1
• Maximum power: 2000W
• Frequency response: 20Hz-200Hz
• Low-pass filter: 50-200Hz
• Infrasonic filter: 15-40Hz
• Bass boost: 0dB to +18dB at 40Hz
• Input sensitivity: 0.2V-5.0V
• Signal-to-noise ratio: 100dB
• Dimensions: 320 x 51 x 169mm
• Weight: 3.1kg

Identifiers & Packaging

• Manufacturer Part Number (MPN): XR1001-1
• UPC: 019048222459
• Sold As: Each

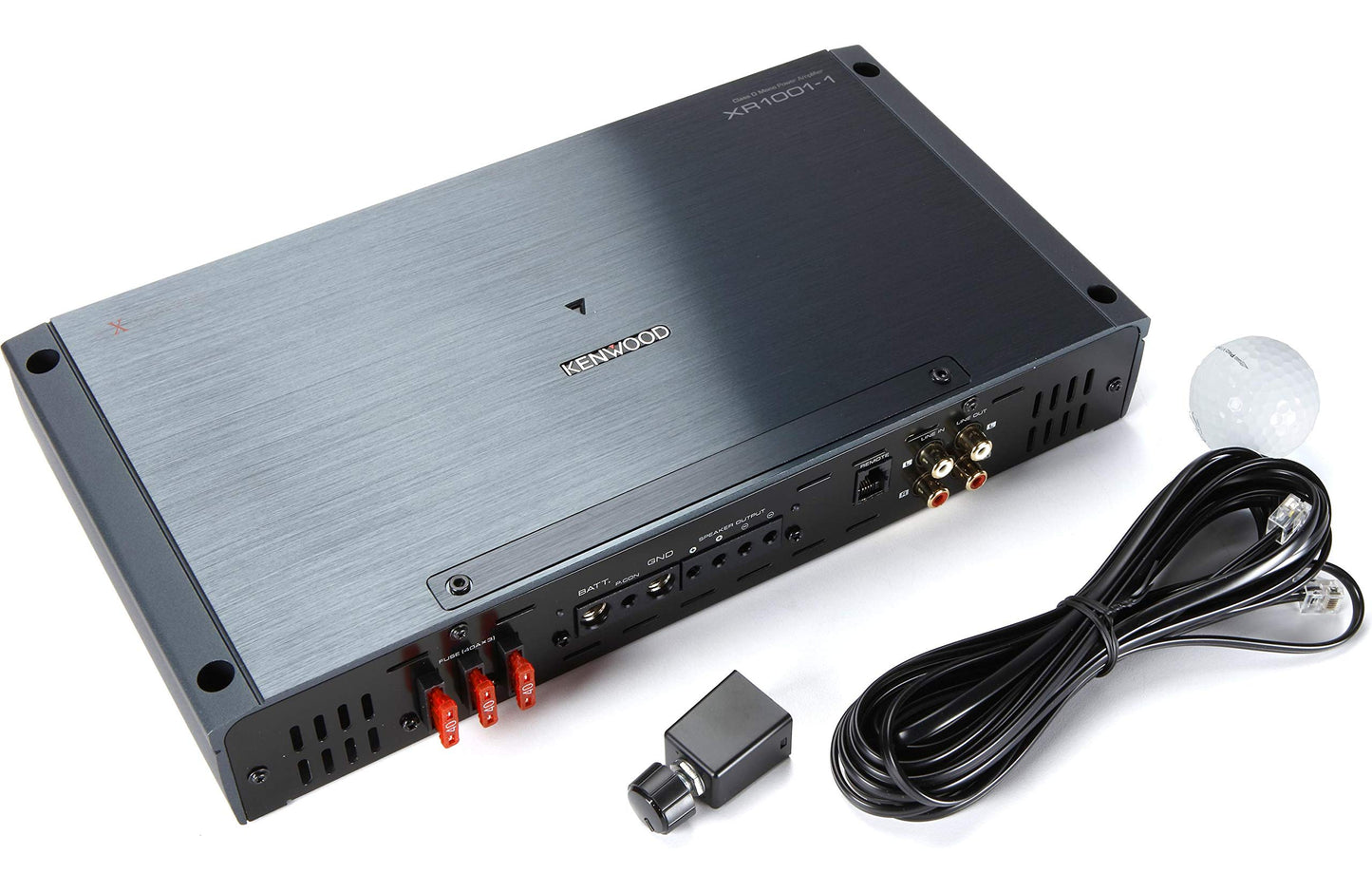

• Included Components: XR1001-1 amplifier, wired remote bass controller, and manufacturer-supplied accessories/documentation
