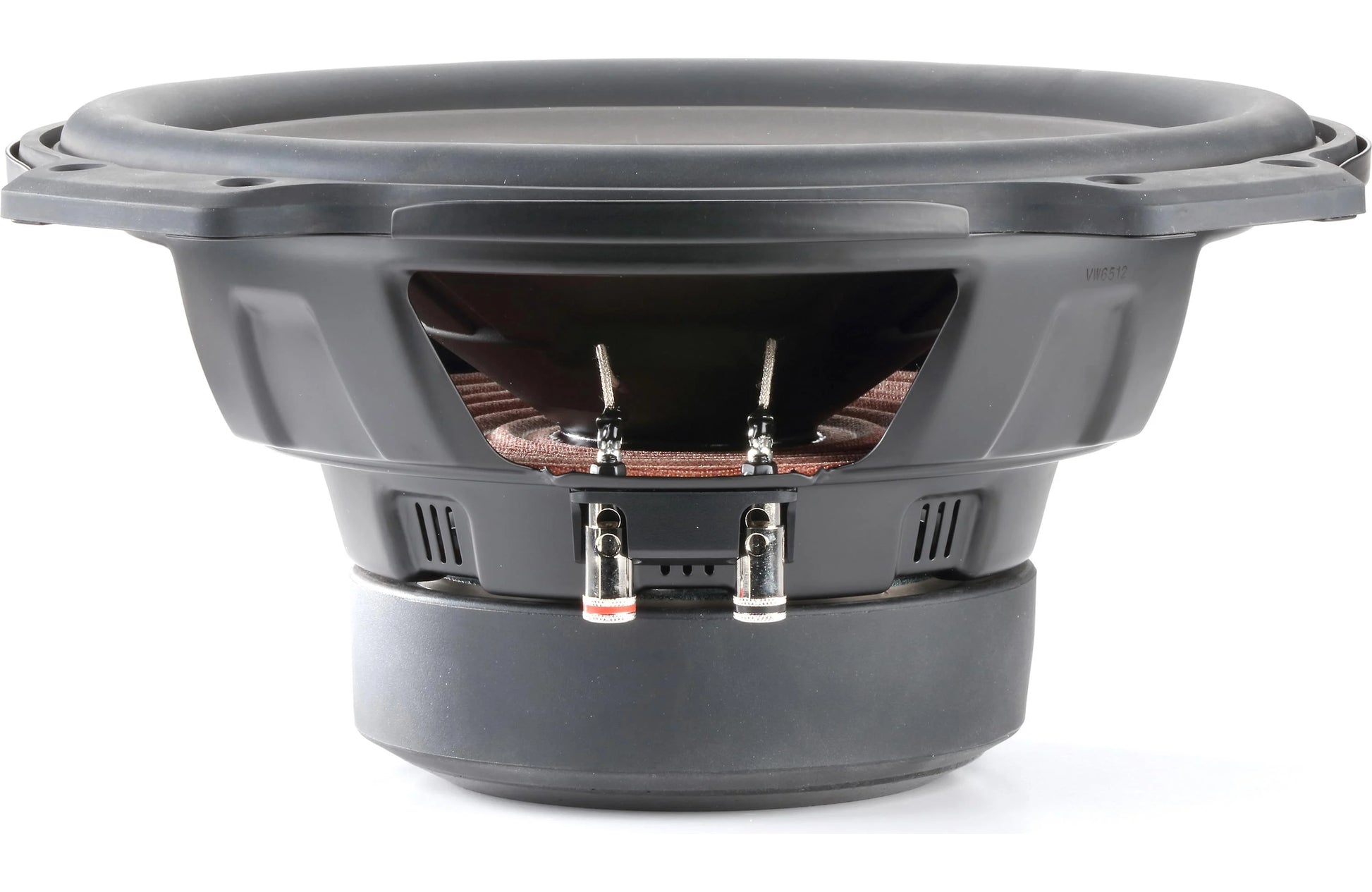

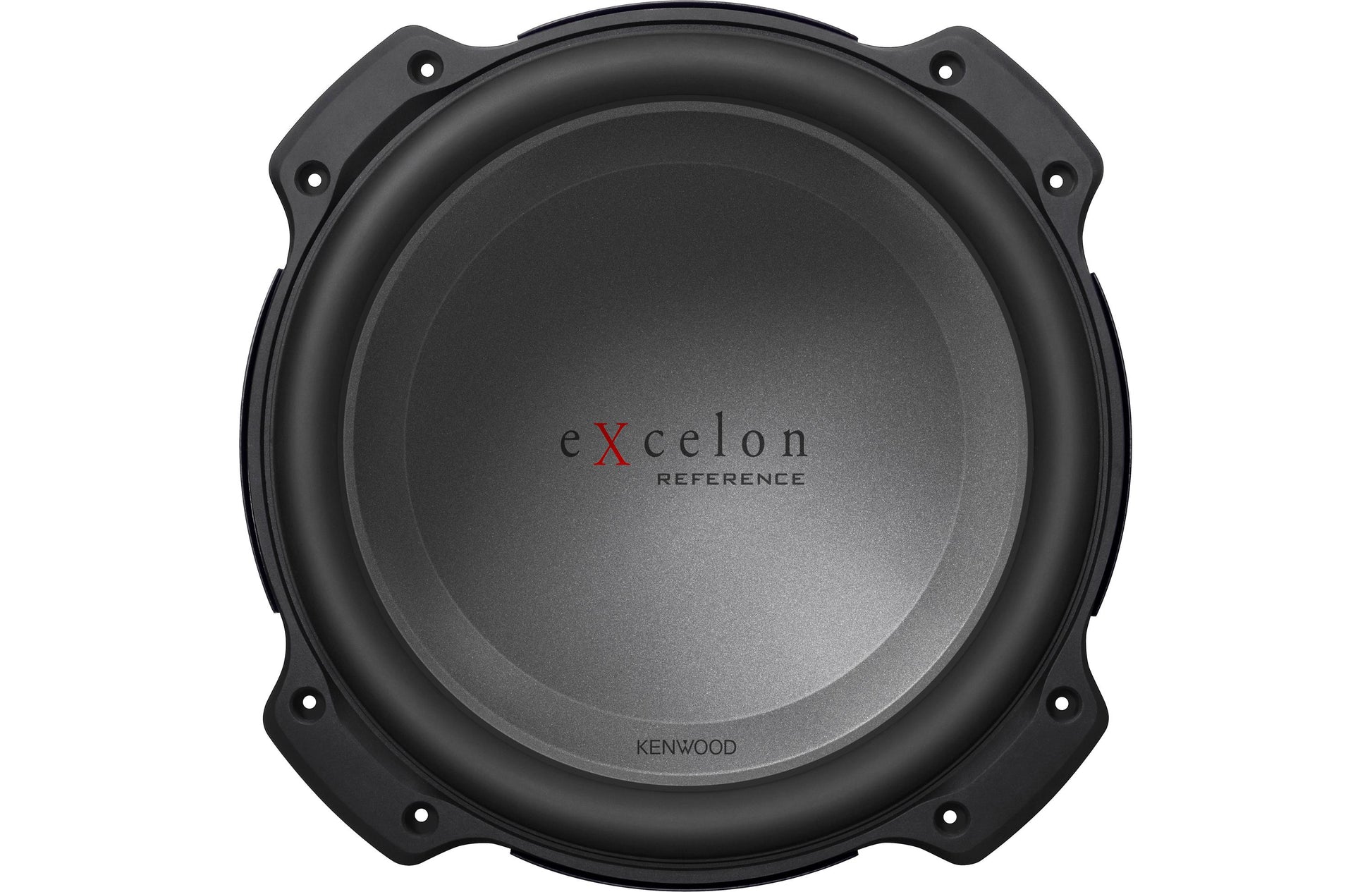

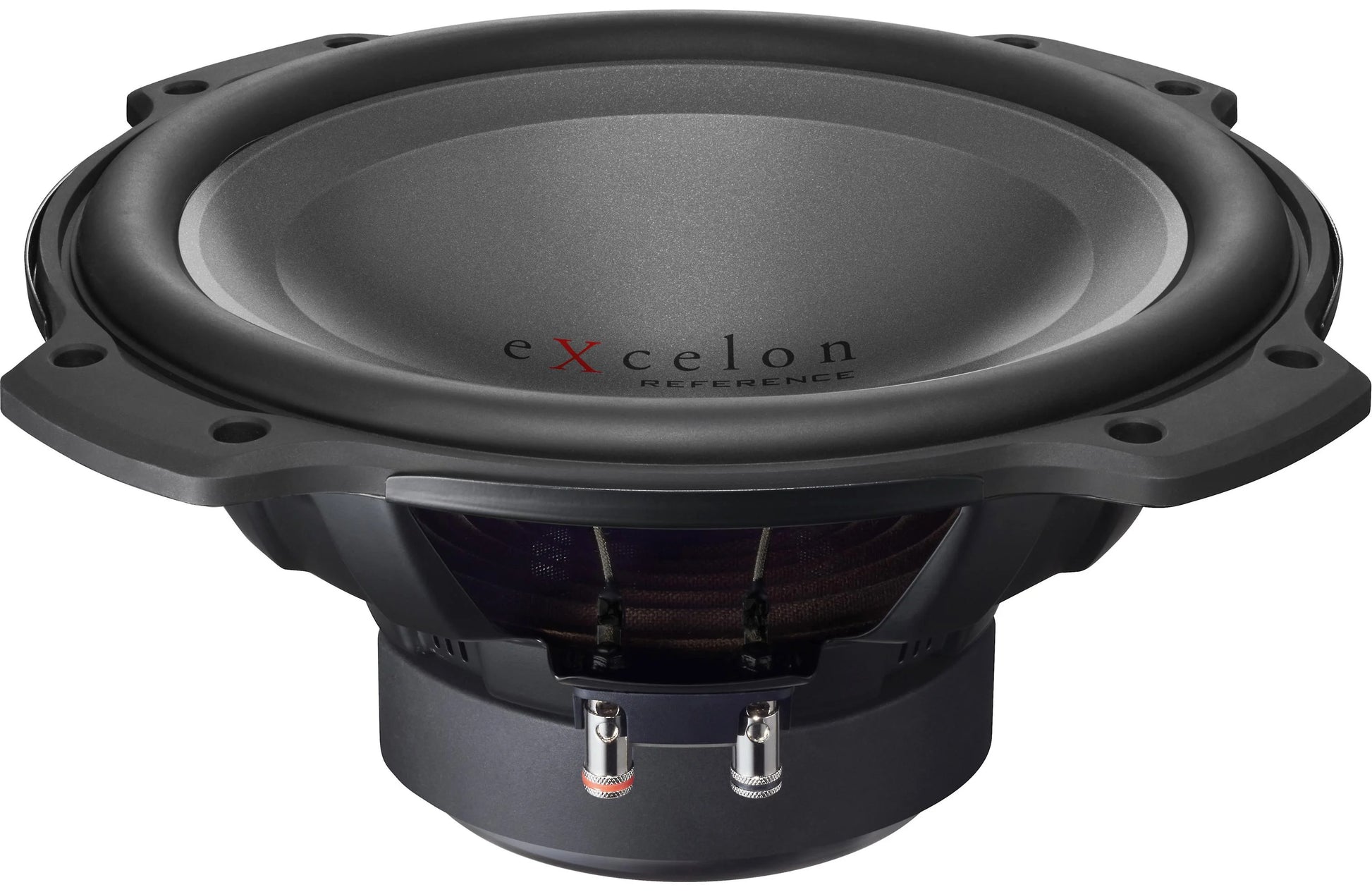

Kenwood eXcelon XR-W1204 12" Car Subwoofer 2000W Max 400W RMS 4-Ohm

The Kenwood eXcelon XR-W1204 12" oversized car subwoofer is built for buyers who want strong low-frequency output in installs where enclosure space matters. Its oversized cone design increases effective cone area while keeping a practical cutout size, making it a smart choice for compact sealed-box builds that still need real bass authority.

For properly matched mono amplifiers and sound-quality-focused installs, the XR-W1204 delivers solid 400-watt RMS handling, 4-ohm compatibility, and the durable cone and suspension design expected from Kenwood’s eXcelon Reference line.

Key Features

• 12" oversized component subwoofer
• 2000 watts max power handling
• 400 watts RMS power handling
• Single 4-ohm voice coil
• Oversized polypropylene cone
• Rubber surround
• Steel basket
• Designed for strong output in compact sealed enclosures

Sound & Subwoofer Design

• Cone: Polypropylene cone
• Surround: Rubber
• Basket: Steel
• Magnet: Ferrite
• Nominal impedance: 4 ohms
• Sensitivity: 83 dB/W at 1m
• Frequency response: 32Hz - 300Hz
• Oversized cone design increases low-frequency output while keeping a practical installation footprint

Installation & Fitment Notes

• Subwoofer size: 12" oversized
• Cutout diameter: 11"
• Mounting depth: 5-5/8"
• Total depth: 6-1/2"
• Recommended sealed box volume: 0.88 cubic feet
• Subwoofer enclosure is required and sold separately
• Final performance depends on correct enclosure design, amplifier matching, and installation quality

Technical Specifications

• Model: XR-W1204
• Subwoofer type: Component subwoofer
• Size: Oversized 12"
• Voice coil configuration: Single 4-ohm
• Maximum peak power: 2000W
• Rated input power (RMS): 400W
• Nominal impedance: 4 ohms
• Sensitivity: 83 dB/W at 1m
• Frequency response: 32Hz - 300Hz
• Overall dimensions: 12-13/16" x 12-13/16"
• Cutout diameter: 11"
• Mounting depth: 5-5/8"

Identifiers & Packaging

• Manufacturer Part Number (MPN): XR-W1204
• UPC: 019048215888
• Sold As: Each
• Included Components: One subwoofer, screw set, cushion, and manufacturer-supplied documentation as packaged by Kenwood
