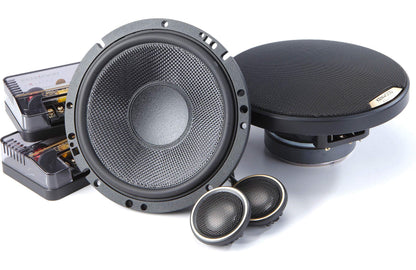

Kenwood eXcelon XR-1701P 6-1/2" Component Car Speakers 300W Max 100W RMS (pair)

The Kenwood eXcelon XR-1701P 6-1/2" component speaker system is built for buyers who want a more serious front-stage upgrade than a basic coaxial speaker can deliver. With separate woofers, hard dome tweeters, and an external crossover network, this set is designed for cleaner imaging, stronger detail, and better overall control in properly powered systems.

For vehicles where sound quality matters, the XR-1701P gives you Kenwood’s eXcelon Reference-Series design with high-resolution audio support, 3-ohm efficiency, and the flexibility to integrate into stronger aftermarket amplifier-based builds.

Key Features

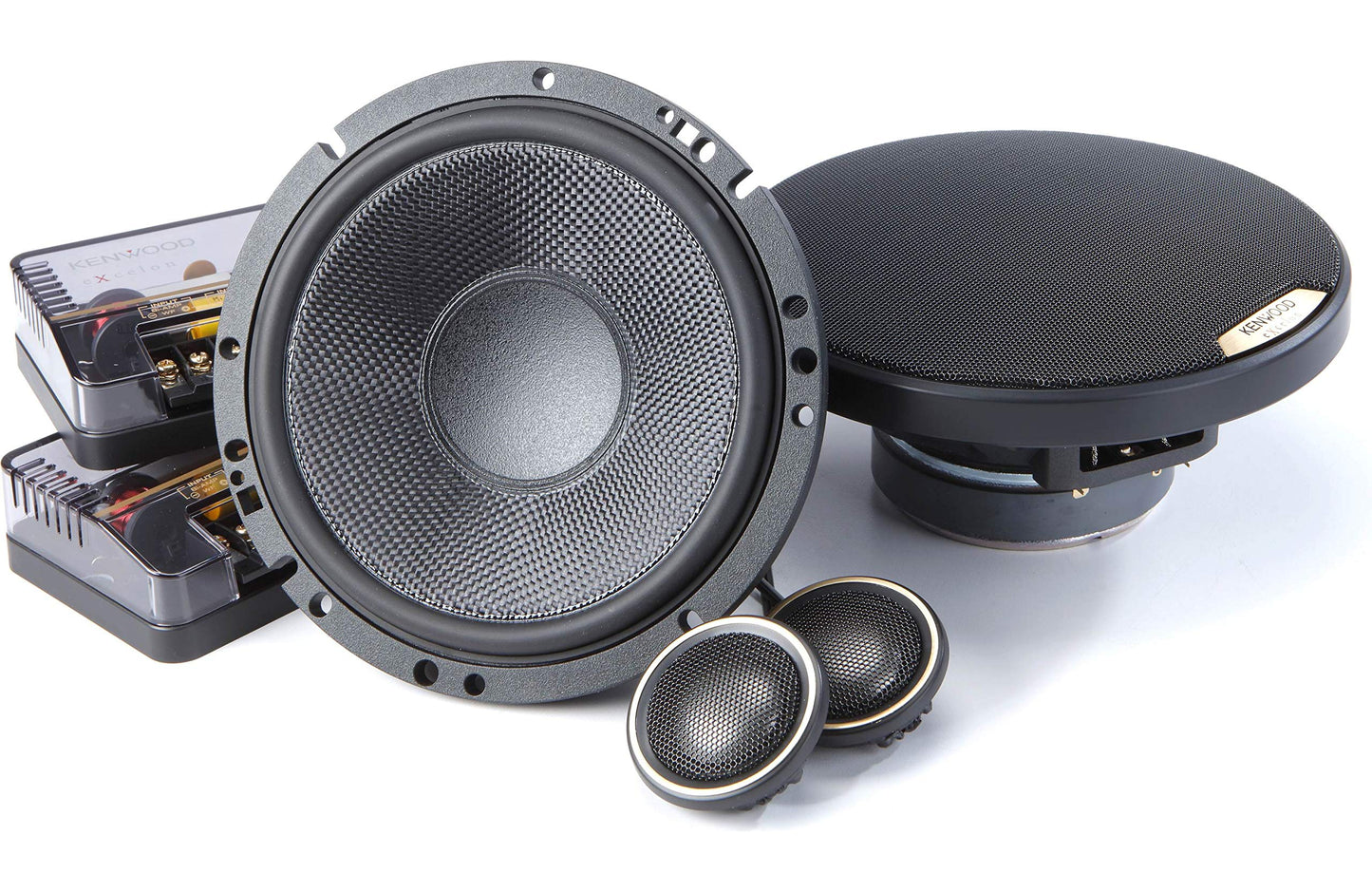

• 6-1/2" 2-way component speaker system
• 300 watts max power handling
• 100 watts RMS power handling
• Glass fiber woofer cones
• 1-3/16" hard dome tweeters
• 3-ohm impedance design
• High-Resolution Audio certified
• Bi-amp capable crossover network

Sound & Speaker Design

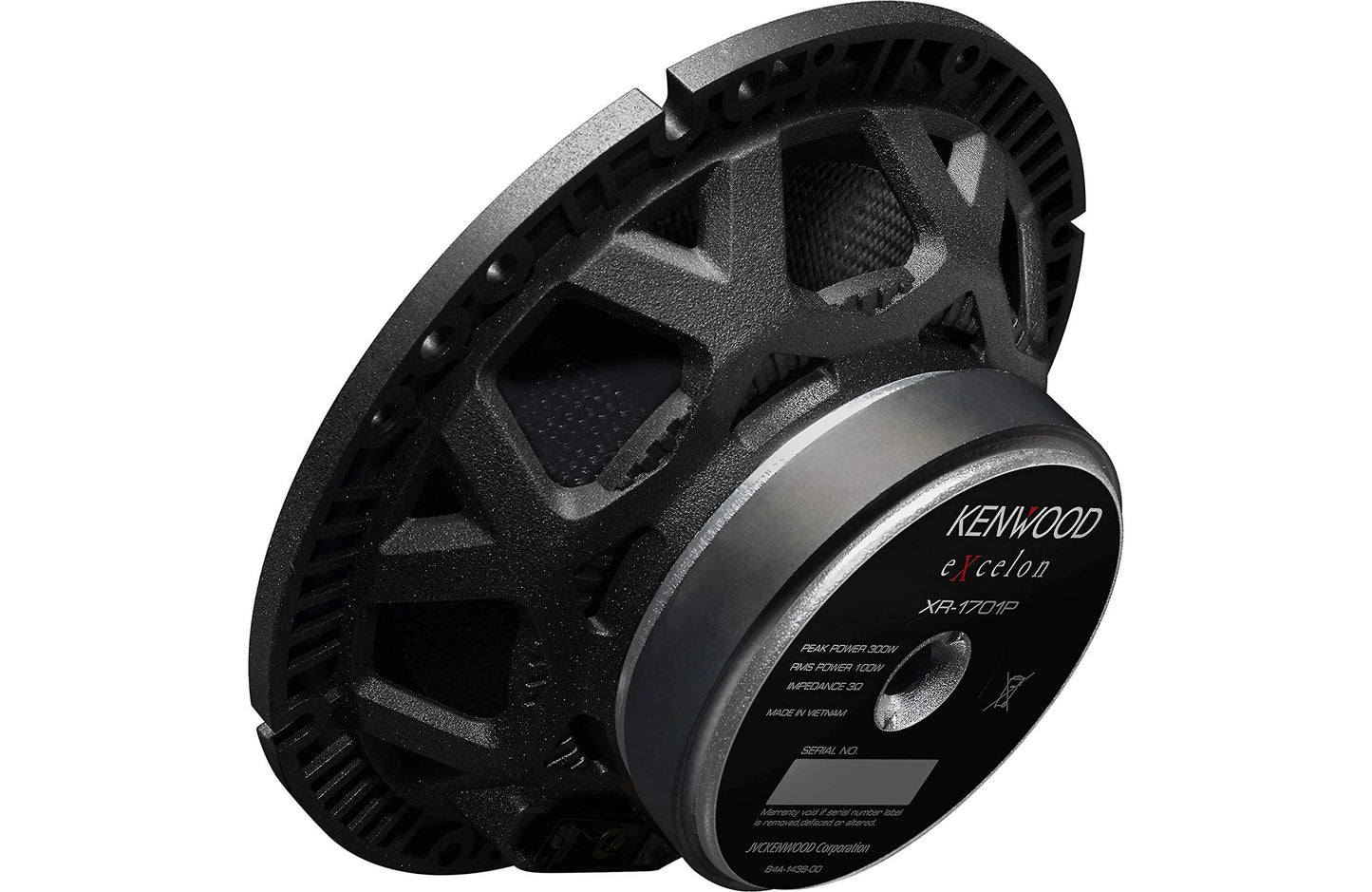

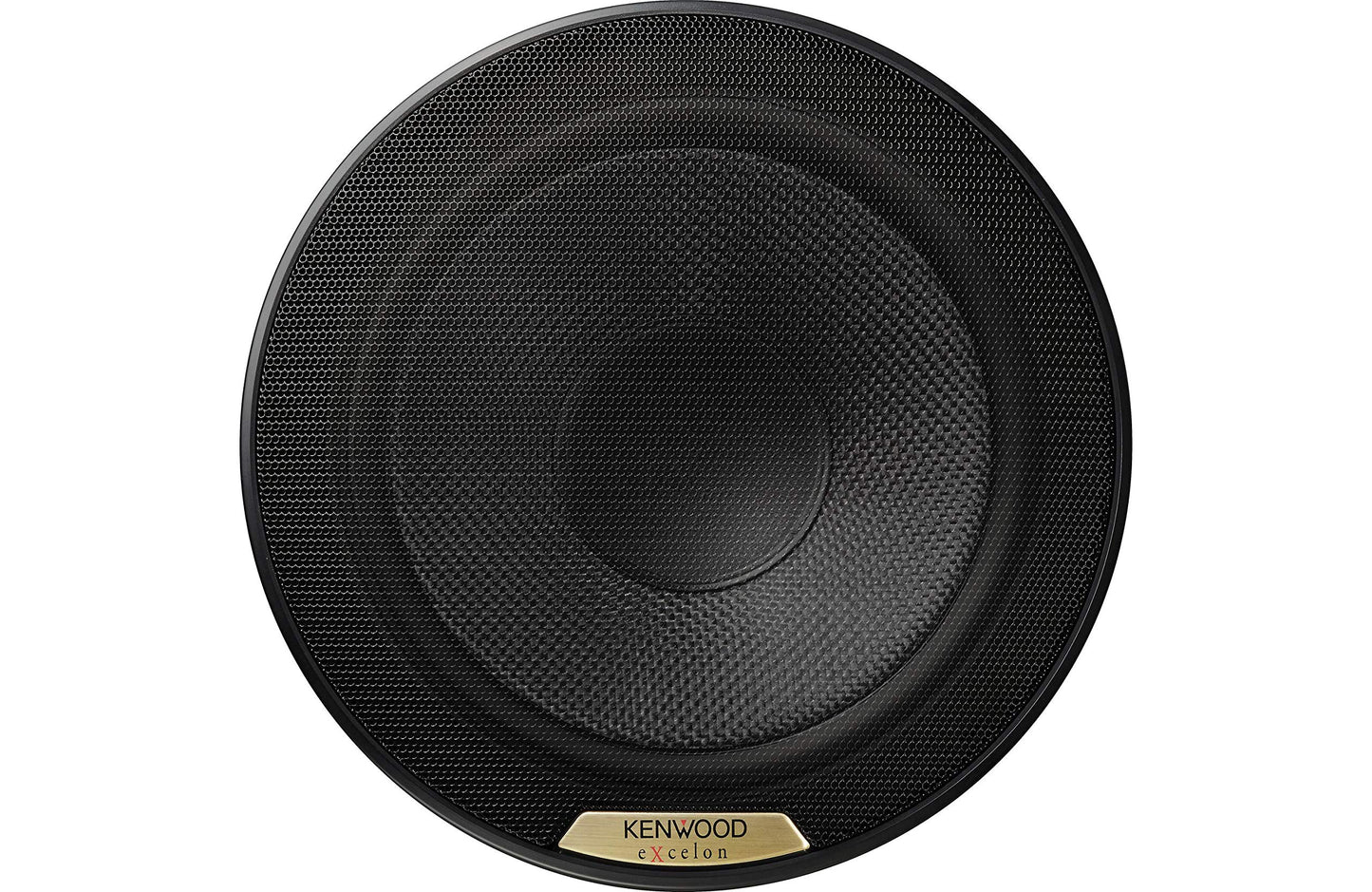

• Woofer: 6-1/2" glass fiber cone

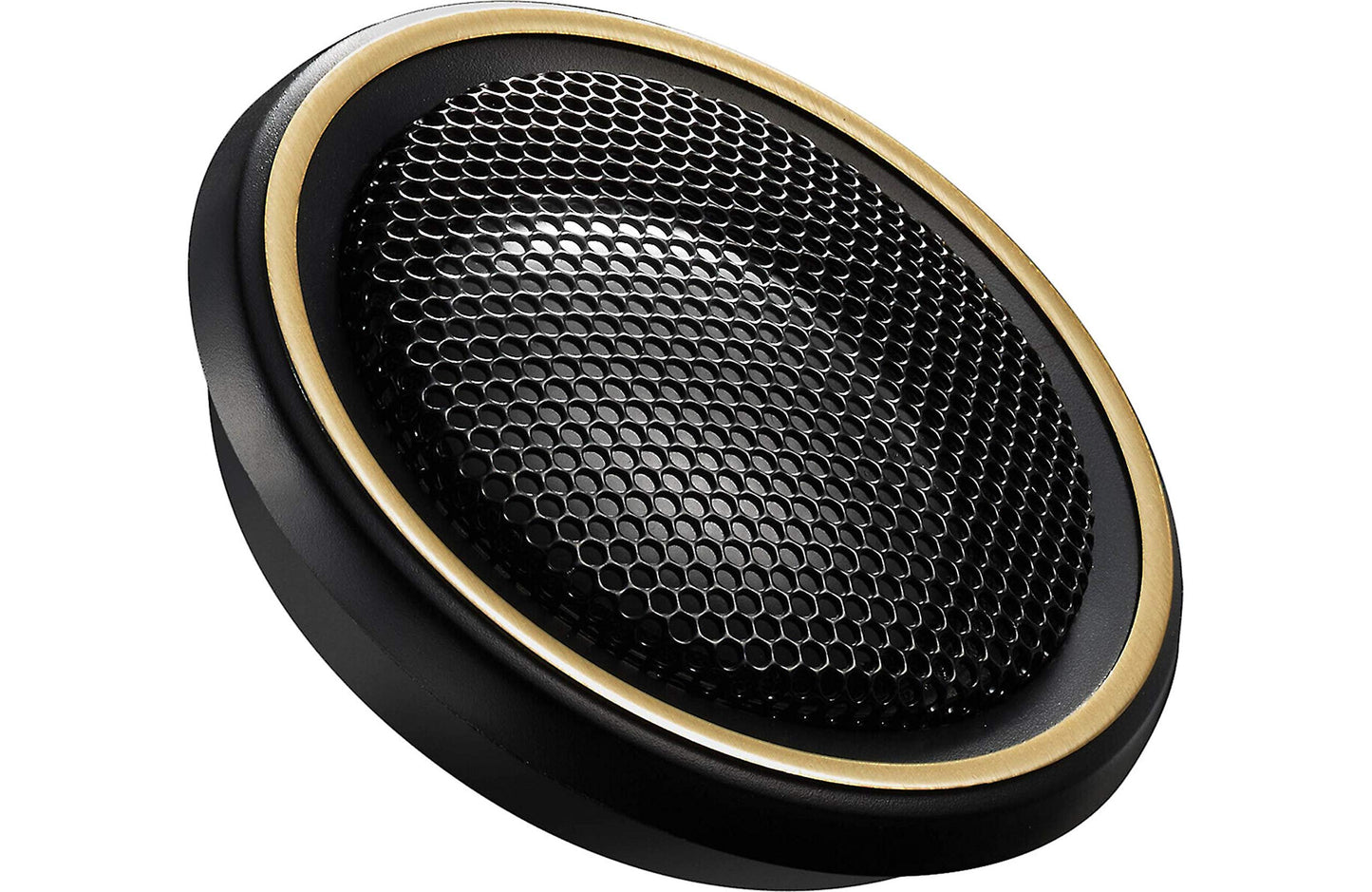

• Tweeter: 1-3/16" hard dome
• Impedance: 3 ohms
• Sensitivity: 87 dB/W/m
• Frequency response: 43Hz - 40kHz
• Component design improves staging and separation versus typical full-range replacements

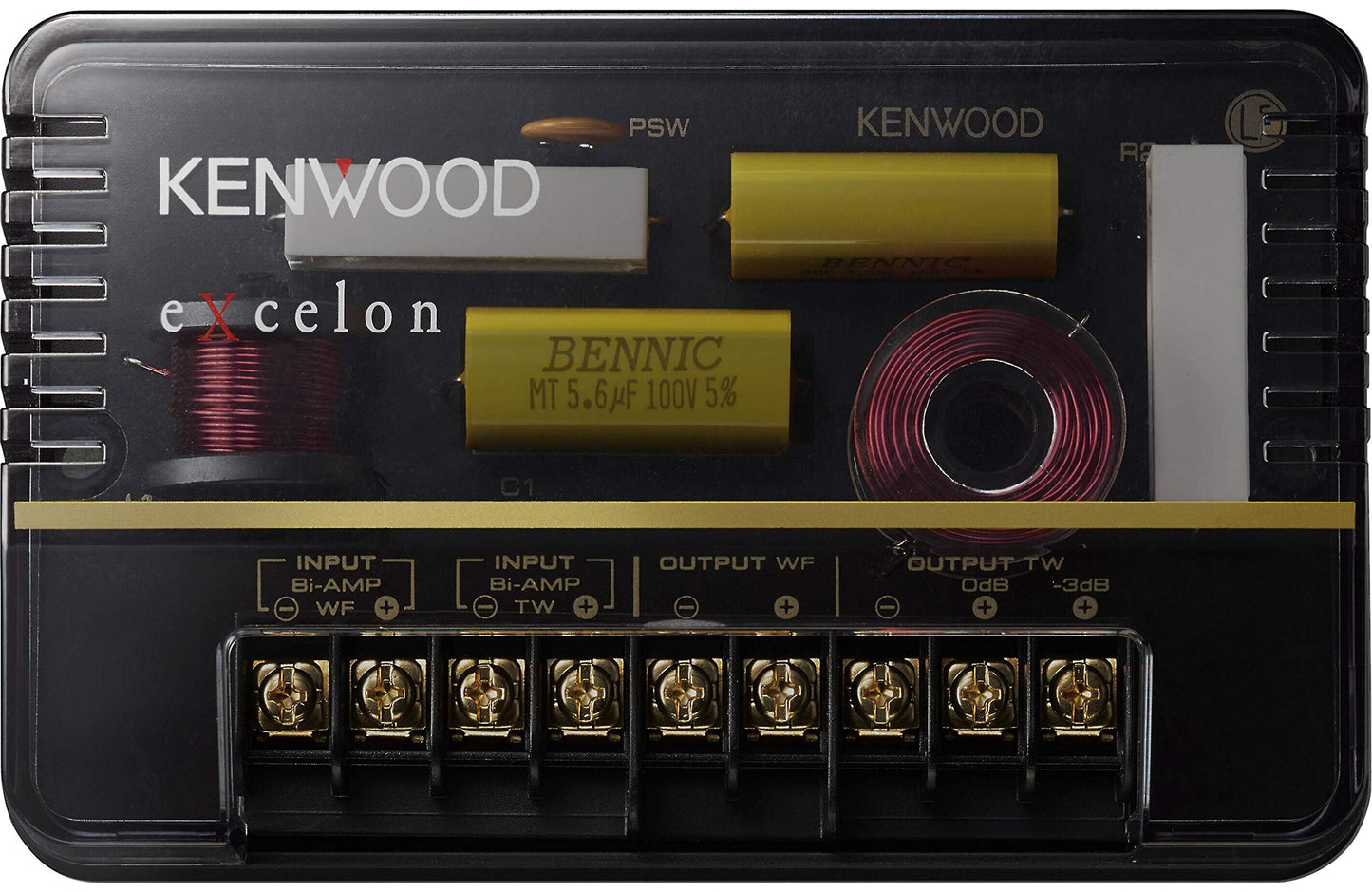

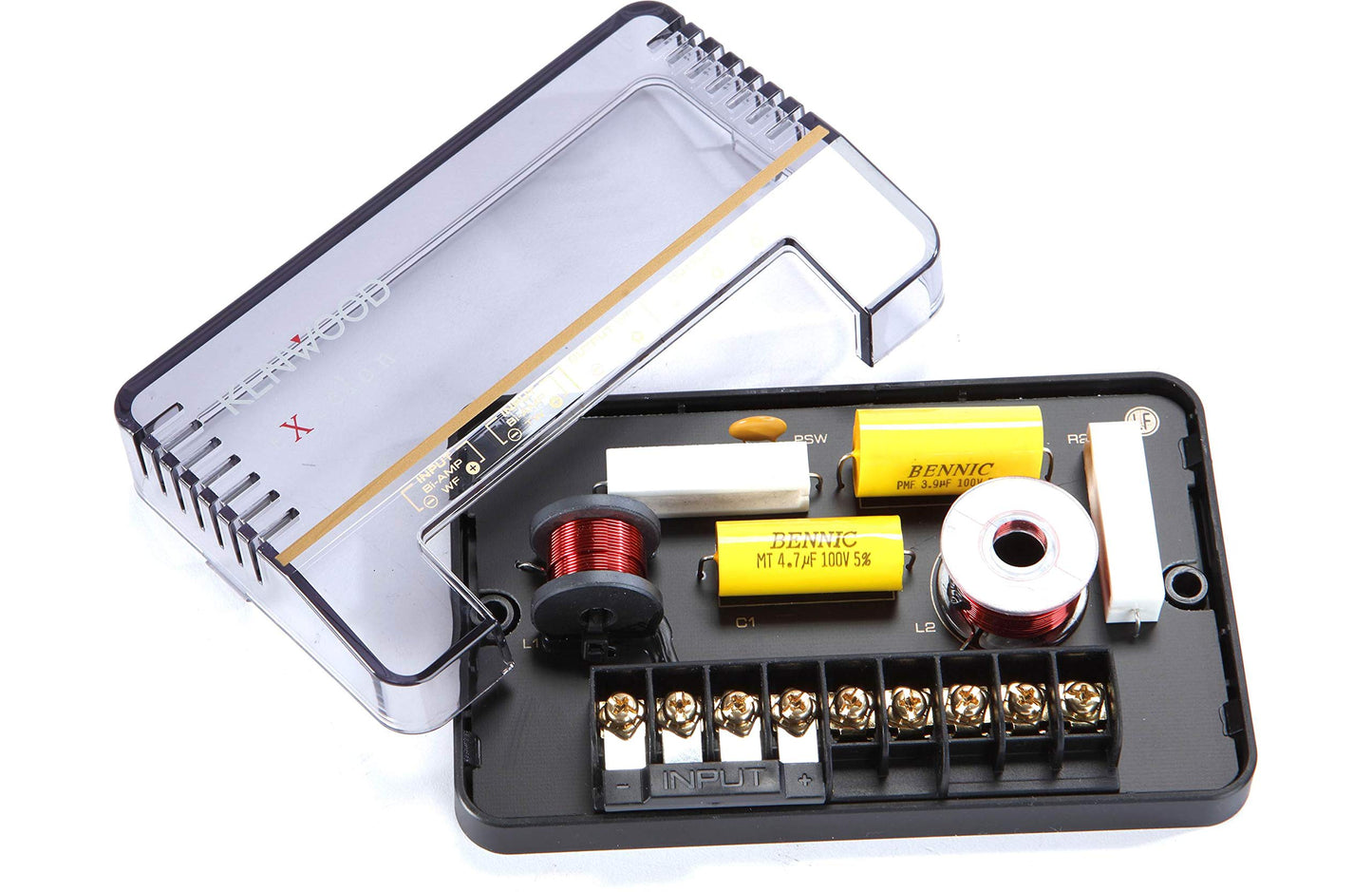

• External crossover network helps split frequency duties between woofer and tweeter

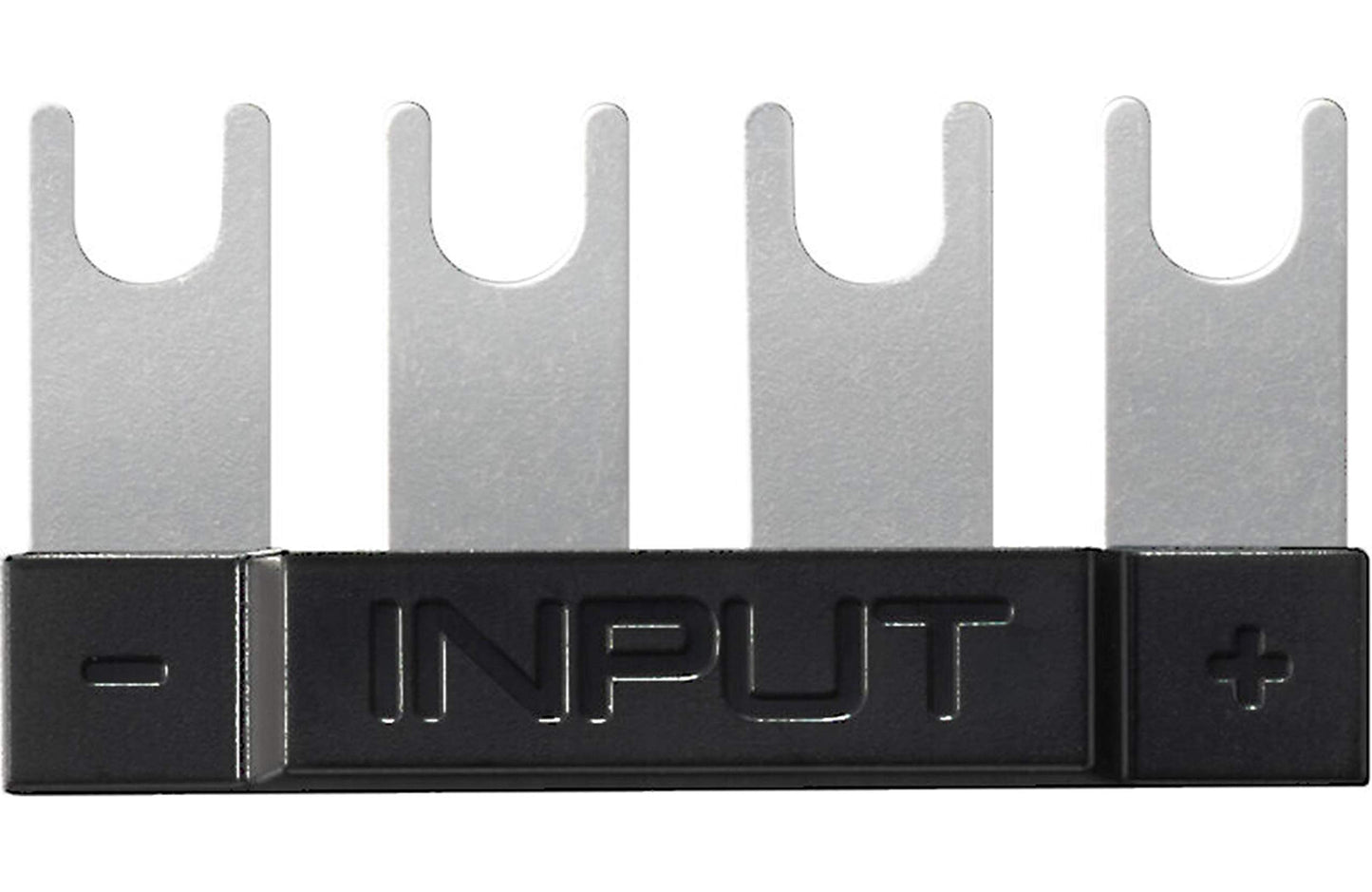

• Bi-amp connection capability supports more advanced system tuning and amplifier layouts

Installation & Fitment Notes

• Speaker size: 6-1/2"
• Cutout diameter: 5-1/2"
• Mounting depth: 2-5/16"
• Separate tweeter mounting and crossover placement are required during installation
• Fitment depends on factory woofer opening, tweeter location options, mounting depth, and available space for crossover placement

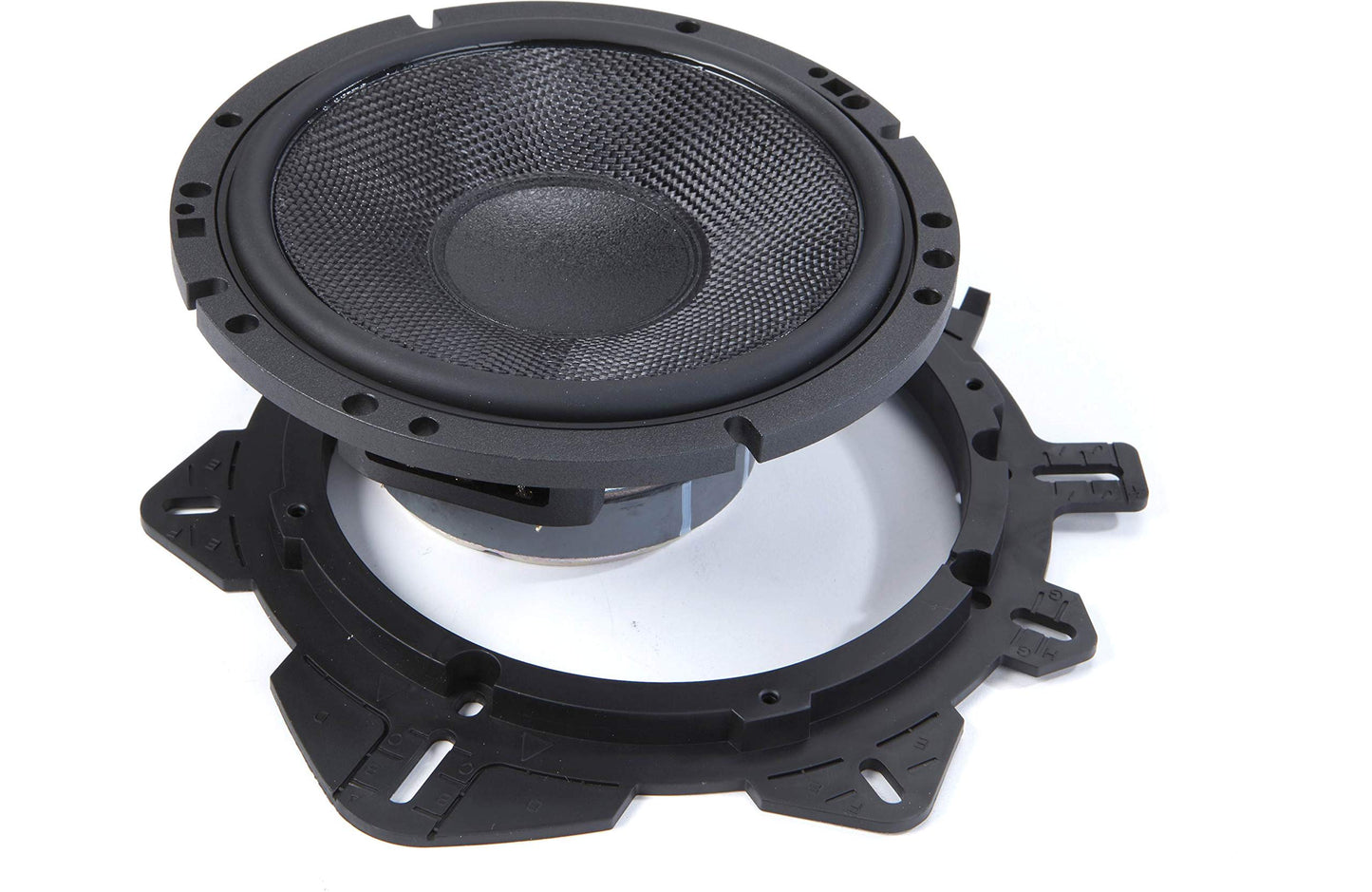

• Speaker brackets, harness adapters, sound treatment, and other vehicle-specific installation parts may be required and are sold separately

Technical Specifications

• Model: XR-1701P
• Speaker type: 2-way component speaker system
• Woofer size: 6-1/2"
• Tweeter size: 1-3/16"
• Maximum peak power: 300W
• Rated input power (RMS): 100W
• Nominal impedance: 3 ohms
• Sensitivity: 87 dB/W/m
• Frequency response: 43Hz - 40kHz
• Woofer cone material: Glass fiber
• High-Resolution Audio: Certified

Identifiers & Packaging

• Manufacturer Part Number (MPN): XR-1701P
• UPC: 019048230294
• Sold As: Pair
• Included Components: Two woofers, two tweeters, external crossover networks, installation hardware, and manufacturer-supplied documentation as packaged by Kenwood
