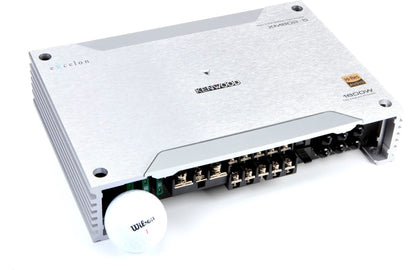

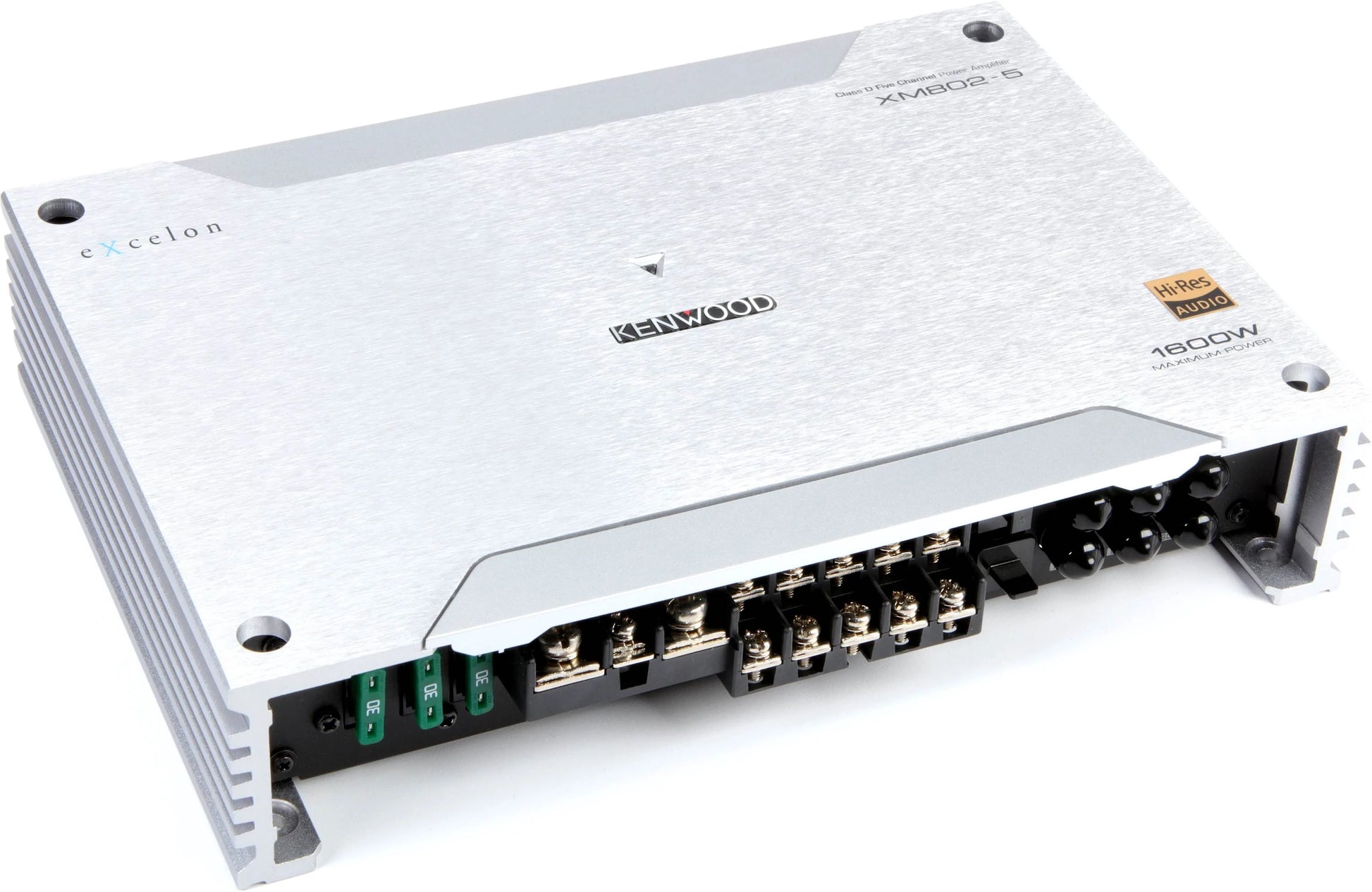

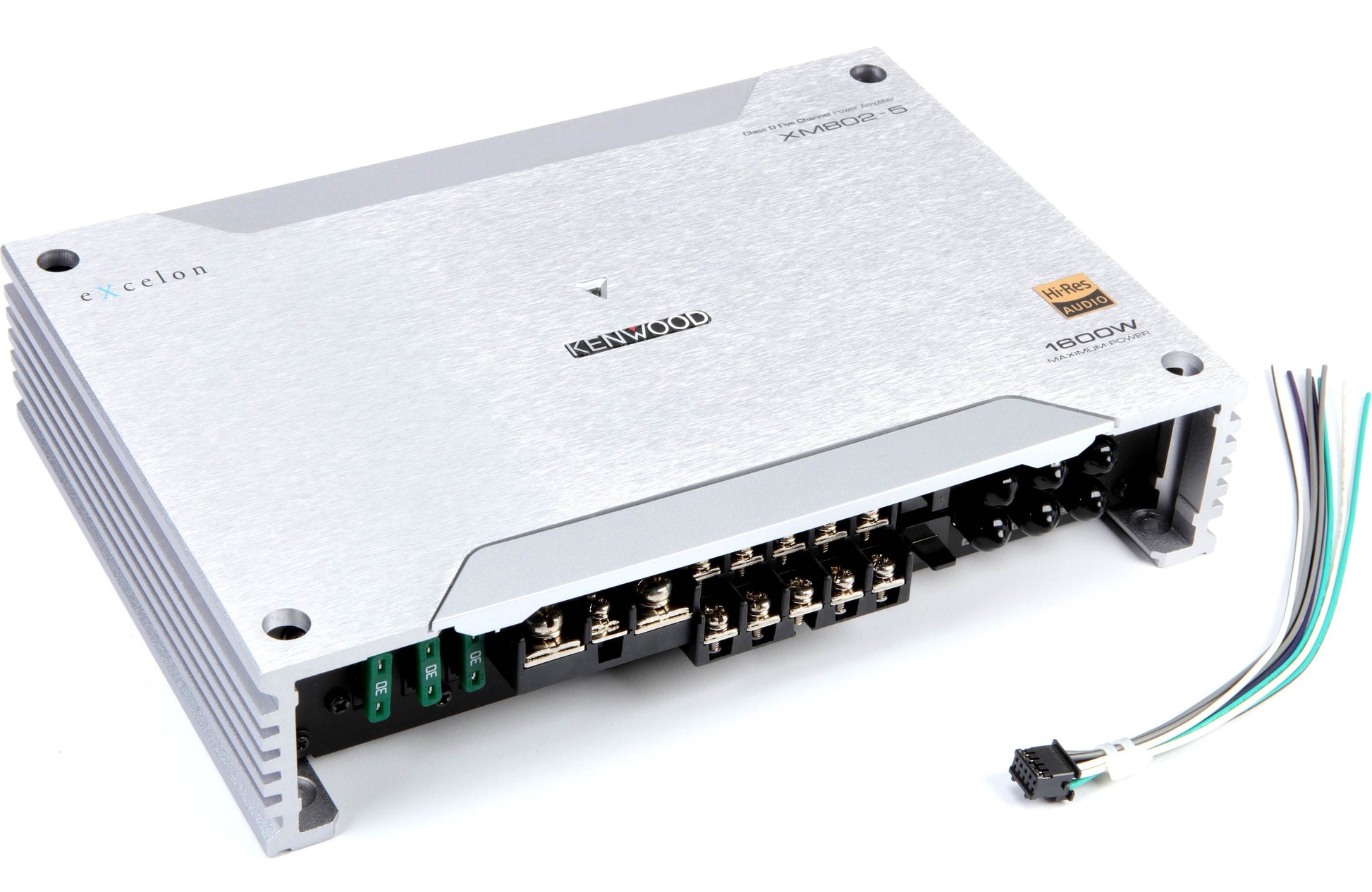

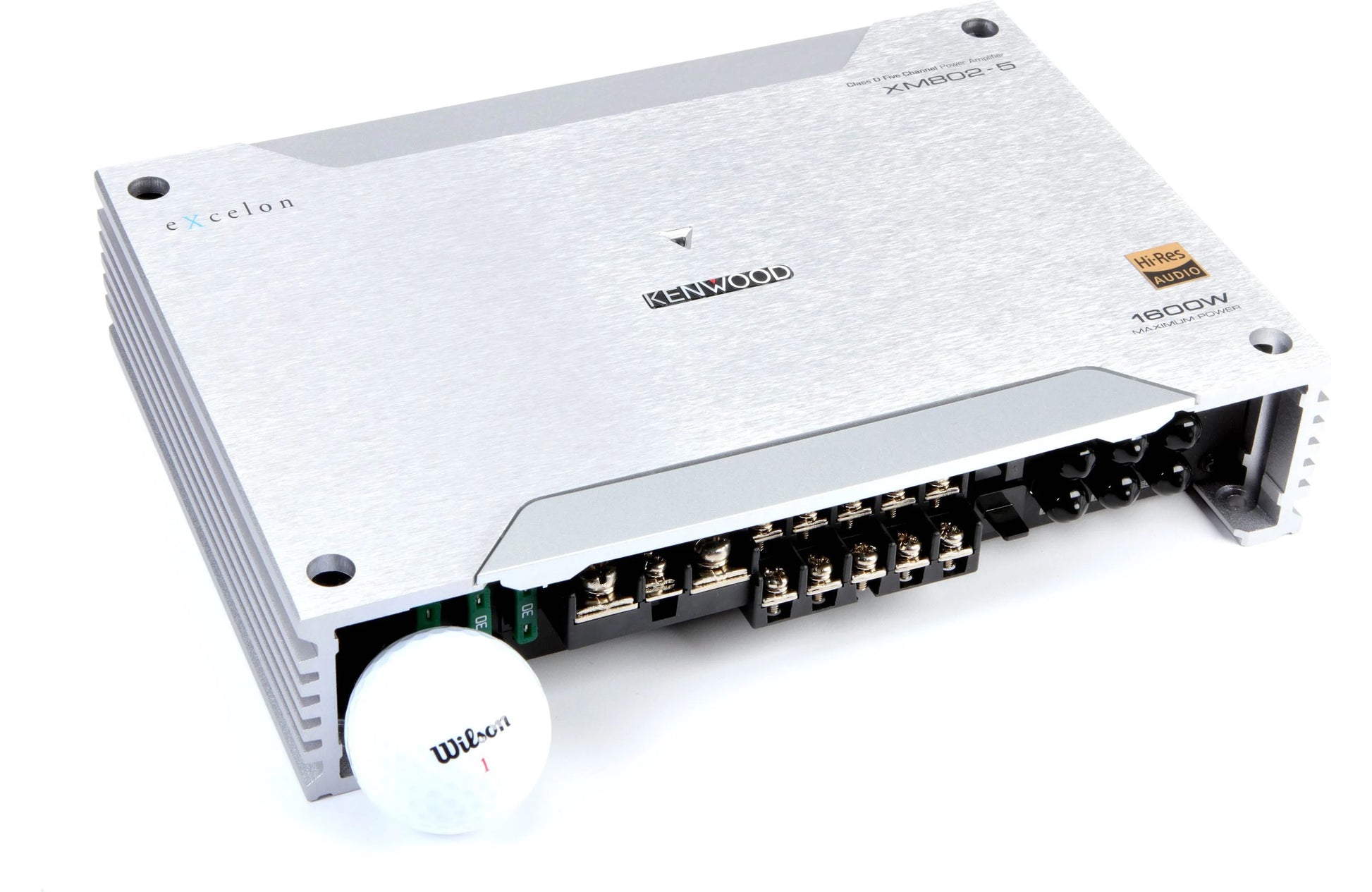

Kenwood eXcelon XM802-5 5-Channel Marine Amplifier 1600W Max 500W Sub

***This Item requires an additional 3-5 Days Handling Time***

The Kenwood eXcelon XM802-5 is a compact 5-channel Class D marine and motorsports amplifier built for systems that need full-range speaker power plus dedicated subwoofer output from one chassis. Its conformal-coated design and compact footprint make it a strong fit for boats, powersports builds, and space-limited installs where durability and clean power both matter.

For buyers building a complete amplified marine audio system, the XM802-5 delivers the flexibility to run front and rear speakers along with a subwoofer while keeping installation simpler than using multiple amplifiers.

Key Features

• 5-channel Class D marine / motorsports amplifier
• 1600 watts max power
• 50W x 4 + 300W x 1 RMS at 4 ohms
• 75W x 4 + 500W x 1 RMS at 2 ohms
• 150W x 2 bridged at 4 ohms + 300W x 1
• Conformal-coated circuit board for marine use
• Speaker-level inputs
• Signal sensing turn-on
• High-Resolution Audio support

Inputs & Integration

• Amplifier type: 5-channel Class D
• Inputs: RCA preamp inputs and speaker-level inputs
• Signal sensing: Signal Sensing Turn-On supported
• Remote bass control: Optional wired remote ready
• Application: Marine, powersports, and vehicle audio system builds requiring speaker and subwoofer amplification from one amplifier

Power & System Control

• RMS power at 4 ohms: 50W x 4 + 300W x 1
• RMS power at 2 ohms: 75W x 4 + 500W x 1
• Bridged power: 150W x 2 at 4 ohms + 300W x 1
• High-pass filter: Variable 50Hz to 200Hz
• Low-pass filter: Variable 50Hz to 200Hz
• Bass boost: 0dB to 18dB
• Built to run full-range speakers and a dedicated subwoofer from a single chassis

Installation & Fitment Notes

• Chassis size: Compact amplifier footprint for tighter installations
• Dimensions: 9-3/4" W x 2-1/16" H x 6-5/8" D
• Marine construction: Conformal-coated main board for marine and motorsports environments
• Proper power wire, fuse protection, ground connection, and amplifier mounting location are required and sold separately unless stated otherwise
• Final performance depends on correct speaker impedance, gain setting, wiring, and system design

Technical Specifications

• Model: XM802-5
• Amplifier class: Class D
• Channels: 5
• Maximum power: 1600W
• RMS at 4 ohms: 50W x 4 + 300W x 1
• RMS at 2 ohms: 75W x 4 + 500W x 1
• Bridged RMS: 150W x 2 at 4 ohms + 300W x 1
• Variable high-pass filter: 50Hz to 200Hz
• Variable low-pass filter: 50Hz to 200Hz
• Bass boost: 0dB to 18dB
• Speaker-level input: Yes
• Signal sensing turn-on: Yes
• High-Resolution Audio: Supported

Identifiers & Packaging

• Manufacturer Part Number (MPN): XM802-5
• UPC: 019048233851
• Sold As: Each
• Included Components: Amplifier, mounting screws, and manufacturer-supplied documentation as packaged by Kenwood
