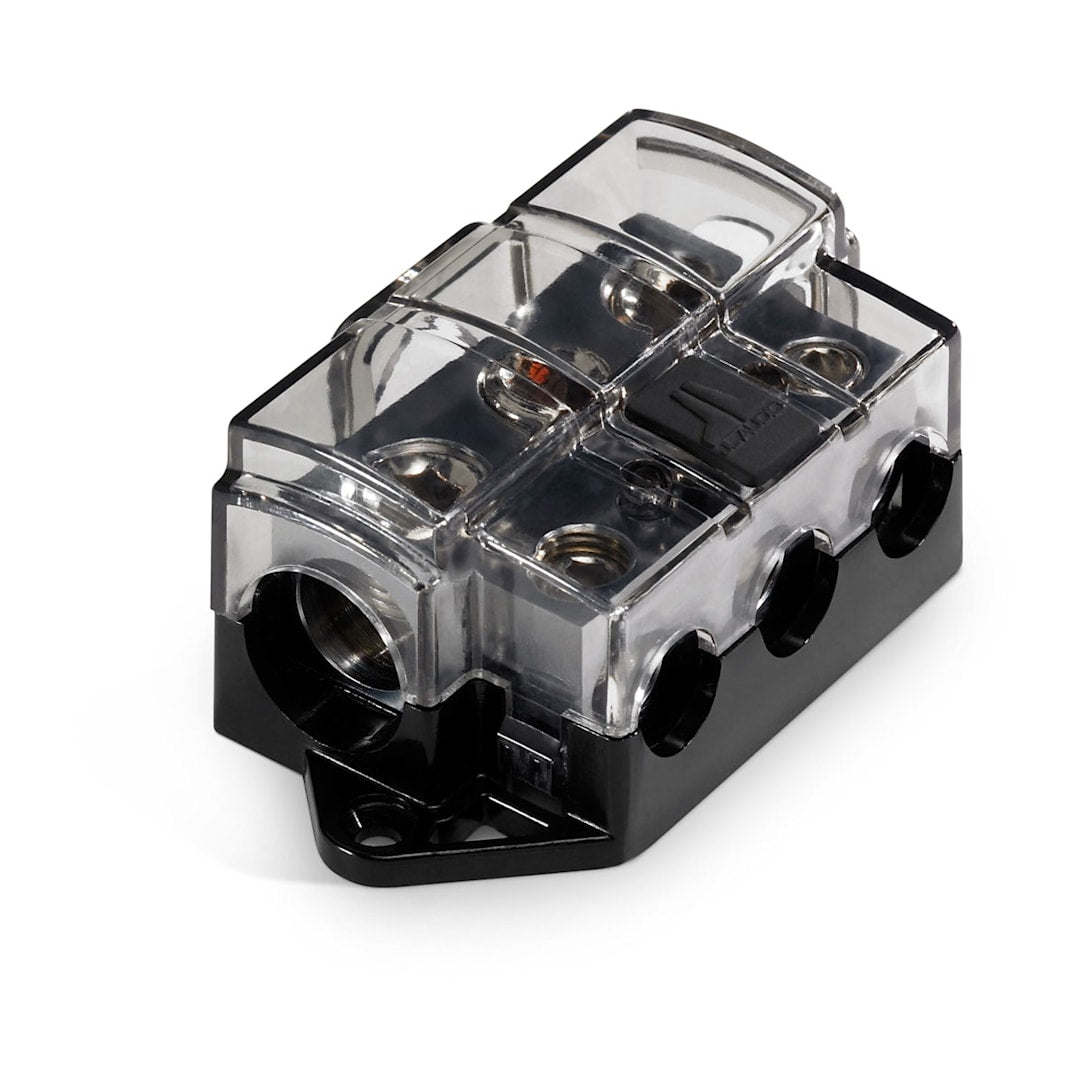

JL Audio 3-Way Power Distribution Block (XD-PDBU-3X) - 010-13457-00 (90364)

JL Audio XD-PDBU-3X 3-Way Power Distribution Block is an unfused power distribution block engineered to split a single high-current power feed into three smaller branch circuits. It is designed for multi-amp automotive, marine, and powersports audio systems where clean, centralized power routing is required without adding fuse redundancy at the distribution point.

The block accepts large input cable from 1/0 to 4 AWG and distributes to three output runs that accept 4 AWG to 8 AWG wire. JL’s OmniSert™ captured-wire receptacles allow secure terminations across mixed gauges without needing additional reducers or sleeves. Forged and machined brass internals with marine-grade plating deliver excellent conductivity and corrosion resistance, while a high-temperature polycarbonate cover provides insulation and protection.

Key Features

• Unfused 3-way power distribution block for high-current audio systems
• Single input accepts 1/0 AWG – 4 AWG cable
• Three outputs accept 4 AWG – 8 AWG cable
• OmniSert™ captured-wire receptacles for secure mixed-gauge connections
• Forged & machined brass internals with marine-grade plating
• High-temperature polycarbonate protective cover
• Compact form factor suitable for battery, helm, or rack installs

Technical Specifications

Ideal Applications

• Multi-amplifier power distribution
• Marine & powersports audio systems needing corrosion-resistant hardware
• Battery-side power management in custom builds
• Compact centralized distribution in amp racks or helms

What’s Included

• JL Audio XD-PDBU-3X 3-way power distribution block
• Protective polycarbonate cover
• Hardware (as supplied by JL Audio)

Why Buy From MCOR Automotive

• Authorized JL Audio dealer with real-world power management expertise
• Guidance on gauge selection & system layout for multi-amp builds
• Post-sale support for installation & troubleshooting questions

Fitment & Installation Help

Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.

Authorized Retailer & Warranty

MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
