JL Audio
JL Audio Premium Power Connection Kit, 1/0 AWG 12V, Two Amplifiers (XD-PCS1/0-2B) - 010-13640-00 (90352)
JL Audio Premium Power Connection Kit, 1/0 AWG 12V, Two Amplifiers (XD-PCS1/0-2B) - 010-13640-00 (90352)
Couldn't load pickup availability
***This item may have an additional 3 days handling time***
JL Audio XD-PCS1/0-2B Premium Power Connection Kit — 1/0 AWG, Two Amplifiers is the highest-capacity Premium series dual-amplifier kit JL Audio offers, engineered for substantial current delivery in automotive, marine, and powersports applications. It uses oversized true-spec 1/0 AWG pure OFC conductors for extremely low resistance and stable voltage supply to demanding amplifier configurations.
The kit includes Maxi® battery-side master fuse protection and a dual fused distribution block to safely branch the main power feed to two amplifiers. The included remote turn-on lead supports synchronized amplifier activation from a head unit or DSP. If you’re running real multi-amp power, this is the correct JL Premium kit.
Key Features
- Top-tier Premium dual-amplifier power kit
- True-spec 1/0 AWG OFC power & ground conductors
- Maxi® master fuse holder + dual fused branch distribution
- Remote turn-on lead included
- Ideal for marine racks, automotive multi-amp builds, and high-load systems
Technical Specifications
| Model | XD-PCS1/0-2B Premium Power Connection Kit |
| Garmin PN | 010-13640-00 |
| JL Legacy PN | 90357 |
| UPC | 699440903578 |
| Main Conductor Size | 1/0 AWG OFC (power & ground) |
| Distribution | Dual fused branch feeds for two amplifiers |
| Fuse Protection | Maxi® battery fuse + dual branch fuses (as supplied) |
| Remote Lead | 18 AWG remote turn-on |
| Application | High-current, dual-amplifier configurations |
| Approx. Shipping Weight | ~7.0 lb |
Ideal Applications
- High-output dual amplifier systems with true current demand
- Marine multi-zone racks & helm power systems
- Automotive trunk or rear-seat multi-amp layouts
- Powersports custom builds requiring real current distribution
- Upgrades from 2 AWG/4 AWG kits for lower voltage drop & headroom

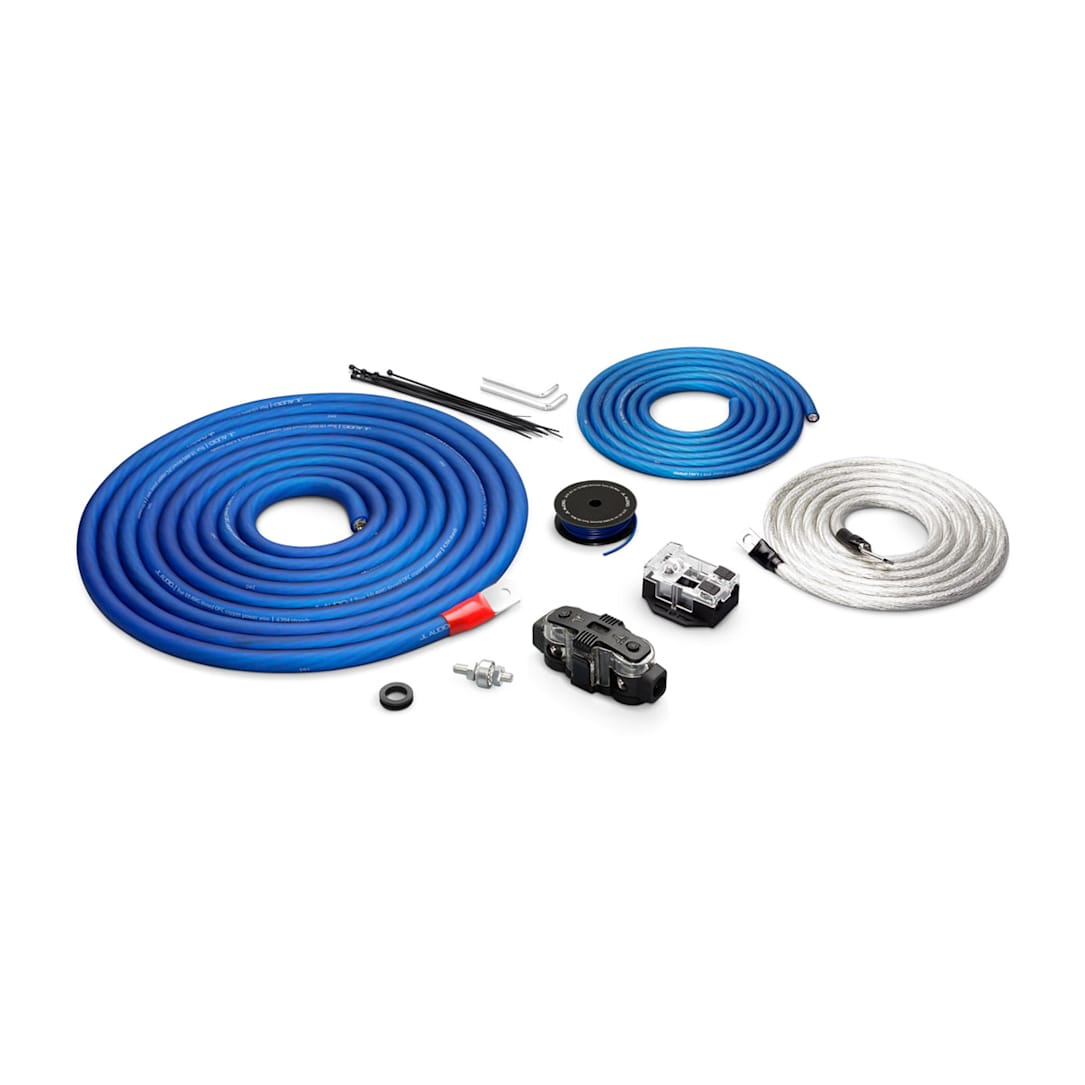

What’s Included
- JL Audio XD-PCS1/0-2B 1/0 AWG Premium dual-amp power kit
- Maxi® inline master fuse holder + fuse
- Dual fused distribution block + branch fuses
- 1/0 AWG OFC power & ground wiring (lengths as supplied by JL)
- 18 AWG remote turn-on wiring
- Hardware & routing accessories (as supplied)
- Installation documentation
Why Buy From MCOR Automotive
- Authorized JL Audio dealer with real-world high-current system expertise
- Support selecting correct conductor size, fuse rating & distribution strategy
- Post-sale guidance for routing, grounding & noise mitigation best practices
