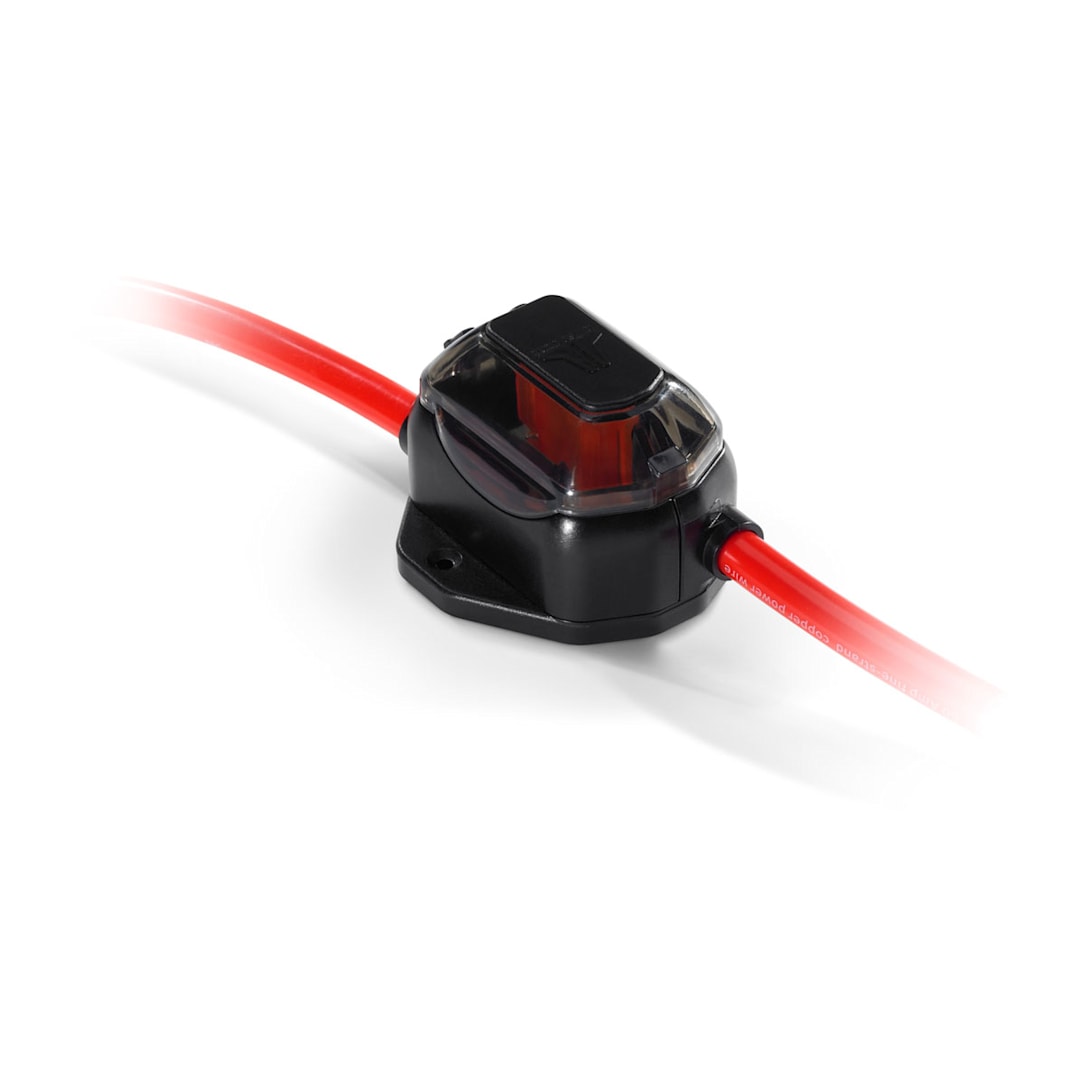

JL Audio Water-Resistant Master MAXI™ Fuse Block (XD-MFBW-MAXI) - 010-13485-00 (90469)
JL Audio Water-Resistant Master MAXI™ Fuse Block (XD-MFBW-MAXI) - 010-13485-00 (90469)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio XD-MFBW-MAXI Water-Resistant Master MAXI™ Fuse Block is a compact, marine-grade master fuse block designed to protect the main power cable feeding your amplifier or distribution system. It uses a genuine MAXI™ blade fuse and accepts a wide range of cable sizes, making it ideal for high-current automotive and marine audio installs.
OmniSert™ captured-wire receptacles allow secure terminations from 8 AWG up to 4 AWG power wire without separate adapter sleeves. Forged and machined brass construction with marine-grade plating ensures excellent conductivity and long-term corrosion resistance, while the high-temperature polycarbonate base and hinged cover provide insulation and protection in harsh environments.
Key Features
- Water-resistant Master MAXI™ fuse block for main power protection
- Designed for high-current amplifier or system power feeds
- OmniSert™ captured-wire receptacles accept 8 AWG–4 AWG power wire
- Forged & machined brass with marine-grade plating
- High-temperature polycarbonate base and hinged protective cover
- Uses a single MAXI™ blade fuse (sold separately)
- Fuse can be removed/installed without removing the cover (service-friendly design)
Technical Specifications
| Model | XD-MFBW-MAXI Water-Resistant Master MAXI™ Fuse Block |
| Garmin PN | 010-13485-00 |
| JL Legacy PN | 90469 |
| UPC | 699440904698 |
| Wire Size Compatibility | 8 AWG to 4 AWG power wire (OmniSert™ receptacles) |
| Fuse Type | MAXI™ blade fuse (1 required, sold separately) |
| Construction | Forged & machined brass, marine-grade plated |
| Base / Cover | High-temperature polycarbonate, water-resistant hinged cover |
| Approx. Shipping Weight | ~1.0 lb (packaged) |
Ideal Applications
- Main power protection for a single high-current amplifier
- Marine and powersports systems where water resistance is critical
- Custom installs needing a compact, clean master fuse location near the battery
What’s Included
- JL Audio XD-MFBW-MAXI water-resistant master MAXI™ fuse block
- Protective cover and base (pre-assembled)
- Mounting hardware (as supplied by JL Audio)
