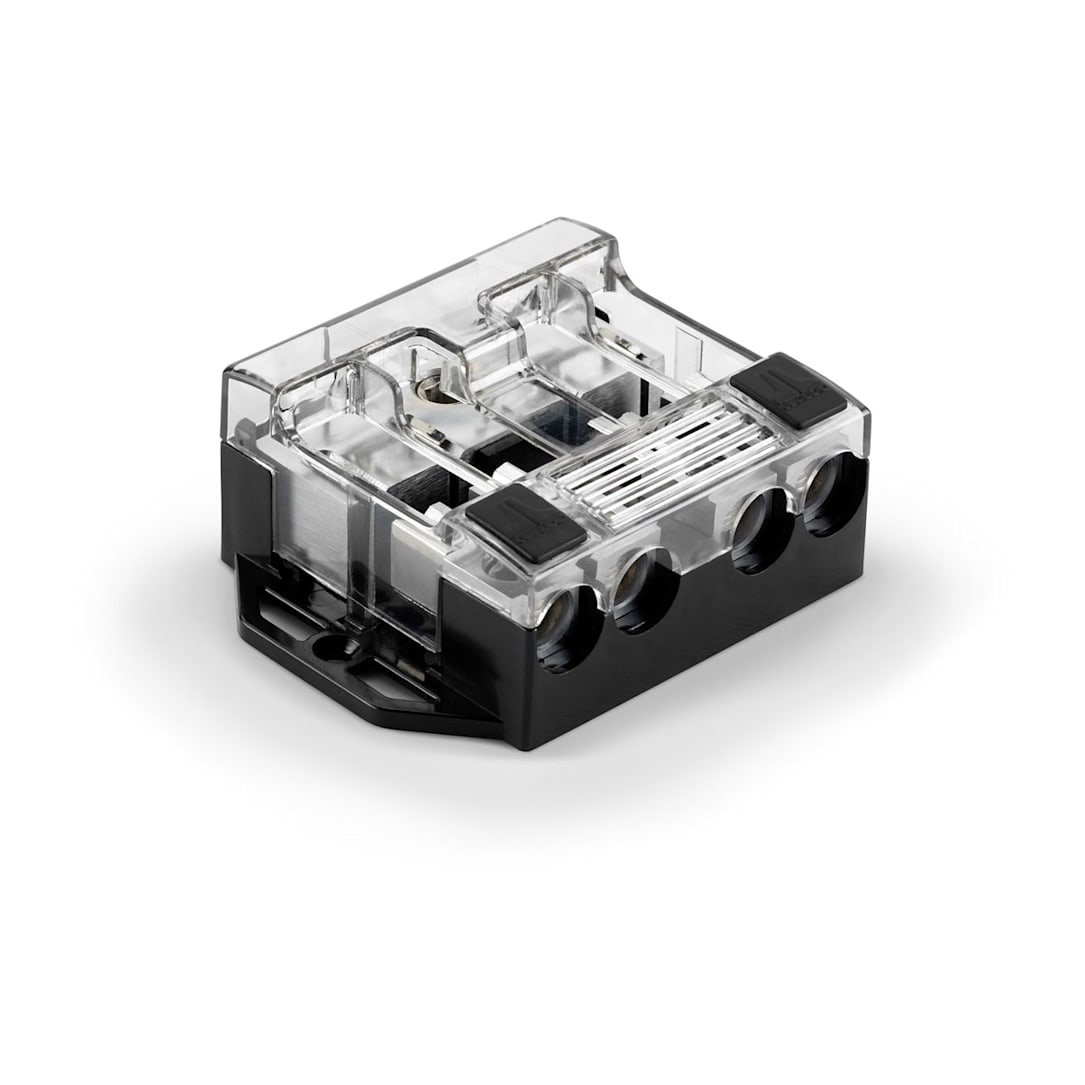

JL Audio Maxi Fuse Distribution Block, 4-way (XD-FDBU-4) - 010-13484-00 (90462)
JL Audio Maxi Fuse Distribution Block, 4-way (XD-FDBU-4) - 010-13484-00 (90462)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio XD-MFBW-MAXI-F Water-Resistant Master MAXI™ Fuse Block is a compact, marine-grade master fuse block designed to protect the main power cable feeding an amplifier or power distribution system. This version includes a MAXI™ blade fuse pre-installed, enabling immediate integration into automotive, marine, or powersports systems.
The block features JL’s OmniSert™ captured-wire receptacles that accept 8 AWG to 4 AWG power wire without additional sleeves. Forged and machined brass construction with marine-grade plating provides excellent current transfer and corrosion resistance. A high-temperature polycarbonate base and hinged cover add durability and water resistance for demanding outdoor environments.
Key Features
- Master MAXI™ fuse block with pre-installed MAXI™ blade fuse
- Designed for main power protection of high-current amplifier systems
- Water-resistant hinged cover for marine & powersports environments
- OmniSert™ wire receptacles accept 8–4 AWG power wire
- Forged & machined brass construction with marine-grade plating
- High-temp polycarbonate base and cover
Technical Specifications
| Model | XD-MFBW-MAXI-F |
| Garmin PN | 010-13484-00 |
| JL Legacy PN | 90468 |
| UPC | 699440904629 |
| Wire Compatibility | 8 AWG – 4 AWG |
| Fuse Type | MAXI™ blade (included) |
| Construction | Forged & machined brass |
| Cover/Base | High-temp polycarbonate, water-resistant |
| Approx. Shipping Weight | ~1.0 lb |
Ideal Applications
- Main power protection for a single high-current amplifier
- Marine and powersports installs needing water-resistant power components
- Battery-side fuse protection for compact custom systems
What’s Included
- JL Audio XD-MFBW-MAXI-F water-resistant master MAXI™ fuse block
- Pre-installed MAXI™ blade fuse
- Protective hinged cover
- Hardware (as supplied by JL Audio)
Why Buy From MCOR Automotive
- Authorized JL Audio dealer with extensive power & marine install experience
- Guidance on fuse sizing, wiring, and layout for multi-amp systems
- Post-sale support for basic installation and troubleshooting
Fitment & Installation Help
Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
Authorized Retailer & Warranty
MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
