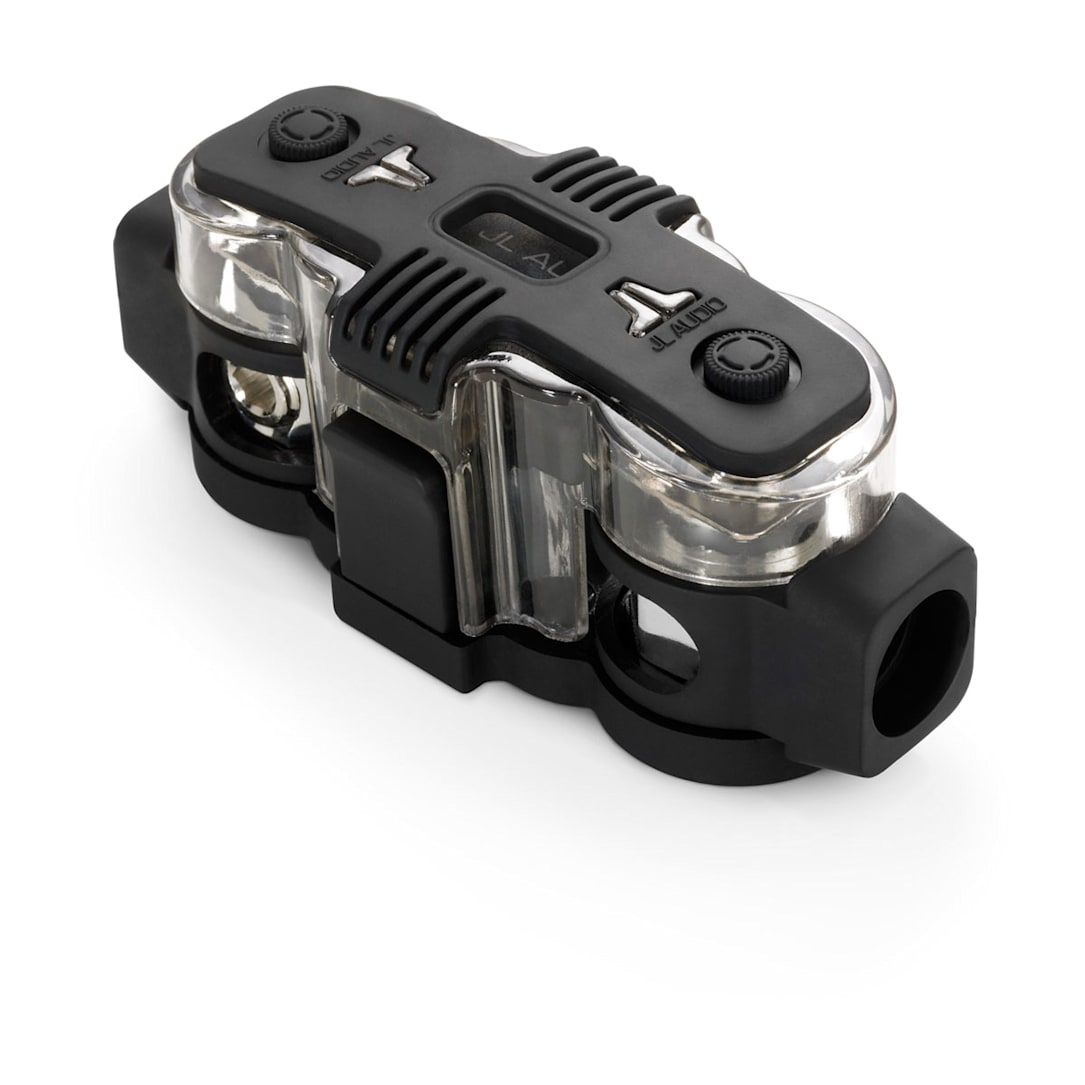

JL Audio Master ANL Fuse Block (XB-MFBU-ANL) - 010-13727-00 (91656)

JL Audio XB-MFBU-ANL Master ANL Fuse Block is a heavy-duty master fuse block engineered to protect the main power wire feeding multiple amplifiers or an entire system. Each wire connection block can rotate to several different entry angles, giving you flexible routing options when working with large-gauge power wire in tight engine or battery compartments.

OmniSert™ captured-wire receptacles accept a wide range of cable sizes from 4 AWG up to 1/0 AWG without separate adapter sleeves. The block is built from forged and machined brass with marine-grade plating, and uses a high-temperature polycarbonate base and cover to provide insulation and protection in demanding automotive and marine environments.

Key Features

• Master ANL fuse block for main power distribution
• Designed to protect larger power wires feeding multiple amplifiers or a full system
• Rotating connection blocks provide multiple wire-entry angles for easier routing
• OmniSert™ captured-wire receptacles accept 4 AWG to 1/0 AWG power wire
• Forged and machined brass construction with corrosion-resistant plating
• High-temperature polycarbonate base and cover for insulation and impact protection
• Requires a single ANL blade fuse (sold separately), up to 250 A maximum

Technical Specifications

Ideal Applications

• Main power protection for multi-amp automotive systems
• Marine and powersports installs where multiple amplifiers share a common battery feed
• High-current systems that need flexible routing of large power cables

What’s Included

• JL Audio XB-MFBU-ANL Master ANL Fuse Block
• Protective cover and base (pre-assembled)
• Mounting hardware (as supplied by JL Audio)
• Documentation / installation sheet
