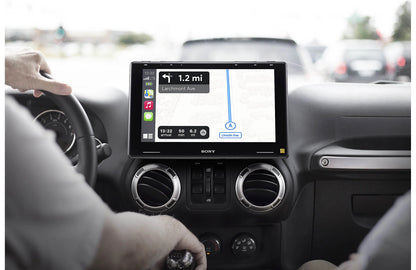

Sony XAV-9500ES 10.1" Wireless CarPlay & Android Auto Floating Single-DIN Receiver

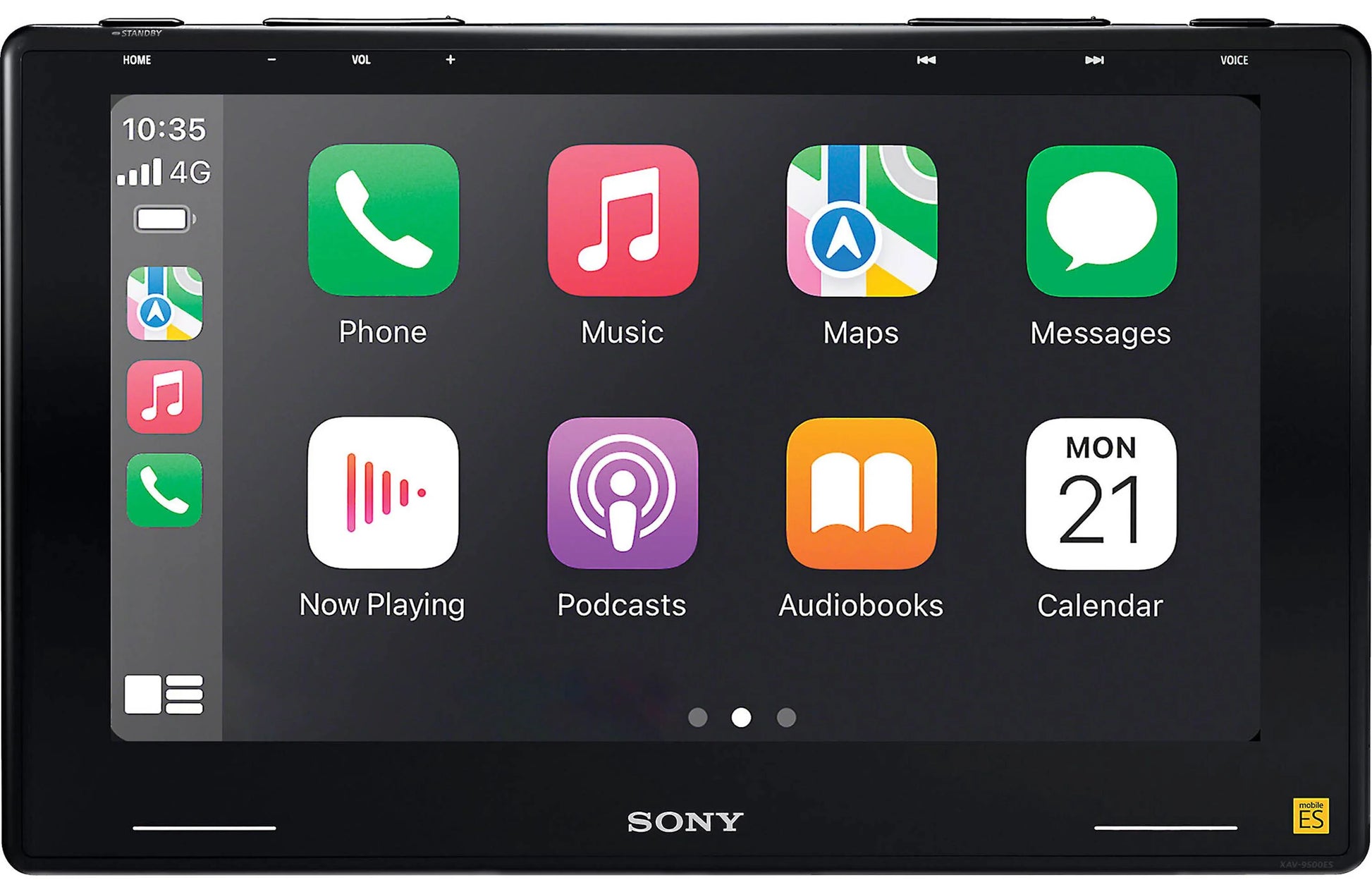

Sony XAV-9500ES is a 10.1-inch floating multimedia receiver designed for smartphone integration, high-resolution playback, and expanded system control in a single-DIN chassis format. It combines a large 1280 x 720 capacitive touchscreen with wireless Apple CarPlay, wireless Android Auto, Bluetooth, and multiple camera inputs.

Key Features

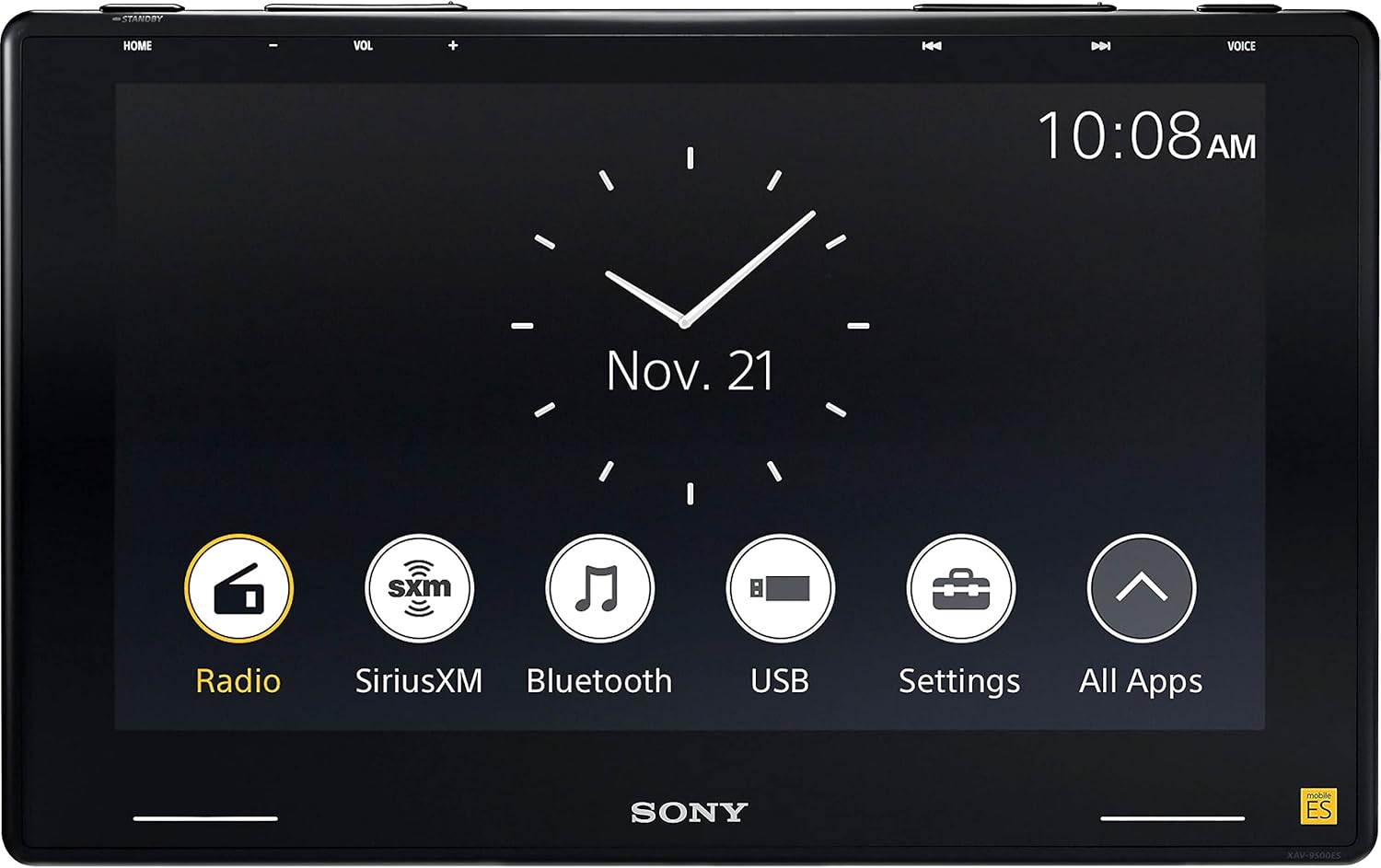

• 10.1" capacitive HD touchscreen with 1280 x 720 resolution
• Wireless Apple CarPlay and wireless Android Auto

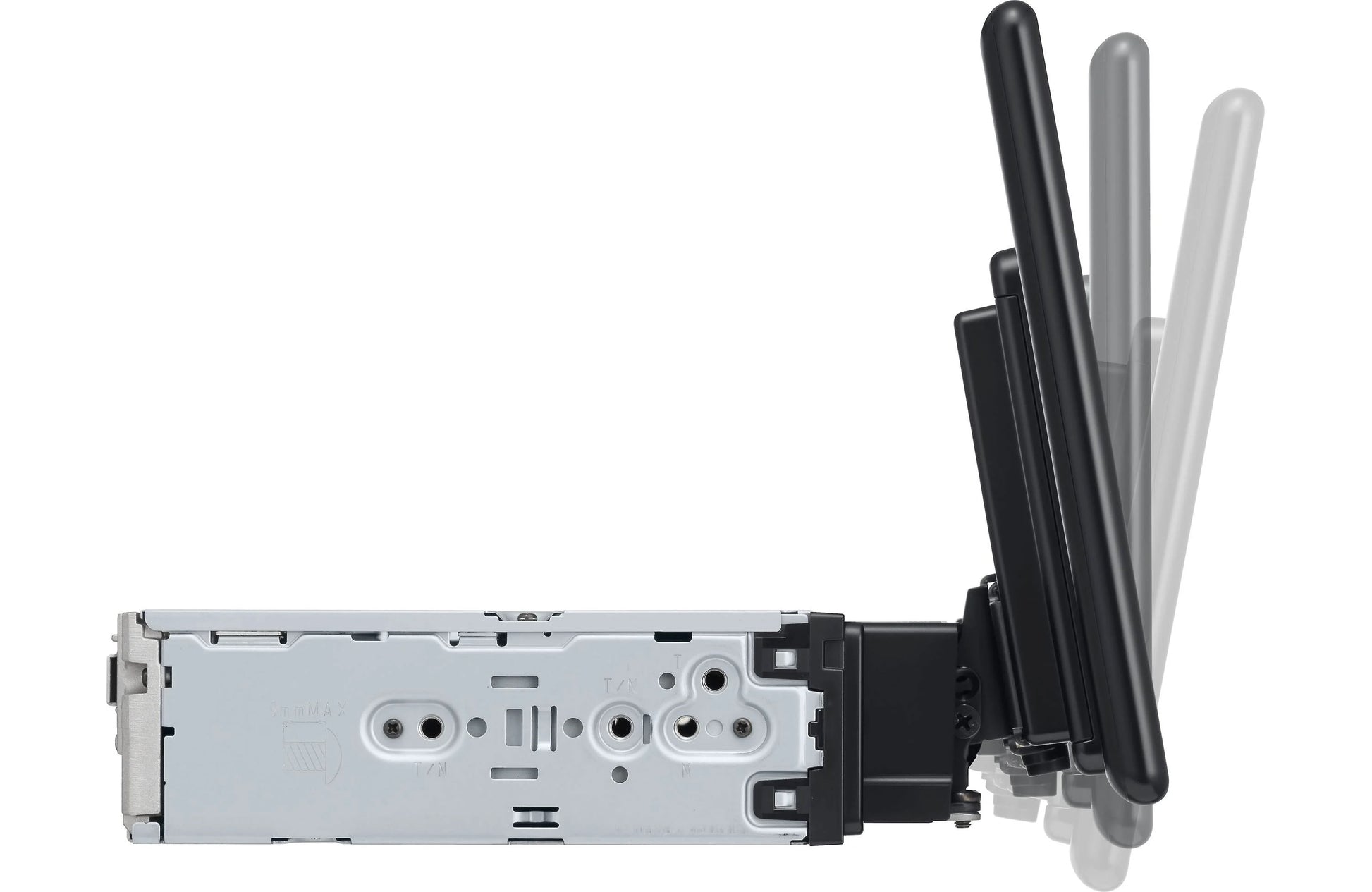

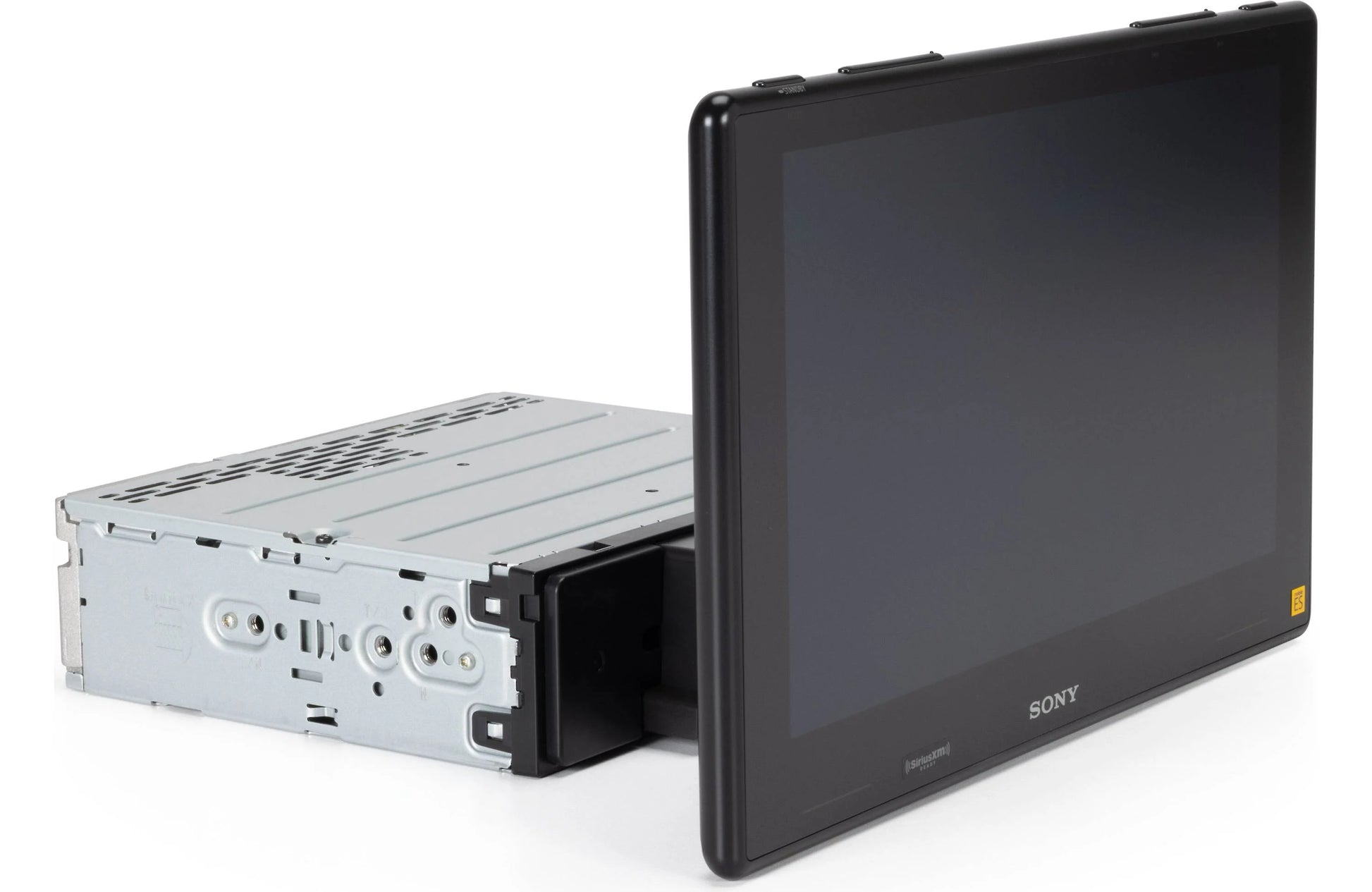

• Single-DIN chassis with floating display design
• Bluetooth hands-free calling and audio streaming
• Rear USB Type-C input
• Rear camera input plus Input 1 / Input 2 camera connectivity
• 14-band equalizer and 8-band parametric equalizer
• 5V front, rear, and subwoofer preamp outputs

Connectivity & Integration

• Wireless Apple CarPlay support
• Wireless Android Auto support
• Bluetooth profiles include HFP, A2DP, AVRCP, and PBAP
• Rear USB Type-C connection for compatible media playback
• Rear-view camera input plus additional Input 1 / Input 2 camera connections
• Compatible with iDatalink Maestro RR integration module (sold separately; vehicle-dependent)

Audio & System Control

• 14-band graphic equalizer

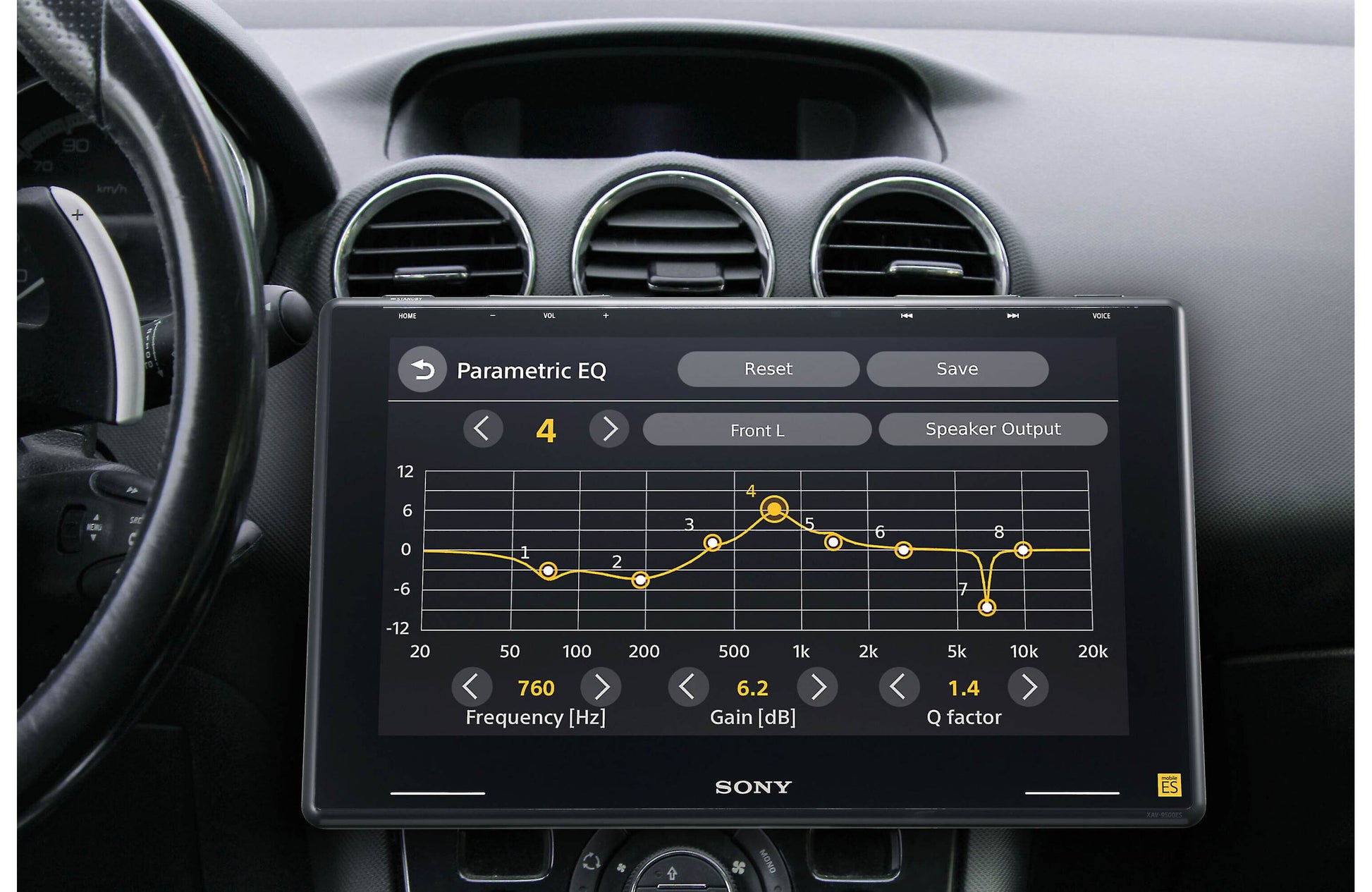

• 8-band parametric equalizer
• Time alignment
• 5V 3-preout configuration: Front / Rear / Subwoofer
• Built-in amplifier rated at 55W x 4 max output
• Bluetooth audio codec support includes SBC, AAC, and LDAC
• Supports external amplifiers and subwoofer system expansion

Installation & Fitment Notes

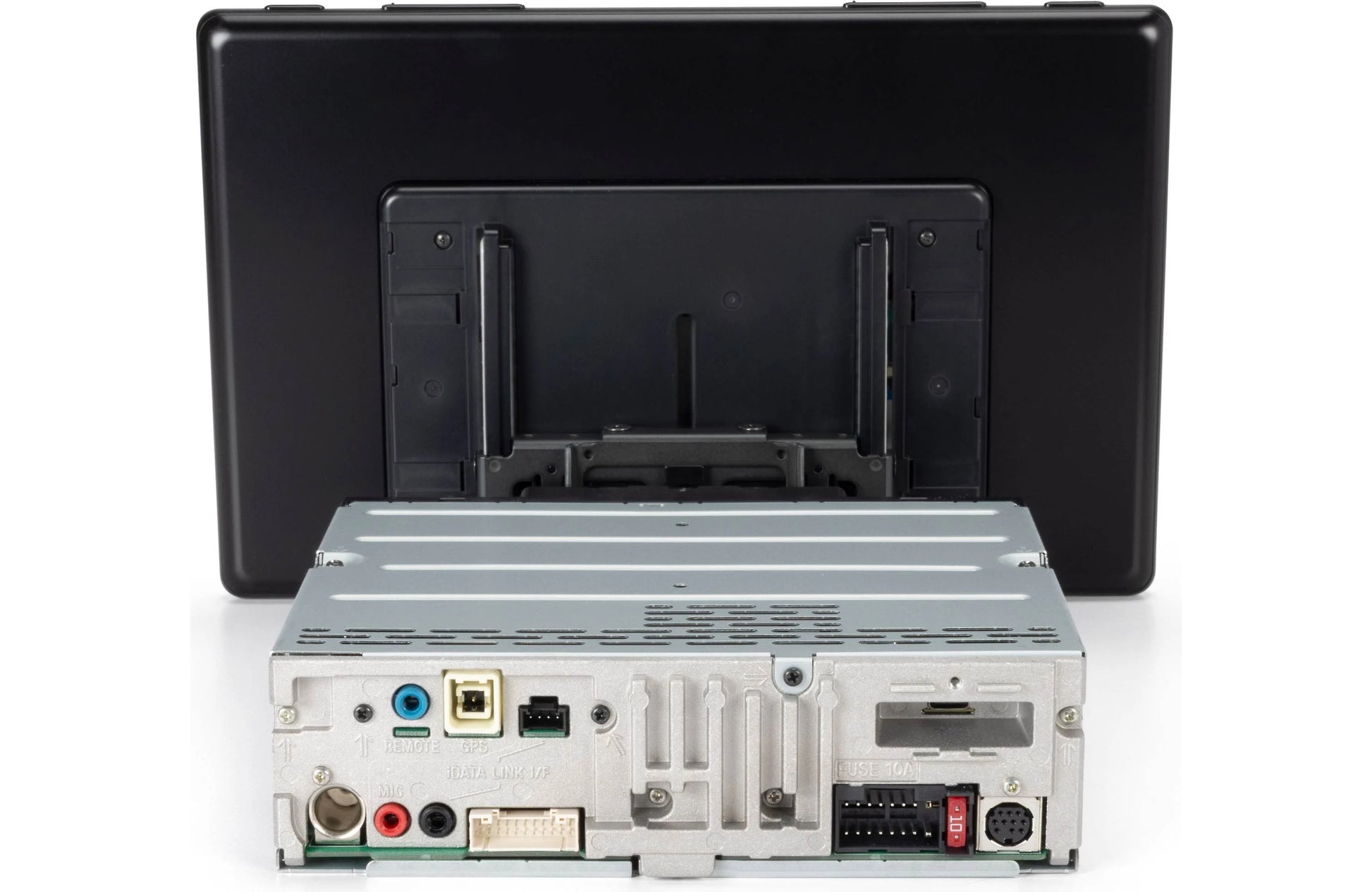

• Single-DIN chassis with floating display
• Large screen format requires vehicle-specific clearance verification before installation
• Vehicle-specific dash kit, wiring harness, antenna adapter, and integration modules may be required and are sold separately
• Maestro features and retention functions vary by vehicle when applicable

Technical Specifications

• Brand: Sony
• Model: XAV-9500ES
• Screen Size: 10.1" / 257 mm
• Screen Resolution: 1280 x 720
• Touchscreen Type: Capacitive
• Smartphone Integration: Wireless Apple CarPlay / Wireless Android Auto
• Chassis Type: Single-DIN with floating display
• Preamp Outputs: 5V Front / Rear / Subwoofer
• Built-In Amplifier Output: 55W x 4
• USB: Rear USB Type-C x 1
• Bluetooth Audio Codecs: SBC / AAC / LDAC
• Camera Inputs: Rear / Input 1 / Input 2
• Radio Tuner Presets: FM18 / AM12

Identifiers & Packaging

• Manufacturer Part Number (MPN): XAV-9500ES
• UPC: 027242918191
• Sold As: Each

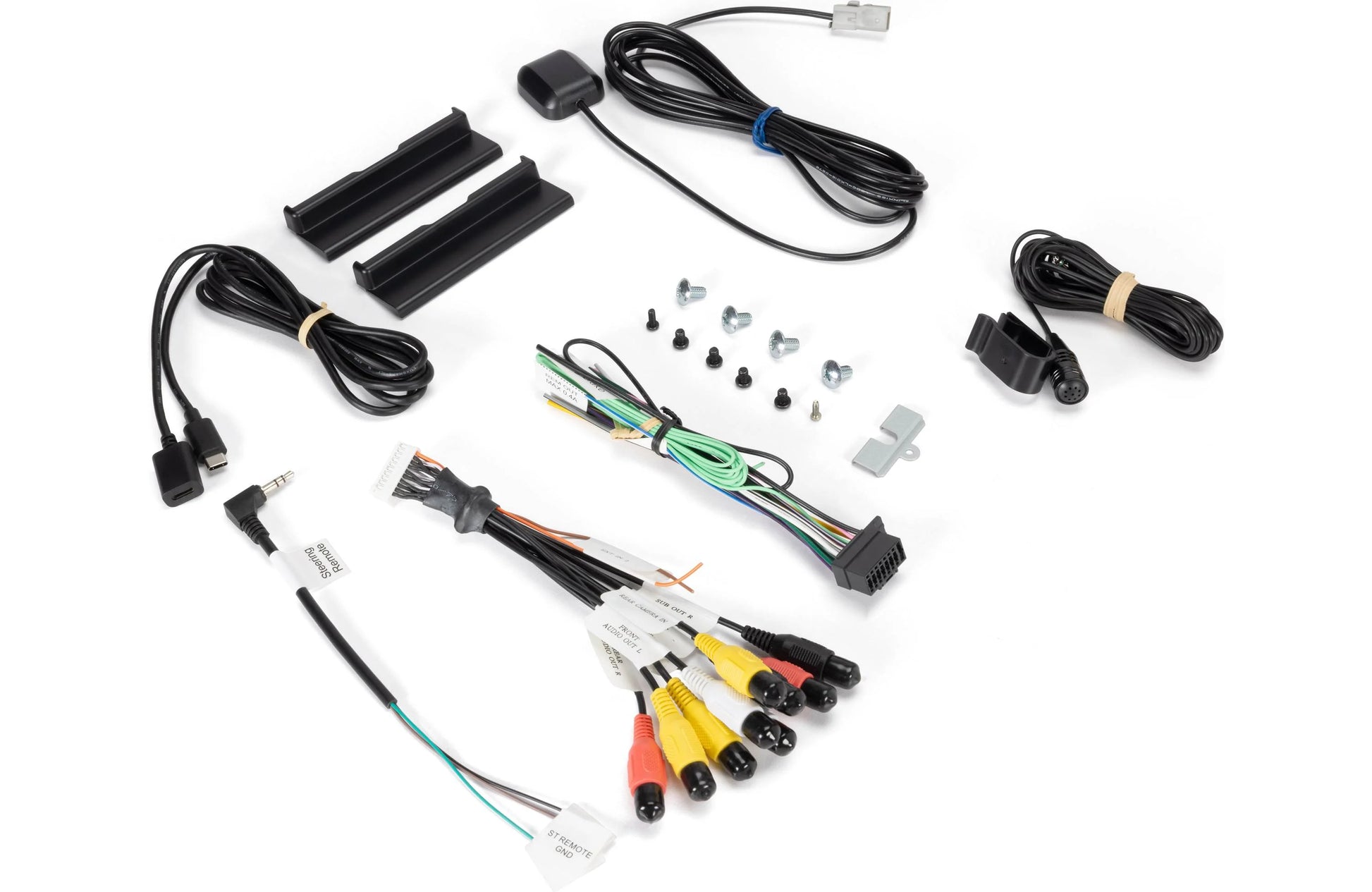

• Included Components: Receiver, external microphone, power supply leads, connection cables (audio/camera), USB extension cable (Type-C), GPS antenna, warranty card

Compatibility / Installation Notes

• Vehicle-specific installation parts are sold separately unless specifically included in this product.
• Most installations require the correct dash kit, wiring harness, antenna adapter, steering wheel control interface, Maestro-compatible parts, speaker adapters, camera retention parts, or other vehicle-specific accessories.
• Use the MCOR Fit Guide or the chat button on this page for help matching installation parts to your vehicle year, make, model, trim, and factory audio system.
