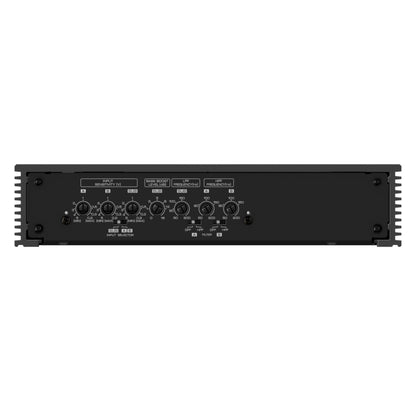

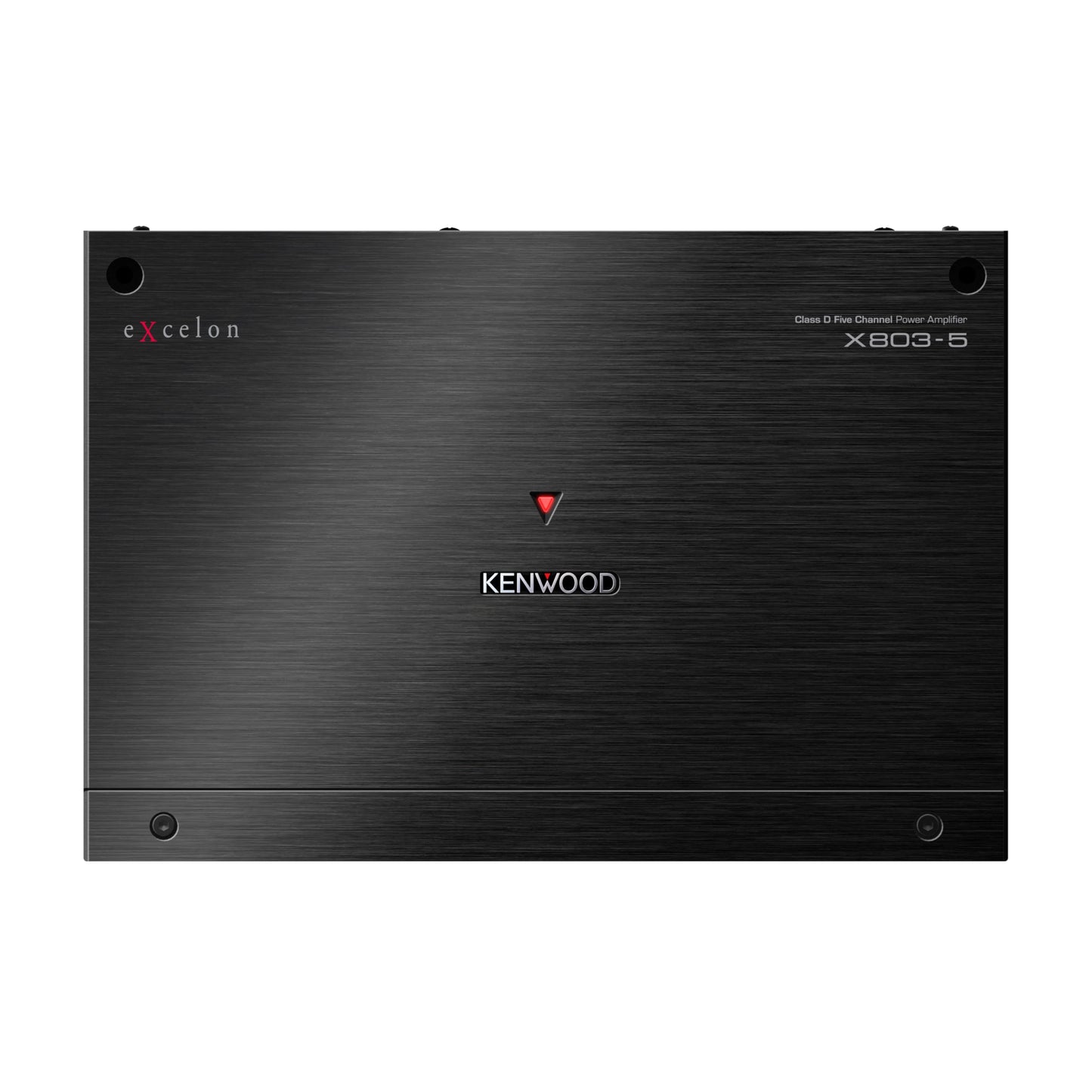

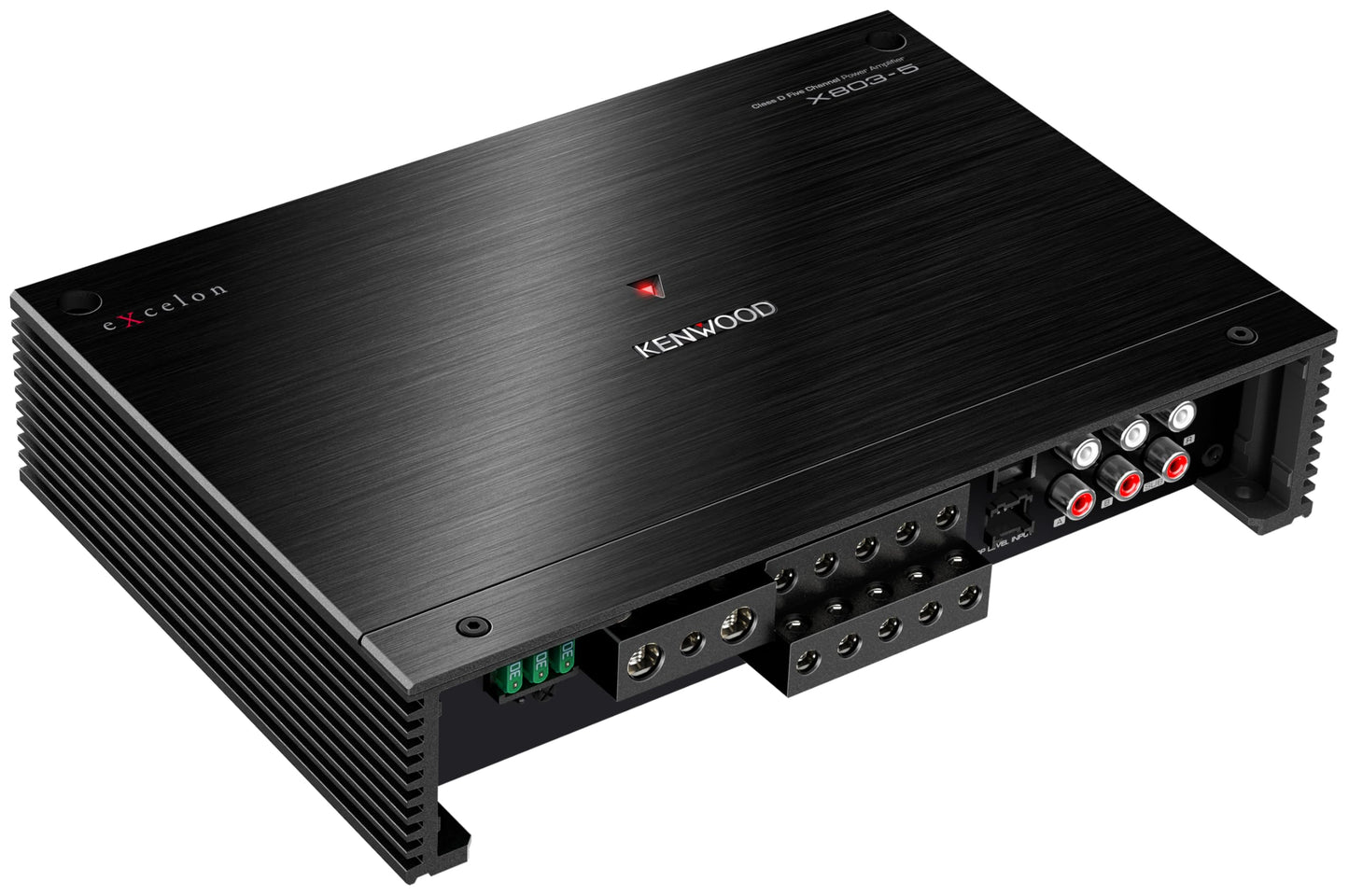

Kenwood eXcelon X803-5 1600-Watt 5-Channel Class D Car Amplifier

The Kenwood eXcelon X803-5 is a compact 5-channel Class D amplifier built for buyers who want to power a full speaker system and subwoofer from one chassis without giving up installation flexibility. Its smaller eXcelon chassis makes it easier to fit in tighter vehicle spaces while still delivering clean output for front and rear speakers plus dedicated subwoofer power.

This amplifier is rated at 50 watts RMS x 4 plus 300 watts RMS x 1 at 4 ohms, 75 watts RMS x 4 plus 500 watts RMS x 1 at 2 ohms, and 150 watts RMS x 2 bridged plus 300 watts RMS x 1 at 4 ohms, with a 1600-watt max power rating. Kenwood also equips it with variable high-pass and low-pass filters, bass boost, speaker-level inputs, a wired remote, and High-Resolution Audio certification, making it a strong fit for clean all-in-one system builds.

Key Features

• 1600-watt 5-channel Class D amplifier
• 50 watts RMS x 4 + 300 watts RMS x 1 at 4 ohms
• 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
• 150 watts RMS x 2 bridged + 300 watts RMS x 1 at 4 ohms
• Compact eXcelon chassis
• Variable high-pass and low-pass filters
• Bass boost
• Speaker-level inputs
• Wired remote included
• High-Resolution Audio certified
• 2-year warranty

Connectivity & Integration

• Amplifier type: 5-channel Class D full-range/subwoofer amplifier

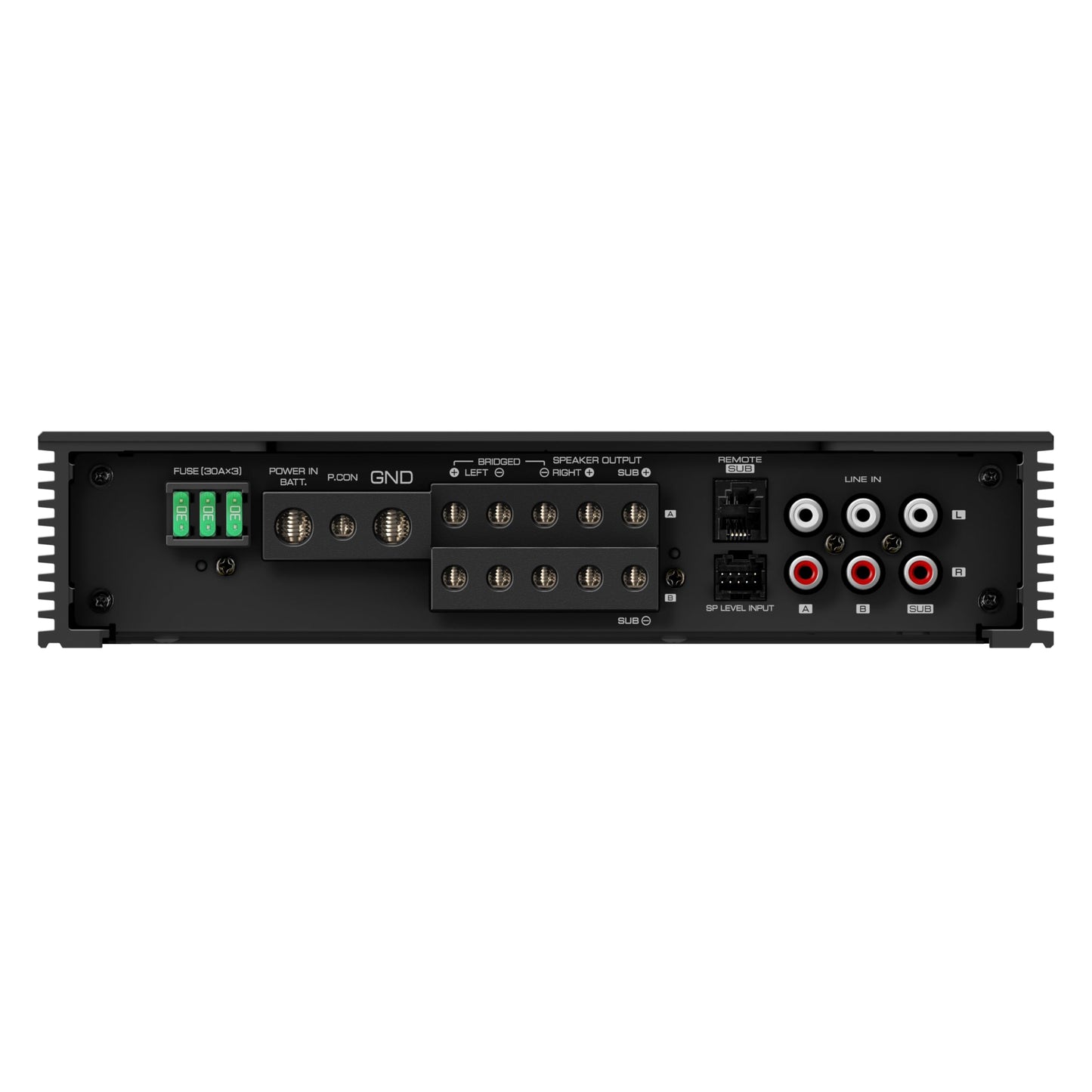

• Speaker-level input: Yes, for easier integration with compatible factory or aftermarket source units
• Remote level control: Wired remote included
• Application: Designed to power front and rear speakers plus a dedicated subwoofer channel from one amplifier
• Audio certification: High-Resolution Audio certified

Power & System Control

• 50W x 4 + 300W x 1 RMS at 4 ohms
• 75W x 4 + 500W x 1 RMS at 2 ohms
• 150W x 2 bridged + 300W x 1 at 4 ohms
• 1600W max power rating

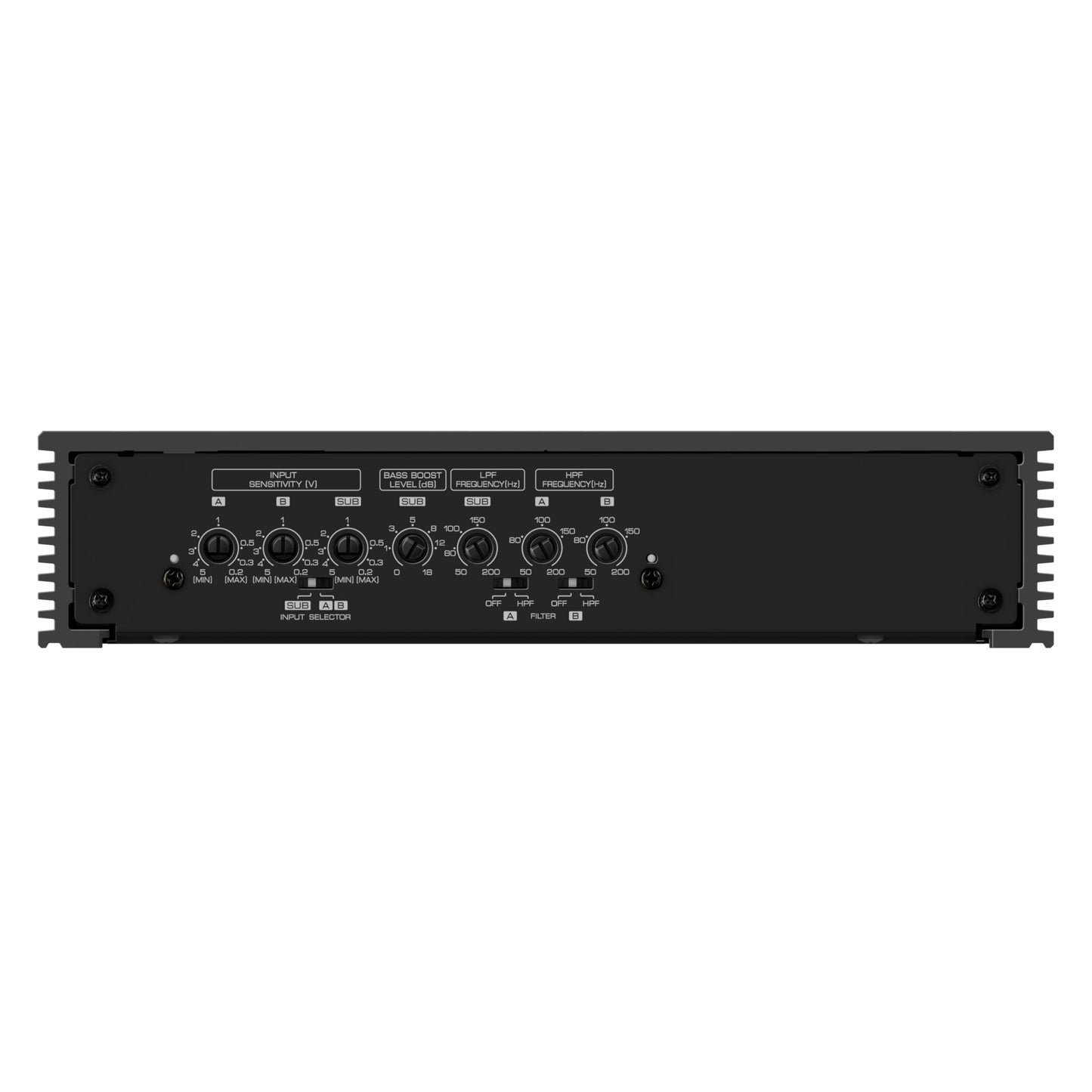

• Variable high-pass and low-pass filters for flexible system tuning
• Bass boost adds low-frequency emphasis when desired
• Compact design works well in builds where space is limited but full-system power still matters

Installation & Fitment Notes

• Amplifier type: 5-channel full-range/subwoofer amplifier
• Chassis size: Compact footprint for easier mounting in tighter spaces
• Dimensions: 9-3/4" W x 2-1/16" H x 6-5/8" D
• Proper power wire, ground, fuse protection, and speaker load configuration should be confirmed before installation
• This amplifier is designed for full-system use with four speaker channels plus one subwoofer channel

Technical Specifications

• Model: X803-5
• Amplifier class: Class D
• Channels: 5
• RMS power at 4 ohms: 50W x 4 + 300W x 1
• RMS power at 2 ohms: 75W x 4 + 500W x 1
• Bridged power at 4 ohms: 150W x 2 + 300W x 1
• Maximum power: 1600W
• High-pass filter: Variable
• Low-pass filter: Variable
• Bass boost: Yes
• Speaker-level inputs: Yes
• Dimensions: 9-3/4" x 2-1/16" x 6-5/8"

Identifiers & Packaging

• Manufacturer Part Number (MPN): X803-5
• UPC: 019048240248
• Sold As: Each
• Included Components: X803-5 amplifier, wired remote, speaker-level input harness, installation hardware, and manufacturer-supplied documentation
