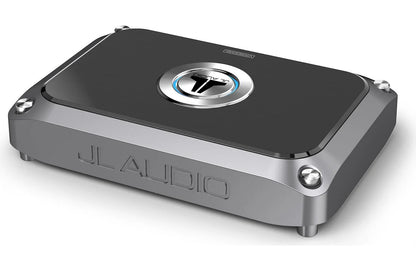

JL Audio VX600/6i 4 Channel Class D Full Range Amplifier, 600W 010-03171-00 (98639)
JL Audio VX600/6i 4 Channel Class D Full Range Amplifier, 600W 010-03171-00 (98639)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Part Number 010-03171-00
6-Channel Class D Full-Range Amplifier with Integrated DSP, 100 W x 6 @ 2 Ω / 75 W x 6 @ 4 Ω - 14.4V
Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With our second-generation NexD2™ technology, the VX600/6i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up a rock-solid 200 W x 3.

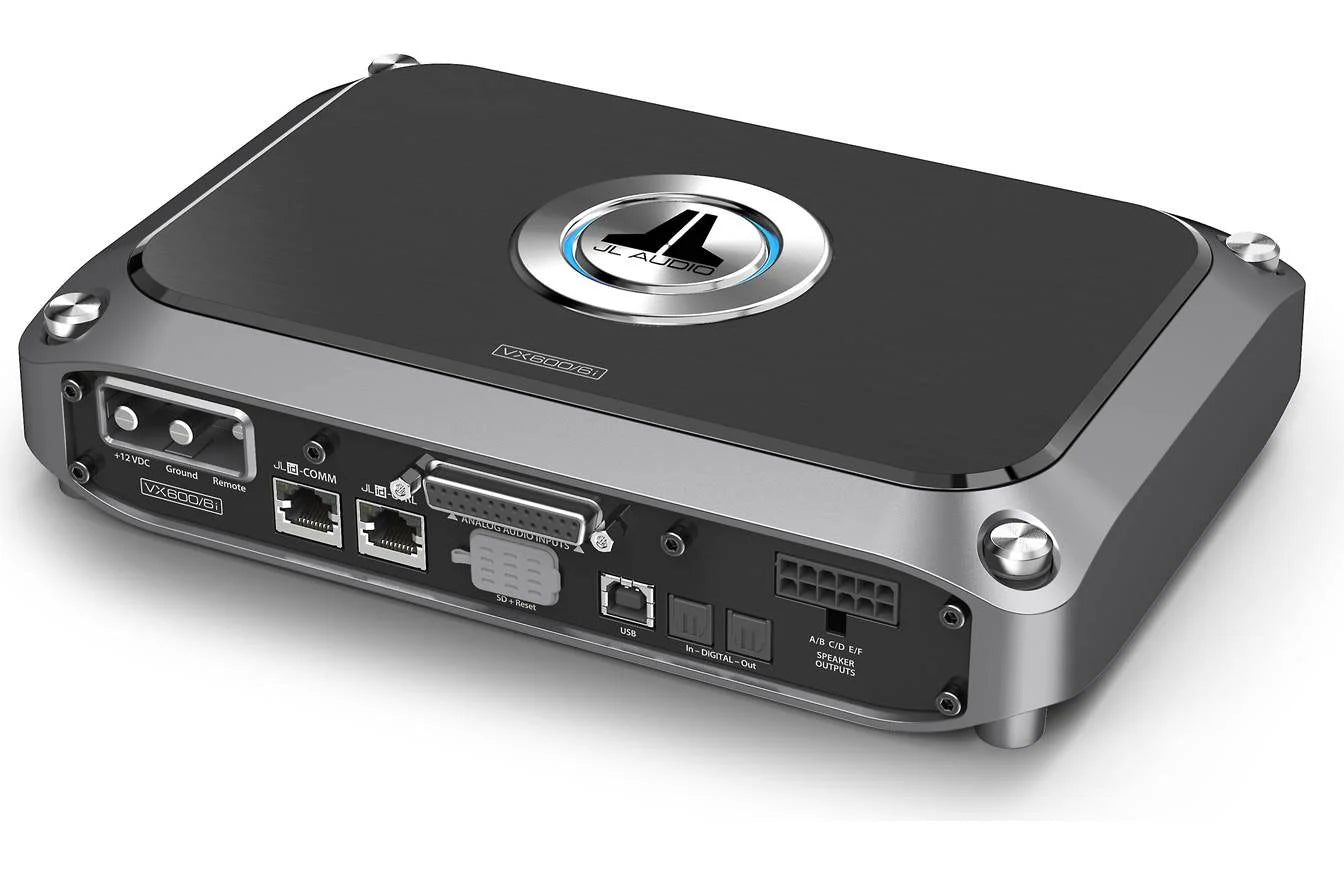

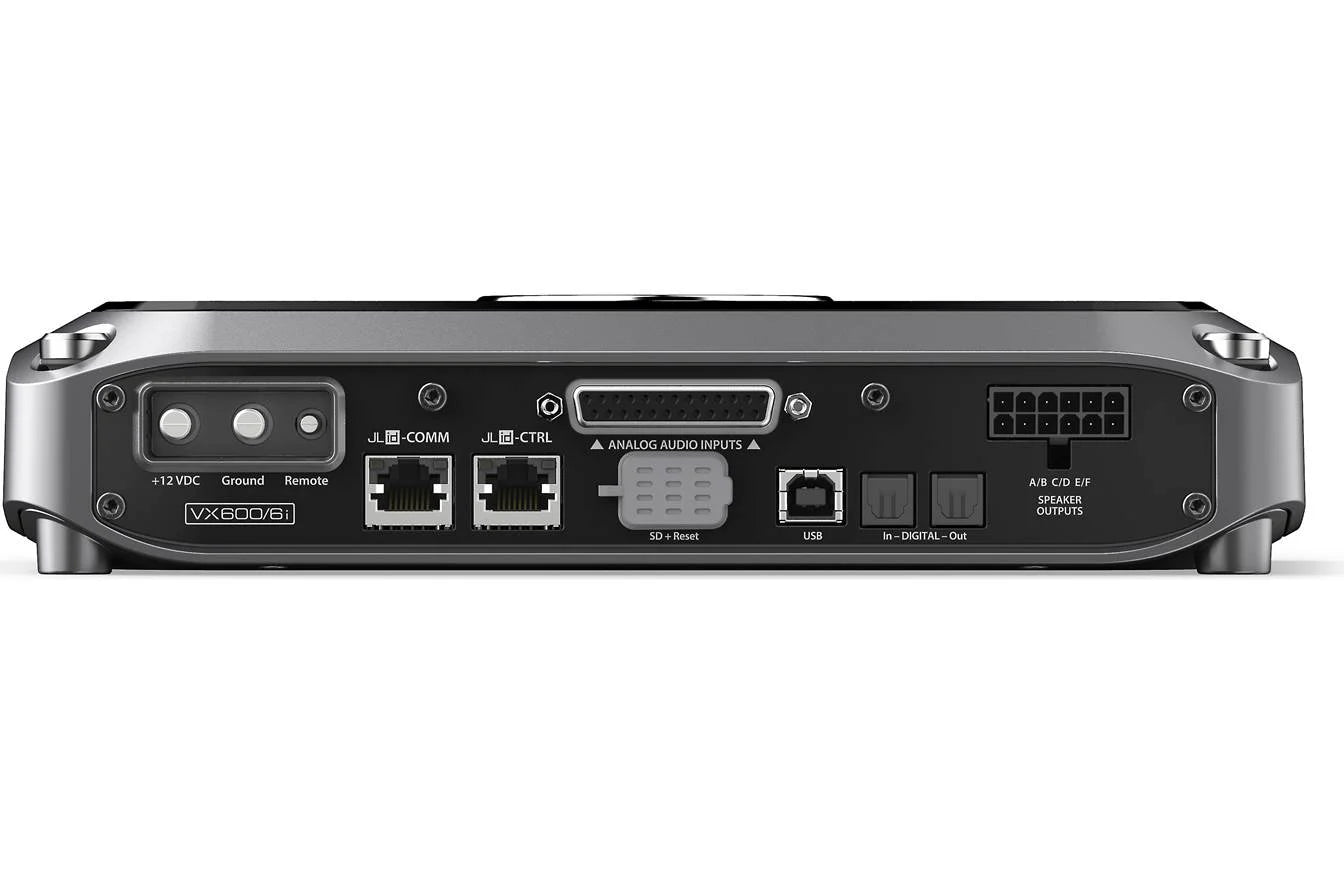

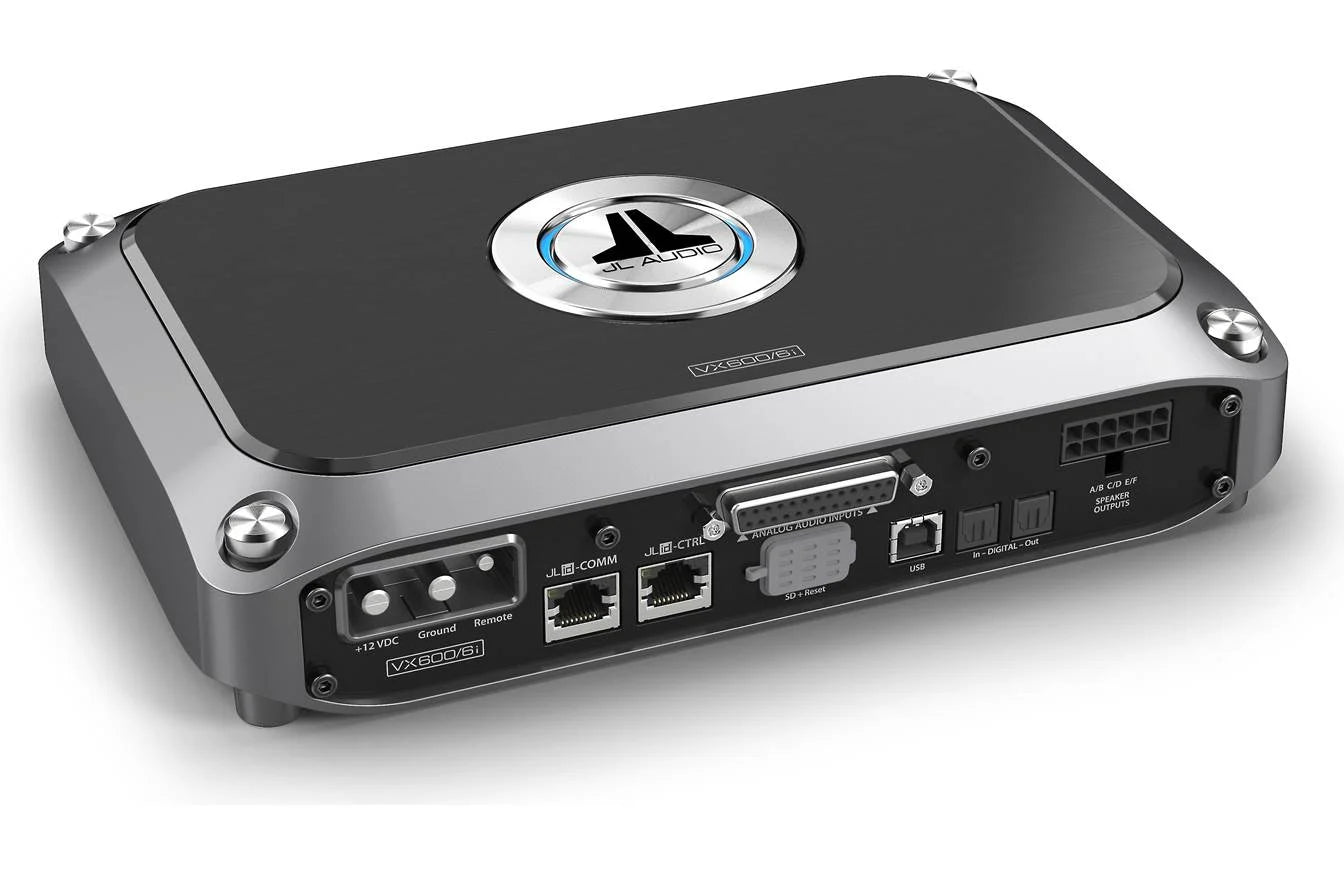

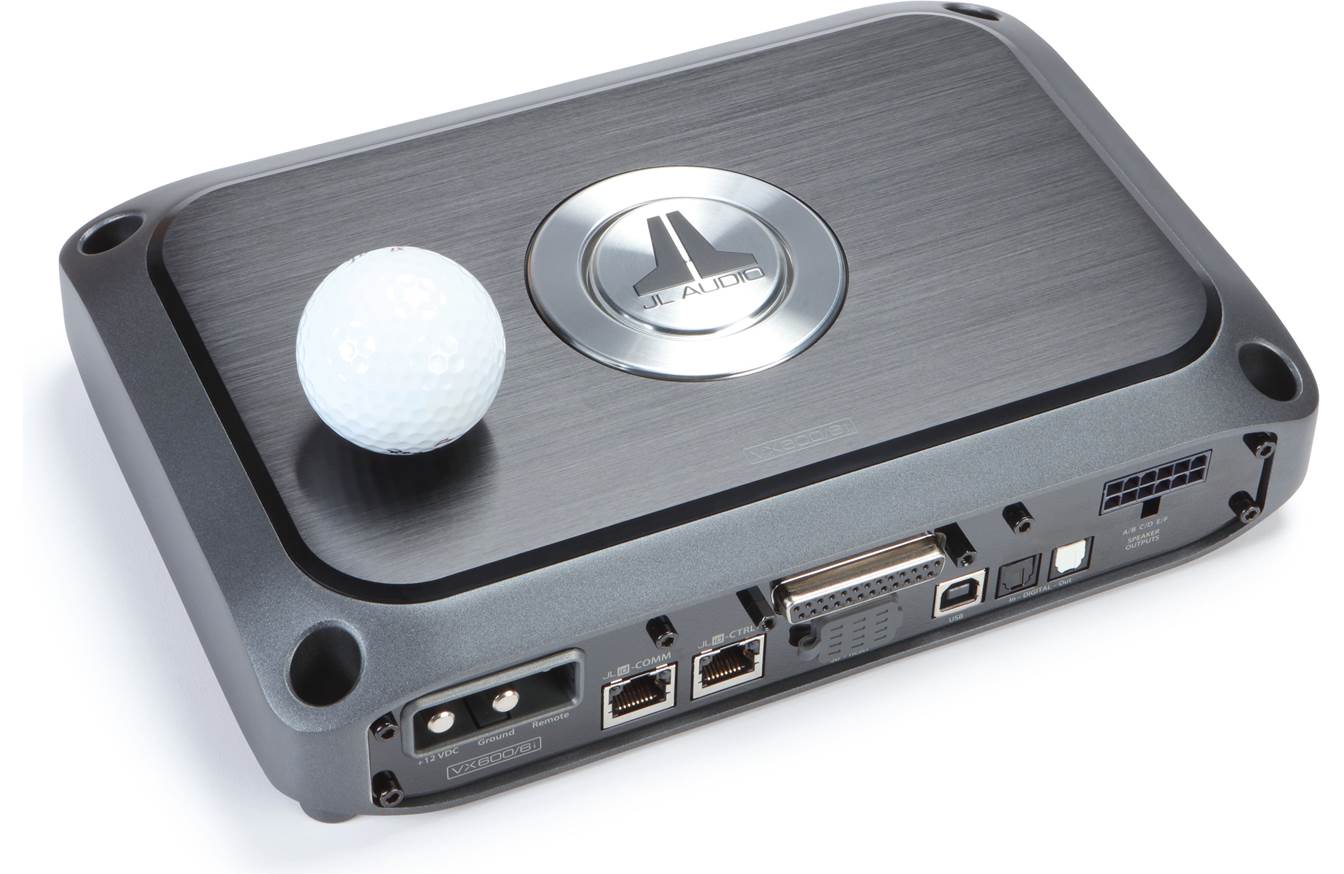

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

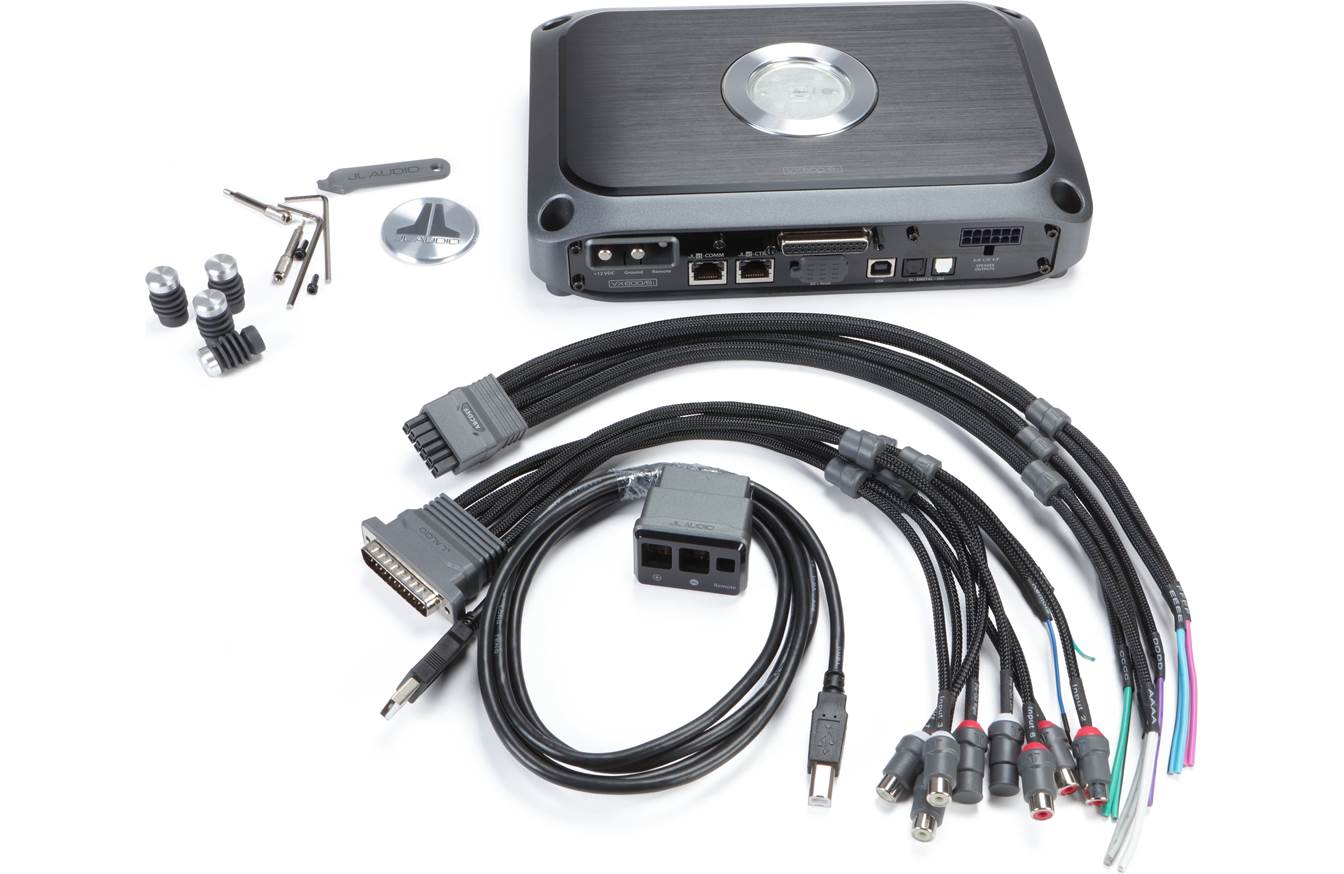

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable
Features:
Unprecedented, Onboard DSP Tuning Power!
- Powerful DSP permits optimizing each channel’s timing, frequency response and output levels, for exceptional sound quality.
- TüN™ Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN™ software is available for computers and most handheld devices.
2nd-Gen NexD2™ Switching Amplifier Technology
- Advanced, high-speed switching technology delivers reference-grade power and efficiency.
- DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.
Ultra-Versatile Analog and Digital Inputs/Outputs
- Differential-Balanced Analog Inputs accept speaker level signals up to 16V RMS, including those from factory systems. Delivers outstanding noise rejection to prevent alternator whine and other noises.
- Optical Digital (Toslink) Inputs permit direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
- Analog and Digital Pre-Outs (pass-through or fully configurable): RCA Pre-Outs (4V RMS Max) and Optical (Toslink) Output at 24 bit/96 kHz
- Automatic turn-on options via signal-sensing or DC-offset sensing
JLid™ System Command and Control with Networking Capabilities
- Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid™ accessories, including:
VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS® or Android® device.
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 75 W RMS x 6 |
| @ 2 Ω | 100 W RMS x 6 |
| Bridged @ 4Ω | 200 W RMS x 3 |
General Specifications
| Frequency Response | 12 Hz - 21 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Analog Inputs) | 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs) | 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Digital Inputs) | 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Digital Inputs) | 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >100 / 50 Hz |
| Damping Factor @ 2 Ω | >50 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 16 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Physical Specifications
| Height (H) | 2.12 in / 54 mm |
| Width (W) | 9.81 in / 250 mm |
| Depth (D) | 6.62 in / 168 mm |
| Net Weight | 5.55 lb / 2.5 kg |
