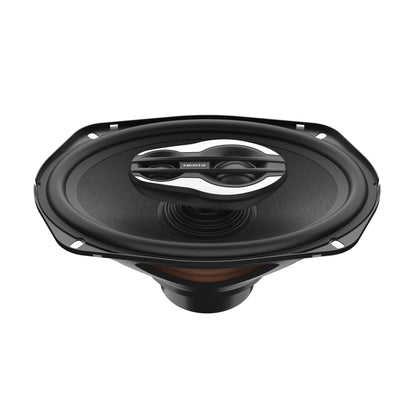

Hertz SX 690 H 6x9" 3-Way Harley-Davidson Bag Speakers, 130W RMS, 4Ω, Pair
Hertz SX 690 H 6x9" 3-Way Harley-Davidson Bag Speakers, 130W RMS, 4Ω, Pair
Available to order
Confirm fit and what is included. Additional installation parts may be required; review the product details before ordering.
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Hertz SX 690 H NEO is a 6x9-inch SPL coaxial speaker set engineered as a drop-in bag speaker solution for 2024 Harley applications. It combines a high-output oval woofer with a dedicated high-frequency assembly to deliver high SPL output in space- and weather-exposed motorcycle installs.

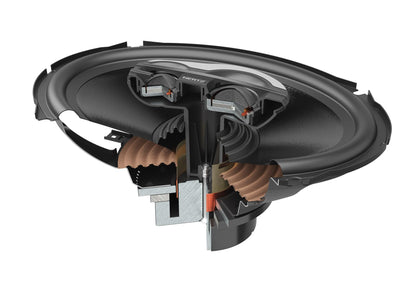

Power handling is rated at 130W continuous / 260W peak with a 4-ohm load, and the design focuses on durability and output: a nature-proof pressed-paper cone with water/humidity resistance and anti-UV treatment, plus compact Neodymium N38 H motor structures for high performance in limited mounting depth.
Key Performance Features
- SPL coaxial architecture for high-output motorcycle/bag installs
- Hi-SPL Mid-Hi unit with 1.4" dome tweeter + 1" dome super tweeter
- Resettable solid-state tweeter protection circuit
- Nature-proof pressed-paper cone with water/humidity resistance and anti-UV treatments
- Double-layer copper voice coil wound on a polyimide former for high power handling
- Double faston terminals for daisy-chaining and common motorcycle connection compatibility
- Special Neodymium N38 H motor units for compact size and high performance
Power Handling & Load
- Continuous (RMS): 130W
- Peak: 260W
- Impedance: 4 ohm
Installation Notes
- Designed as a coaxial for 2024 Harley bag speaker applications
- Weather-focused materials and treatments support outdoor motorcycle use
Technical Specifications
- Brand: Hertz
- Series / Family: SPL Show Speakers
- Model: SX 690 H NEO
- Component: SPL Coaxial
- Size: 6 x 9 in.
- Power Handling (Continuous): 130W
- Power Handling (Peak): 260W
- Impedance: 4 ohm

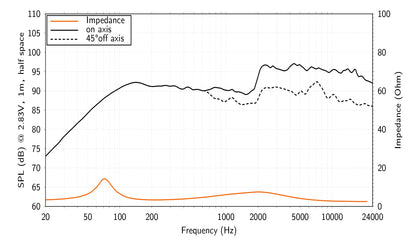

- Frequency Response: 65 Hz – 24 kHz
- Sensitivity (SPL): 94 dB
- Tweeter Diaphragm: 29 mm (1.14 in.)
- Woofer Voice Coil Diameter: 38 mm (1.5 in.)
- Tweeter Voice Coil Diameter: 25 mm (1 in.)
- Woofer Magnet: Special Neodymium N38 H
- Tweeter Magnet: Special Neodymium N38 H
- Cone: Water repellent pressed paper
- Dome: Tetolon
- Weight (each speaker): 1.69 kg (3.73 lb)
- Fs: 65 Hz
- Xmax: 5.5 mm
What’s Included

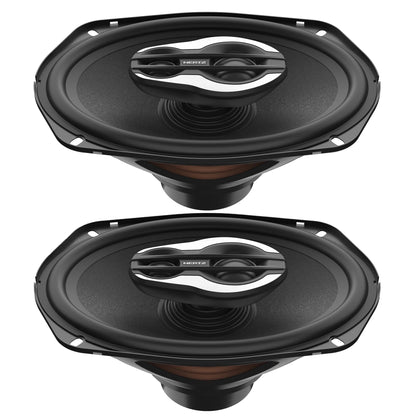

- (2) Hertz SX 690 H NEO speakers (pair)
Why Buy From MCOR Automotive
- Authorized Hertz retailer
- Motorcycle + high-output system matching support
- Fast fulfillment with knowledgeable install-level guidance

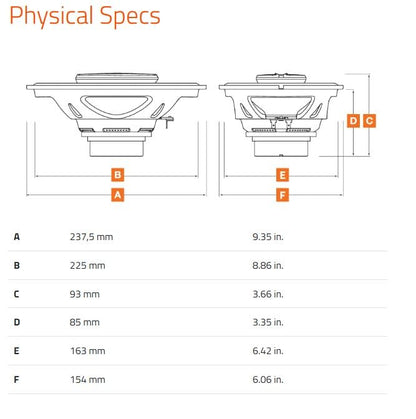

Physical Specs
| A | 237,5 mm | 9.35 in. |
| B | 225 mm | 8.86 in. |
| C | 93 mm | 3.66 in. |
| D | 85 mm | 3.35 in. |
| E | 163 mm | 6.42 in. |
| F | 154 mm | 6.06 in. |
