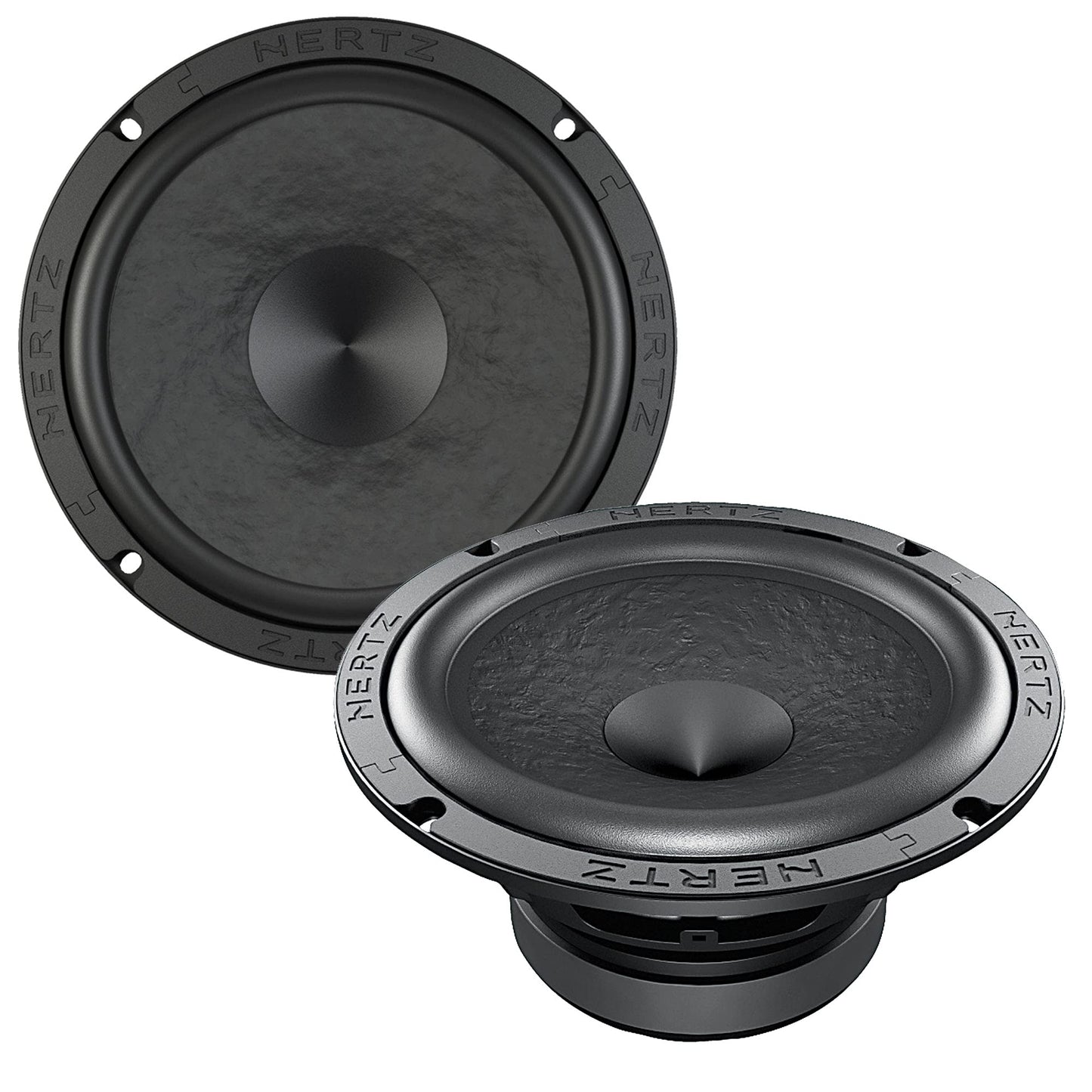

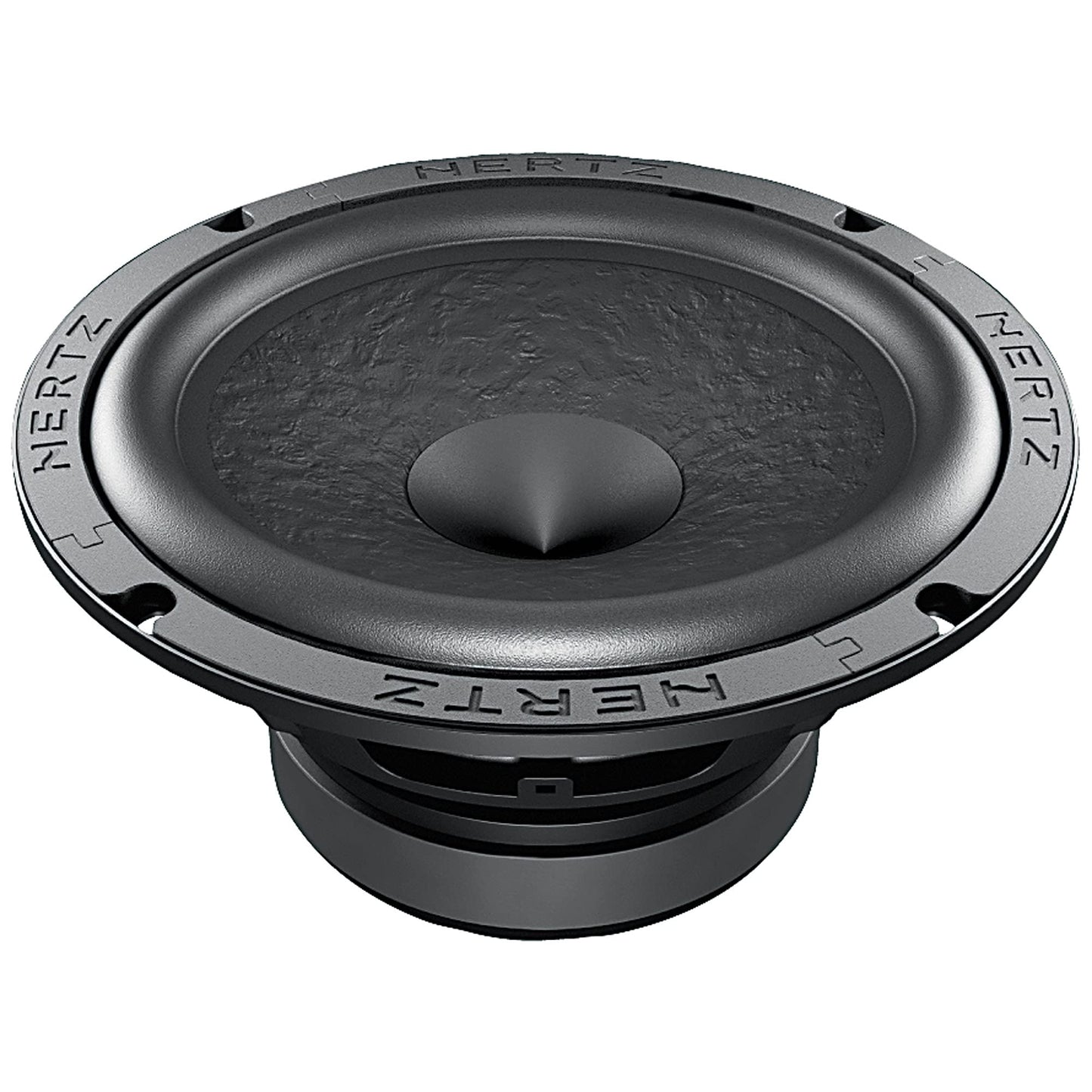

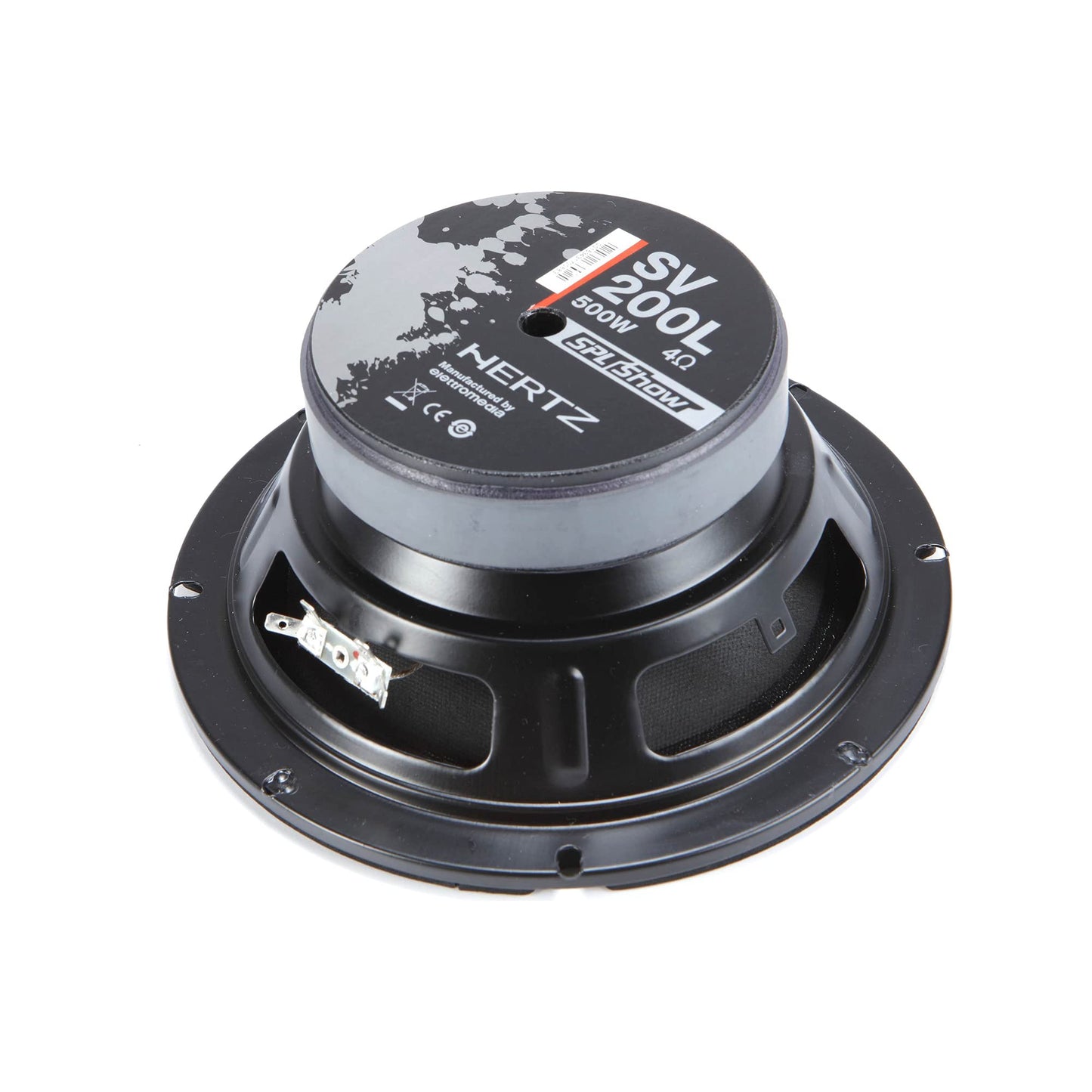

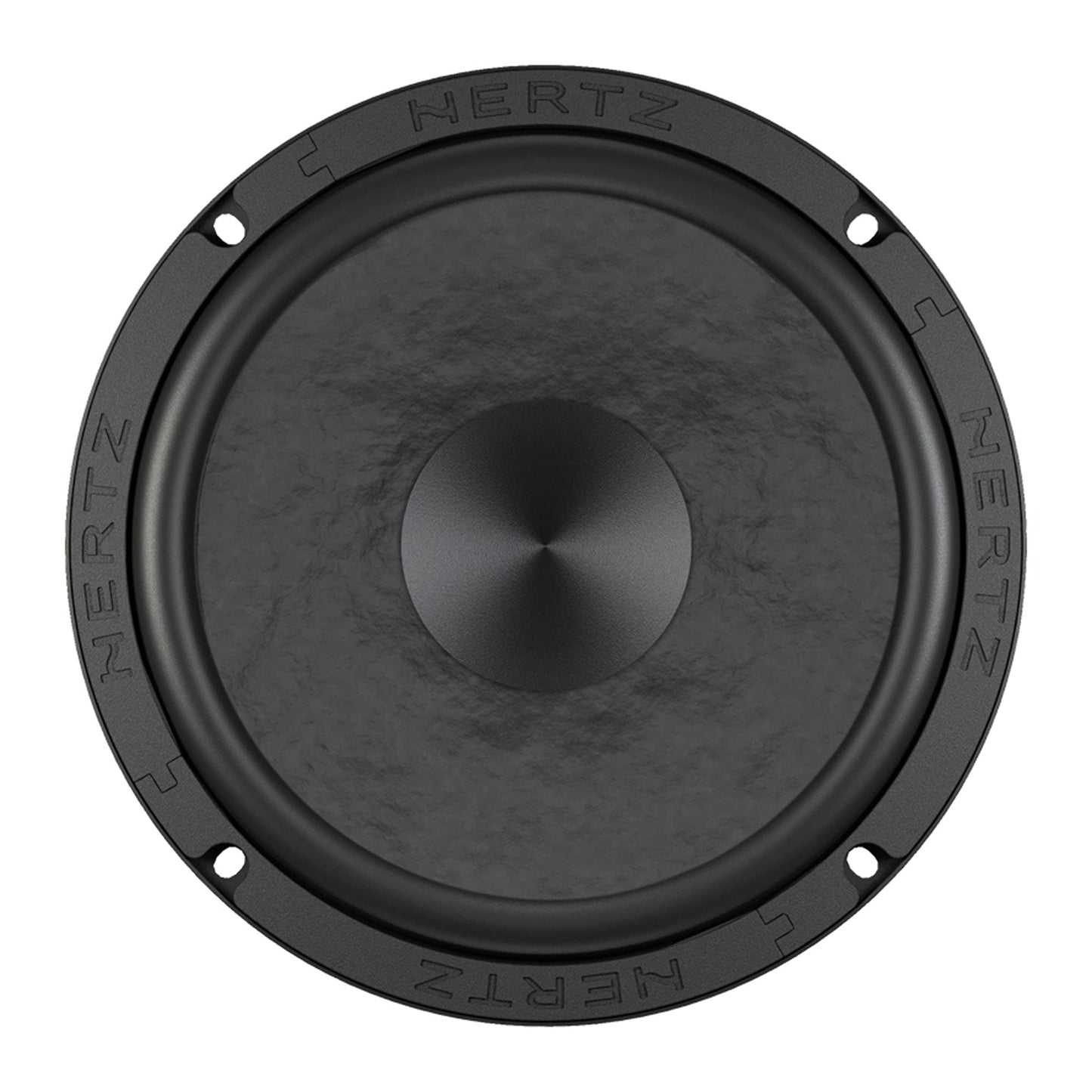

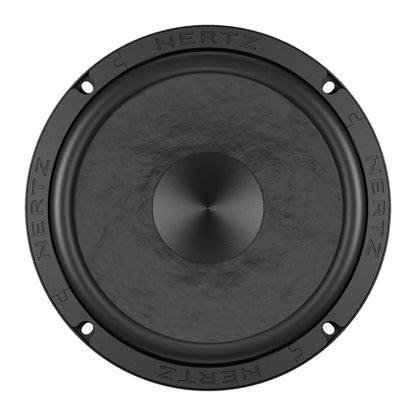

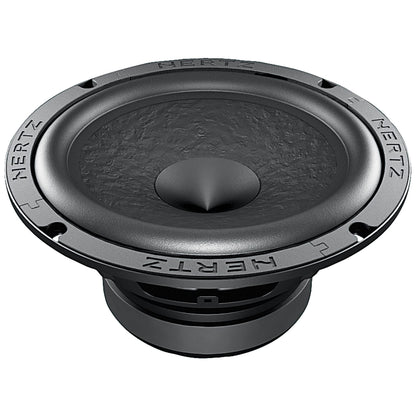

Hertz SPL Show SV 200L 8 in. (200mm) SPL 4-Ohm Woofers (Pair)

Hertz SV 200L is an 8-inch (200mm) SPL woofer from the SPL Show Series, built for high-output midbass/low-frequency applications where efficiency and impact matter. It is designed as a dedicated SPL woofer (not a subwoofer) for horn/loading or high-SPL door and enclosure builds.

The SV 200L handles 250W continuous (RMS) and 500W peak power at 4 ohms, with a stated 45–4.5kHz frequency response and 94.5 dB sensitivity. A 50mm (2") voice coil and high-density flux ferrite motor support thermal stability and output under load.

Key Performance Features

• 8" (200mm) SPL woofer optimized for high-output applications
• 250W RMS / 500W peak power handling
• 4Ω single-driver impedance
• High-sensitivity design (94.5 dB)
• 50mm (2") voice coil for power handling and control
• High-density flux ferrite magnet motor structure
• Ultra-light, non-pressed paper cone for fast midbass response

Power Handling

• Continuous (RMS): 250W
• Peak: 500W

Installation Use Cases

• High-SPL midbass / low-frequency builds (pair-based systems)
• Door, baffle-wall, or enclosure applications where efficiency is critical
• Systems needing strong output from ~45Hz upward without relying on a traditional subwoofer alignment

Technical Specifications

• Brand: Hertz
• Series: SPL Show
• Model: SV 200L
• Component Type: SPL Woofer
• Size: 200mm (8")
• Impedance: 4 Ω
• Power Handling (Continuous): 250W
• Power Handling (Peak): 500W
• Frequency Response: 45 – 4.5k Hz
• Sensitivity: 94.5 dB SPL
• Voice Coil Diameter: 50mm (2")
• Magnet: High density flux ferrite
• Cone: Ultra light, non-pressed paper
• Weight (each): 2.32 kg (5.1 lb)
• Overall Diameter (A): 209 mm (8.3")
• Cutout Diameter (B): 178 mm (7.0")
• Total Depth (C): 91 mm (3.6")
• Mounting Depth (D): 82 mm (3.2")

Electro-Acoustic Parameters

• Fs: 44 Hz
• Re: 3.0 Ω
• Qts: 0.33
• Vas: 29 L
• Xmax: 4.5 mm
• BL: 8.6 T•m

What’s Included

• (2) Hertz SV 200L 8" SPL woofers
• Manufacturer documentation

Why Buy From MCOR Automotive

• Authorized Hertz retailer
• System-matching support (amp pairing, enclosure/placement guidance)
• Experienced 12V audio shop support

Physical Specs

A	209 mm	8.3 in.
B	178 mm	7 in.
C	91 mm	3.6 in.
D	82 mm	3.2 in.
