HERTZ

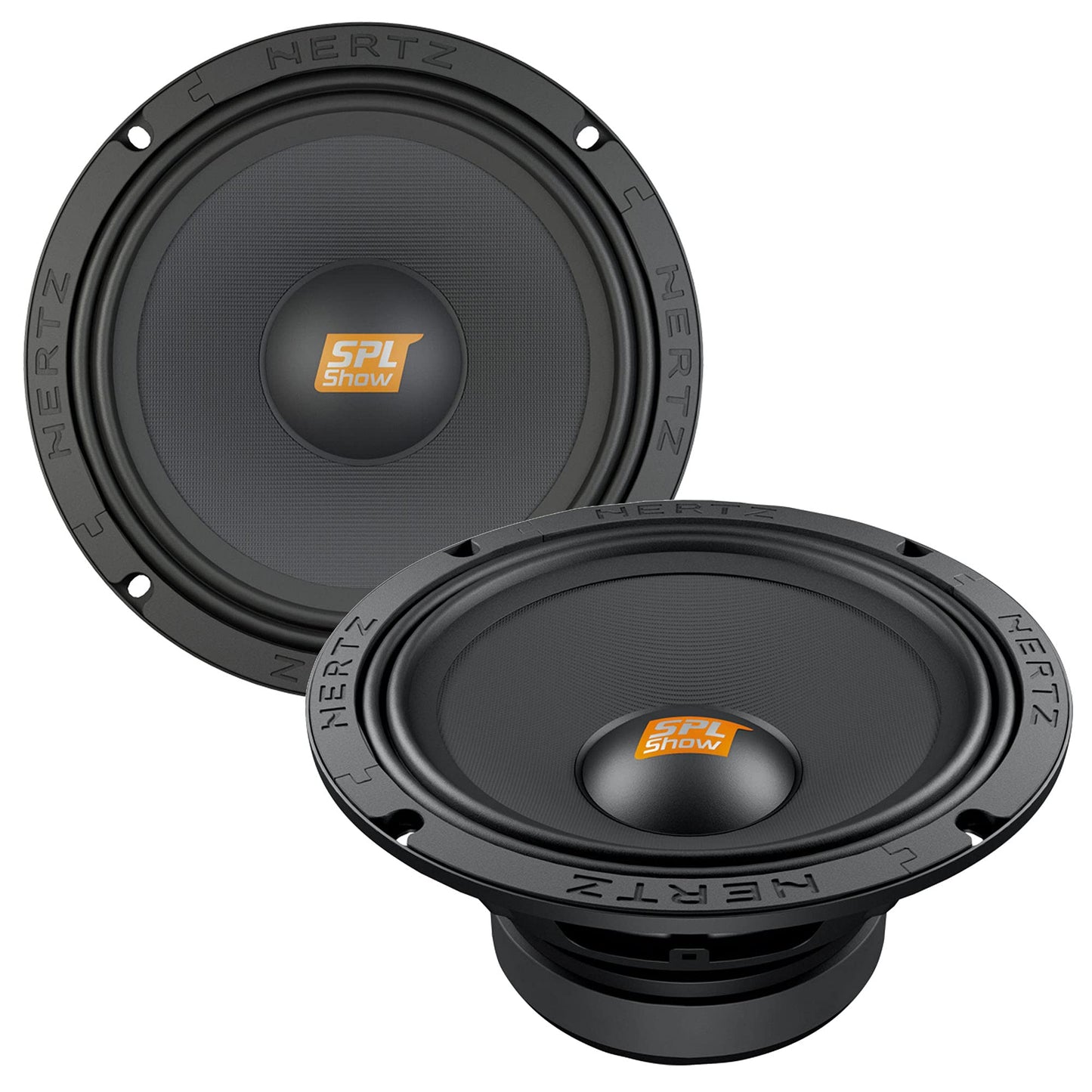

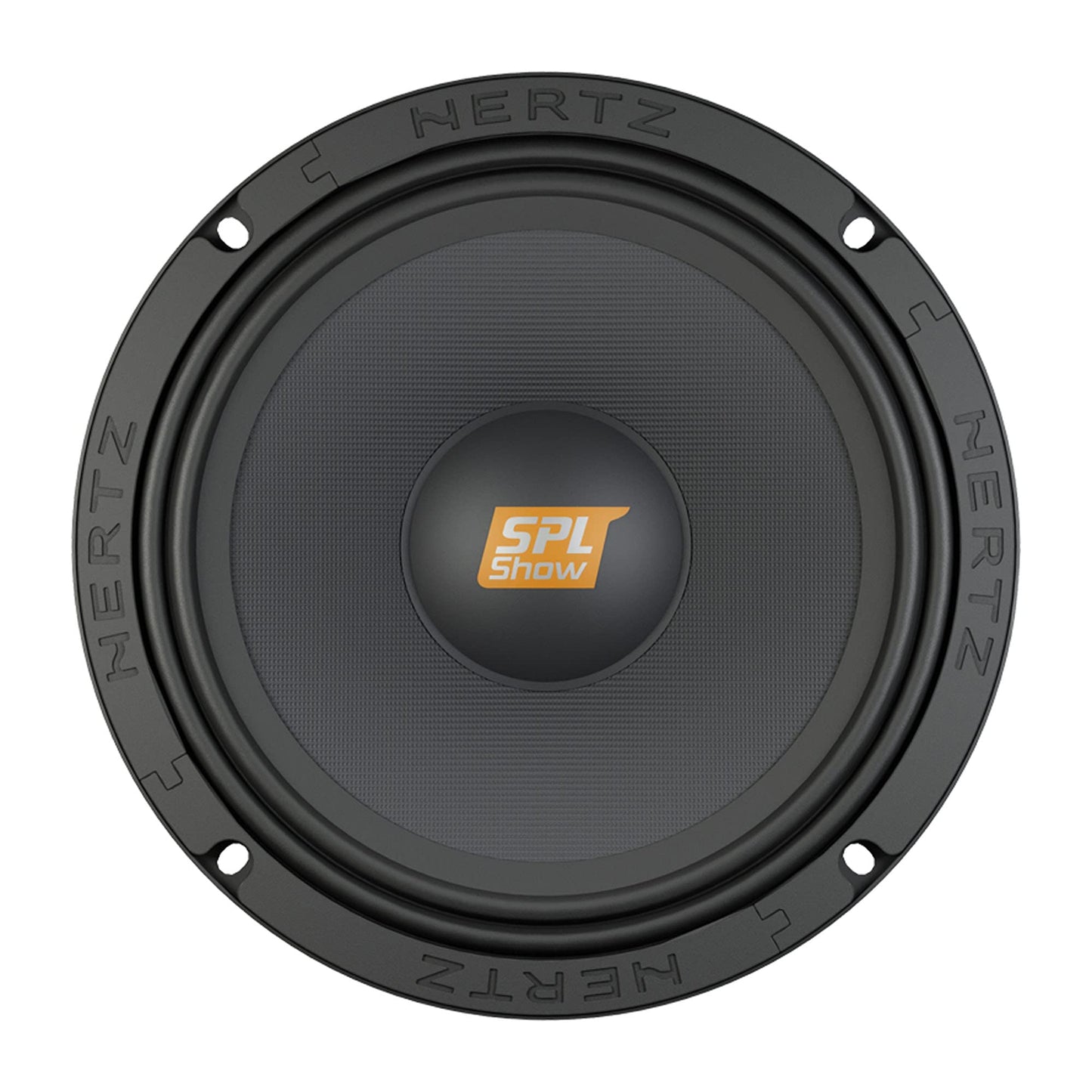

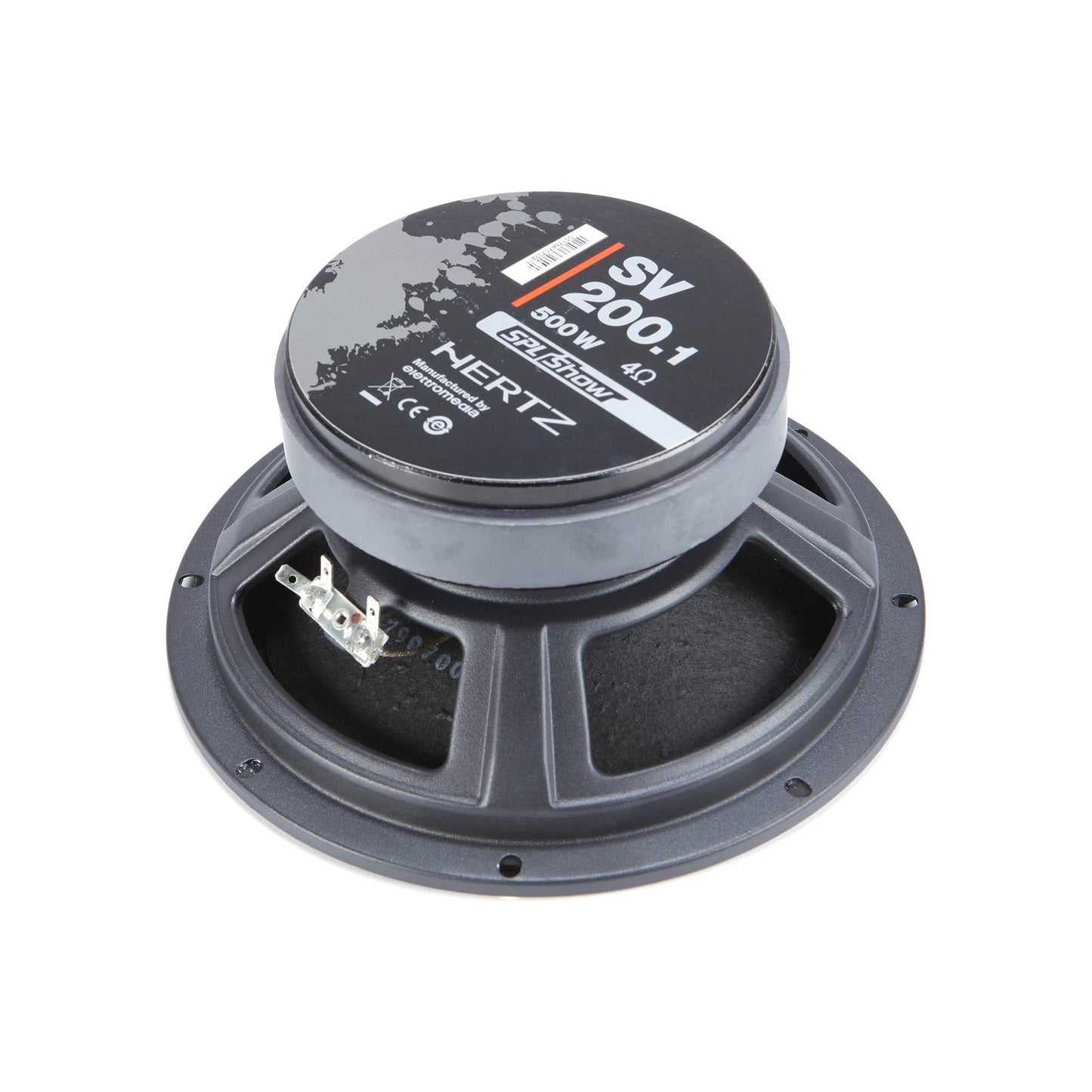

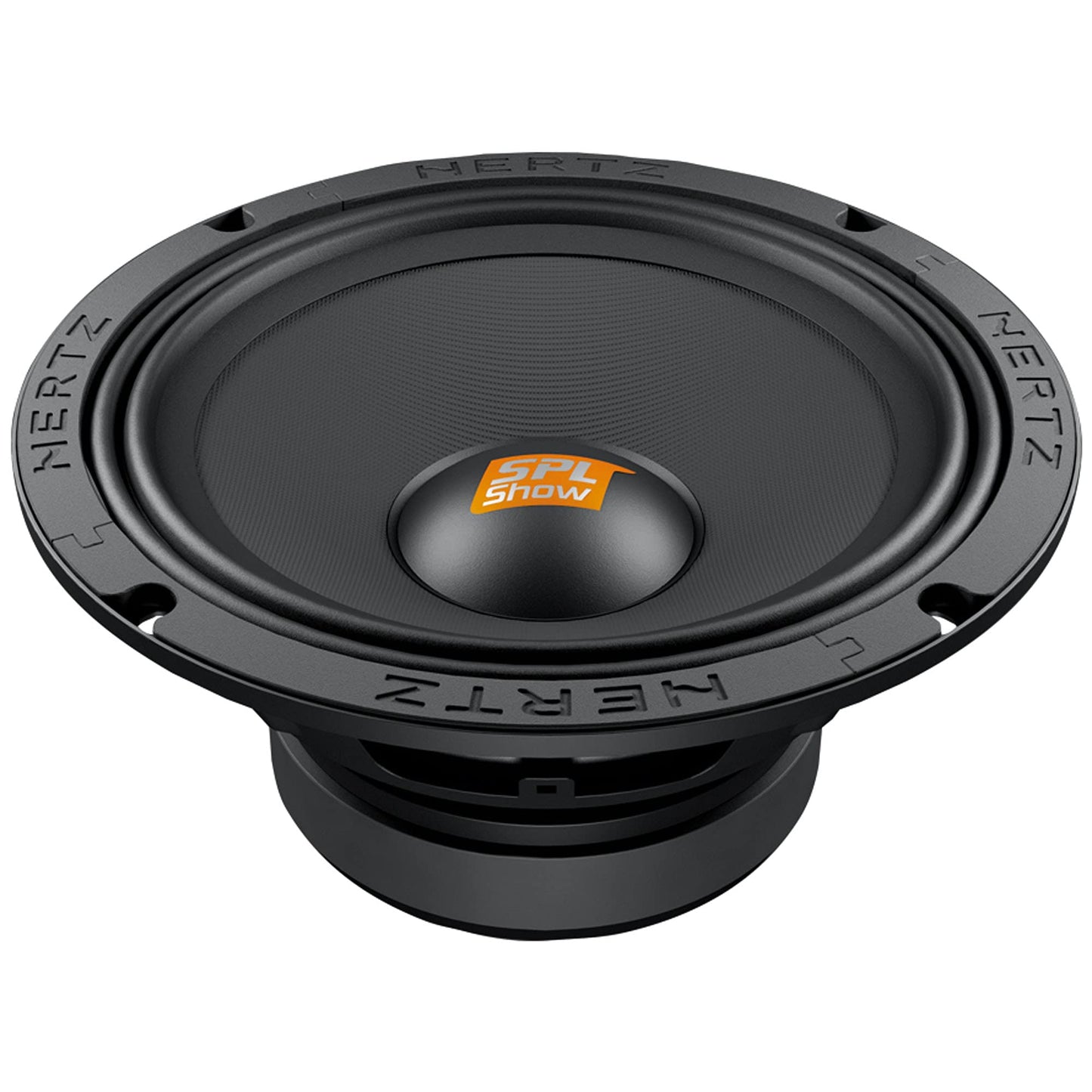

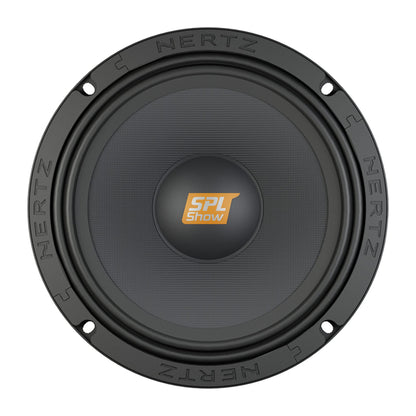

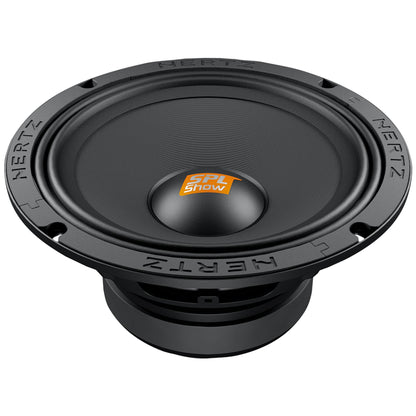

Hertz SPL Show SV 200.1 8 in. (200mm) SPL 4-Ohm Midrange Speakers (Pair)

Hertz SPL Show SV 200.1 8 in. (200mm) SPL 4-Ohm Midrange Speakers (Pair)

Regular price $319.99 USD
Regular price $319.99 USD Sale price $319.99 USD
Sale Sold out
Shipping calculated at checkout.

The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and lightweight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores. Features - High magnetic permeability plates provide constant, even flux. High density flux ferrite magnet, for top SPL performance. Double layer copper voice coil, wound on KSV former; for excellent thermal and mechanical capability. High current, tin-plated terminals. Damped fabric surround; for maximum lightness and extreme SPL. Water-repellent, pressed paper cone. Specifications - Size mm (in.): 200 (8) Power Handling - Peak W: 500 Impedance Ω: 4 Frequency response Hz: 100 ÷ 9k Sensitivity dB SPL: 100 Voice coil Ø mm (in.): 38 (1.5) Magnet: High density flux ferrite Cone/Dome: Ultra light pressed pape
