HERTZ

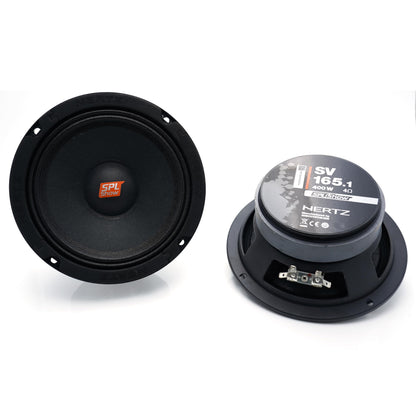

Hertz SPL Show SV 165.1 6.5" 4-Ohm SPL Midrange Speaker Drivers (Pair)

Hertz SPL Show SV 165.1 6.5" 4-Ohm SPL Midrange Speaker Drivers (Pair)

Regular price $249.99 USD
Regular price $249.99 USD Sale price $249.99 USD
Sale Sold out
Shipping calculated at checkout.

SV 165.1 (6.5) mm (in.) | Spl Midrange | 400 W | 4 Ohm


The SV 165.1 car audio midrange can be employed to build systems with tremendous impact. Like the SX subwoofers, the SV 165.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.

Component SPL Midrange
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 150
Power Handling - Peak W 400
Impedance Ohm 4
Voice Coil Ø 38 (1.5)
Frequency Response Hz 100 ÷ 10k
Magnet size D x d x h mm (in.) 110 x 45 x 20 (4.3 x 1.8 x 0.8)
Weight of one speaker kg (lb.) 1,85 (4)
Magnet High density flux ferrite
Cone Ultra light pressed paper
Technical Specs

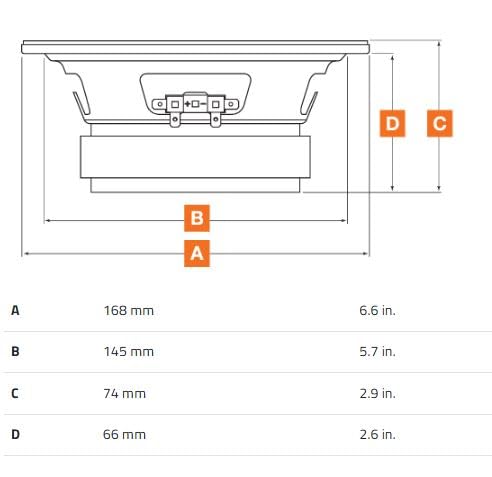

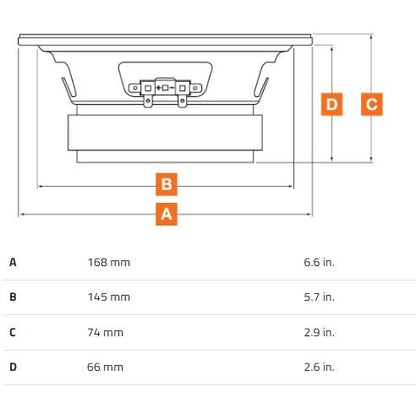

Physical Specs
SV 165.1
A 168 mm 6.6 in.
B 145 mm 5.7 in.
C 74 mm 2.9 in.
D 66 mm 2.6 in.
